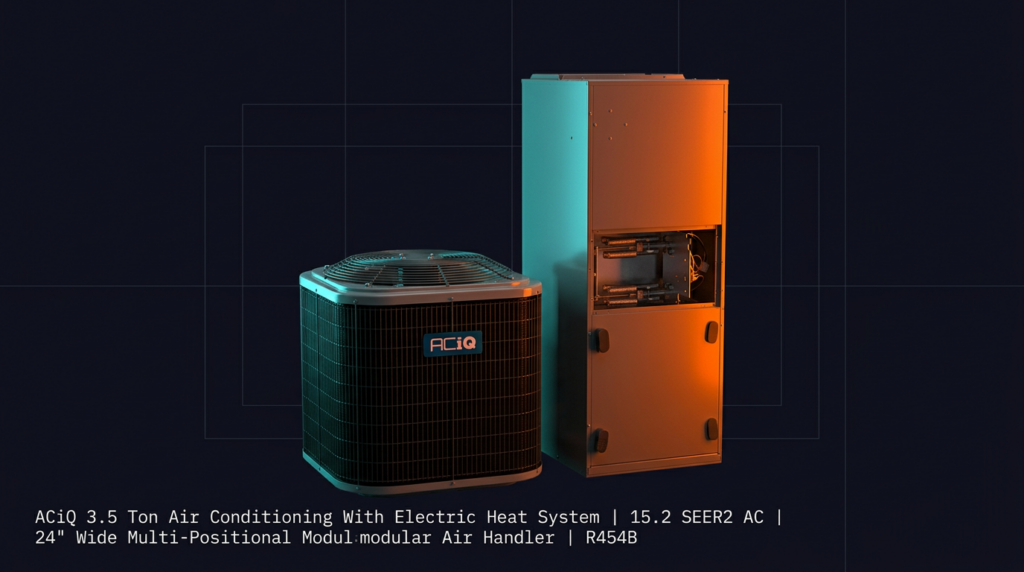

ACiQ 3.5 Ton Air Conditioning With Electric Heat System | 15.2 SEER2 AC | 24" Wide Multi-Positional Modular Air Handler | R454B
Check current price on AC Direct →
Key features
- 15.2 SEER2 efficiency rating meets 2023 federal minimum standards with moderate headroom above the baseline
- 3.5-ton capacity suited to homes roughly 1,800 to 2,400 sq ft depending on climate and load
- R-454B refrigerant complies with current EPA low-GWP requirements and replaces R-410A
- 24-inch wide multi-positional air handler installs upflow, downflow, or horizontal
- Integrated electric heat strips provide all-electric heating without a separate furnace
- Sold factory-direct with a 12-year parts warranty and no dealer markup built into the price
About this system
The ACiQ 3.5-ton air conditioning system with electric heat pairs a 15.2 SEER2 condensing unit with a 24-inch wide multi-positional modular air handler that uses R-454B refrigerant, a lower-GWP replacement for R-410A now required under current EPA phasedown rules. At 3.5 tons, this system is sized for homes roughly in the 1,800 to 2,400 square foot range depending on climate zone, insulation quality, and window load. The electric heat strips built into the air handler make it a true all-electric solution without the need for a separate furnace, which suits climates where winters are mild enough that resistive heat is an acceptable primary heat source or a backup to a heat pump.
The modular air handler is designed to install in multiple orientations, upflow, downflow, or horizontal, which gives it flexibility in tight mechanical rooms, closets, or attic spaces where a fixed-position unit would not fit. The R-454B refrigerant charge means any servicing technician will need to be familiar with the new refrigerant class, which has a mild flammability rating (A2L) and requires compatible tools and recovery equipment. Buyers replacing an older R-22 or R-410A system should confirm their contractor is equipped for A2L work before scheduling installation.
The ACiQ 3.5-ton system offers a competitive entry price and a genuinely strong 12-year warranty for buyers willing to accept that the brand is newer and long-term reliability data is still thin. It is a reasonable choice for cost-conscious homeowners in moderate climates who have a capable independent contractor lined up, but buyers who prioritize a known service network or a Consumer Reports reliability track record will find more certainty with established brands at a higher price.
Overall score is the average of the five ratings above.
What we like
- Factory-direct pricing undercuts most name-brand equivalents at this efficiency tier
- 12-year parts warranty is longer than the 10-year standard offered by most competitors
- Multi-positional air handler adds installation flexibility in awkward mechanical spaces
- R-454B refrigerant is future-compliant and avoids near-term regulatory obsolescence
- Early owner feedback consistently notes quiet operation and responsive customer support
Trade-offs
- Brand is relatively new and Consumer Reports has not yet assigned a reliability score due to insufficient long-term data
- Undisclosed manufacturer makes cross-referencing parts, service bulletins, and failure history harder than with a named brand
- No proprietary dealer network means service quality depends entirely on the independent contractor you hire
- Electric heat strips are an inefficient heat source in cold climates, and this system is not a heat pump
What homeowners and pros say about ACiQ
Homeowners who have installed ACiQ systems in the past two years frequently point to the quiet operation of the outdoor unit and the straightforward communication with AC Direct’s support team as the standout positives. Because the brand is newer, Consumer Reports has not yet accumulated enough long-term ownership data to assign a reliability score, which is an honest gap buyers should weigh. The specific failure modes documented in the HVAC community for this class of equipment, including capacitor failures in the first few years, evaporator coil leaks that can be difficult to trace without a known manufacturer’s service bulletin, and uncertainty about compressor lifespan beyond the warranty period, are worth discussing with your contractor before committing.
Independent HVAC technicians who have worked on ACiQ equipment generally report that the units are straightforward to install and that parts availability has been acceptable so far, though some note that not knowing the upstream manufacturer makes it harder to anticipate which OEM components are under the hood. The shift to R-454B refrigerant is a real consideration for service: contractors without A2L-rated recovery equipment or training will need to get current before they can legally work on this system. For buyers prioritizing upfront cost and a longer-than-average warranty over a proven multi-decade reliability record, ACiQ occupies a legitimate and honest position in the market; for those who want the reassurance of Consumer Reports rankings and a factory-backed dealer network, the name brands still carry an advantage that has a real price attached to it.
Sources: Consumer Reports heat pump ratings, HVACDirect on the ACiQ brand, AHRI Directory of Certified Product Performance, U.S. DOE appliance and equipment efficiency standards.
What it costs to run
At 15.2 SEER2, cooling this 3.5-ton system for a typical 1200-hour cooling season at the U.S. average electricity rate of $0.17/kWh works out to roughly $564 per year in cooling, about $75 less per year than a minimum-efficiency 13.4 SEER2 unit of the same size. Your real cost depends on your climate and local rate.
Method: (42,000 BTU/hr ÷ 15.2 SEER2) × 1200 hours ÷ 1000 × $0.17/kWh. Rate source: U.S. EIA average; cooling hours: moderate-climate estimate.
How it compares
| Brand | Comparable model | SEER2 | Stage | Price position |
|---|---|---|---|---|
| ACiQ | 3.5-Ton 15.2 SEER2 AC with Electric Heat Air Handler | 15.2 | Single-stage | Value pick |
| Carrier | Comfort 24ACC636 with FB4C Air Handler | 15.2 | Single-stage | Moderately higher with dealer markup |
| Trane | XR15 with XB80 or Air Handler pairing | 15.0-15.2 | Single-stage | Moderately to considerably higher through dealer network |
| Lennox | Merit ML14XC1 with CBX27UH Air Handler | 15.0-15.2 | Single-stage | Moderately higher with dealer markup |
Competitor rows are comparable single-stage units at similar efficiency; price is relative position, not a quote.
Questions about this system
Can any licensed HVAC technician service this system, or do I need an ACiQ-authorized dealer?
Any licensed technician can service it, but they will need R-454B recovery equipment and familiarity with A2L refrigerant handling since this refrigerant has a mild flammability rating. There is no proprietary dealer network, so your local independent contractor is your primary service resource.
Is the electric heat in this system efficient enough for a cold winter climate?
Electric resistance heat strips operate at roughly 100 percent efficiency, meaning all electricity converts to heat, but electricity is typically more expensive per BTU than gas or a heat pump. In climates where heating loads are significant, the operating cost of resistive electric heat can be substantially higher than a heat pump alternative, so this system is best suited to mild-winter regions.
Why does ACiQ not disclose who manufactures the equipment?
AC Direct keeps the original equipment manufacturer confidential because the same or similar hardware is sold under other brand names at higher prices. Forum speculation points to the ICP and Carrier manufacturing family, but this is unconfirmed. The practical consequence is that cross-referencing parts or service history with a known brand is harder than it would be with a fully transparent supply chain.
What does the 12-year warranty actually cover, and are there registration requirements?
ACiQ's warranty covers parts for 12 years, which is longer than the 10-year standard from most major brands. You should confirm registration requirements directly with ACiQ at purchase, as many manufacturers require registration within a short window after installation to activate the full term.
Will my existing ductwork and thermostat work with this system?
In most cases, yes, but a 3.5-ton system requires ductwork sized to handle that airflow without excessive static pressure, so a contractor should perform a Manual D check before installation. The R-454B refrigerant system is not compatible with existing line sets charged with R-410A or R-22, so new or thoroughly flushed copper line sets are typically required.
Specifications
| Cooling capacity | 3.5 Ton |
| Efficiency | 15.2 SEER2 |
| Refrigerant | R-454B |
