ACiQ 4 Ton Air Handler | 21" Wide Multi-Positional | R454B (FHMA5X48L0CA)
Check current price on AC Direct →
Key features
- 21-inch-wide cabinet fits narrower mechanical closets and utility spaces
- Multi-positional installation: upright, horizontal, or downflow without a separate model
- R-454B refrigerant compatibility meets current EPA low-GWP requirements
- 4-ton capacity suited to larger residential spaces up to roughly 2,400 sq ft
- Sold factory-direct, eliminating dealer markup and associated price inflation
- 12-year parts warranty included with registration, no dealer required to activate
About this system

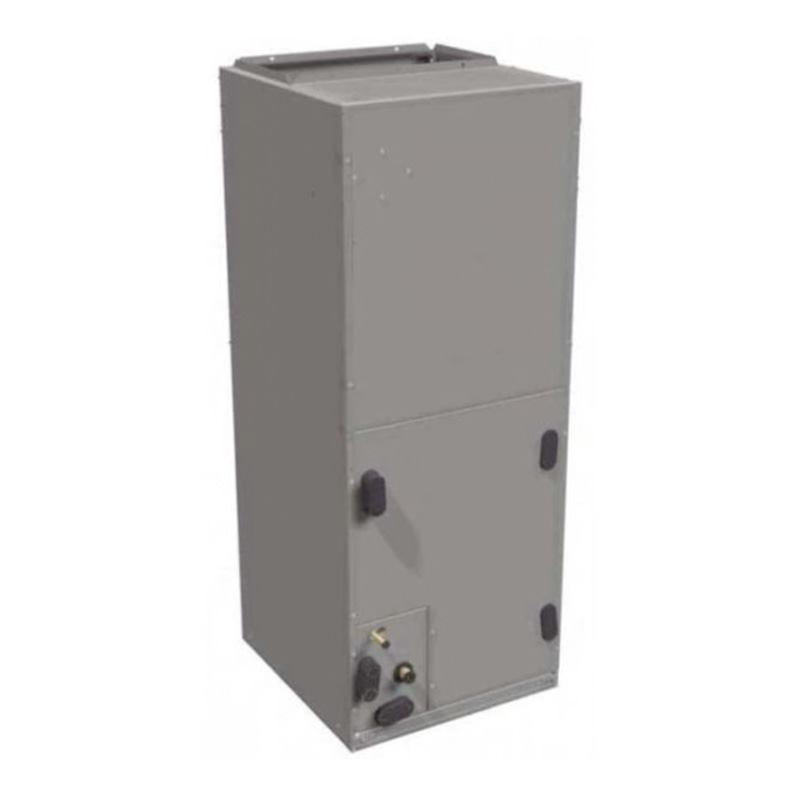

The ACiQ FHMA5X48L0CA is a 4-ton, 21-inch-wide multi-positional air handler designed to work as the indoor half of a split-system cooling or heat pump setup. The 21-inch cabinet width is a practical selling point: it fits in tighter mechanical closets and utility spaces where a standard-width unit would not, and the multi-positional design means it can be installed in horizontal, upright, or down-flow configurations without buying a separate model for each application. It is rated for R-454B refrigerant, the lower-GWP replacement for R-410A that is now required on new equipment under updated EPA rules, so this unit is forward-compatible with the current generation of outdoor condensing units.
At 4 tons, this handler moves enough conditioned air for roughly 1,800 to 2,400 square feet of living space, depending on your climate zone, insulation quality, and Manual J load calculation. The unit pairs with a matched outdoor condenser to form a complete system, and the efficiency rating of that complete system depends on the condenser you choose. Because this is an air handler only, no standalone SEER2 figure applies here. Buyers should confirm the matched system’s AHRI-certified SEER2 rating before purchase. ACiQ sells direct through AC Direct, which eliminates dealer markup and is a significant part of why the price comes in below comparable equipment from name-brand distributors.
The FHMA5X48L0CA is a competitively priced air handler that earns its place on the shortlist for cost-conscious homeowners who already have a qualified contractor lined up and are comfortable with a newer brand. The 21-inch width and multi-positional flexibility are genuine practical advantages. The trade-off is that ACiQ lacks the long-term reliability track record of Carrier or Trane, and the undisclosed manufacturer makes parts sourcing and service history harder to cross-reference.
Overall score is the average of the five ratings above.
What we like
- 21-inch cabinet width opens up installation options that standard-width handlers cannot match
- Multi-positional flexibility reduces the need to buy application-specific models
- R-454B ready, so it works with current-generation outdoor units and avoids near-term refrigerant compliance headaches
- 12-year parts warranty with no dealer markup is unusually strong for a value-positioned brand
- Factory-direct pricing undercuts comparable handlers from name-brand distributors by a meaningful margin
Trade-offs
- No long-term reliability data exists yet; Consumer Reports has not ranked ACiQ due to insufficient history
- The undisclosed manufacturer makes it harder to cross-reference parts, service bulletins, or failure histories
- No dedicated dealer network means you must find an independent contractor comfortable working with a direct-sale brand
- System efficiency (SEER2) depends entirely on the matched outdoor unit; buyers must verify the combined AHRI rating themselves
What homeowners and pros say about ACiQ
Early owner feedback on ACiQ equipment, gathered across contractor forums and direct-sale HVAC communities, tends to cluster around three themes: the units are quieter than expected for the price tier, initial performance matches what the specs suggest, and ACiQ’s support team responds when something needs clarification. That is an encouraging early picture, but it is worth being clear about what it is not: it is early-ownership feedback, not the kind of multi-year reliability data that Consumer Reports uses to assign scores. Consumer Reports has not yet ranked ACiQ because the brand is too new to have sufficient long-term history in their dataset, and that gap is real, not a technicality.
From the contractor side, the most commonly cited friction point is the undisclosed manufacturer. An experienced tech working on a Carrier or ICP unit can pull up decades of service bulletins, cross-reference parts across sister brands, and call a local distributor for next-day delivery. With ACiQ, that cross-referencing is harder because the parent company is not officially confirmed, even if forum speculation about ICP and the Carrier family turns out to be correct. Documented concerns specific to the broader value-brand direct-sale segment include the usual suspects for air handlers: capacitor wear over time, potential coil leaks if refrigerant charge is not set precisely at installation, and questions about long-term compressor longevity in the paired outdoor unit. None of these are unique to ACiQ, but the thinner service network means any failure resolution depends more heavily on you and your contractor than it would with a brand that has a local dealer on every commercial strip.
Sources: Consumer Reports heat pump ratings, HVACDirect on the ACiQ brand, AHRI Directory of Certified Product Performance, U.S. DOE appliance and equipment efficiency standards.
How it compares
| Brand | Comparable model | SEER2 | Stage | Price position |
|---|---|---|---|---|
| ACiQ | FHMA5X48L0CA | System-dependent (no standalone rating) | Matches paired outdoor unit | Value pick |
| Carrier | Fan Coil FB4C series (4-ton) | System-dependent | Matches paired outdoor unit | Significantly higher; includes dealer network and long reliability track record |
| Trane | Air Handler TAM9 series (4-ton) | System-dependent | Matches paired outdoor unit | Significantly higher; premium pricing reflects brand recognition and dealer support infrastructure |
| Lennox | CBX32MV series (4-ton) | System-dependent | Variable-speed ECM motor | Higher to substantially higher; variable-speed motor adds cost but improves comfort and system efficiency |
Competitor rows are comparable single-stage units at similar efficiency; price is relative position, not a quote.
Questions about this system
Does this air handler have its own SEER2 rating, and how do I find the efficiency of my complete system?
Air handlers do not carry a standalone SEER2 rating. Efficiency is a function of the complete matched system, meaning this handler plus a specific outdoor condenser. You need to look up the combined unit on the AHRI directory using both model numbers to find the certified SEER2 for your specific pairing.
The cabinet is listed as 21 inches wide. Is that the actual cabinet width or a rough figure?
The 21-inch figure refers to the nominal cabinet width. Always check the full dimensional sheet from ACiQ before ordering, particularly if you are replacing an existing unit in a tight alcove or closet, since rough-in clearances and duct collar positions also affect fit.
How does the 12-year warranty work if ACiQ sells direct and there is no local dealer?
ACiQ's 12-year parts warranty is registered directly with the brand, not through a dealer, which is actually one of its advantages since coverage does not depend on maintaining a dealer relationship. Labor is not covered, so your independent contractor's labor cost for any warranty repair is your responsibility.
My contractor is not familiar with ACiQ. Will they have trouble sourcing parts or finding service information?
This is a legitimate concern. Because the underlying manufacturer is not publicly disclosed, a contractor cannot easily cross-reference ACiQ parts against a known parent brand's catalog the way they could with, say, a Carrier or Bryant unit. ACiQ's customer support is reported to be responsive, but your contractor should be comfortable working with a brand where parts sourcing relies on going through ACiQ directly rather than a local distributor.
Can this air handler be used with a heat pump outdoor unit, or is it cooling only?
The FHMA5X48L0CA is designed to work with both air conditioning and heat pump outdoor units, which is standard for modern multi-positional air handlers. Confirm compatibility with your specific outdoor unit model using AHRI certification data before purchasing, and verify that your electric heat kit requirements, if any, are also met.
Specifications
| Cooling capacity | 4 Ton |
| Refrigerant | R-454B |
| Model | FHMA5X48L0CA |
