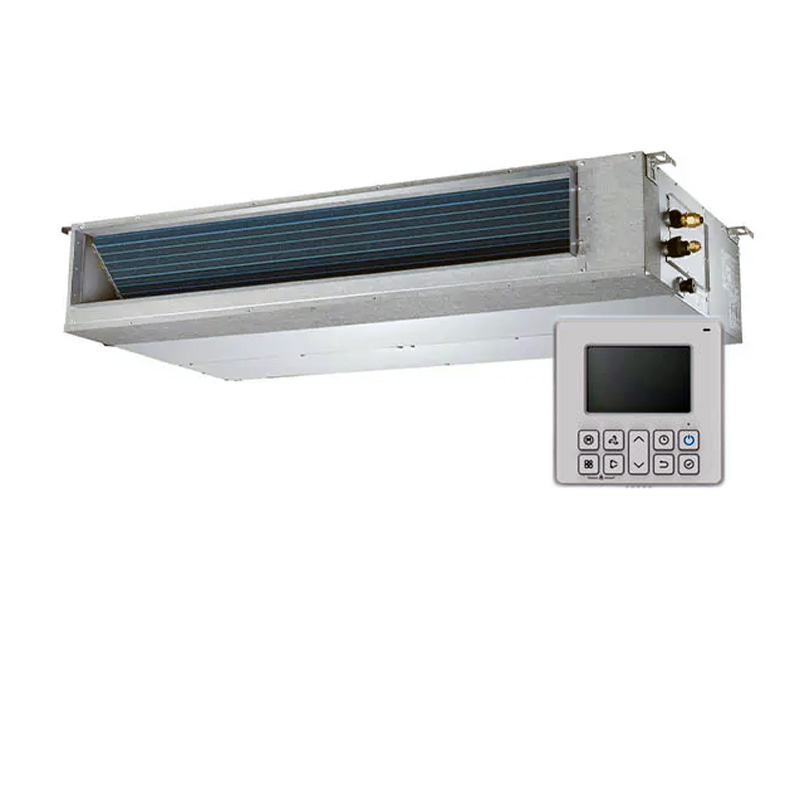

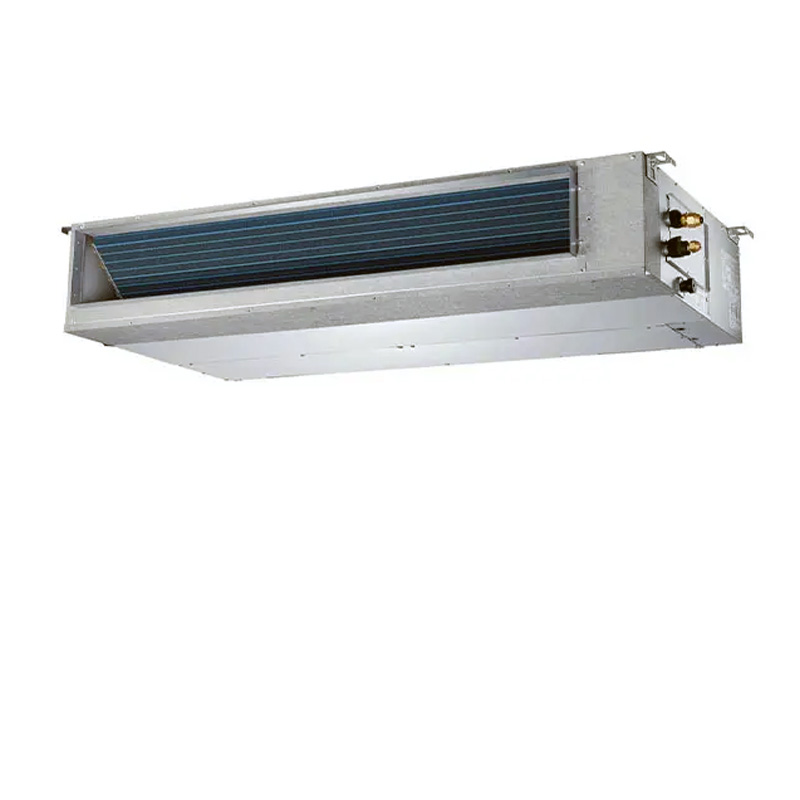

ACiQ 12000 BTU Mini Split Concealed Duct Indoor Air Handler | R454B (ACIQ-12CD-HH-MC)
Check current price on AC Direct →
Key features
- 12,000 BTU cooling capacity for single-zone ducted mini-split applications
- Concealed duct configuration hides the air handler above ceilings or inside closets
- R-454B refrigerant meets current EPA low-GWP requirements
- Designed for short duct distribution to multiple registers from one indoor unit
- Compatible with ACiQ inverter-driven outdoor units for variable-speed operation
- Ships direct with a 12-year warranty, no dealer markup built into the price
About this system
The ACiQ 12,000 BTU Concealed Duct Mini Split Indoor Air Handler (ACIQ-12CD-HH-MC) is the indoor unit half of a ducted mini-split system, designed to tuck into a ceiling cavity or closet and distribute conditioned air through short duct runs to one or more registers. Unlike a wall-mounted ductless cassette, this handler keeps the mechanical hardware completely out of sight, making it a practical fit for finished spaces where exposed indoor units are not acceptable. It pairs with an ACiQ outdoor unit and uses R-454B refrigerant, a lower-global-warming-potential alternative to R-410A that is now standard in new equipment sold in the United States.
At 12,000 BTU, this handler is sized for spaces roughly in the 400 to 550 square foot range under typical load conditions, though actual sizing depends on insulation, climate, window area, and ceiling height. The concealed duct format occupies a middle ground between a full ducted central system and a standard ductless mini-split: it offers the aesthetic cleanliness of hidden equipment while avoiding the cost and complexity of a full air-handler-and-furnace installation. That makes it particularly useful in additions, finished basements, sunrooms, or vacation homes where running new ductwork to the main system is not practical. Buyers should note that SEER2 ratings for this specific configuration have not been published in the available specs, so efficiency comparisons with rated competitors require checking the AHRI certificate for the matched outdoor unit before purchase.
The ACiQ concealed duct handler offers a cost-accessible entry into ducted mini-split territory, and the 12-year warranty provides meaningful long-term coverage for a value brand. The main caution is straightforward: the brand is new enough that long-term field reliability is unverified, the manufacturer is undisclosed, and service depends entirely on finding an independent contractor willing to work on non-dealer equipment.
Overall score is the average of the five ratings above.
What we like
- Concealed installation keeps mechanical hardware completely out of finished living spaces
- R-454B refrigerant is compliant with current and anticipated low-GWP regulations
- 12-year warranty is competitive with or better than most name-brand coverage at this price tier
- Direct-to-consumer pricing undercuts comparable ducted mini-split units from major brands
- Early owner feedback points to quiet operation and responsive ACiQ customer support
Trade-offs
- SEER2 rating is not published in the available specs, making verified efficiency comparisons difficult without the AHRI certificate
- The actual manufacturer is undisclosed, which complicates parts sourcing and cross-referencing service history
- No dealer network means installation and service rely on independent contractors who may be unfamiliar with the equipment
- Long-term reliability data is thin and Consumer Reports has not yet assigned a reliability score to the ACiQ brand
What homeowners and pros say about ACiQ
Homeowners who have installed ACiQ equipment generally highlight two things: the price gap versus name brands is real, and the support team is responsive when questions come up during installation. Early owners of ducted and ductless ACiQ units report quiet operation and stable performance through initial seasons, which aligns with what you would expect from inverter-driven equipment. That said, Consumer Reports has not yet ranked ACiQ due to insufficient long-term field data, and that gap in independent verification is a legitimate reason for caution. The brand is new enough that nobody can honestly tell you how these systems hold up at the seven- or ten-year mark.
HVAC contractors who encounter ACiQ in the field tend to have a practical concern that goes beyond brand preference: because the actual manufacturer is not publicly disclosed, cross-referencing parts, service bulletins, or compressor histories is harder than with a Carrier, Lennox, or Trane unit where the supply chain is well mapped. For a concealed duct unit specifically, where access for service is already more involved than a wall-mounted cassette, that parts-sourcing uncertainty is worth weighing before purchase. The 12-year warranty is a genuine asset, but a warranty is only as useful as your ability to find a contractor willing to do the repair work on non-dealer equipment, which is the real-world friction point buyers of direct-to-consumer HVAC should plan for in advance.
Sources: Consumer Reports heat pump ratings, HVACDirect on the ACiQ brand, AHRI Directory of Certified Product Performance, U.S. DOE appliance and equipment efficiency standards.
How it compares
| Brand | Comparable model | SEER2 | Stage | Price position |
|---|---|---|---|---|
| ACiQ | ACIQ-12CD-HH-MC Concealed Duct | Not published for indoor unit alone | Variable (inverter-driven with matched outdoor unit) | Value pick |
| Mitsubishi | SEZ-KD12NA4 Concealed Duct | Up to 18+ SEER2 (system dependent) | Variable | Significantly higher than ACiQ |
| Daikin | FDMQ12RVJU Concealed Duct | Up to 18 SEER2 (system dependent) | Variable | Moderately to significantly higher than ACiQ |
| Fujitsu | ARXG12KLLAP Concealed Duct | Up to 19 SEER2 (system dependent) | Variable | Moderately higher than ACiQ |
Competitor rows are comparable single-stage units at similar efficiency; price is relative position, not a quote.
Questions about this system
What outdoor unit does this handler pair with, and do I need to buy them separately?
Yes, this listing covers only the indoor air handler. You need to purchase a matched ACiQ outdoor unit separately and confirm the combination has an AHRI-certified rating before installation. Using a mismatched outdoor unit can void the warranty and reduce efficiency.
What is the SEER2 rating for this system?
A SEER2 rating is not published in the product specs for this specific indoor unit alone, because efficiency is a function of the matched outdoor unit. You should pull the AHRI certificate for the specific indoor-outdoor combination you plan to install to get a verified efficiency number, which may be required for energy code compliance or utility rebates.
Can any licensed HVAC contractor install and service this unit, or does it require an ACiQ-certified technician?
Any EPA Section 608 certified HVAC technician can legally install and work on this equipment. ACiQ does not have a proprietary dealer network, so you will hire an independent contractor. The practical challenge is finding someone familiar with ducted mini-split commissioning and comfortable working on a brand they did not supply.
How much ductwork does a concealed duct mini-split like this actually need?
Concealed duct mini-splits are designed for short, low-static duct runs, typically a few registers served by relatively short straight runs. They are not designed to replace a full central-air duct system spanning an entire house. An HVAC contractor should perform a static pressure calculation before sizing the duct layout.
Is R-454B refrigerant harder to find or more expensive to service than R-410A?
R-454B availability is expanding as the industry transitions away from R-410A, but it is not yet as universally stocked as R-410A. Some contractors may need to order it specifically. The transition is industry-wide, so availability is expected to improve over the next few years as R-410A equipment phases out.
Specifications
| Furnace output | 12000 BTU |
| Refrigerant | R-454B |
