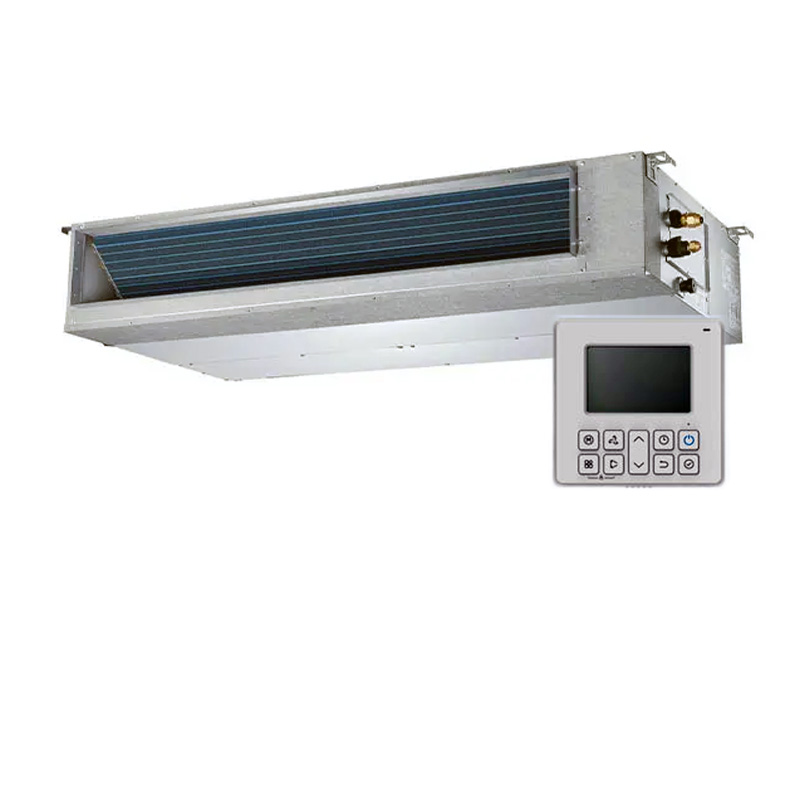

ACiQ 9000 BTU Mini Split Concealed Duct Indoor Air Handler | R454B (ACIQ-09CD-HH-MC)
Check current price on AC Direct →
Key features
- Concealed duct air handler hides above ceiling or inside wall cavity for a clean finished look
- Uses R-454B refrigerant, a lower global-warming-potential alternative to R-410A
- Designed for single-zone mini split systems; requires a compatible ACiQ outdoor condensing unit
- Sold direct from ACiQ with a 12-year warranty included at no dealer markup
- Compatible with inverter-driven outdoor units for variable-speed capacity modulation
- Short-run ducted design allows air distribution to multiple registers from a single indoor unit
About this system

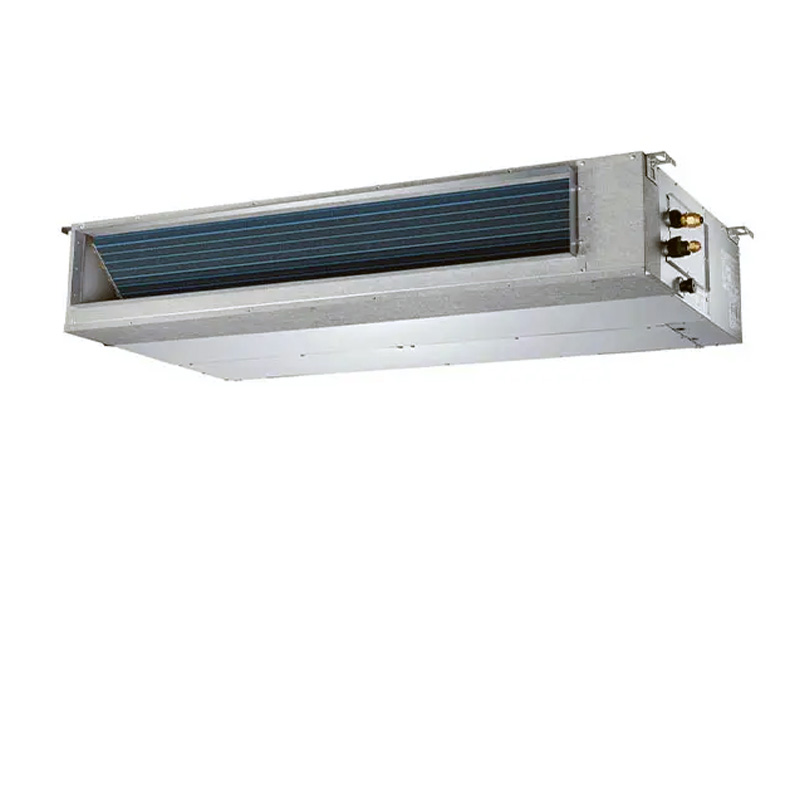

The ACiQ 9,000 BTU Concealed Duct Mini Split Indoor Air Handler (ACIQ-09CD-HH-MC) is designed for installations where a visible wall-mounted or ceiling cassette unit is not desirable. The concealed duct configuration tucks the air handler above a dropped ceiling or inside a chase, distributing conditioned air through short duct runs to one or more registers. That makes it a practical fit for finished basements, boutique hotel rooms, server anteroom additions, sunrooms with existing soffit space, or any zone where aesthetics or building codes push you toward a hidden unit. It runs on R-454B refrigerant, which is the lower-GWP replacement for R-410A now being phased into new residential equipment as the industry moves toward EPA-compliant alternatives.
Because this is an indoor air handler only, it must be paired with a compatible ACiQ outdoor condensing unit to form a complete mini split system. Buyers should confirm that the outdoor unit’s BTU capacity, refrigerant type, and electrical requirements match before purchasing. The concealed duct form factor adds complexity compared to a standard wall mount: you need adequate ceiling or wall cavity depth, properly sized duct stubs, and a condensate drain route. For a single-zone application at the 9,000 BTU capacity range, this unit is sized for a space roughly in the 250 to 400 square foot range depending on insulation, ceiling height, and climate zone. The R-454B refrigerant also means technicians will need certification and handling equipment appropriate for the slightly flammable A2L classification of this refrigerant, which is worth confirming with your installer before the job starts.
The ACiQ concealed duct air handler offers a genuinely competitive price point for buyers who want a hidden mini split installation without paying the premium of a Mitsubishi or Daikin ducted unit. The trade-off is that this is a newer brand without a long verified reliability record, and the concealed duct configuration raises both installation complexity and the cost of any future service call. Buyers who do their homework on compatible outdoor units and hire an A2L-certified installer will get solid value; those who want name-brand service networks and long-term field data should look at established alternatives.
Overall score is the average of the five ratings above.
What we like
- Concealed duct format suits finished spaces where wall or ceiling units would be visually intrusive
- R-454B refrigerant positions the system for long-term regulatory compliance as R-410A is phased out
- 12-year warranty is included at purchase price without dealer markup, which is longer than most competitors offer at this price tier
- Early owner feedback on ACiQ equipment consistently notes quiet operation and responsive customer support
- Direct-sale pricing undercuts comparable ducted mini split units from Mitsubishi, Daikin, and Fujitsu by a meaningful margin
Trade-offs
- Indoor air handler only: the outdoor condensing unit is a separate purchase, and compatibility must be verified before ordering
- Concealed duct installation is more involved than a wall-mount mini split and typically requires a professional familiar with short-run duct design and A2L refrigerant handling
- ACiQ is a newer brand with limited long-term reliability data and no Consumer Reports ranking yet, so buyers are relying on early owner reviews rather than independent longitudinal records
- The undisclosed manufacturer makes parts cross-referencing and service history harder than with a name brand, which can complicate repairs if the original installer is unavailable
What homeowners and pros say about ACiQ
Early owners of ACiQ equipment, including wall-mount and ducted configurations, generally report that the units run quietly and that the company’s customer support team is accessible and responsive when issues arise. Those themes show up consistently in early online feedback, though it is worth noting that independent long-term reliability data is still thin because ACiQ has not been on the market long enough for Consumer Reports to assign a reliability score. For the concealed duct configuration specifically, owners and HVAC forum contributors point out that installation complexity is the biggest variable in how well the system performs: a well-designed short duct run with proper airflow balancing gets strong results, while a rushed installation with undersized or poorly routed ducts can undercut the unit’s rated output regardless of equipment quality.
On the contractor side, the main friction points are familiar ones for any direct-sale brand: the undisclosed manufacturing source makes parts cross-referencing less straightforward than it would be for a Carrier or Daikin unit where the parts ecosystem is well mapped, and service relies entirely on independent contractors rather than a factory-authorized dealer network. The A2L refrigerant adds another layer, since not every independent HVAC technician has updated their handling certification for R-454B. Professionals who have installed ACiQ equipment tend to report that the units themselves are well-built for the price, but they flag that buyers should line up a knowledgeable installer before purchasing rather than after, and should keep a copy of the installation manual on hand to simplify any future service call.
Sources: Consumer Reports heat pump ratings, HVACDirect on the ACiQ brand, AHRI Directory of Certified Product Performance, U.S. DOE appliance and equipment efficiency standards.
How it compares
| Brand | Comparable model | SEER2 | Stage | Price position |
|---|---|---|---|---|
| ACiQ | ACIQ-09CD-HH-MC Concealed Duct Air Handler | Not published for air handler alone | Variable (inverter-compatible) | Value pick |
| Mitsubishi | Mr. Slim SEZ-KD09NA4 Concealed Duct | 18+ SEER2 (with matched outdoor unit) | Variable | Significantly higher than ACiQ |
| Daikin | FDMQ09RVJU Concealed Duct | 18+ SEER2 (with matched outdoor unit) | Variable | Higher than ACiQ |
| Fujitsu | ARXG09LHTAP Concealed Duct | 18+ SEER2 (with matched outdoor unit) | Variable | Higher than ACiQ |
Competitor rows are comparable single-stage units at similar efficiency; price is relative position, not a quote.
Questions about this system
Does this air handler come with the outdoor unit, or do I need to buy that separately?
This listing is for the indoor air handler only. You must purchase a compatible ACiQ outdoor condensing unit separately and confirm that the BTU rating, refrigerant type (R-454B), and electrical specs match before ordering. Running mismatched components will void the warranty and can damage the equipment.
My installer mentioned R-454B is classified A2L. Is that a problem?
A2L refrigerants are mildly flammable, which means installers need specific handling procedures, leak detection practices, and in some jurisdictions, updated equipment certifications. It is not inherently dangerous in a residential setting, but you should confirm your installer is trained and equipped for A2L work before the job starts, since not every HVAC tech has updated their certification yet.
How much ceiling or wall cavity depth does the concealed duct air handler require?
ACiQ does not publish a universal depth spec across all concealed duct models, so you should pull the actual installation manual for the ACIQ-09CD-HH-MC to confirm the dimensional requirements before your installer opens up any framing. Concealed duct units typically need between 10 and 14 inches of clear vertical space, but verify this against the spec sheet for this specific unit.
What does the 12-year warranty actually cover, and are there registration requirements?
ACiQ includes a 12-year parts warranty on its equipment, and because it is sold direct there is no dealer margin built into the price to pay for that coverage. You should register the unit with ACiQ after installation to activate the full warranty term. Labor is not covered, which is standard for the industry, so factor in service call costs when comparing total cost of ownership against competitors.
Can I use this air handler to serve more than one room through separate duct runs?
Concealed duct mini splits can feed multiple registers from a single air handler, but total airflow is fixed by the unit's capacity. At 9,000 BTU, the unit is sized for a relatively modest load, so distributing that airflow across multiple rooms requires careful duct design to avoid pressure imbalances and reduced performance. A Manual D duct calculation by your installer is strongly recommended before committing to a multi-register layout.
Specifications
| Refrigerant | R-454B |
