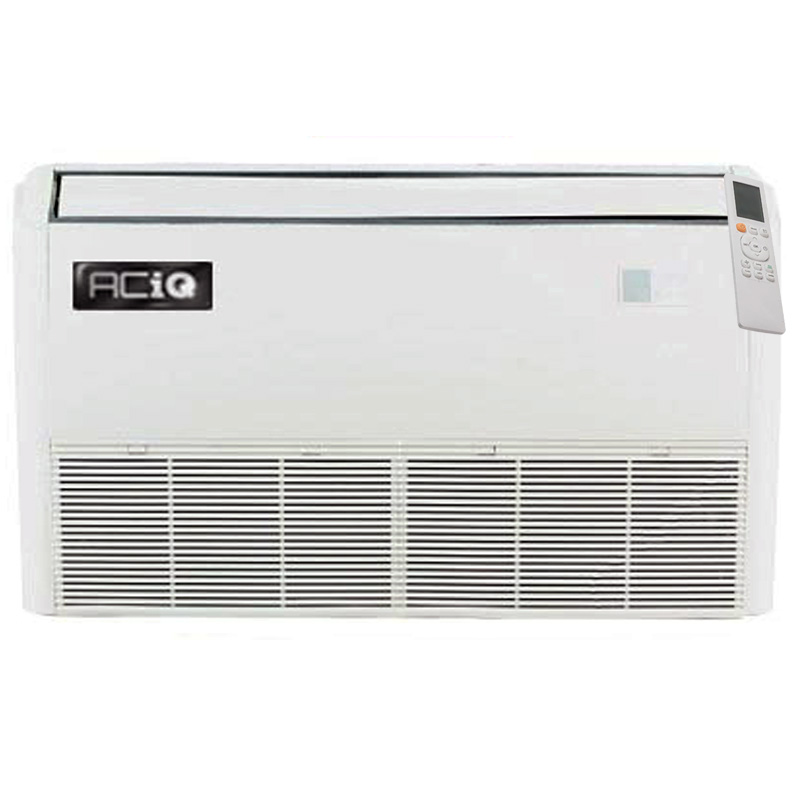

ACiQ 9000 BTU Mini Split Floor Mount Or Lower SideWall Indoor Air Handler | R454B (ACIQ-09FM-HH-MD)
Check current price on AC Direct →
Key features
- Floor-mount or low sidewall installation suits rooms with limited upper wall space or low ceilings
- Uses R-454B refrigerant, a lower-GWP A2L blend compliant with current EPA phase-down requirements
- Indoor air handler only; pairs with a compatible ACiQ outdoor condensing unit sold separately
- Rated at 9,000 BTU, appropriate for smaller rooms typically up to roughly 350 to 450 square feet depending on insulation and climate
- Ships with ACiQ's 12-year parts warranty, available direct without dealer markup
- Designed for variable-speed inverter operation when paired with the correct ACiQ outdoor unit
About this system

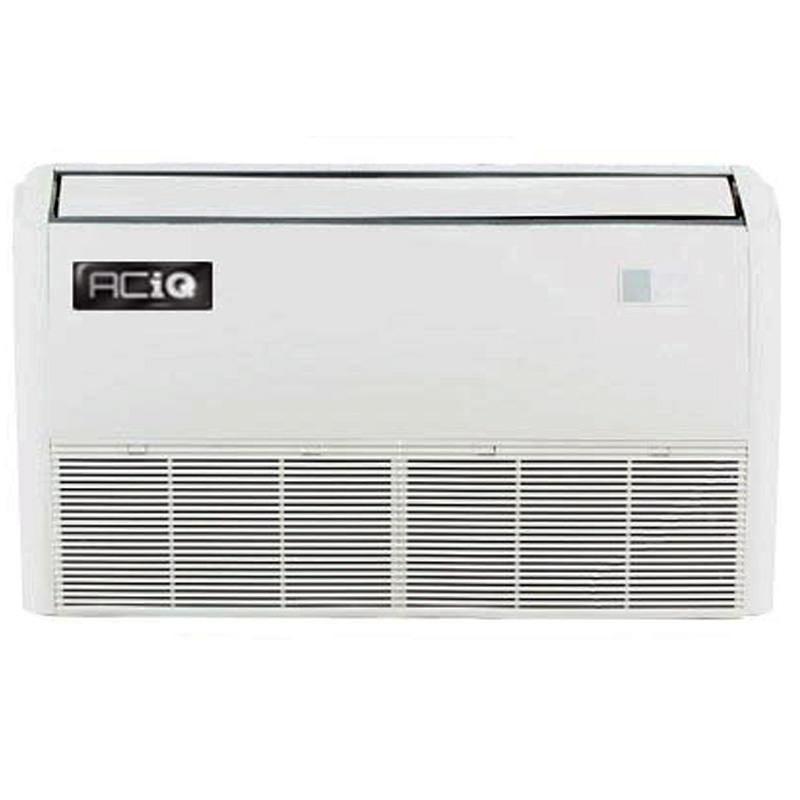

The ACiQ 9,000 BTU Floor Mount / Lower Sidewall Indoor Air Handler (ACIQ-09FM-HH-MD) is a ductless mini-split indoor unit designed specifically for spaces where ceiling or high-wall mounting is impractical or unwanted. Floor-mount and low sidewall configurations push conditioned air horizontally across the floor plane, making this unit well suited for rooms with low ceilings, large windows that dominate the upper wall, sunrooms, additions, server closets, or any space where a high-wall cassette would be awkward to service or aesthetically intrusive. The unit pairs with a compatible ACiQ outdoor condensing unit and operates on R-454B refrigerant, a lower-GWP A2L blend that is increasingly the industry standard as R-410A is phased out under EPA regulations.
As an indoor air handler only, this listing does not include the outdoor unit, line set, or controls, so buyers need to confirm compatibility with their chosen ACiQ condenser before purchasing. The floor-mount form factor also requires slightly more attention during installation than a standard high-wall unit: the unit must be positioned to allow unobstructed floor-level airflow, clearances must meet manufacturer specs, and because R-454B is a mildly flammable A2L refrigerant, installers need to follow updated safety handling procedures. That said, for the right room geometry, this configuration delivers noticeably even temperature distribution compared to ceiling-mounted units and is easier for occupants to interact with directly.
The ACiQ floor-mount air handler is a competitively priced option for buyers who need low-level air delivery and are comfortable sourcing a compatible outdoor unit separately. The 12-year warranty is a genuine differentiator at this price point, but the undisclosed manufacturer, thin long-term reliability data, and direct-only service model introduce real uncertainty that buyers should weigh honestly against the upfront savings.
Overall score is the average of the five ratings above.
What we like
- Floor-mount form factor fills a real installation gap that most mini-split lineups underserve
- R-454B refrigerant positions the system as forward-compatible with current and near-future EPA refrigerant rules
- 12-year parts warranty shipped direct with no dealer markup inflating the cost
- Early owner reports consistently cite quiet operation and responsive ACiQ customer support
- Lower purchase price than comparable floor-mount units from Mitsubishi, Daikin, or Fujitsu
Trade-offs
- Indoor unit only: buyers must separately source, confirm compatibility with, and purchase an outdoor condensing unit
- The actual manufacturer is not disclosed, making parts cross-referencing and independent service history harder to verify
- Long-term reliability data is thin and Consumer Reports has not yet assigned a reliability score to the brand
- R-454B is a mildly flammable A2L refrigerant, meaning not every HVAC technician is currently equipped or certified to service it
What homeowners and pros say about ACiQ
Among early buyers, the themes that come up most consistently are quiet running and a positive experience with ACiQ’s direct customer support when questions arise during setup. Because the brand is still relatively new, Consumer Reports has not yet accumulated enough long-term field data to assign ACiQ a reliability score, so those early owner impressions are the most current signal available and should be read as preliminary rather than definitive. The specific failure modes that have surfaced with newer direct-to-consumer mini-split brands generally cluster around capacitor degradation, refrigerant coil leaks, and uncertainty about long-term compressor lifespan, and ACiQ is not exempt from scrutiny on those fronts simply because long-term data does not yet exist to clear or confirm them.
HVAC contractors who have worked with ACiQ equipment tend to acknowledge the price point as genuinely competitive, but some raise a practical concern that applies directly to the floor-mount handler: the undisclosed manufacturer means that when a technician needs to cross-reference a part number or look up a service bulletin, there is no clear path to original equipment documentation beyond what ACiQ itself provides. For a standard high-wall unit that concern is manageable, but a floor-mount installation that requires a return visit for a refrigerant-side repair on an A2L system adds layers of complexity. Buyers who already have a trusted independent HVAC contractor and have confirmed that contractor is R-454B certified are in a meaningfully better position than those who plan to sort out service after the fact.
Sources: Consumer Reports heat pump ratings, HVACDirect on the ACiQ brand, AHRI Directory of Certified Product Performance, U.S. DOE appliance and equipment efficiency standards.
How it compares
| Brand | Comparable model | SEER2 | Stage | Price position |
|---|---|---|---|---|
| ACiQ | ACIQ-09FM-HH-MD Floor Mount Air Handler | Not published for indoor unit alone | Variable (inverter, when paired with compatible outdoor unit) | Value pick |
| Mitsubishi | M-Series MFZ-KJ09NA Floor-Mount | Approx. 15+ SEER2 in matched system | Variable | Significantly higher than ACiQ |
| Daikin | Stylish Series FVXS09 Floor Console | Approx. 15+ SEER2 in matched system | Variable | Moderately to significantly higher than ACiQ |
| Fujitsu | Halcyon AGHG09LVCA Floor-Mount | Approx. 15+ SEER2 in matched system | Variable | Moderately higher than ACiQ |
Competitor rows are comparable single-stage units at similar efficiency; price is relative position, not a quote.
Questions about this system
Does this listing include the outdoor unit, or do I need to buy that separately?
This is the indoor air handler only. You will need to purchase a compatible ACiQ outdoor condensing unit separately and confirm that the model numbers are matched before ordering. Running an incompatible indoor-outdoor pair can void the warranty and damage the equipment.
Why does this unit use R-454B instead of R-410A, and does that affect who can service it?
R-454B is a next-generation refrigerant with a significantly lower global warming potential than R-410A, and it is the direction the industry is moving under EPA regulations. The trade-off is that R-454B is classified A2L, meaning it is mildly flammable, so technicians need to follow updated handling procedures and some contractors may not yet have the equipment or certification to work with it. Confirm your local service options before purchasing.
Can this air handler be mounted on the wall higher up, or is it strictly a floor unit?
This unit is engineered for floor-level or low sidewall placement where it delivers horizontal airflow across the floor plane. Installing it at standard high-wall height would compromise airflow performance and likely violate manufacturer installation guidelines, which could affect the warranty.
How does the 12-year warranty work, and are there registration requirements?
ACiQ's 12-year parts warranty is one of the stronger coverage terms at this price point and is available without dealer markup because the brand sells direct. You should verify current registration requirements directly with ACiQ at purchase, as warranty terms and any registration deadlines can change and the specifics matter for a claim.
Since ACiQ does not have its own dealer network, who actually services this unit if something goes wrong?
ACiQ relies on independent HVAC contractors rather than a proprietary service network. In most markets this is workable, but it means you are responsible for finding a qualified technician familiar with the equipment, and the undisclosed manufacturer makes cross-referencing parts slightly more involved than it would be with a brand like Mitsubishi or Daikin that has a fully documented service ecosystem.
Specifications
| Refrigerant | R-454B |
