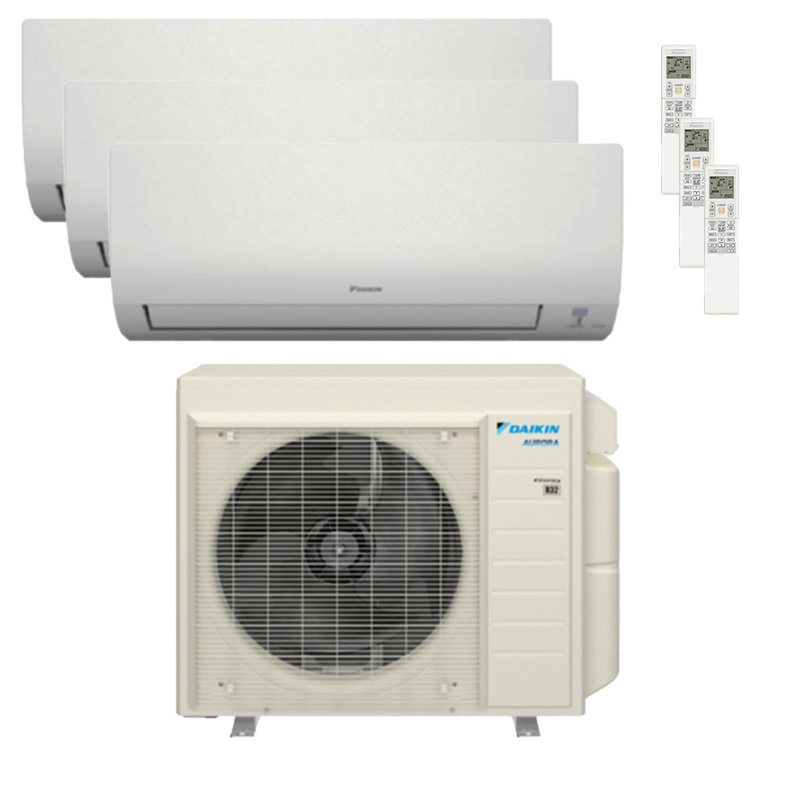

Daikin 36000 BTU 20 SEER2 3 Zone Mini Split AC Heat Pump Wall Mount System | R32
Check current price on AC Direct →
Key features
- 36,000 BTU total capacity across three independently controlled wall-mount indoor zones
- 20 SEER2 variable-speed inverter compressor for high-efficiency cooling and heating
- R-32 refrigerant with lower global warming potential than legacy R-410A systems
- Heat pump operation provides both heating and cooling from a single outdoor unit
- Three separate indoor air handlers allow each zone to run at its own setpoint simultaneously
- 12-year parts warranty available with registration within 60 days of installation
About this system
The Daikin 36,000 BTU 20 SEER2 three-zone mini-split system is built around a single outdoor inverter compressor unit that distributes conditioned air to three separate indoor wall-mounted air handlers. At 36,000 BTU total capacity, this setup suits homes or buildings where two to three distinct spaces each need independent temperature control, such as a three-bedroom house, a multi-room addition, or a mixed-use space where occupants want different comfort settings running simultaneously. Because the outdoor unit uses R-32 refrigerant, it carries a lower global warming potential than the R-410A systems it largely replaces, a genuine environmental advantage and one increasingly required by updated regulations.
A 20 SEER2 rating places this system firmly in the high-efficiency tier. SEER2 is the updated federal testing standard, measured under conditions that better reflect real-world duct and static pressure losses, so a 20 SEER2 score is meaningfully efficient rather than an inflated older-standard number. The variable-speed inverter compressor modulates output rather than cycling fully on and off, which keeps temperatures steadier, reduces peak electricity draw, and contributes to quieter operation during normal running. As a heat pump, the system provides both cooling and heating, and at high-efficiency ratings like this one it can extract usable heat from outdoor air well below freezing, making it a practical year-round solution in most climates rather than a cooling-only add-on.
The Daikin 36,000 BTU 20 SEER2 three-zone system delivers genuinely high efficiency and strong long-term durability credentials, backed by the build quality expected from the world's largest HVAC manufacturer. The premium price, mixed parts support experience, and documented electronic control issues are real considerations that keep this from being a straightforward recommendation for every buyer. For those who prioritize longevity and efficiency over lowest upfront cost, and who can secure a qualified Daikin dealer before purchase, it is a serious contender.
Overall score is the average of the five ratings above.
What we like
- 20 SEER2 rating is a true high-efficiency figure under the updated, more stringent federal testing standard
- Three-zone independent control from one outdoor unit reduces installation footprint and cost versus separate systems
- R-32 refrigerant has roughly 68 percent lower global warming potential than R-410A
- Daikin is consistently rated among the longer-lasting HVAC brands by Consumer Reports and industry experts
- Variable-speed inverter compressor holds space temperatures more steadily and reduces energy spikes versus single-stage systems
Trade-offs
- Electronic control board and circuit board errors are the most frequently documented failure mode, sometimes leaving the system unresponsive
- Parts availability and warranty claim handling draw consistent complaints; the 12-year parts warranty requires registration within 60 days and a qualified installer
- Daikin sits at the premium price end, with upfront equipment cost noticeably higher than mid-tier brands at similar specs
- PissedConsumer scores around 1.4 out of 5 across several dozen reviews, predominantly driven by service and pricing disputes that are worth factoring into the ownership experience
What homeowners and pros say about Daikin
Among HVAC professionals who install regularly across brands, Daikin earns genuine respect for build quality and component longevity. Consumer Reports and industry reviewers consistently place it among the longer-lasting brands, and experienced contractors often point to the outdoor unit construction and compressor durability as real strengths. That reputation, however, lives alongside a persistent service story. PissedConsumer scores land around 1.4 out of 5 across several dozen reviews, and while that channel skews sharply toward people who had a bad enough experience to post publicly, the recurring themes are specific and consistent: electronic control board errors that leave units throwing fault codes or going unresponsive, compressors that lose capacity or fail outside the expected window, and warranty claims that run into parts delays or disputes over registration and authorized-installer requirements. These are not isolated anecdotes but documented failure patterns worth taking seriously before purchase.
Homeowners who end up satisfied with Daikin systems tend to share a few things in common: they found a vetted, Daikin-authorized contractor before buying, they registered the unit promptly after installation to lock in the 12-year parts warranty, and they budgeted for annual maintenance. Those who report the worst outcomes often encountered the parts-availability problem after the initial install or discovered the registration window had closed. For this specific three-zone R-32 system, the efficiency credentials are real and the long-term durability track record is genuine, but the ownership experience is more dependent on installer quality and proactive warranty management than it would be with brands that have broader, more consistent service networks. Going in with clear expectations on that front makes the premium price easier to justify.
Sources: PissedConsumer Daikin reviews, AHRI Directory of Certified Product Performance, U.S. DOE appliance and equipment efficiency standards, Daikin product specifications.
What it costs to run
At 20 SEER2, cooling this 36000 BTU system for a typical 1200-hour cooling season at the U.S. average electricity rate of $0.17/kWh works out to roughly $367 per year in cooling, about $181 less per year than a minimum-efficiency 13.4 SEER2 unit of the same size. Your real cost depends on your climate and local rate.
Method: (36,000 BTU/hr ÷ 20 SEER2) × 1200 hours ÷ 1000 × $0.17/kWh. Rate source: U.S. EIA average; cooling hours: moderate-climate estimate.
How it compares
| Brand | Comparable model | SEER2 | Stage | Price position |
|---|---|---|---|---|
| Daikin | 36,000 BTU 20 SEER2 3-Zone Wall Mount (this system) | 20 | Variable | Premium tier |
| Mitsubishi | MXZ-3C24NAHZ2 Multi-Zone (3-zone comparable) | 18-20 depending on indoor unit combination | Variable | Similar premium tier, often slightly higher installed |
| Fujitsu | AOU36RLXFZH 3-Zone Halcyon | 18-19 | Variable | Comparable premium tier, occasionally a modest step below Mitsubishi |
| LG | LMU360HHV Multi-Zone 3-Zone | 18-20 depending on indoor units | Variable | Slightly below Daikin and Mitsubishi at retail, broader box-store availability |
Competitor rows are comparable single-stage units at similar efficiency; price is relative position, not a quote.
Questions about this system
Can I split the 36,000 BTU capacity unevenly across the three zones, for example two larger rooms and one smaller room?
Yes. Multi-zone Daikin systems are designed to pair the outdoor unit with indoor air handlers of different BTU capacities, so you can combine, for example, two 12,000 BTU and one 9,000 BTU unit as long as the total does not exceed the outdoor unit's rated capacity. Verify the specific indoor handler combinations Daikin approves for the outdoor model you are purchasing before ordering.
What happens to the warranty if I do not register within 60 days of installation?
Daikin's 12-year parts warranty requires registration within 60 days of the installation date. If you miss that window, coverage typically reverts to the shorter unregistered warranty period, which is substantially less. Set a reminder immediately after installation, because Daikin's warranty handling has drawn consistent complaints and you do not want to add a registration dispute to that mix.
How does 20 SEER2 compare to the older SEER ratings I see on some listings?
SEER2 uses a higher external static pressure in testing, which makes it harder to achieve the same number than the old SEER standard. A 20 SEER2 rating is genuinely high efficiency and would correspond to a somewhat higher SEER number if tested under the old method, so comparisons between SEER2 and legacy SEER figures need context. When comparing systems, make sure you are comparing SEER2 to SEER2.
The documented failure modes mention circuit board errors. Is there anything I can do to reduce that risk?
The most practical steps are using a licensed installer who wires the system correctly, ensuring the outdoor unit is not exposed to prolonged standing water or poor drainage conditions, and installing a surge protector on the circuit, since voltage spikes are a known contributor to control board failures in inverter mini-splits generally. Keeping up with annual maintenance also helps catch developing issues before they cause board-level damage.
Does this system provide enough heat in very cold climates, or is it only effective for mild winters?
At 20 SEER2 with a variable-speed inverter compressor, Daikin systems in this class typically maintain effective heating capacity at outdoor temperatures well below freezing, often rated to operate at meaningful capacity down to around minus 13 to minus 4 degrees Fahrenheit depending on the specific model. Check the published heating capacity and COP at low ambient temperatures for the exact model number, because rated capacity drops as outdoor temperature falls and you need to confirm it covers your local design heating load.
Specifications
| Efficiency | 20 SEER2 |
| Furnace output | 36000 BTU |
| Refrigerant | R-32 |
