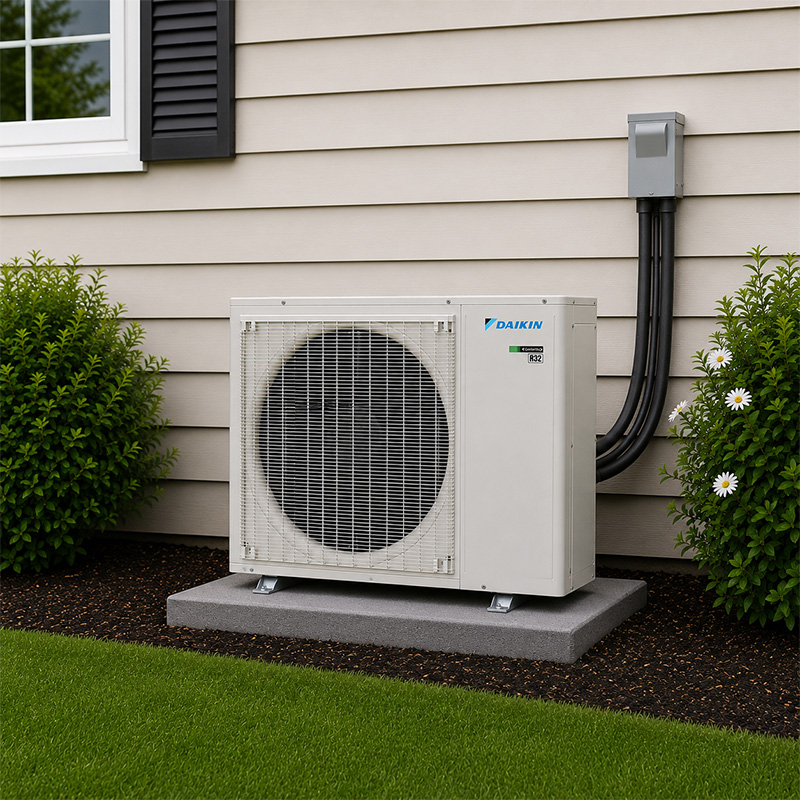

Daikin MXM 5-Zone 48,000 BTU Ductless Mini-Split Heat Pump Condenser – Up to 20 SEER2, R32 (5MXM48AVJU9)
Check current price on AC Direct →
Key features
- 48,000 BTU multi-zone outdoor condenser supports up to five indoor air handlers
- Up to 20 SEER2 efficiency rating with variable-speed inverter-driven compressor
- R-32 refrigerant with lower global warming potential than R-410A
- Operates as a heat pump, providing both heating and cooling from a single outdoor unit
- 12-year parts warranty available with registration within 60 days of installation
- Compatible with a range of Daikin wall-mount, ceiling cassette, and floor-console indoor units
About this system
The Daikin 5MXM48AVJU9 is a 48,000 BTU multi-zone outdoor condenser designed to drive up to five indoor air handlers simultaneously, making it a practical choice for larger homes or multi-room additions where running ductwork is impractical or prohibitively expensive. At up to 20 SEER2, it sits at the efficient end of the variable-speed ductless market, and its use of R-32 refrigerant gives it a lower global warming potential than the older R-410A systems it largely replaces. The condenser itself handles the heavy lifting; indoor unit selection, placement, and total BTU load distribution across the five zones are where the real engineering decisions happen.
Five-zone systems like this one are genuinely complex installations. Each indoor unit must be sized and positioned correctly, refrigerant line lengths matter for efficiency, and the electrical service requirements are substantial. This is not a system for a DIY installer or a general contractor who occasionally touches HVAC. It suits homeowners who want room-by-room temperature control, who are adding conditioned space without access to existing ductwork, or who are replacing aging window units in a larger residence. The R-32 refrigerant requires technicians with specific certifications in some jurisdictions, so verifying local installer qualifications before purchase is worth doing.
The 5MXM48AVJU9 is a capable, high-efficiency multi-zone system from the world's largest HVAC manufacturer, and its 20 SEER2 rating is genuinely competitive at this BTU class. The trade-off is a premium price, documented complaints about electronic control reliability and parts support, and the real complexity of a five-zone installation that demands an experienced Daikin-trained contractor. Buyers who value long equipment life and efficiency over the lowest upfront cost will find it a solid option, provided they choose their installer carefully and register the warranty on time.
Overall score is the average of the five ratings above.
What we like
- 20 SEER2 rating delivers strong efficiency and reduced operating costs at high BTU loads
- Variable-speed inverter compressor allows precise temperature control across all five zones independently
- R-32 refrigerant has roughly 68% lower global warming potential than R-410A
- Daikin is consistently recognized by HVAC experts and Consumer Reports as among the longer-lasting brands
- 12-year parts warranty is competitive in the multi-zone ductless category when registration is completed on time
Trade-offs
- Electronic control board errors and unresponsive units are the most frequently documented failure mode
- Parts availability and warranty service handling draw consistent complaints across owner reviews
- Five-zone systems require experienced installation; improper sizing or line set runs degrade efficiency and longevity
- Premium brand pricing puts upfront cost above several comparable-efficiency competitors
What homeowners and pros say about Daikin
Among HVAC professionals who work regularly with multi-zone ductless systems, Daikin occupies a respected but sometimes frustrating position. Installers frequently credit Daikin equipment with strong build quality and longevity consistent with Consumer Reports placing the brand among the longer-lasting options in the category. The 5MXM48AVJU9 in particular earns praise for its inverter performance and the flexibility of the MXM platform. However, the same contractors are quick to note that when something does go wrong, electronic control board errors are the most common culprit, sometimes leaving the entire system in a lockout state until a board is sourced and replaced. Parts delays are a recurring frustration, and the gap between Daikin’s premium positioning and its service infrastructure is a real concern for buyers in less urban markets.
Homeowner feedback on channels like PissedConsumer skews heavily negative, with that platform recording roughly 1.4 out of 5 across a complaint-driven review base. It would be a mistake to treat that number as a statistically representative satisfaction score, since satisfied owners rarely seek out complaint forums. Still, the specific issues that surface there, including circuit board failures causing unresponsive units, compressors losing cooling capacity, units developing rattling or humming on startup and shutdown over time, and warranty claims stalling on parts availability, are consistent enough across independent sources to take seriously. The 12-year parts warranty is a genuine asset, but only for buyers who register on time, document their installation thoroughly, and have access to a qualified Daikin service network when they need it.
Sources: PissedConsumer Daikin reviews, AHRI Directory of Certified Product Performance, U.S. DOE appliance and equipment efficiency standards, Daikin product specifications.
What it costs to run
At 20 SEER2, cooling this 48,000 BTU system for a typical 1200-hour cooling season at the U.S. average electricity rate of $0.17/kWh works out to roughly $490 per year in cooling, about $241 less per year than a minimum-efficiency 13.4 SEER2 unit of the same size. Your real cost depends on your climate and local rate.
Method: (48,000 BTU/hr ÷ 20 SEER2) × 1200 hours ÷ 1000 × $0.17/kWh. Rate source: U.S. EIA average; cooling hours: moderate-climate estimate.
How it compares
| Brand | Comparable model | SEER2 | Stage | Price position |
|---|---|---|---|---|
| Daikin | 5MXM48AVJU9 (MXM Series 5-Zone) | 20 | Variable | Premium pricing tier |
| Mitsubishi | MXZ-5C42NAHZ2 (MXZ Series 5-Zone) | 18-19 | Variable | Comparable to slightly higher than Daikin at this zone count |
| Fujitsu | AOU48RLXFZH (Halcyon 5-Zone) | 18 | Variable | Typically slightly below Daikin at similar BTU and zone count |
| LG | LMU480HHV (Multi VS 5-Zone) | 20 | Variable | Generally priced below Daikin and Mitsubishi at this capacity |
Competitor rows are comparable single-stage units at similar efficiency; price is relative position, not a quote.
Questions about this system
Do all five zones have to run at the same time, or can I use just one or two rooms at once?
You can run any combination of indoor units independently. The inverter-driven compressor modulates output to match whatever zones are calling for heating or cooling, so running two out of five zones is normal operation. Keep in mind that most manufacturers specify a minimum number of indoor units that must be connected at installation even if some are rarely used.
What happens to the warranty if I don't register within 60 days of installation?
Daikin's 12-year parts warranty requires registration within 60 days of the installation date. If you miss that window, coverage typically reverts to a shorter default period, often five years on parts. Setting a reminder immediately after install is one of the simplest ways to protect a significant investment.
Can any HVAC contractor install this system, or does it need to be a Daikin-certified dealer?
Technically any licensed HVAC contractor can handle the mechanical side, but Daikin recommends and in some cases requires installation by a Daikin Comfort Pro dealer for full warranty coverage. Beyond warranty compliance, five-zone systems are genuinely complex, and an installer unfamiliar with Daikin's multi-zone commissioning process is more likely to create airflow imbalances or refrigerant charge errors that hurt performance and longevity.
This system uses R-32 refrigerant. Is that a problem for servicing or finding a technician?
R-32 is increasingly common in new equipment, but it is classified as mildly flammable (A2L rating), which means some jurisdictions have additional handling requirements and not every technician is yet trained on it. Confirming that your servicing contractor is current on R-32 procedures before you need a repair call is a reasonable step.
The reviews mentioning circuit board failures concern me. How common is that issue and is it covered?
Electronic control and circuit board errors are the most consistently documented failure mode in owner feedback for Daikin multi-zone systems, sometimes showing up as error codes or a completely unresponsive unit. Parts are covered under the warranty, but parts availability and the time it takes to get service have been the loudest complaint from owners. Having your installing contractor document and photograph the installation and keeping your warranty registration confirmation on file will make a claim go more smoothly.
Specifications
| Efficiency | 20 SEER2 |
| Furnace output | 48,000 BTU |
| Refrigerant | R-32 |
