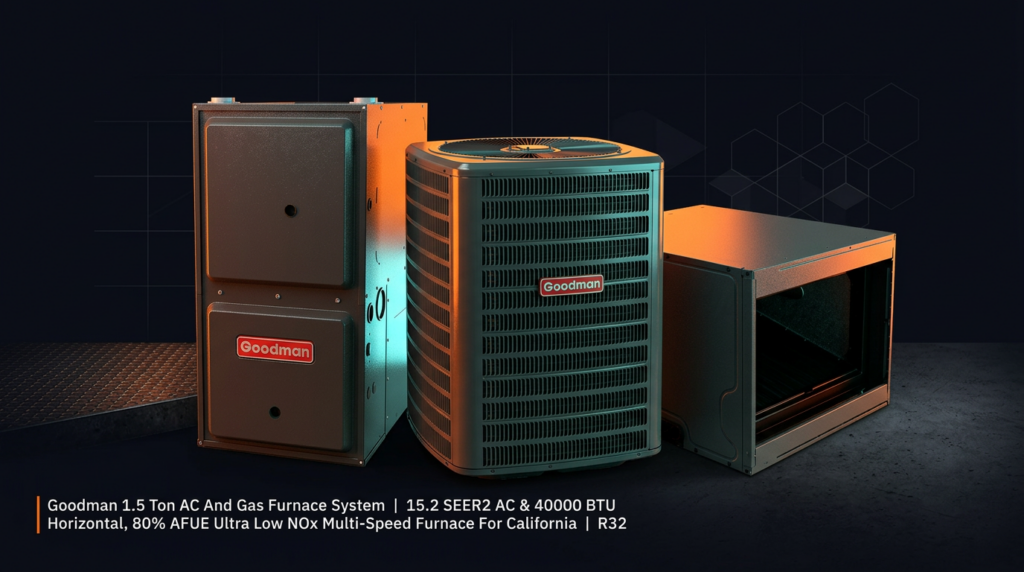

Goodman 1.5 Ton 15.2 SEER2 R32 AC System with 40,000 BTU 80% AFUE Gas Furnace – California & Colorado Ultra Low NOx, Horizontal, Multi-Speed ECM
Check current price on AC Direct →
Key features
- 1.5-ton cooling capacity rated at 15.2 SEER2 for entry-level efficiency compliance
- 40,000 BTU 80% AFUE gas furnace with Ultra Low NOx approval for California and Colorado
- Horizontal configuration designed for attic and crawlspace installations
- Multi-speed ECM blower motor for quieter operation and lower fan energy use
- R-32 refrigerant with lower global warming potential than R-410A
- Matched system design eligible for Goodman's factory warranty when installed together
About this system
The Goodman 1.5-ton 15.2 SEER2 system paired with a 40,000 BTU 80% AFUE gas furnace is built for smaller homes, condos, and additions in the 500-to-800 square-foot range that need both cooling and heating from a single matched system. The horizontal configuration makes it a practical choice for attic or crawlspace installations where vertical clearance is limited, and the multi-speed ECM blower motor improves airflow consistency and reduces electricity consumption compared to a standard PSC motor. R-32 refrigerant replaces the older R-410A in this unit, offering a lower global warming potential and slightly better thermodynamic efficiency, though it does require technicians who are familiar with its mildly flammable classification to handle it safely.
The California and Colorado Ultra Low NOx rating means the furnace meets the stricter nitrogen oxide emissions standards required in those states, making it a legal choice where standard furnaces are no longer approved for sale. At 80% AFUE the furnace is a mid-efficiency unit, meaning roughly 20 cents of every heating dollar exits through the flue rather than warming the home. That trade-off keeps installation simpler because it does not require a second PVC condensate drain line the way a 90%-plus unit does, which can matter in attic horizontal setups where routing additional drains is difficult. Buyers who primarily cool and only use heat occasionally will find the 80% AFUE less of a financial concern than those in colder climates with long heating seasons.
This Goodman system delivers a legally compliant, budget-accessible solution for small spaces in California and Colorado that need a horizontal gas-and-cooling setup. The 15.2 SEER2 rating clears the federal minimum but leaves meaningful efficiency gains on the table compared to higher-tier options, and Goodman's documented reliability record means ongoing maintenance costs should be factored into the total cost of ownership. Buyers who prioritize upfront price and have a qualified installer will get reasonable service life; those expecting premium-brand durability without premium-brand pricing may be disappointed after year seven or so.
Overall score is the average of the five ratings above.
What we like
- Priced roughly 15 to 25 percent below comparable Carrier, Trane, and Lennox systems, lowering the barrier to a complete matched system
- Ultra Low NOx certification makes it one of the few horizontal furnace options legally available in California and Colorado
- Horizontal configuration specifically addresses attic and crawlspace installs where alternatives are limited
- Multi-speed ECM motor improves comfort consistency and reduces blower electricity use versus single-speed PSC motors
- R-32 refrigerant meets evolving environmental regulations and offers slightly better heat transfer properties than R-410A
Trade-offs
- 80% AFUE means one-fifth of fuel energy is lost up the flue, a real cost in climates with cold winters or high gas prices
- Compressor lifespan averaging 10 to 14 years runs shorter than the 15 to 20 years documented for premium brands, raising the likelihood of a mid-ownership compressor replacement
- Documented dual-run capacitor failures and evaporator coil leaks are recurring owner complaints, adding potential repair costs especially after year seven
- A minority of owners have reported refrigerant leaks within the first year, underscoring how heavily final performance depends on installer quality
What homeowners and pros say about Goodman
Homeowners who have lived with Goodman equipment long enough to form an opinion tend to cluster into two groups. On ConsumerAffairs, where the brand scores around 2.5 out of 5, the most consistent complaint is that repair bills accumulate after roughly year seven, with dual-run capacitor failures and evaporator coil leaks named most often as the culprits. That score reflects a platform where frustrated owners are far more likely to post than satisfied ones, so it should be weighted accordingly rather than taken as a full picture. Google dealer reviews land closer to 3.8 out of 5 across hundreds of location reviews, where affordability and the ability to get a complete matched system at a lower upfront cost are the most frequently cited reasons for satisfaction.
HVAC technicians who work on Goodman equipment regularly tend to have a pragmatic view of it. They note that the brand’s compressor lifespan averages 10 to 14 years, meaningfully shorter than the 15 to 20 years more common in Trane, Carrier, or Lennox compressors, and that evaporator coil integrity is worth monitoring. They are also consistent on one point: install quality is the largest single predictor of how long a Goodman system lasts. A first-year refrigerant leak on this R-32 unit, for example, is almost always traced back to a connection or charge issue at startup rather than a factory defect. For this specific horizontal Ultra Low NOx configuration, finding a technician with documented experience in attic horizontal installs and R-32 handling is not optional advice; it is the most important purchase decision you will make alongside the equipment itself.
Sources: ConsumerAffairs Goodman owner reviews, AHRI Directory of Certified Product Performance, U.S. DOE appliance and equipment efficiency standards, Goodman product specification sheets.
What it costs to run
At 15.2 SEER2, cooling this 1.5-ton system for a typical 1200-hour cooling season at the U.S. average electricity rate of $0.17/kWh works out to roughly $242 per year in cooling, about $32 less per year than a minimum-efficiency 13.4 SEER2 unit of the same size. Your real cost depends on your climate and local rate.
Method: (18,000 BTU/hr ÷ 15.2 SEER2) × 1200 hours ÷ 1000 × $0.17/kWh. Rate source: U.S. EIA average; cooling hours: moderate-climate estimate.
How it compares
| Brand | Comparable model | SEER2 | Stage | Price position |
|---|---|---|---|---|
| Goodman | 1.5T 15.2 SEER2 R-32 with 40K BTU 80% AFUE Horizontal Ultra Low NOx | 15.2 | Single-stage | Value pick |
| Carrier | Comfort Series (24ACC6 / 58SB0 pairing) | 15.2 | Single-stage | Typically 15 to 25 percent more than Goodman |
| Trane | XR15 / S8X1 pairing | 15.0–15.5 | Single-stage | Typically 15 to 25 percent more than Goodman |
| Lennox | Merit Series (13ACX / ML180 pairing) | 15.0–15.5 | Single-stage | Typically 15 to 25 percent more than Goodman |
Competitor rows are comparable single-stage units at similar efficiency; price is relative position, not a quote.
Questions about this system
Is this system actually legal to install in California, and what does Ultra Low NOx mean in practice?
Yes, the Ultra Low NOx rating certifies the furnace meets the South Coast AQMD and similar California and Colorado air quality rules that ban standard NOx-emission furnaces in those jurisdictions. In practice it means the burner assembly is engineered to produce significantly fewer nitrogen oxide emissions during combustion, which is a prerequisite for permit approval in those states rather than a performance upgrade you would notice day to day.
Does my installer need any special certification to work with R-32 refrigerant?
Any EPA 608-certified technician can handle R-32, but they do need to be aware that it is classified as mildly flammable (A2L), which requires specific handling procedures, leak detection practices, and in some jurisdictions specific tool sets rated for A2L refrigerants. Confirm your installer has current experience with R-32 before booking, because improper handling is one of the documented causes of first-year refrigerant leaks with Goodman systems.
How much does the 80% AFUE versus a 96% AFUE furnace actually cost me each year?
The difference depends entirely on how much gas you burn. As a rough illustration, if you spend 800 dollars per year on gas heat with an 80% unit, a 96% unit could reduce that to around 667 dollars, saving roughly 133 dollars annually before accounting for the higher purchase price of the more efficient furnace. In mild California climates where heating loads are low, the payback period on that premium can stretch to ten years or more, so the 80% unit is a defensible choice for primarily warm climates.
What are the most likely repair costs I should budget for over a 10-year ownership period?
Based on documented failure patterns, the dual-run capacitor is the most common repair and typically costs 300 to 600 dollars including labor. Evaporator coil leaks are a meaningful secondary concern and can range from a few hundred dollars for a recharge to over a thousand if the coil needs replacement. Setting aside 150 to 200 dollars per year in an HVAC repair fund is a reasonable approach for a Goodman system.
The horizontal configuration worries me. Are there extra installation considerations compared to a standard upflow setup?
Horizontal furnaces require careful attention to secondary heat exchanger condensate drainage, proper support of the cabinet to prevent vibration stress on connections, and adequate clearance on all sides for airflow and service access. The complexity is not extreme, but it does reward hiring an installer who has done horizontal attic work specifically, because poor leveling or drainage routing is a known source of both water damage and premature component wear.
Specifications
| Cooling capacity | 1.5 Ton |
| Efficiency | 15.2 SEER2 |
| Furnace output | 40,000 BTU |
| Furnace efficiency | 80% AFUE |
| Configuration | Horizontal |
| Refrigerant | R-32 |
