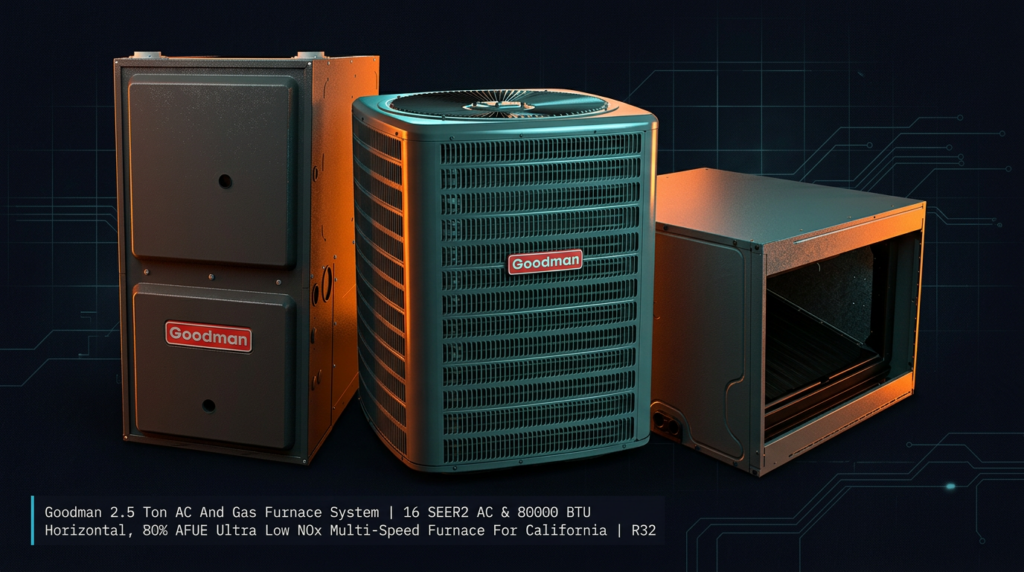

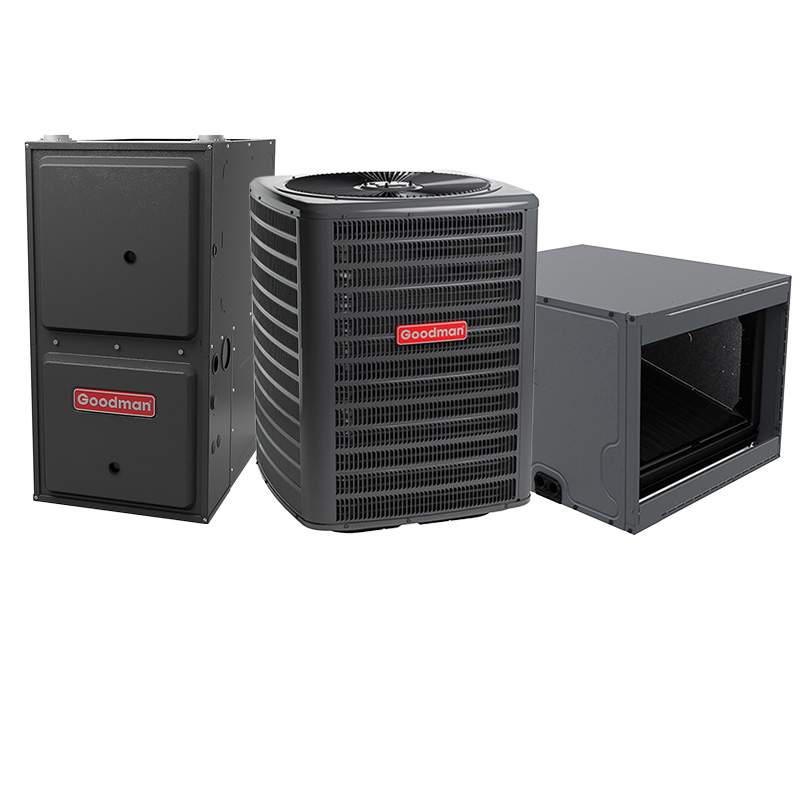

Goodman 2.5 Ton 16 SEER2 R32 AC System with 80,000 BTU 80% AFUE Gas Furnace – California & Colorado Ultra Low NOx, Horizontal, Multi-Speed ECM
Check current price on AC Direct →
Key features
- 16 SEER2-rated cooling efficiency with R-32 refrigerant

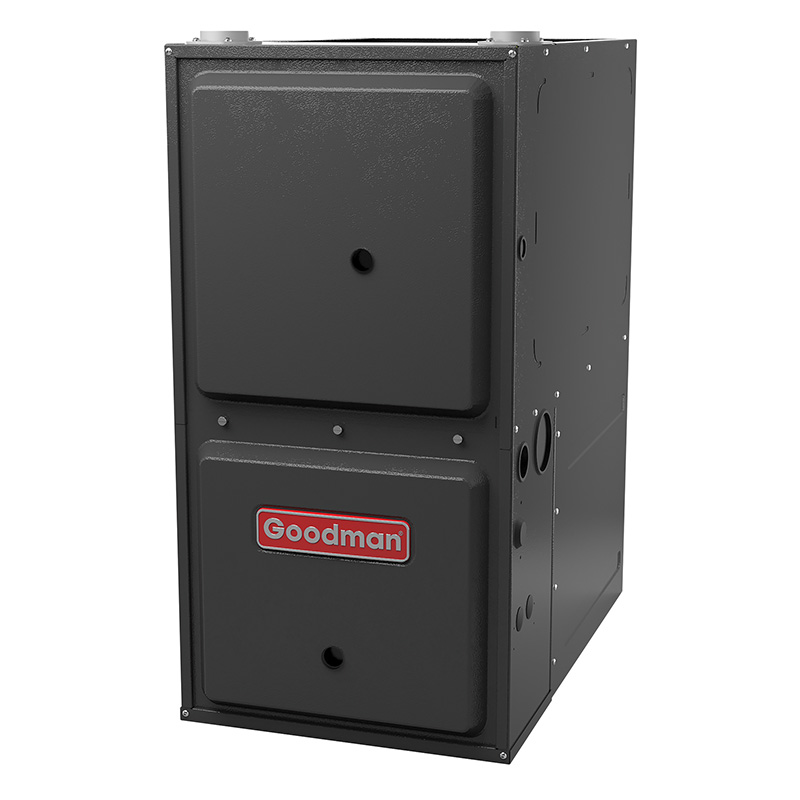

- 80,000 BTU 80% AFUE gas furnace with Ultra Low NOx burner for CA and CO compliance
- Multi-speed ECM blower motor for improved humidity control and quieter operation
- Horizontal cabinet configuration for attic, crawlspace, or sidewall installs
- 2.5-ton cooling capacity suited to approximately 1,200 to 1,600 square feet
- R-32 refrigerant with lower global warming potential than R-410A
About this system

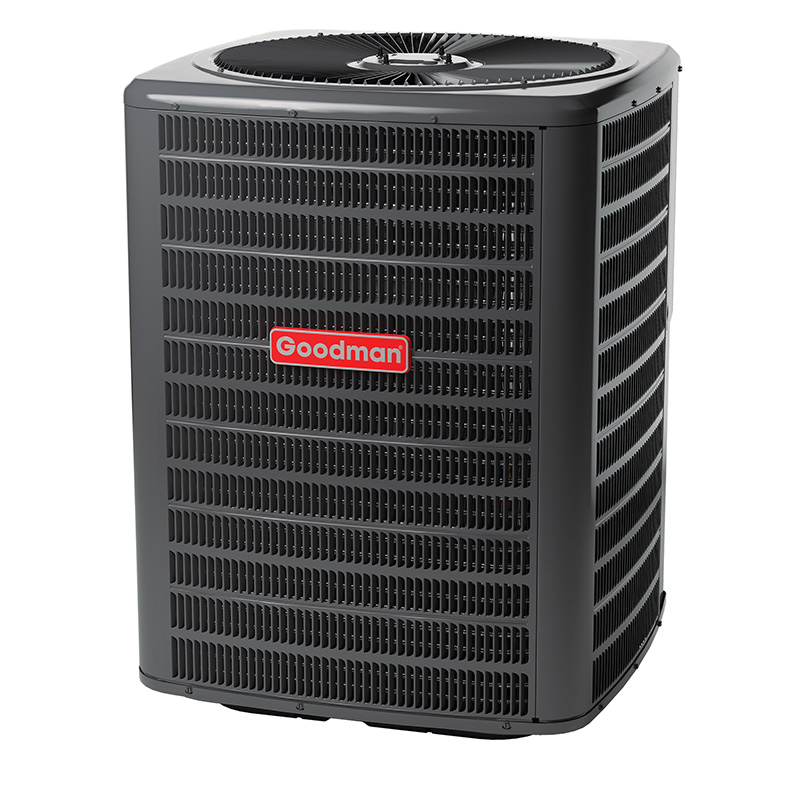

The Goodman 2.5 Ton 16 SEER2 R-32 air conditioner paired with an 80,000 BTU 80% AFUE gas furnace is sized for homes roughly in the 1,200 to 1,600 square foot range, though actual load calculations should always govern the final choice. The horizontal configuration makes it a practical fit for attic installs, crawlspace applications, or tight utility closets where a vertical unit simply will not fit. R-32 refrigerant is a lower-GWP alternative to R-410A and is increasingly common in new equipment as the industry phases out older refrigerants, so parts and service availability should remain solid for the foreseeable future.
On the efficiency side, 16 SEER2 clears the federal minimums for most U.S. regions by a meaningful margin without reaching into premium inverter or variable-speed territory. The multi-speed ECM blower motor improves comfort and reduces electricity draw compared to a standard PSC motor, and it supports better humidity control during cooling. The furnace at 80% AFUE is a baseline-efficiency unit, which suits climates where heating is a secondary concern or where a full sealed-combustion 96%+ system is not cost-justified. Both the Ultra Low NOx rating for California and the Colorado NOx compliance are built in, so this system ships ready for those states without an aftermarket burner swap.
This Goodman package delivers honest mid-tier efficiency at a price that is noticeably lower than comparable Carrier, Trane, or Lennox systems, making it a reasonable choice for budget-focused buyers who are willing to accept a shorter average compressor lifespan and somewhat elevated long-term repair risk. The horizontal configuration and NOx compliance add genuine utility for attic installs and California or Colorado homeowners. Like all Goodman equipment, the outcome depends heavily on the quality of the installing contractor.
Overall score is the average of the five ratings above.
What we like
- Priced 15 to 25 percent below comparable Carrier, Trane, and Lennox systems
- Built-in Ultra Low NOx compliance ships ready for California and Colorado without modification
- Multi-speed ECM motor improves comfort and lowers blower energy use compared to single-speed PSC motors
- 16 SEER2 exceeds federal minimums, delivering meaningful efficiency gains over baseline equipment
- R-32 refrigerant positions the system well as older refrigerants continue to be phased out
Trade-offs
- Compressor lifespan averages 10 to 14 years, shorter than the 15 to 20 years seen in premium-brand compressors
- Dual-run capacitors are the most commonly reported failure point, though repairs typically run $300 to $600

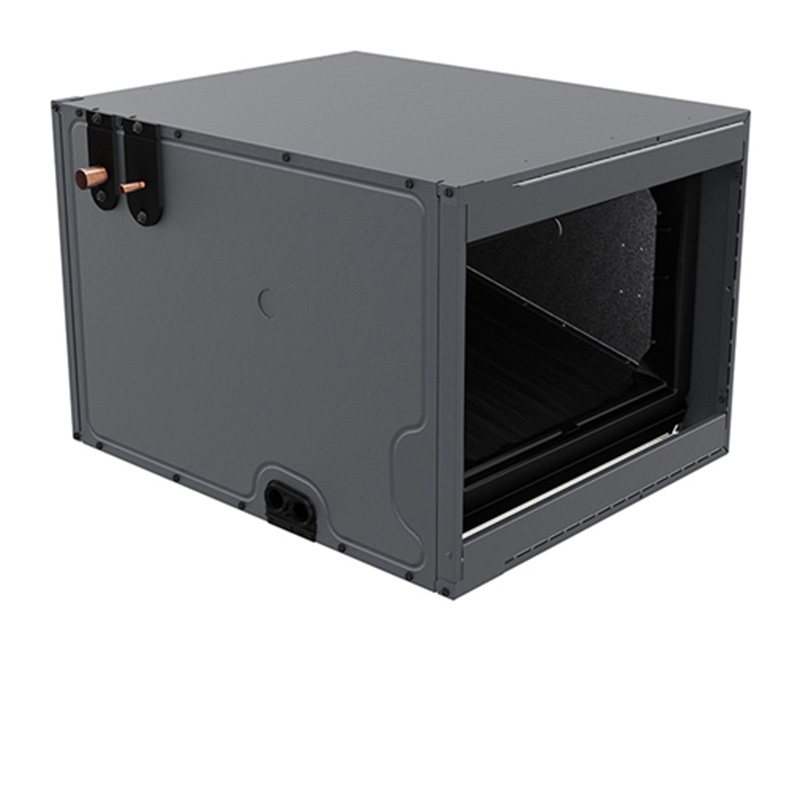

- Evaporator coil leaks appear in a meaningful share of owner reviews and can be a costly mid-life repair
- 80% AFUE furnace will cost more to operate annually than a 95%+ condensing unit in colder climates
What homeowners and pros say about Goodman
Homeowners who track their Goodman systems online tend to split into two groups. Those who had a careful, experienced contractor handle the install often report years of reliable service and praise the upfront savings. Those who ran into problems more frequently point to repair costs that started climbing after roughly year seven, a pattern consistent with the approximately 2.5 out of 5 score Goodman carries on ConsumerAffairs, a platform that skews toward people motivated to write by a frustrating experience. Google dealer reviews tell a more balanced story, landing around 3.8 out of 5 across hundreds of reviews per location, with affordability consistently cited as the main reason buyers chose the brand.
HVAC technicians tend to view Goodman as a workable product that requires solid installation practices and realistic owner expectations. The dual-run capacitor is the component they see fail most often, and while it is a straightforward fix in the $300 to $600 range, it does show up with enough regularity to be worth factoring into a long-term cost estimate. Evaporator coil leaks are a more significant concern, appearing in a notable portion of owner reports and capable of generating real repair bills. Compressor longevity averages 10 to 14 years in documented outcomes, which falls short of the 15 to 20 years that premium brands typically achieve. For this specific horizontal, NOx-compliant system, the calculus is straightforward: the savings are real and the trade-offs are known, and a quality installer is the single biggest variable in which outcome a buyer actually experiences.
Sources: ConsumerAffairs Goodman owner reviews, AHRI Directory of Certified Product Performance, U.S. DOE appliance and equipment efficiency standards, Goodman product specification sheets.
What it costs to run
At 16 SEER2, cooling this 2.5-ton system for a typical 1200-hour cooling season at the U.S. average electricity rate of $0.17/kWh works out to roughly $382 per year in cooling, about $75 less per year than a minimum-efficiency 13.4 SEER2 unit of the same size. Your real cost depends on your climate and local rate.
Method: (30,000 BTU/hr ÷ 16 SEER2) × 1200 hours ÷ 1000 × $0.17/kWh. Rate source: U.S. EIA average; cooling hours: moderate-climate estimate.
How it compares
| Brand | Comparable model | SEER2 | Stage | Price position |
|---|---|---|---|---|
| Goodman | GSXH5 / CHPF / GMVC8 horizontal package | 16 | Single-stage | Value pick |
| Carrier | Performance 16 (24ACC6) | 16 | Single-stage | Typically 15 to 25 percent more than Goodman |
| Trane | XR16 (4TTR6) | 16 | Single-stage | Typically 15 to 25 percent more than Goodman |
| Lennox | Merit ML16XC1 | 16 | Single-stage | Typically 15 to 25 percent more than Goodman |
Competitor rows are comparable single-stage units at similar efficiency; price is relative position, not a quote.
Questions about this system
Is this system actually ready to install in California without any additional parts or burner modifications?
Yes. The Ultra Low NOx rating is factory-built into the furnace burner assembly, so it meets California Air Resources Board requirements out of the box. No aftermarket conversion kit is needed for California or Colorado compliance.
What does the horizontal configuration mean, and can this unit be installed vertically if my space allows?
Horizontal configuration means the air handler is designed to lie on its side, with airflow moving sideways through the cabinet rather than upward. This specific model is rated and warranted for horizontal installation. If your space can accommodate a vertical unit, a different cabinet configuration would be the correct choice.
How does 80% AFUE affect my heating bills compared to a high-efficiency furnace?
An 80% AFUE furnace converts 80 cents of every dollar of gas into usable heat, with the remaining 20 cents lost through exhaust. A 96% AFUE unit would recapture much of that loss. In a colder climate where the furnace runs frequently, the efficiency gap translates to a real annual cost difference, and the higher-efficiency unit can pay back its price premium over several years.
R-32 is newer to residential systems in the U.S. Will I have trouble finding a technician who can service it?
R-32 is already common in mini-split systems and is expanding rapidly in ducted equipment. Most HVAC technicians certified for refrigerant handling can work with it, and availability is not a concern at this point. The main difference is that R-32 is mildly flammable, which requires technicians to follow A2L refrigerant safety procedures.
Goodman's reviews mention capacitor failures and coil leaks. How worried should I be, and is there anything I can do upfront to reduce that risk?
Dual-run capacitor failures are the most commonly reported issue with Goodman equipment and are generally a low-cost, quick repair in the $300 to $600 range. Evaporator coil leaks are more expensive and show up in a meaningful share of reviews. Choosing an experienced installer who pressure-tests the system carefully, registers the warranty promptly, and sets up a maintenance plan will give you the best chance of catching problems early and keeping the unit running closer to the longer end of its expected lifespan.
Specifications
| Cooling capacity | 2.5 Ton |
| Efficiency | 16 SEER2 |
| Furnace output | 80,000 BTU |
| Furnace efficiency | 80% AFUE |
| Configuration | Horizontal |
| Refrigerant | R-32 |
