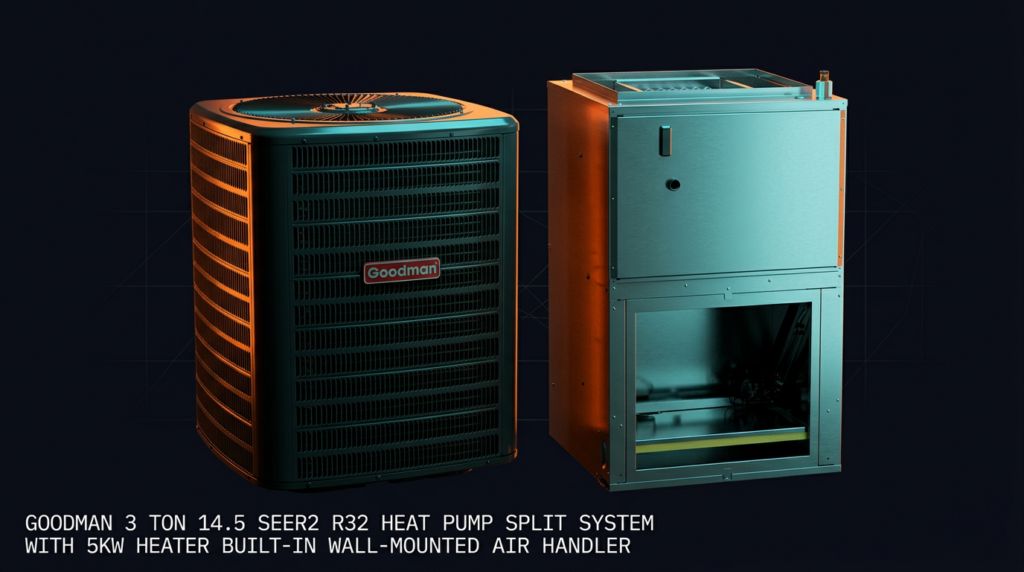

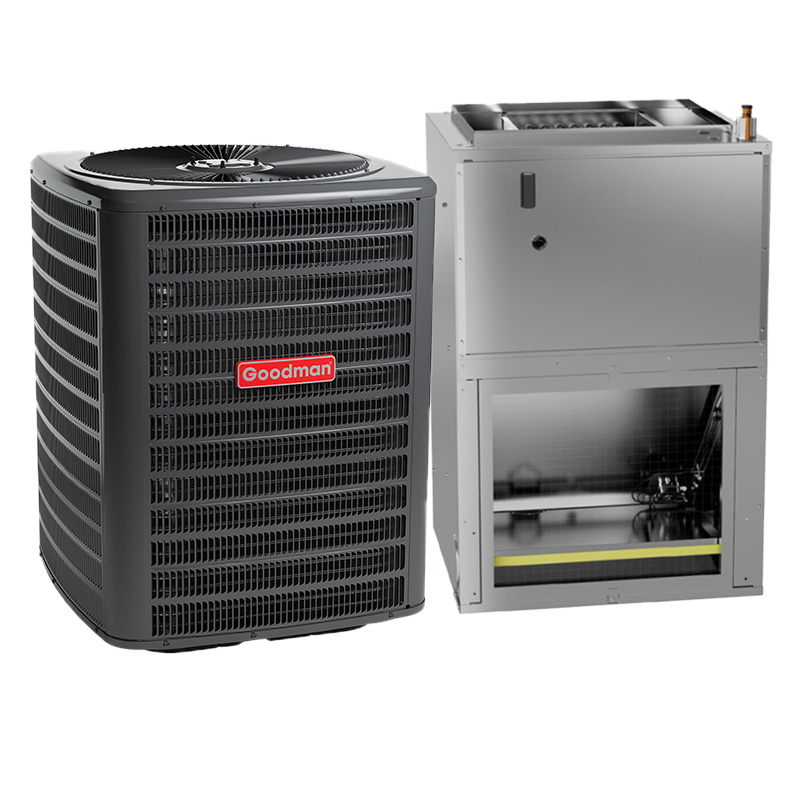

Goodman 3 Ton 14.5 SEER2 R32 Heat Pump Split System With 5kW Heater Built-In Wall-Mounted Air Handler
Check current price on AC Direct →
Key features
- 14.5 SEER2 single-stage heat pump rated at 3 tons (36,000 BTU/h nominal)

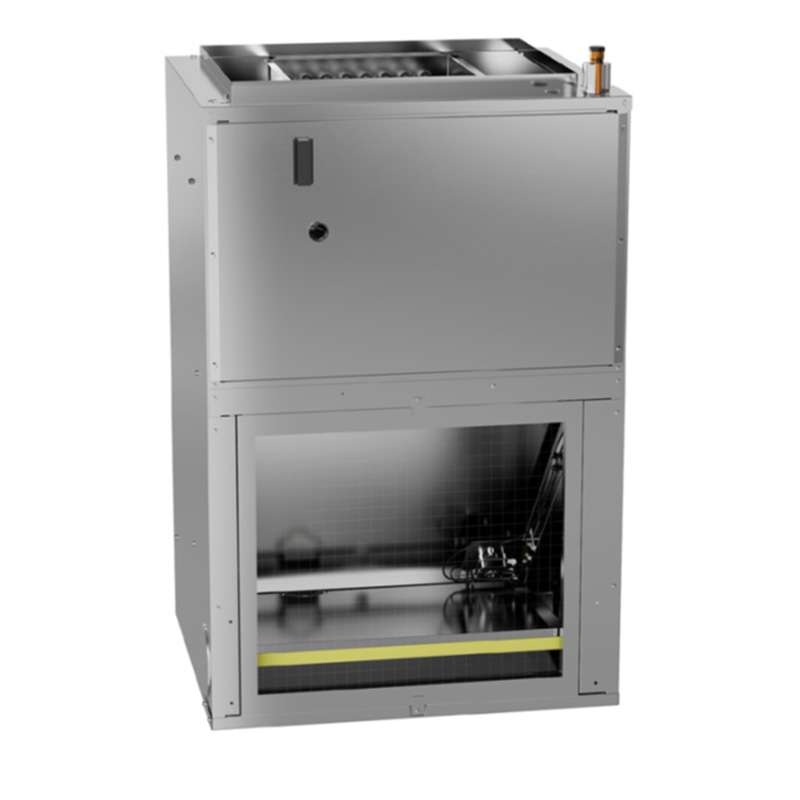

- Wall-mounted air handler keeps floor space clear in garages, additions, and converted spaces
- 5 kW electric resistance heater built into the air handler for supplemental heating
- R-32 refrigerant with lower global warming potential than legacy R-410A systems
- Goodman value pricing, typically 15 to 25 percent below Trane, Carrier, and Lennox equivalents

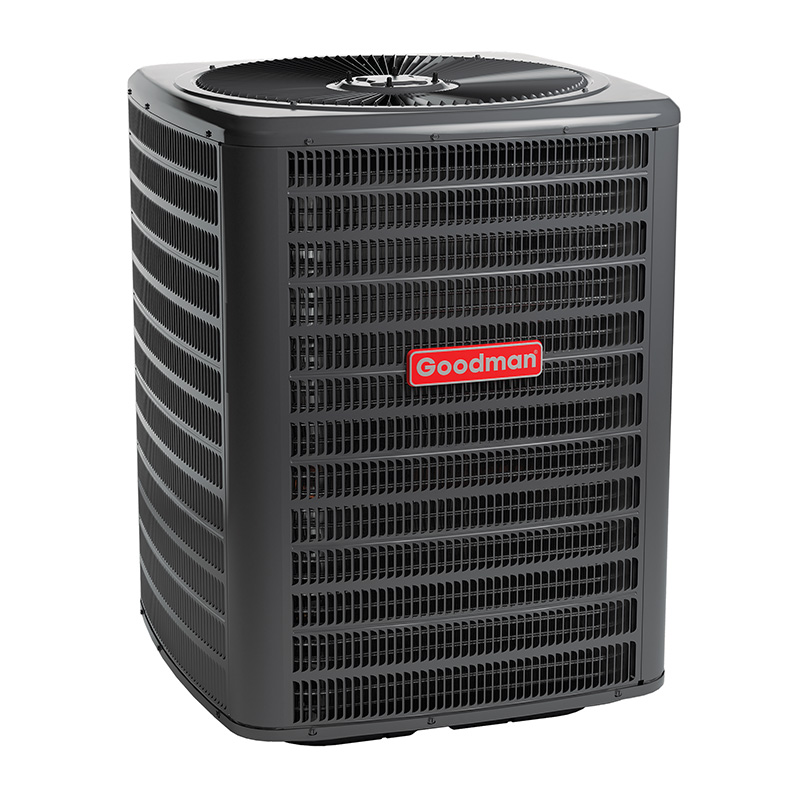

- Split-system design allows outdoor unit placement away from living or working space
About this system
The Goodman 3-ton 14.5 SEER2 R-32 heat pump split system pairs an outdoor condenser with a wall-mounted air handler that has a 5 kW electric resistance heater built in. That combination makes it a genuine all-in-one heating and cooling solution for spaces where a ducted system either does not exist or is impractical, such as converted garages, large workshops, additions, or single-zone homes in mild-to-moderate heating climates. The wall-mount configuration means installation footprint is compact, but it also means the install must be done carefully: refrigerant line sets, electrical runs, and condensate drainage all need to be routed correctly for the system to perform and last.
At 14.5 SEER2, this unit clears the federal minimum efficiency threshold for most U.S. regions and sits in the entry-level tier of modern heat pump efficiency. It will cost more to operate annually than a 16 or 18 SEER2 system, but the lower upfront price can offset several years of that difference depending on your utility rates and run hours. R-32 refrigerant carries a lower global warming potential than the R-410A it replaces and is increasingly standard across the industry, which means parts and refrigerant availability should remain strong for the foreseeable future. The built-in 5 kW strip heater supplements heat pump output when outdoor temps drop and heat pump capacity alone falls short, making this a practical choice in USDA climate zones where sub-freezing temperatures are periodic rather than sustained.
This system delivers honest entry-level heat pump performance at a price point that is hard to argue with, especially for single-zone applications where installing ductwork is not feasible. The trade-off is a brand track record that shows rising repair costs after year 7 and a compressor lifespan that tends to run shorter than premium competitors, so it rewards buyers who budget for routine maintenance and fast capacitor replacements. If you are comfortable with a value-brand risk profile and have a qualified installer, it covers the basics reliably for roughly a decade.
Overall score is the average of the five ratings above.
What we like
- Purchase price sits 15 to 25 percent below comparable Carrier, Trane, and Lennox heat pumps
- Wall-mount air handler suits spaces with no duct infrastructure or limited floor room
- Built-in 5 kW heater eliminates the need to source a separate supplemental heat source
- R-32 refrigerant is widely available and has lower environmental impact than R-410A
- 14.5 SEER2 meets current federal minimums, keeping the unit compliant for installation across most regions
Trade-offs
- Single-stage compressor cycles on at full capacity regardless of load, which reduces comfort precision and efficiency compared to two-stage or variable-speed alternatives
- Compressor lifespan averages 10 to 14 years in owner reports, shorter than the 15 to 20 years typical of premium brands
- Evaporator coil leaks appear in a meaningful share of owner reviews and can be costly to address outside the warranty period
- A minority of owners report refrigerant leaks in the first year, typically traced to installation or initial charge quality rather than a manufacturing defect, underscoring how heavily performance depends on installer skill
What homeowners and pros say about Goodman
Homeowners who land on Goodman usually arrive the same way: a contractor quotes a premium brand and then mentions Goodman fits the same space for several thousand dollars less. Google dealer reviews for Goodman installers cluster around 3.8 out of 5, and affordability is the word that comes up most consistently in those reviews. The satisfaction tends to be real in years one through six, when the system runs as expected and the price advantage feels like a win. ConsumerAffairs tells a different story at roughly 2.5 out of 5, though that platform draws complaint-motivated writers heavily, so the score skews negative. The recurring theme there is not that units fail immediately but that repair costs start climbing after about year 7, which aligns with what technicians say in trade forums about the brand’s component quality curve.
HVAC pros have a fairly consistent read on Goodman: the equipment is acceptable, but the install is everything. A sloppy line set, an improper refrigerant charge, or a rushed startup is how you end up in that minority of owners who report refrigerant leaks within the first year. Beyond install quality, the failure modes that show up in field reports with real frequency are dual-run capacitor failures (a low-cost fix in the 300 to 600 dollar range but annoying when it happens in July), evaporator coil leaks that surface in a meaningful share of owner reviews after several seasons, and compressors that average 10 to 14 years rather than the 15 to 20 years pros associate with Trane or Carrier hardware. None of that makes Goodman a bad choice for a price-conscious buyer who goes in clear-eyed, but it does mean budgeting for a capacitor swap somewhere in the middle years and not assuming the compressor will still be running at year 15.
Sources: ConsumerAffairs Goodman owner reviews, AHRI Directory of Certified Product Performance, U.S. DOE appliance and equipment efficiency standards, Goodman product specification sheets.
What it costs to run
At 14.5 SEER2, cooling this 3-ton system for a typical 1200-hour cooling season at the U.S. average electricity rate of $0.17/kWh works out to roughly $506 per year in cooling, about $42 less per year than a minimum-efficiency 13.4 SEER2 unit of the same size. Your real cost depends on your climate and local rate.
Method: (36,000 BTU/hr ÷ 14.5 SEER2) × 1200 hours ÷ 1000 × $0.17/kWh. Rate source: U.S. EIA average; cooling hours: moderate-climate estimate.
How it compares
| Brand | Comparable model | SEER2 | Stage | Price position |
|---|---|---|---|---|
| Goodman | 3-Ton 14.5 SEER2 R-32 Heat Pump with Wall-Mount Air Handler and 5 kW Heater | 14.5 | Single-stage | Value pick |
| Carrier | Comfort Series (24PAA / FB4C air handler) | 15.2 | Single-stage | Typically 15 to 25 percent more than Goodman |
| Trane | XR15 heat pump with TAM air handler | 15.0 | Single-stage | Typically 15 to 25 percent more than Goodman |
| Lennox | Merit Series (14HPX / CBX25UH air handler) | 15.0 | Single-stage | Typically 15 to 25 percent more than Goodman |
Competitor rows are comparable single-stage units at similar efficiency; price is relative position, not a quote.
Questions about this system
Will the 5 kW heater be enough backup heat for a 3-ton zone in cold climates?
A 5 kW strip heater produces roughly 17,000 BTU/h of supplemental heat, which can cover modest temperature gaps when the heat pump loses capacity at low outdoor temps. In climates where sustained temperatures drop well below 20 degrees Fahrenheit, you may find the combined output insufficient to maintain setpoint on the coldest nights, and a larger heater kit or a secondary heat source would be worth considering.
What is the most common repair this system will likely need, and how much does it cost?
The dual-run capacitor is the most frequently reported failure point across Goodman heat pump owners. It is also one of the least expensive fixes, typically running between 300 and 600 dollars for a service call including parts and labor. Keeping a maintenance agreement in place helps catch this before it takes down the compressor on a hot day.
How does R-32 affect service or refrigerant costs compared to R-410A systems I have owned before?
R-32 is already widely stocked by HVAC distributors and is increasingly the industry standard, so availability is not a concern. It requires a technician certified to handle mildly flammable refrigerants, which is a credential most modern HVAC techs already carry. Pricing per pound is broadly comparable to R-410A at the moment.
Does the wall-mount air handler work with a standard residential electrical panel, or does it need special wiring?
A 3-ton heat pump with a 5 kW heater will require a dedicated 240-volt circuit with appropriate amperage, and the heater element adds to the electrical load beyond what the compressor draws alone. You will want a licensed electrician to confirm your panel has capacity and to run a proper dedicated circuit before installation day.
How does Goodman's warranty on this system compare to premium brands?
Goodman typically offers a 10-year parts warranty on registered equipment, which is competitive on paper with Trane and Carrier at the same tier. The practical difference is that premium brands have a stronger reputation for honoring claims without friction and tend to have denser dealer networks for warranty service; a few Goodman owners in online reviews note difficulty finding authorized service providers in less populated areas.
Specifications
| Cooling capacity | 3 Ton |
| Efficiency | 14.5 SEER2 |
| Refrigerant | R-32 |
