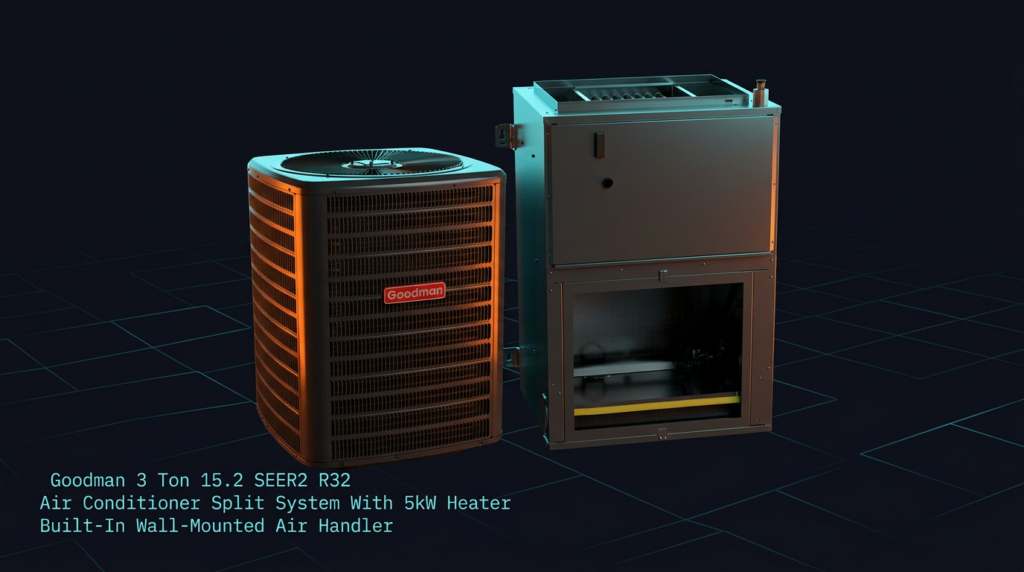

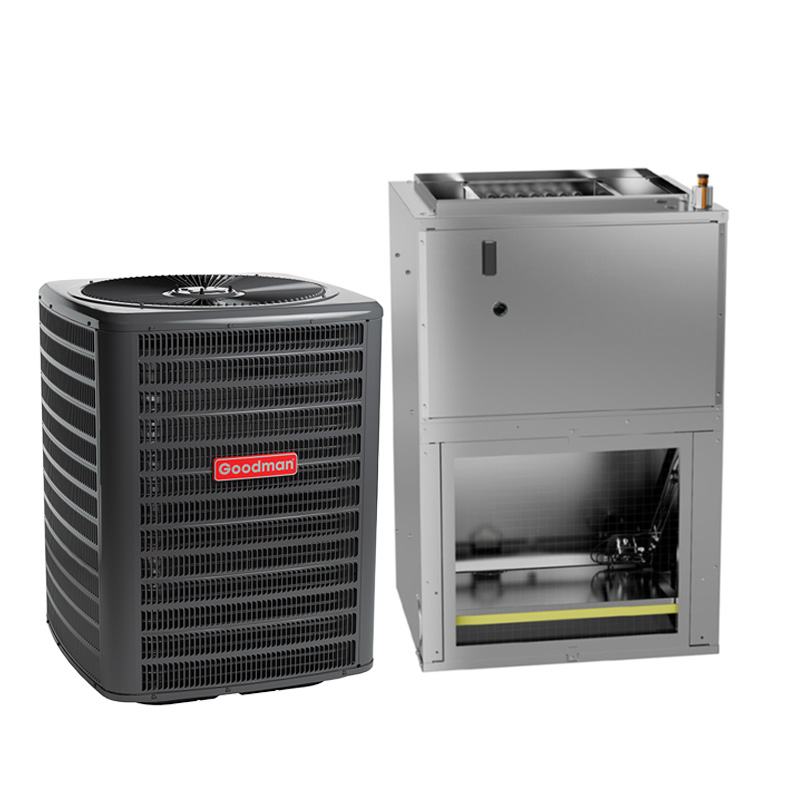

Goodman 3 Ton 15.2 SEER2 R32 Air Conditioner Split System With 5kW Heater Built-In Wall-Mounted Air Handler
Check current price on AC Direct →
Key features
- 3-ton cooling capacity, suitable for approximately 1,400 to 1,800 sq ft under average conditions
- 15.2 SEER2 efficiency rating, meeting current federal minimum standards
- R-32 refrigerant, lower global warming potential than R-410A
- 5 kW built-in electric resistance heater for supplemental or mild-season heating
- Wall-mounted air handler eliminates need for attic, closet, or crawl space installation
- Ductless-friendly configuration suited to additions, conversions, and retrofit projects
About this system

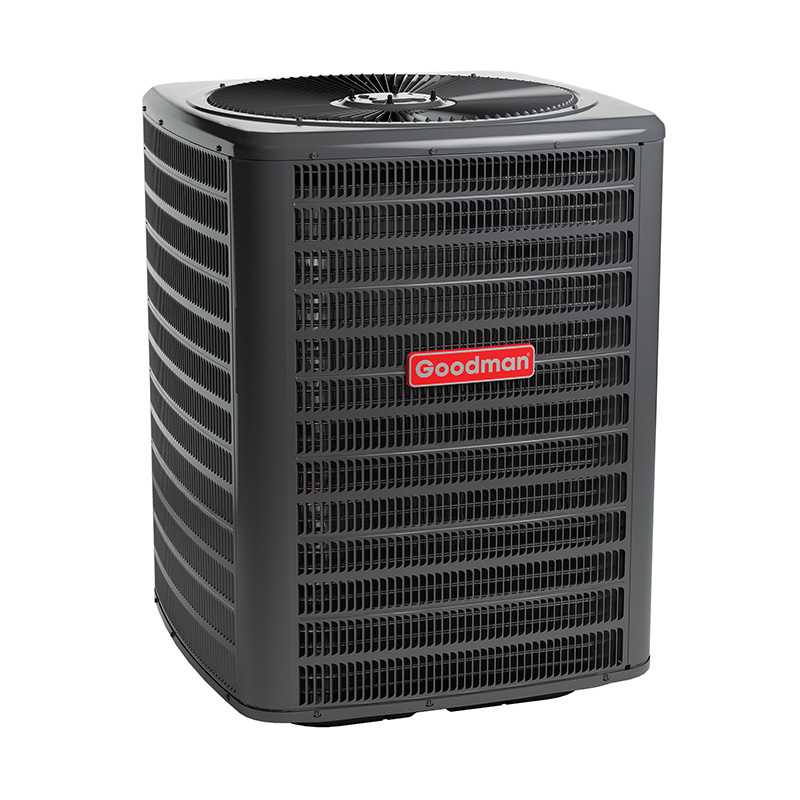

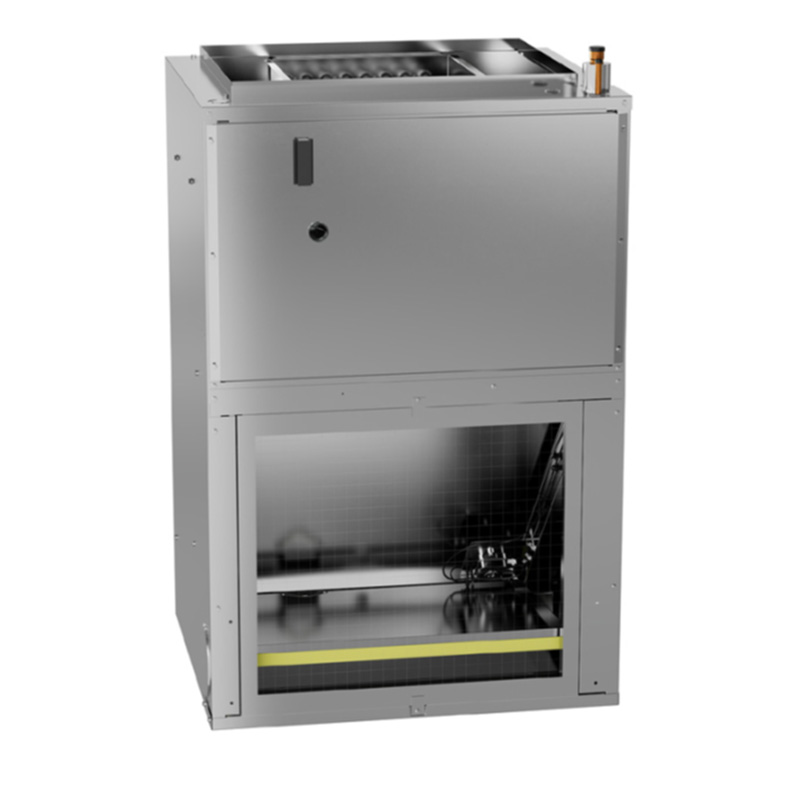

The Goodman 3-Ton 15.2 SEER2 R-32 split system pairs a standard efficiency outdoor condenser with a wall-mounted air handler that has a 5 kW electric heater built in, making it a self-contained cooling and supplemental heating solution without a separate furnace or air handler in a closet or attic. The wall-mount configuration is particularly useful in homes without existing ductwork, additions, sunrooms, workshops, or multi-family units where a ducted system is impractical or cost-prohibitive. At 3 tons, it is sized for roughly 1,400 to 1,800 square feet under average load conditions, though actual sizing should always be confirmed with a Manual J calculation.
The 15.2 SEER2 rating meets the current federal minimum efficiency standard for most U.S. climate zones and represents a meaningful step above older 13 or 14 SEER equipment, but it is not a high-efficiency system. Running on R-32 refrigerant, it uses a lower global warming potential refrigerant than the R-410A it replaces, which also improves thermodynamic efficiency slightly and simplifies future servicing as the industry moves away from R-410A. The 5 kW resistance heater provides about 17,000 BTU of supplemental heat, which is adequate for mild shoulder-season conditions but not a substitute for a heat pump or gas furnace in cold climates.
This Goodman system offers a practical, budget-conscious way to add both cooling and supplemental heat to a space without ductwork, and the R-32 refrigerant keeps it future-ready. The trade-off is a brand track record that places it firmly in the value tier, where long-term reliability depends heavily on installation quality and where repair costs can climb after the first several years of ownership.
Overall score is the average of the five ratings above.
What we like
- Priced 15 to 25 percent below comparable Carrier, Trane, and Lennox systems, lowering the upfront barrier
- Wall-mount air handler opens up installation locations not possible with ducted equipment
- R-32 refrigerant is easier to service going forward as R-410A phases out
- 5 kW heater provides convenient supplemental heat without a separate appliance
- 15.2 SEER2 meets current efficiency requirements and will reduce operating costs versus older equipment
Trade-offs
- Dual-run capacitors are the most commonly reported failure point, typically requiring a 300 to 600 dollar repair
- Evaporator coil leaks appear in a meaningful share of owner reviews, often after several years of use
- Compressor lifespan averages 10 to 14 years versus 15 to 20 years reported for premium brands
- 5 kW electric resistance heat is inefficient and insufficient for cold-climate primary heating, adding operating cost if over-relied upon
What homeowners and pros say about Goodman
Homeowners who have purchased Goodman equipment share a fairly consistent pattern across review channels. On ConsumerAffairs, where the audience skews toward people motivated to report problems, Goodman scores around 2.5 out of 5, and the recurring complaint is repair costs that begin to accumulate after roughly year seven of ownership. Google dealer reviews tell a more balanced story, averaging around 3.8 out of 5 across hundreds of reviews per location, where the most common praise is straightforward: the price was right and the system does what it was supposed to do. For this wall-mount system specifically, buyers who go in understanding they are trading some long-term reliability margin for a lower purchase price tend to be satisfied, while those expecting premium-brand durability on a value-brand budget are the ones leaving frustrated reviews.
HVAC technicians who service Goodman equipment point to a few recurring issues worth knowing before you buy. Dual-run capacitors are the most frequently reported failure point, but technicians are quick to note this is usually a quick, low-cost fix in the 300 to 600 dollar range and not a sign of broader system failure. Evaporator coil leaks show up in a meaningful share of long-term owner reports and are a more expensive repair. Compressor lifespan is the bigger picture concern: Goodman compressors tend to average 10 to 14 years, compared to 15 to 20 years commonly cited for Carrier, Trane, and Lennox equipment. A small number of owners also report refrigerant leaks within the first year, which technicians generally attribute to installation or initial charge quality rather than the equipment itself. That last point reinforces what experienced installers say consistently: with Goodman, who puts it in matters as much as what goes in.
Sources: ConsumerAffairs Goodman owner reviews, AHRI Directory of Certified Product Performance, U.S. DOE appliance and equipment efficiency standards, Goodman product specification sheets.
What it costs to run
At 15.2 SEER2, cooling this 3-ton system for a typical 1200-hour cooling season at the U.S. average electricity rate of $0.17/kWh works out to roughly $483 per year in cooling, about $65 less per year than a minimum-efficiency 13.4 SEER2 unit of the same size. Your real cost depends on your climate and local rate.
Method: (36,000 BTU/hr ÷ 15.2 SEER2) × 1200 hours ÷ 1000 × $0.17/kWh. Rate source: U.S. EIA average; cooling hours: moderate-climate estimate.
How it compares
| Brand | Comparable model | SEER2 | Stage | Price position |
|---|---|---|---|---|
| Goodman | 3-Ton 15.2 SEER2 R-32 Wall-Mount Split with 5 kW Heater | 15.2 | Single-stage | Value pick |
| Carrier | Comfort Series (24ACC6) | 15.2 | Single-stage | Typically 15 to 25 percent more than this Goodman |
| Trane | XR15 | 15.0 to 16.0 | Single-stage | Typically 15 to 25 percent more than this Goodman |
| Lennox | Merit Series (ML14XC1) | 15.0 to 16.0 | Single-stage | Typically 15 to 25 percent more than this Goodman |
Competitor rows are comparable single-stage units at similar efficiency; price is relative position, not a quote.
Questions about this system
Is the 5 kW heater enough to heat my space in winter?
The 5 kW resistance heater produces roughly 17,000 BTU and is designed for supplemental or shoulder-season use, not primary cold-weather heating. In climates where temperatures regularly drop below 35 to 40 degrees Fahrenheit, it will struggle to keep pace, and the operating cost of resistance heat is significantly higher than a heat pump. If heating is a priority, a heat pump configuration would be a better fit.
What does R-32 refrigerant mean for me as an owner?
R-32 has a lower global warming potential than the R-410A used in older systems and is becoming the industry standard as R-410A phases out under EPA regulations. For you as an owner, it means technicians will have easier and likely less expensive access to refrigerant for future service calls, and the system is compliant with where the industry is heading. A minority of early owners of any refrigerant system report refrigerant leaks in the first year, which is generally an installation or initial charge issue rather than a refrigerant-specific problem.
How important is the installer for a Goodman system specifically?
Extremely important. Technicians consistently cite installation quality as the single biggest factor in how long a Goodman unit performs reliably. Proper refrigerant charge, electrical connections, and line set handling are particularly critical. A poor install can accelerate the known failure modes like capacitor issues and coil leaks, while a careful install on the same equipment can produce years of trouble-free operation.
What is the warranty on this system and what does it actually cover?
Goodman typically offers a 10-year parts limited warranty when the system is registered within a set window after installation, covering components including the compressor and coil. Labor is not covered, which matters because labor on a coil leak or compressor replacement can be substantial. Confirm registration requirements and exact coverage terms with your installer before purchase, as warranty details can vary by model and registration status.
Can this wall-mounted system work as the only HVAC unit for a room addition or detached space?
Yes, that is one of its strongest use cases. The wall-mount air handler requires no ductwork, so it works well in additions, detached garages, workshops, or any space where running ducts is impractical. Keep in mind the 5 kW heater handles mild heating loads only, so in colder climates you may need a supplemental heat source for the space during deep winter.
Specifications
| Cooling capacity | 3 Ton |
| Efficiency | 15.2 SEER2 |
| Refrigerant | R-32 |
