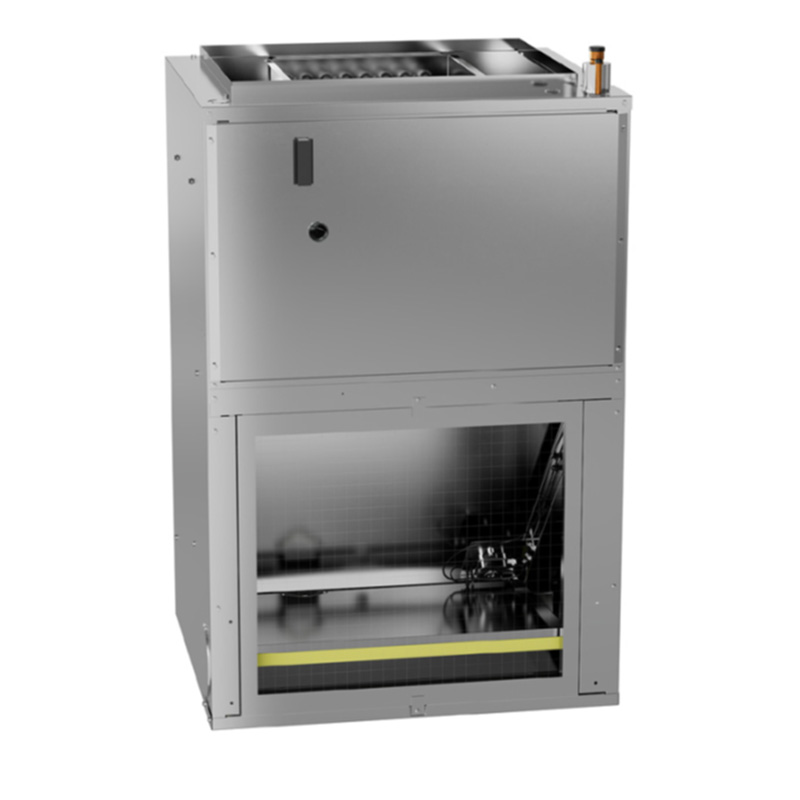

Goodman 3 Ton R32 Wall-Mount Air Handler With Built-in 5kW Heater (AWST36LU1305)
Check current price on AC Direct →
Key features
- 3-ton wall-mount air handler for ductless split applications
- R-32 refrigerant with lower global warming potential than R-410A
- Built-in 5kW electric resistance heater for supplemental or primary heat
- Wall-mount configuration suited for spaces without ceiling or floor access
- Compatible with select Goodman inverter-driven outdoor condensing units
- Factory-installed heater kit simplifies installation versus field-added options
About this system
The Goodman AWST36LU1305 is a 3-ton wall-mount air handler designed for ductless split systems using R-32 refrigerant. The wall-mount configuration makes it a practical choice for spaces where ceiling or floor installation is not feasible, including server rooms, additions, converted garages, and commercial suites. The built-in 5kW electric heater adds heating capability without requiring a separate heat pump outdoor unit, giving installers flexibility in climates where supplemental or primary electric heat is acceptable. R-32 is a lower-GWP refrigerant compared to R-410A, which aligns with current regulatory direction and means replacement refrigerant should remain available as the industry moves away from older blends.
At 3 tons, this unit is sized for spaces roughly in the 1,200 to 1,800 square foot range, though actual sizing depends on local climate, insulation, window area, and ceiling height. Because no SEER2 rating is published for this air handler on its own, efficiency is partly determined by the matched outdoor unit it is paired with. Buyers should confirm compatibility with their chosen condensing unit and verify that the system qualifies for any local utility rebates before purchasing. The wall-mount form factor and R-32 charge also influence which technicians are comfortable servicing it, so confirming local availability of qualified installers is a real pre-purchase consideration.
The AWST36LU1505 offers a cost-accessible entry into R-32 wall-mount air handler technology, and the factory-integrated 5kW heater is a genuine convenience. The trade-off is Goodman's documented mid-tier reliability history and the fact that efficiency performance depends entirely on the matched outdoor unit and installation quality.
Overall score is the average of the five ratings above.
What we like
- Price point runs 15 to 25 percent below comparable Carrier, Trane, and Lennox wall-mount options
- Built-in 5kW heater eliminates a separate field installation step and reduces labor costs
- R-32 refrigerant is lower-GWP and positions the system for longer regulatory shelf life than R-410A equipment
- Wall-mount form factor opens installation options in spaces where other configurations are impractical
- Broad Goodman dealer network means parts and service technicians are generally accessible in most metro areas
Trade-offs
- No published SEER2 rating for this air handler alone makes efficiency comparisons difficult without specifying a matched outdoor unit
- Goodman compressors average 10 to 14 years versus 15 to 20 for premium-brand compressors, a real long-term cost consideration
- Evaporator coil leaks are a documented recurring complaint in Goodman owner feedback, which can be costly to address after warranty expiration
- R-32 requires technicians with specific certification and equipment, potentially limiting service options in smaller markets
What homeowners and pros say about Goodman
Homeowners who have installed Goodman equipment tend to echo what the brand’s Google dealer reviews reflect at around 3.8 out of 5: the affordability is real and appreciated, especially when budgets are tight or a system replacement was unplanned. The concerns that surface in longer-term feedback align closely with what ConsumerAffairs scores at roughly 2.5 out of 5, a complaint-weighted channel where the consistent pattern is repair costs climbing after roughly year seven. The specific failure modes that appear most often are dual-run capacitor failures, which are relatively inexpensive to fix, and evaporator coil leaks, which are not. Compressor longevity is another honest consideration: Goodman compressors average 10 to 14 years in real-world reports, compared to 15 to 20 years for premium-brand alternatives, and that gap matters when calculating total cost of ownership over a 15-year horizon.
HVAC technicians generally have a pragmatic view of Goodman: the equipment is straightforward to work on, parts are widely stocked, and the lower purchase price can make sense for rental properties, budget-conscious homeowners, or situations where a like-for-like replacement is needed quickly. The consistent caution from experienced installers is that Goodman systems are more sensitive to install quality than premium brands. A careful startup procedure, a properly verified refrigerant charge, and correct airflow setup matter more here than they might with a Mitsubishi or Daikin. For the AWST36LU1305 specifically, R-32 certification adds a layer of installer vetting that buyers should complete before purchase rather than after.
Sources: ConsumerAffairs Goodman owner reviews, AHRI Directory of Certified Product Performance, U.S. DOE appliance and equipment efficiency standards, Goodman product specification sheets.
How it compares
| Brand | Comparable model | SEER2 | Stage | Price position |
|---|---|---|---|---|
| Goodman | AWST36LU1305 | Not rated standalone | Variable (inverter, dependent on matched outdoor unit) | Value pick |
| Mitsubishi | PEAD-A36AA7 (PEAD series wall-mount air handler) | Rated in matched system; typically 20+ SEER2 in qualifying combinations | Variable-speed inverter | Significantly higher upfront, often 40 to 60 percent more than Goodman |
| Daikin | FDMQ36RVJU (concealed / FDMQ series comparable capacity) | Rated in matched system configuration | Variable-speed inverter | Moderately higher than Goodman, typically 25 to 40 percent more |
| Fujitsu | AUU36RCLX (wall-mount / ducted air handler, 3-ton class) | Rated in matched system; competitive with Daikin in similar configurations | Variable-speed inverter | Moderately higher than Goodman, in a similar range to Daikin |
Competitor rows are comparable single-stage units at similar efficiency; price is relative position, not a quote.
Questions about this system
What outdoor unit does the AWST36LU1305 pair with, and does it matter for efficiency?
Yes, it matters significantly. This air handler has no standalone SEER2 rating; efficiency is determined by the matched outdoor condensing unit. You need to confirm Goodman's matched system pairing list to get a rated SEER2 value and to ensure warranty coverage applies to the combined system.
Can the built-in 5kW heater serve as the primary heat source, or is it only supplemental?
It can function as a primary heat source in mild climates or well-insulated smaller spaces, but 5kW of electric resistance heat is limited in very cold weather or larger zones. In colder climates it is best treated as a supplemental or emergency heat source paired with a heat pump outdoor unit.
Does my technician need special certification to work on R-32 refrigerant?
Yes. R-32 is classified as a mildly flammable refrigerant (A2L), and many jurisdictions require technicians to hold specific A2L handling certification and use appropriate equipment. Confirm your installer is certified before committing to this unit, particularly in smaller markets where that certification may be less common.
What are the most likely repair costs I should budget for over the life of this unit?
Based on Goodman's documented failure patterns, dual-run capacitor replacement is the most common service call and typically runs 300 to 600 dollars. Evaporator coil leaks are a recurring complaint that can cost significantly more, and compressor replacement, if needed after the warranty period, can approach or exceed the cost of a new unit given the 10 to 14 year average lifespan Goodman compressors show.
What does Goodman's warranty cover on this air handler, and what voids it?
Goodman typically offers a 10-year parts warranty on registered equipment, but coverage requires registration within a set window after installation and installation by a licensed contractor. Warranty claims tied to refrigerant issues in the first year are sometimes disputed as install or improper charge problems rather than manufacturing defects, so having a detailed startup report from your installer is worth keeping on file.
Specifications
| Cooling capacity | 3 Ton |
| Refrigerant | R-32 |
| Model | AWST36LU1305 |
