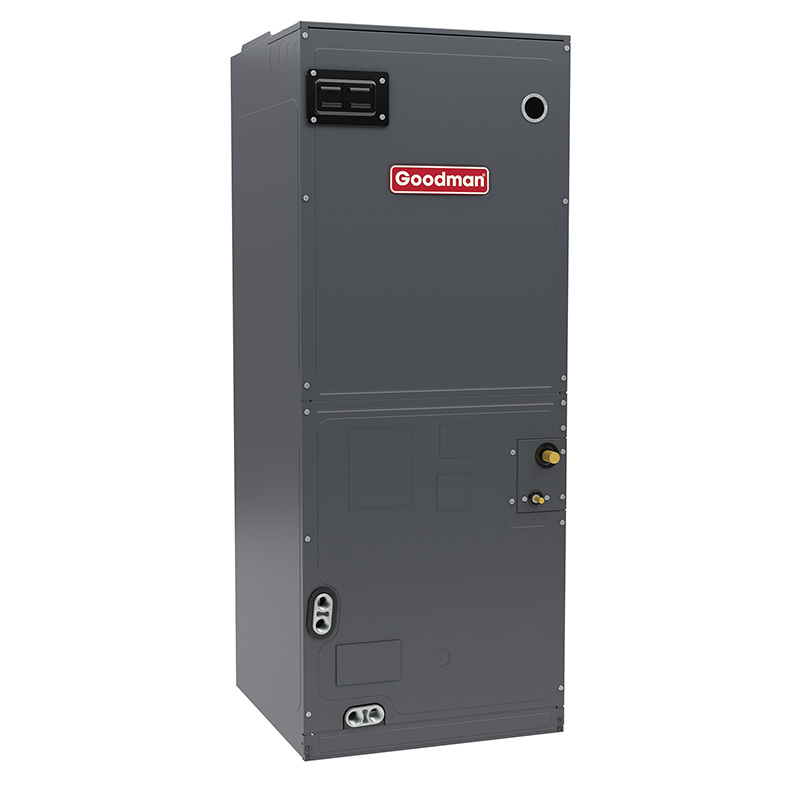

Goodman 4 Ton R32 Multi-Position, Variable-Speed, ECM-Based Air Handler With Internal EEV (115V) (AHVE48CP0300)
Check current price on AC Direct →
Key features
- Variable-speed ECM blower motor for quieter, more efficient airflow modulation
- Internal electronic expansion valve (EEV) for precise refrigerant metering
- Multi-position design: installs in upflow, downflow, or horizontal configuration
- Compatible with R-32 refrigerant, a lower global-warming-potential refrigerant
- 115V single-phase electrical connection suits standard residential service
- Designed for pairing with a compatible variable-speed outdoor unit for full system efficiency
About this system
The Goodman AHVE48CP0300 is a 4-ton, multi-position air handler built around an ECM (electronically commutated motor) variable-speed blower and an internal electronic expansion valve (EEV). Those two components work together to modulate airflow and refrigerant metering precisely, which is meaningfully different from a fixed-speed handler that simply runs full-blast or not at all. The result is quieter operation, better humidity control, and lower blower electricity use over a typical cooling season. The unit is wired for 115V, handles R-32 refrigerant, and can be installed in upflow, downflow, or horizontal orientations, giving contractors flexibility in tighter mechanical rooms or attic installations.
R-32 refrigerant carries a global warming potential roughly 68 percent lower than R-410A and offers slightly better thermodynamic efficiency, which is part of why Goodman and others are adopting it as the industry phases toward lower-GWP options. The internal EEV is a notable inclusion at this price tier: it replaces the traditional fixed orifice or thermostatic expansion valve and allows the system to respond dynamically to changing load conditions. Paired with a compatible variable-speed outdoor unit, this air handler can be the backbone of a genuinely efficient split system. On its own, though, the air handler does not carry a standalone SEER2 rating; that figure is assigned to the matched outdoor unit combination.
This unit is best suited to homeowners replacing an existing air handler in a 1,800 to 2,400 square foot home who want variable-speed comfort without paying premium-brand prices, and who are working with a licensed installer experienced with R-32 and EEV-equipped systems. It is not a unit for DIY installation or for pairing haphazardly with a mismatched outdoor coil.
The AHVE48CP0300 delivers genuine variable-speed performance and EEV precision at a price point well below comparable Carrier or Trane air handlers, making it a solid value when installed correctly by an experienced technician. The trade-off is that Goodman's real-world reliability record is shorter-lived than premium brands, and the R-32 and EEV combination raises the stakes on install quality. If you are cost-conscious, using a qualified contractor, and prepared for the possibility of a repair in years 7 through 14, this unit earns its place.
Overall score is the average of the five ratings above.
What we like
- ECM variable-speed blower meaningfully reduces blower energy consumption versus single-speed handlers
- Internal EEV allows precise refrigerant control, supporting better humidity management and efficiency when matched correctly
- Multi-position flexibility simplifies retrofits into existing ductwork configurations
- R-32 compatibility positions the system for regulatory compliance as R-410A is phased down
- Priced 15 to 25 percent below comparable Trane, Carrier, and Lennox air handlers
Trade-offs
- Goodman compressors in matched outdoor units average 10 to 14 years versus 15 to 20 years for premium brands, which is relevant to overall system longevity
- R-32 and EEV technology requires an installer with specific training; poor installation is the leading cause of early failures including refrigerant leaks in year one
- No standalone SEER2 rating on the air handler; system efficiency is only realized with a properly matched and rated outdoor unit
- Evaporator coil leaks appear in a meaningful share of Goodman owner reviews, a failure mode worth factoring into long-term cost planning
What homeowners and pros say about Goodman
Homeowners who share feedback on Goodman equipment tend to land in two camps: those who had a smooth installation and are satisfied with the value years later, and those who faced early repairs and feel the savings did not hold up. On ConsumerAffairs, Goodman scores around 2.5 out of 5, a channel that skews toward complaint-driven posts, where the most common theme is repair costs climbing after roughly year seven. Google dealer reviews tell a more balanced story at around 3.8 out of 5, where affordability comes up most often as the reason buyers chose the brand. For an ECM variable-speed air handler like the AHVE48CP0300, the gap between those two groups often comes down to how carefully the system was commissioned at startup.
HVAC technicians who work on Goodman equipment regularly point to dual-run capacitors as the most frequently replaced part across the brand’s outdoor units, typically a straightforward repair in the 300 to 600 dollar range. More consequential are evaporator coil leaks, which appear in a meaningful share of owner reviews and represent a costlier fix. Compressor longevity in Goodman matched systems averages 10 to 14 years, compared to 15 to 20 years commonly cited for Trane or Carrier, which is a real long-term ownership consideration. A minority of owners have also reported refrigerant leaks within the first year, a pattern technicians attribute to installation or charge issues rather than the hardware itself, which reinforces why choosing an experienced R-32-qualified installer is not optional on a unit like this one.
Sources: ConsumerAffairs Goodman owner reviews, AHRI Directory of Certified Product Performance, U.S. DOE appliance and equipment efficiency standards, Goodman product specification sheets.
How it compares
| Brand | Comparable model | SEER2 | Stage | Price position |
|---|---|---|---|---|
| Goodman | AHVE48CP0300 | Rated as part of matched system | Variable-speed | Value pick |
| Carrier | FV4CNF004 (Performance Series) | Rated as part of matched system | Variable-speed | Roughly 20 to 30 percent more than Goodman |
| Trane | TAM9 Series 4-Ton Air Handler | Rated as part of matched system | Variable-speed | Roughly 25 to 35 percent more than Goodman |
| Lennox | CBX40UHV-048 Air Handler | Rated as part of matched system | Variable-speed | Roughly 30 to 40 percent more than Goodman |
Competitor rows are comparable single-stage units at similar efficiency; price is relative position, not a quote.
Questions about this system
Does this air handler work with my existing R-410A outdoor unit?
No. The AHVE48CP0300 is designed for R-32 refrigerant systems and is not compatible with R-410A outdoor units. You will need a matched R-32 outdoor unit from Goodman's compatible lineup to form a rated system. Mixing refrigerant types or mismatched units will void the warranty and create safety and performance issues.
What does the internal EEV actually do, and why does it matter?
The electronic expansion valve replaces a fixed orifice or thermostatic expansion valve and continuously adjusts how much refrigerant flows into the coil based on real-time operating conditions. This allows the system to maintain proper superheat across a wide range of loads, which improves efficiency and reduces coil icing risk. It also means your installer must set it up correctly during commissioning; a poorly charged or misconfigured EEV system will underperform regardless of the hardware quality.
Can this air handler be installed horizontally in an attic?
Yes, the multi-position design supports horizontal installation in addition to upflow and downflow orientations. Your contractor should verify that the condensate drain configuration is correct for horizontal use and that the unit is properly supported and leveled, as sagging or improper slope can cause drainage problems over time.
What is Goodman's warranty on this air handler, and are there conditions I should know about?
Goodman typically offers a 10-year parts limited warranty when the unit is registered within 60 days of installation by a licensed contractor. Failure to register usually drops coverage to 5 years, and the warranty requires that installation be performed by a licensed HVAC professional. Given that evaporator coil leaks are a documented failure mode in Goodman units, confirming you have the full 10-year parts coverage before installation is worthwhile.
My installer mentioned the dual-run capacitor is a common repair on Goodman systems. Does that apply to an air handler too?
Dual-run capacitor failures are most associated with Goodman outdoor condensing units, not the air handler itself. However, the ECM blower motor in this air handler has its own control module that can fail and is typically a more expensive repair than a capacitor replacement. Asking your contractor about the expected service life of the ECM module and whether they stock common replacement parts is a reasonable question before committing.
Specifications
| Cooling capacity | 4 Ton |
| Configuration | Multi-Position |
| Refrigerant | R-32 |
| Model | AHVE48CP0300 |
