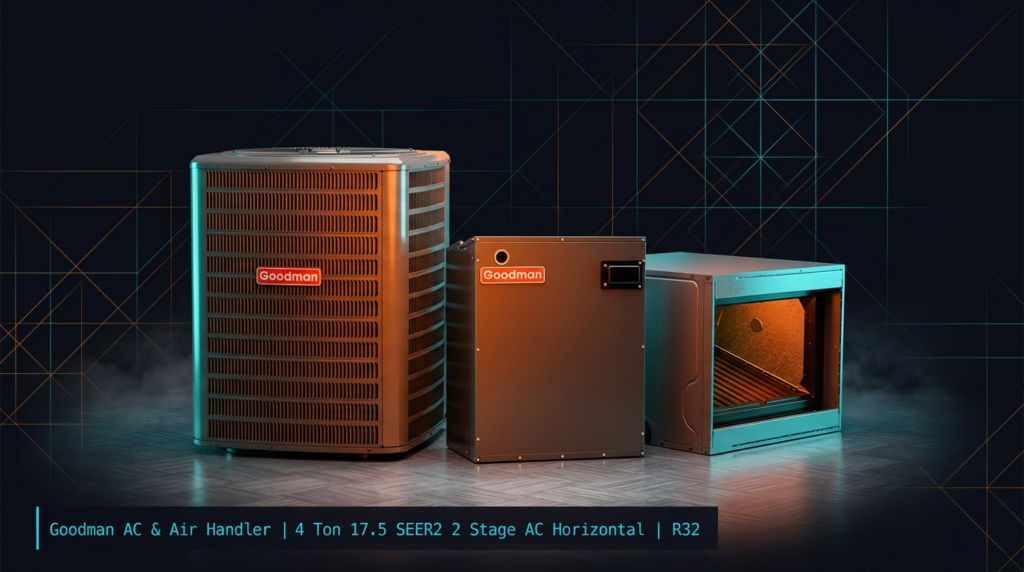

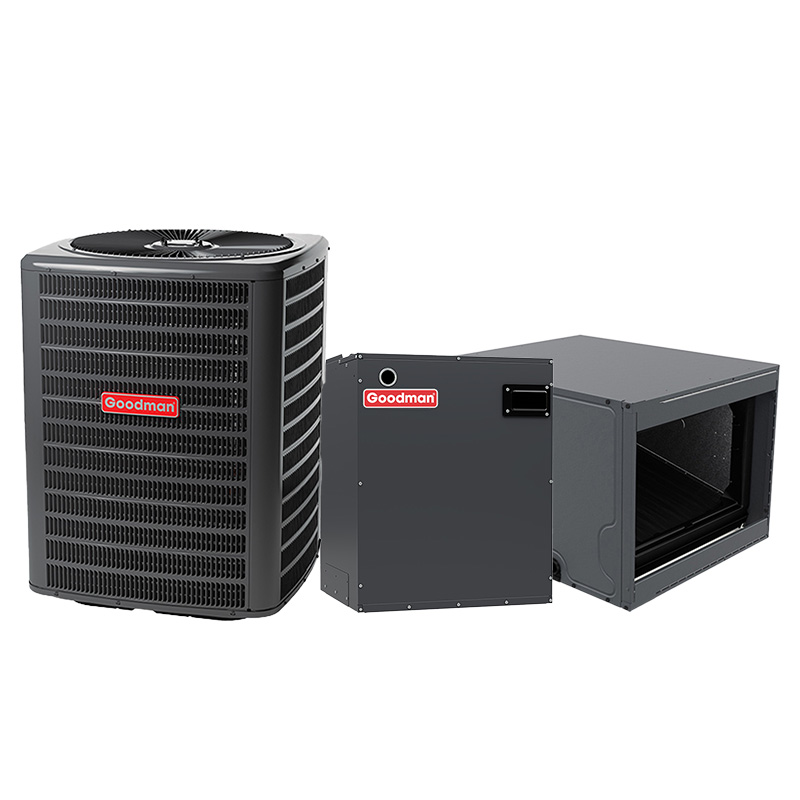

Goodman AC & Air Handler | 4 Ton 17.5 SEER2 2 Stage AC Horizontal | R32
Check current price on AC Direct →
Key features
- Two-stage compressor runs at reduced capacity most of the time for better humidity control and fewer temperature swings
- 17.5 SEER2 efficiency rating, meaningfully above federal minimums and eligible for potential utility rebates
- R-32 refrigerant charge, lower global warming potential than R-410A and increasingly well-supported by service technicians
- Horizontal air handler configuration designed for crawl spaces, low-clearance attics, or side-discharge utility rooms
- 4-ton capacity sized for roughly 2,000 to 2,600 square feet depending on climate zone and insulation levels
- Goodman factory warranty covers the compressor and parts, though registration within a set window is required for full term
About this system
This 4-ton, 17.5 SEER2 Goodman package pairs a two-stage condensing unit with a horizontal air handler, making it a practical fit for homes where the air handler must sit in a crawl space, attic, or utility closet with limited vertical clearance. The two-stage compressor runs at low capacity the majority of the time, reducing short cycling, evening out temperature swings room to room, and pulling more humidity out of the air on mild days compared to a single-stage unit of the same tonnage. R-32 refrigerant has a lower global warming potential than the outgoing R-410A and is becoming the industry standard, so future service technicians and parts supply will only become easier to find over time.
At 17.5 SEER2, this system sits in the upper-mid efficiency range. It comfortably clears the federal minimum and will deliver meaningful savings over a standard 14 or 15 SEER2 unit, though it stops short of the 19-plus SEER2 territory reserved for variable-capacity compressors. For a 4-ton load, that efficiency tier is a reasonable sweet spot: you get real running-cost benefits without the added complexity and higher service cost of inverter-driven equipment. Horizontal configuration does add some installation labor, so budget accordingly and use a contractor who has specific experience with horizontal air handler placements, since duct connections, condensate drainage, and airflow balance are all more demanding in that orientation.
This Goodman horizontal system offers a genuine two-stage efficiency upgrade at a price point typically 15 to 25 percent below comparable Carrier, Trane, or Lennox configurations. It is a solid value buy for cost-conscious homeowners who prioritize upfront savings and can accept a somewhat shorter expected compressor lifespan and a repair history that leans on capacitor replacements and occasional coil issues after year seven. The horizontal configuration works well when vertical space is the limiting factor, but it demands an experienced installer more than a straightforward vertical setup does.
Overall score is the average of the five ratings above.
What we like
- Two-stage operation improves humidity removal and comfort consistency compared to single-stage alternatives at this price
- 17.5 SEER2 efficiency can reduce cooling costs meaningfully over a base-efficiency replacement
- R-32 refrigerant is forward-compatible with the industry's shift away from R-410A, easing future service
- Priced 15 to 25 percent below comparable premium-brand two-stage horizontal systems
- Parts are widely stocked nationwide, so capacitor replacements and minor repairs are quick and relatively inexpensive
Trade-offs
- Compressor lifespan averages 10 to 14 years in owner reports, roughly 3 to 6 years shorter than premium brands

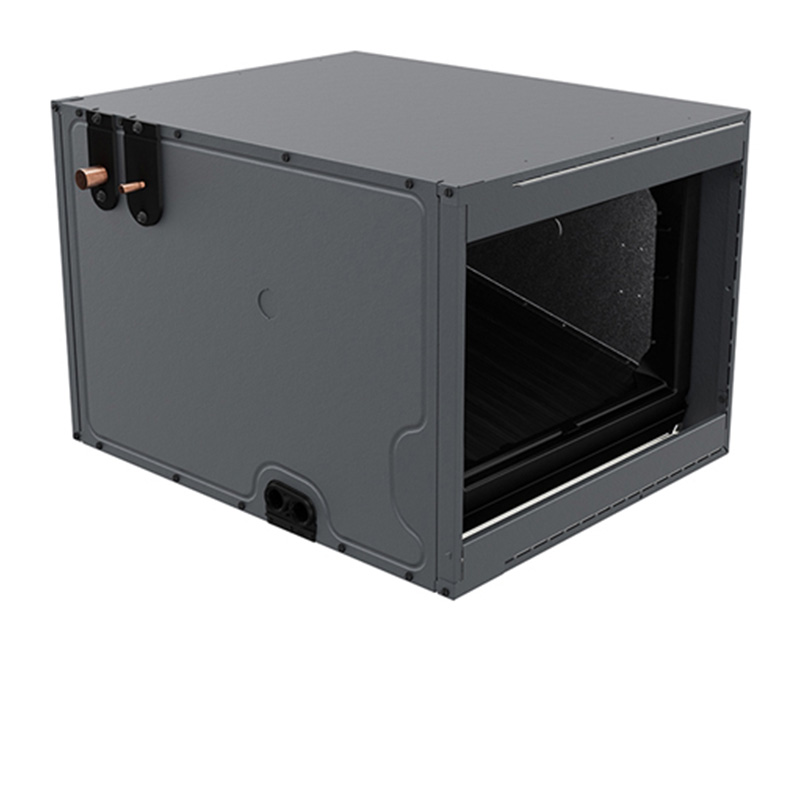

- Evaporator coil leaks appear in a notable share of owner reviews, particularly after year five to seven
- Horizontal orientation is more installation-sensitive than vertical, and poor execution raises the odds of early problems
- ConsumerAffairs scores around 2.5 out of 5, with recurring complaints about rising repair costs after year seven
What homeowners and pros say about Goodman
Homeowners who track Goodman on ConsumerAffairs give the brand roughly 2.5 out of 5, a number shaped heavily by the platform’s complaint-prone audience, where the dominant theme is repair bills that start climbing after about year seven. Google dealer reviews are a more balanced picture, settling around 3.8 out of 5 across hundreds of location-level reviews, with affordability coming up again and again as the reason buyers chose Goodman and the reason many say they would buy again. The gap between those two scores reflects a real pattern: owners who had smooth installs and modest repair needs tend to be satisfied, while owners who ran into compressor or coil trouble after the midpoint of the unit’s life are the loudest critics.
HVAC technicians are candid about where this specific horizontal configuration can go sideways. Dual-run capacitor failures are the most routine call on Goodman equipment, usually a low-cost repair in the 300 to 600 dollar range, but they happen with enough frequency that technicians recommend budgeting for at least one over the unit’s life. More serious are evaporator coil leaks, which show up in a meaningful share of owner accounts and tend to appear in the middle years of ownership. Compressor longevity is the other honest conversation: Goodman compressors average 10 to 14 years in documented owner experience, a step behind the 15 to 20 years technicians associate with Trane, Carrier, and Lennox. For a horizontal install in particular, pros emphasize that none of those numbers mean much unless the placement, drainage, and charge are done right the first time.
Sources: ConsumerAffairs Goodman owner reviews, AHRI Directory of Certified Product Performance, U.S. DOE appliance and equipment efficiency standards, Goodman product specification sheets.
What it costs to run
At 17.5 SEER2, cooling this 4-ton system for a typical 1200-hour cooling season at the U.S. average electricity rate of $0.17/kWh works out to roughly $560 per year in cooling, about $171 less per year than a minimum-efficiency 13.4 SEER2 unit of the same size. Your real cost depends on your climate and local rate.
Method: (48,000 BTU/hr ÷ 17.5 SEER2) × 1200 hours ÷ 1000 × $0.17/kWh. Rate source: U.S. EIA average; cooling hours: moderate-climate estimate.
How it compares
| Brand | Comparable model | SEER2 | Stage | Price position |
|---|---|---|---|---|
| Goodman | 4-Ton 17.5 SEER2 Two-Stage Horizontal R-32 | 17.5 | Two-stage | Value pick |
| Carrier | Comfort 16 / Performance 17 series (horizontal-capable) | 16-17 | Single-stage or two-stage | Typically 15 to 25 percent more than this Goodman |
| Trane | XR17 series | 17 | Two-stage | Typically 15 to 25 percent more than this Goodman |
| Lennox | ML17XC2 series | 17 | Two-stage | Typically 15 to 25 percent more than this Goodman |
Competitor rows are comparable single-stage units at similar efficiency; price is relative position, not a quote.
Questions about this system
Why does horizontal installation matter so much with this system, and what should I ask my installer?
Horizontal air handlers are more demanding because condensate drainage runs against gravity and duct transitions are tighter, making incorrect slope or a poorly seated coil a real risk. Ask your installer specifically about their experience with horizontal placements, how they plan the secondary condensate drain, and how they will verify airflow balance after startup. Install quality is the single biggest factor in how long a Goodman unit lasts.
Is R-32 refrigerant safe, and will it be easy to service in a few years?
R-32 is mildly flammable, which requires technicians to follow updated handling procedures, but it is already widely used in equipment across North America and most licensed HVAC technicians are trained on it. Because R-32 is where the industry is heading, parts and refrigerant availability will improve over time rather than becoming harder to find.
What is the most common repair I should budget for over the life of this system?
Dual-run capacitor failure is the most frequently reported issue with Goodman equipment and typically costs between 300 and 600 dollars to fix. It is a quick repair when caught early, so annual maintenance that includes capacitor testing is worth scheduling. Evaporator coil leaks are also documented in owner reviews and are more expensive when they appear, usually after year five or six.
Does this system qualify for a federal tax credit or utility rebates?
As a two-stage system rated at 17.5 SEER2, it will meet or exceed efficiency thresholds for the federal 25C energy efficiency tax credit, though you should confirm current IRS guidance with your tax preparer. Many utilities also offer rebates for equipment above 16 SEER2, so check your local utility's rebate portal before purchase.
How important is it to register the warranty, and what does coverage actually include?
Registration within Goodman's specified window after installation is required to unlock the full warranty term on the compressor and parts. Without registration, coverage defaults to a shorter base period. Read the registration deadline carefully on your paperwork and complete it online immediately after your install date to avoid losing coverage.
Specifications
| Cooling capacity | 4 Ton |
| Efficiency | 17.5 SEER2 |
| Configuration | Horizontal |
| Refrigerant | R-32 |
