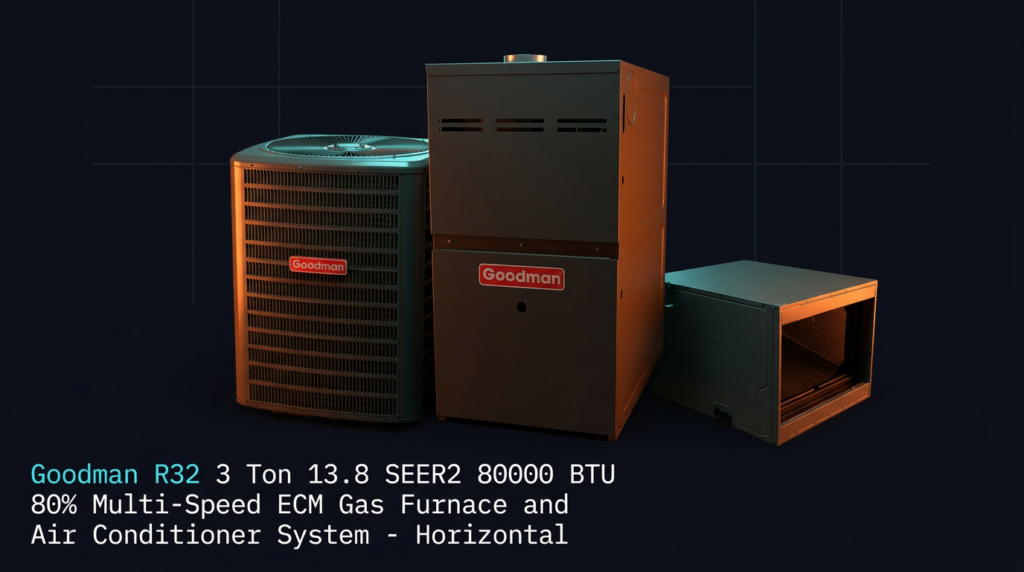

Goodman R32 3 Ton 13.8 SEER2 80000 BTU 80% Multi-Speed ECM Gas Furnace and Air Conditioner System – Horizontal
Check current price on AC Direct →
Key features
- 3-ton cooling capacity with 13.8 SEER2 efficiency rating
- 80,000 BTU output at 80% AFUE using single-stage combustion
- Multi-speed ECM blower motor for quieter, more consistent airflow
- Horizontal cabinet orientation for attic or crawlspace installations
- R-32 refrigerant with lower global warming potential than R-410A
- Matched system design intended to satisfy AHRI certification requirements when installed together
About this system
This Goodman bundle pairs a 3-ton R-32 air conditioner rated at 13.8 SEER2 with an 80,000 BTU, 80% AFUE multi-speed ECM gas furnace in a horizontal configuration, making it a practical choice for attic or crawlspace installations where vertical airflow is not an option. R-32 refrigerant carries a lower global warming potential than the R-410A it replaces, and its slightly higher energy density means the refrigerant circuit can be more compact while still delivering the same cooling capacity. At 13.8 SEER2, this system sits just above the federal minimum efficiency threshold for most U.S. climate zones, which keeps the purchase price accessible without reaching the higher-cost variable-speed or two-stage tiers.
The multi-speed ECM blower motor is a meaningful step up from a basic single-speed furnace fan. It adjusts airflow in increments rather than hammering on at full speed every cycle, which smooths out temperature swings, reduces start-up noise, and typically draws less electricity over a heating season than a PSC motor would. That said, 80% AFUE means one-fifth of the fuel energy exits through the flue, so homeowners in cold northern climates should weigh whether a 96% or higher condensing furnace would recover the cost difference in fuel savings over time. For mild to moderate heating loads in the South or mid-Atlantic, 80% AFUE is a reasonable and widely accepted trade-off for a lower upfront cost and simpler venting.
This Goodman horizontal bundle is a workable, budget-conscious option for homeowners replacing an aging system in a tight attic or crawlspace where options are limited. It delivers adequate efficiency and a useful ECM blower motor at a price point that undercuts Carrier, Trane, and Lennox by a meaningful margin, but long-term ownership costs depend heavily on installation quality and a willingness to budget for component repairs after the first decade.
Overall score is the average of the five ratings above.
What we like
- Priced roughly 15 to 25 percent below comparable Carrier, Trane, and Lennox systems
- ECM multi-speed blower improves comfort and lowers fan operating costs versus single-speed alternatives
- R-32 refrigerant is more environmentally responsible and increasingly well-supported by service technicians
- Horizontal configuration fills a real installation gap for attic and crawlspace setups where vertical units will not fit
- Widely available replacement parts due to Goodman's large installed base across the U.S.
Trade-offs
- Dual-run capacitors are the most frequently reported failure point and will likely need replacement at least once in the system's life, typically costing 300 to 600 dollars
- Evaporator coil leaks appear in a meaningful share of owner reports, which can mean refrigerant loss and costly coil replacement outside the labor warranty window
- Compressor lifespan averages 10 to 14 years in field experience, shorter than the 15 to 20 years commonly cited for premium-brand compressors
- 80% AFUE means one dollar in five spent on gas leaves through the flue, a real ongoing cost in colder climates where a high-efficiency condensing furnace would pay back faster
What homeowners and pros say about Goodman
Homeowners who have purchased Goodman equipment rate the brand about 2.5 out of 5 on ConsumerAffairs, a platform that draws disproportionately from frustrated owners, where the recurring pattern is satisfaction for the first several years followed by escalating repair bills starting around year seven. Google reviews aggregated across dealer locations tell a more balanced story, landing near 3.8 out of 5, with affordability cited most often as the reason buyers chose Goodman and were glad they did. For this horizontal bundle specifically, buyers in attic installations report that the ECM blower runs noticeably quieter than the single-speed units it replaced, though some note that attic heat can stress components more than a conditioned-space installation would.
HVAC technicians who work on Goodman equipment regularly point to dual-run capacitors as the most common service call, a repair that is inexpensive but almost certain to come up at least once over a typical ownership period. Evaporator coil leaks show up in a meaningful share of owner reports, which is a more costly and disruptive repair when it occurs. Compressor longevity in the field tends to fall in the 10-to-14-year range for Goodman units rather than the 15-to-20 years more commonly associated with Trane or Carrier compressors. A small but documented minority of owners report refrigerant leaks in the first year, which technicians generally attribute to installation or charging errors rather than a manufacturing defect in the unit itself, underscoring why installer choice matters as much as brand choice with Goodman equipment.
Sources: ConsumerAffairs Goodman owner reviews, AHRI Directory of Certified Product Performance, U.S. DOE appliance and equipment efficiency standards, Goodman product specification sheets.
What it costs to run
At 13.8 SEER2, cooling this 3-ton system for a typical 1200-hour cooling season at the U.S. average electricity rate of $0.17/kWh works out to roughly $532 per year in cooling, about $16 less per year than a minimum-efficiency 13.4 SEER2 unit of the same size. Your real cost depends on your climate and local rate.
Method: (36,000 BTU/hr ÷ 13.8 SEER2) × 1200 hours ÷ 1000 × $0.17/kWh. Rate source: U.S. EIA average; cooling hours: moderate-climate estimate.
How it compares
| Brand | Comparable model | SEER2 | Stage | Price position |
|---|---|---|---|---|
| Goodman | R-32 3-Ton 13.8 SEER2 80K BTU 80% ECM Horizontal Bundle | 13.8 | Single-stage | Value pick |
| Carrier | Comfort Series (24ACC636 with 58SB/TP air handler) | ~14.0 | Single-stage | Typically 15 to 25 percent more than this Goodman bundle |
| Trane | XR13c with S8B1 80% furnace | ~13.8 to 14.0 | Single-stage | Typically 15 to 25 percent more than this Goodman bundle |
| Lennox | Merit Series ML14XC1 with ML180 80% furnace | ~14.0 | Single-stage | Typically 15 to 25 percent more than this Goodman bundle |
Competitor rows are comparable single-stage units at similar efficiency; price is relative position, not a quote.
Questions about this system
Why does this system use a horizontal configuration and is it harder to service than a standard upflow unit?
Horizontal units discharge air sideways rather than upward or downward, which is necessary when the air handler must lie on its side in an attic or crawlspace. Servicing is generally the same as any furnace and coil combination, but access in tight attic spaces can make routine maintenance more time-consuming and may add labor cost to service calls.
What does R-32 refrigerant mean for me as an owner, and can my existing technician service it?
R-32 is mildly flammable, which means technicians need an A2L refrigerant certification to handle it legally, and some older recovery equipment may need to be updated. Most established HVAC companies are already equipped or actively getting certified as R-32 becomes the industry standard, but it is worth confirming with your service provider before committing.
How significant is the capacitor failure issue mentioned in Goodman owner reviews?
Dual-run capacitors are an industry-wide wear item, but they appear more frequently in Goodman owner reports than in reviews of premium brands. The repair itself is inexpensive, usually 300 to 600 dollars including labor, and most HVAC technicians can complete it in under an hour. Keeping a service agreement that includes an annual inspection can catch a weakening capacitor before it causes a no-cool situation on a hot day.
Is 80% AFUE good enough, or should I upgrade to a higher-efficiency furnace?
For homeowners in climate zones 1 through 3, which cover most of the South and Southwest, 80% AFUE is often sufficient and the payback period on a 96% unit can stretch beyond 10 years. In colder zones 4 through 7, the fuel savings from a high-efficiency condensing furnace generally recover the cost difference faster, and some local codes already require 90% or higher in those regions, so verify your local requirements before ordering.
What warranty does this Goodman system carry and what does it actually cover?
Goodman typically offers a 10-year parts warranty on registered systems, covering major components including the compressor, coil, and heat exchanger, but labor costs are not included. Registration must usually be completed within 60 days of installation to receive the full term, and the warranty is tied to the original installation address. Because documented failure modes like coil leaks and capacitor failures can occur inside that window, having a labor warranty through your installer is worth negotiating at purchase.
Specifications
| Cooling capacity | 3 Ton |
| Efficiency | 13.8 SEER2 |
| Furnace output | 80000 BTU |
| Configuration | Horizontal |
| Refrigerant | R-32 |
