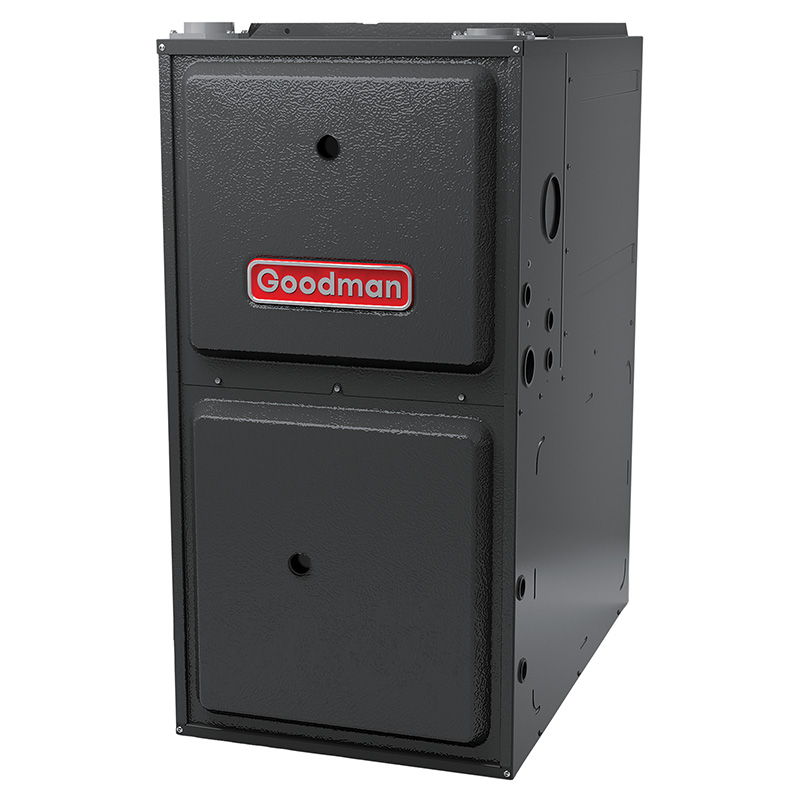

Goodman R32 40000 BTU 96% Multi-Speed ECM Gas Furnace Upflow / Horizontal (GR9S960403AN)
Check current price on AC Direct →
Key features
- 96% AFUE high-efficiency rating reduces gas consumption versus standard 80% furnaces
- 40,000 BTU output sized for smaller homes, typically 1,000 to 1,600 sq ft depending on load
- ECM multi-speed blower motor lowers electricity use and reduces operating noise
- Upflow and horizontal installation compatibility covers most residential duct configurations
- Stainless steel secondary heat exchanger supports condensing operation at 96% efficiency
- Compatible with most 24V thermostats including programmable and smart thermostat models
About this system
The Goodman GR9S960403AN is a 40,000 BTU, 96% AFUE upflow/horizontal gas furnace built around an ECM (electronically commutated motor) blower and a multi-speed gas valve. At 96% AFUE it sits in the high-efficiency tier, meaning 96 cents of every dollar spent on natural gas goes toward heating your living space rather than exhausting out the flue. That makes it a practical fit for homeowners in cold-weather climates who want to cut monthly gas bills without paying the premium associated with Trane, Lennox, or Carrier equipment. The 40,000 BTU output is sized for smaller homes, typically in the 1,000 to 1,600 square foot range depending on insulation, climate zone, and Manual J load calculation.
The ECM blower motor is one of this unit’s most meaningful upgrades over a basic PSC-motor furnace. ECM motors use significantly less electricity during continuous fan operation, run more quietly at lower speeds, and give the multi-speed control logic the flexibility to ramp airflow to match actual heat demand rather than always blasting at full capacity. The upflow/horizontal cabinet configuration covers the most common residential installation positions, making it compatible with most forced-air duct layouts in basements, utility closets, and attic spaces. The R-32 designation in the product name appears to be a catalog family label and does not indicate a refrigerant charge in the furnace itself, as gas furnaces do not use refrigerant. Buyers pairing this unit with a Goodman air conditioner or heat pump should confirm refrigerant compatibility with their cooling equipment separately.
The GR9S960403AN delivers genuine high-efficiency performance at a price point meaningfully below comparable units from Carrier, Trane, and Lennox, and the ECM blower adds real operating-cost value. The honest trade-off is that Goodman's long-term reliability record is average at best, component failure rates after year 7 are a documented concern, and getting the most from this furnace depends heavily on a quality installation.
Overall score is the average of the five ratings above.
What we like
- 96% AFUE keeps gas bills lower than an 80% furnace in cold climates
- ECM motor cuts blower electricity costs compared to standard PSC motors
- Priced roughly 15 to 25 percent below comparable Carrier, Trane, and Lennox models
- Upflow and horizontal configurations make it widely compatible with existing ductwork
- 40,000 BTU capacity is right-sized for smaller homes, avoiding the efficiency losses of oversizing
Trade-offs
- ConsumerAffairs feedback averages about 2.5 out of 5, with repair costs after year 7 a recurring complaint
- Component longevity, particularly heat exchangers and control boards, tends to trail premium brands over a 15-plus-year horizon
- Performance is strongly dependent on installer quality, a variable the buyer cannot fully control at purchase
- 40,000 BTU is a single output range and will not suit medium or larger homes without proper load calculation confirming the fit
What homeowners and pros say about Goodman
Homeowners who buy Goodman furnaces most often point to the upfront price as the deciding factor, and dealer Google scores around 3.8 out of 5 confirm that buyers who get a solid installation tend to be satisfied in the first several years of ownership. The ECM blower on a unit like the GR9S960403AN draws praise for quieter operation and lower monthly electricity draw compared to older PSC-motor furnaces. However, the ConsumerAffairs picture is less flattering, sitting at roughly 2.5 out of 5, and the complaints that cluster there follow a recognizable pattern: systems that run well early on start accumulating repair bills around year 7 or 8, with control board failures and heat exchanger concerns showing up more frequently than owners expected at the time of purchase.
HVAC technicians who work on Goodman equipment regularly tend to describe a familiar set of failure modes. Dual-run capacitors are the most common callout, usually a straightforward repair in the 300 to 600 dollar range that most owners can absorb without crisis. More costly concerns include evaporator coil leaks, which appear in a meaningful share of owner accounts, and compressor lifespans that average 10 to 14 years rather than the 15 to 20 years more common on Trane and Carrier equipment. Techs consistently note that Goodman’s outcomes are unusually sensitive to installation quality, so the contractor you hire matters as much as the equipment itself. For a 40,000 BTU high-efficiency furnace at a value price point, this unit performs as advertised when installed correctly, but buyers should budget for potential mid-life component repairs rather than expecting trouble-free operation through a 20-year horizon.
Sources: ConsumerAffairs Goodman owner reviews, AHRI Directory of Certified Product Performance, U.S. DOE appliance and equipment efficiency standards, Goodman product specification sheets.
How it compares
| Brand | Comparable model | SEER2 | Stage | Price position |
|---|---|---|---|---|
| Goodman | GR9S960403AN | N/A (furnace only) | Multi-speed | Value pick |
| Carrier | Performance 96 (58TP6) | N/A (furnace only) | Two-stage | Priced roughly 20 to 30 percent higher than this Goodman |
| Trane | S9X2 (XR96) | N/A (furnace only) | Two-stage | Priced roughly 20 to 35 percent higher than this Goodman |
| Lennox | ML196E | N/A (furnace only) | Single-stage | Priced roughly 15 to 25 percent higher than this Goodman |
Competitor rows are comparable single-stage units at similar efficiency; price is relative position, not a quote.
Questions about this system
Is this furnace actually big enough for my house, or will I need something larger?
40,000 BTU is appropriate for smaller homes, generally in the 1,000 to 1,600 square foot range, but the right answer depends on your climate zone, insulation level, window area, and ceiling height. A licensed HVAC contractor should perform a Manual J load calculation before purchase to confirm sizing, since an oversized furnace short-cycles and reduces efficiency and comfort.
What does the R-32 in the model name mean for a gas furnace?
Gas furnaces do not use refrigerant, so the R-32 label here refers to a Goodman product family or catalog designation rather than a refrigerant charge. If you are pairing this furnace with a new Goodman air conditioner or heat pump, verify refrigerant compatibility with that outdoor unit separately before purchasing.
What is Goodman's warranty on this furnace, and what does it actually cover?
Goodman typically offers a limited lifetime heat exchanger warranty and a 10-year parts warranty on registered units, but coverage terms require product registration within a set window after installation and may be reduced if registration is missed. Review the specific warranty document for this model and confirm registration requirements with your installer at the time of setup.
Goodman reviews online look pretty mixed. Should I be worried about reliability?
Goodman sits at about 2.5 out of 5 on ConsumerAffairs, a channel that disproportionately captures complaint-driven feedback, and around 3.8 out of 5 on Google dealer reviews where affordability is frequently cited positively. The documented pattern is that repair needs tend to increase after roughly year 7, and component failures such as dual-run capacitors and control boards are more commonly reported than with premium brands. A strong installer, prompt service contracts, and realistic expectations about 10 to 15 year service life versus 15 to 20 for premium brands help frame the decision accurately.
Does the ECM blower motor make a noticeable difference in electricity costs or noise?
Yes on both counts. ECM motors use roughly 60 to 75 percent less electricity during continuous fan operation compared to a standard PSC motor, which adds up across a full heating and cooling season. They also ramp speed more gradually, which reduces the surge noise common with single-speed blowers, though the difference is most noticeable in low-fan or circulation modes rather than full heating demand.
Specifications
| Furnace output | 40000 BTU |
| Configuration | Upflow |
| Refrigerant | R-32 |
| Model | GR9S960403AN |
