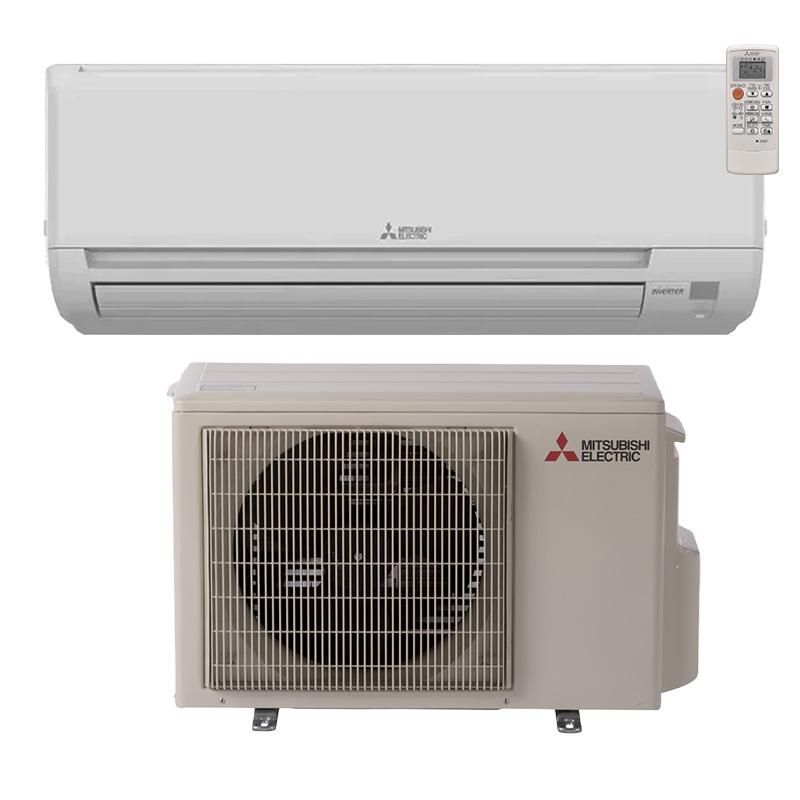

Mitsubishi 12000 BTU Mini Split Heat Pump AC Wall Mount Indoor Unit System | 20 SEER2 Single Zone 115V | R454B
Check current price on AC Direct →
Key features
- 20 SEER2 efficiency rating with inverter-driven variable-speed compressor
- 12,000 BTU cooling and heating capacity, sized for spaces roughly 450 to 550 sq ft
- 115V single-phase operation, compatible with standard household circuits
- R-454B refrigerant with lower global warming potential than R-410A

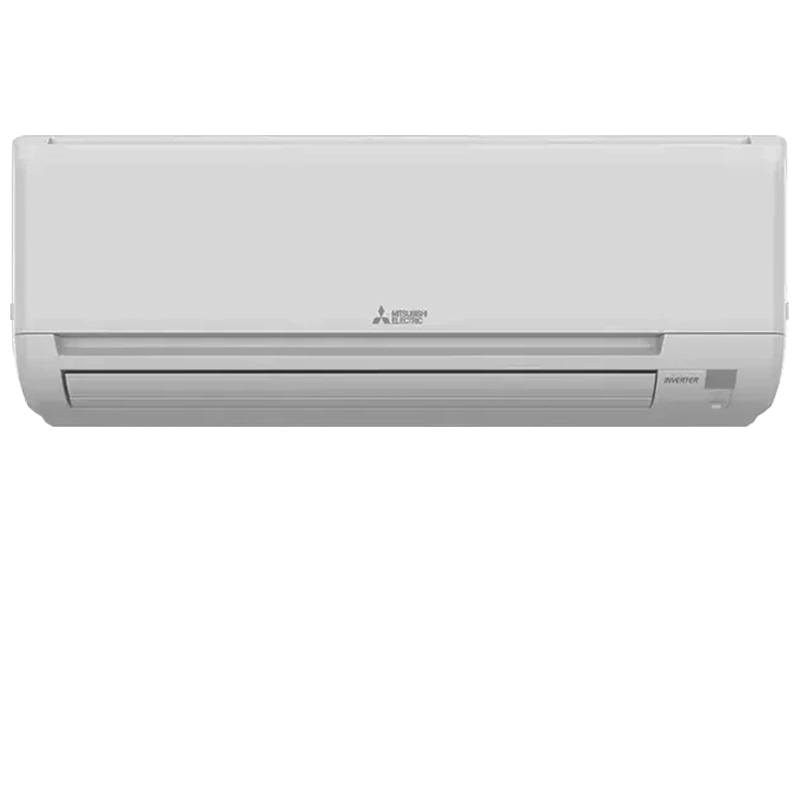

- Wall-mount indoor unit with auto-swing louvers for directional airflow control
- 12-year parts and compressor warranty when installed by a Mitsubishi Diamond contractor
About this system
The Mitsubishi 12,000 BTU single-zone mini-split heat pump is a wall-mount ductless system running on 115V household current and using the newer R-454B low-global-warming-potential refrigerant. At 20 SEER2, it sits at the upper end of the efficiency spectrum for single-zone mini-splits, making it a strong fit for a bedroom, home office, sunroom, or a small open-plan space where a dedicated, independent comfort zone makes more sense than extending ductwork. The 115V requirement is a practical advantage: many homes can connect it to an existing 15- or 20-amp circuit without a panel upgrade, keeping electrical costs manageable.

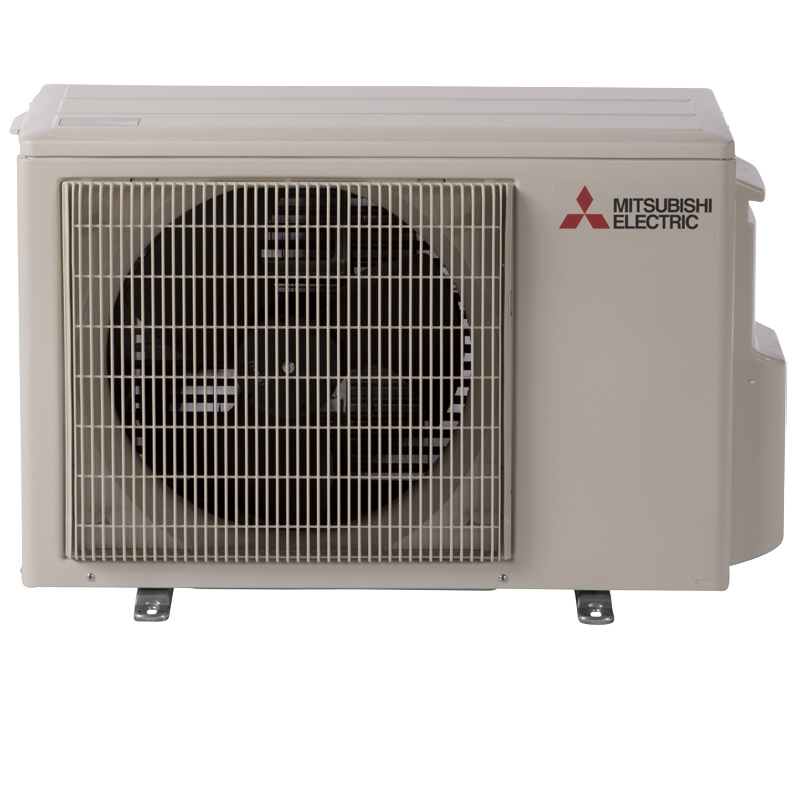

As a heat pump, this unit both cools and heats, so it handles year-round comfort without a separate heating system in moderate climates. Mitsubishi’s inverter-driven compressor technology modulates output rather than cycling on and off, which is the main reason these systems earn consistent praise for quiet operation and steady temperatures. The R-454B refrigerant is a forward-looking choice as the HVAC industry moves away from R-410A, meaning replacement refrigerant should remain available and code-compliant for the foreseeable future. Note that this listing covers the indoor wall-mount unit and system; confirm that the matched outdoor condenser is included or specified before purchasing.
This is a genuinely efficient, quiet, and well-built single-zone ductless system from one of the most respected names in the category, and the 20 SEER2 rating delivers real long-term energy savings. The premium price is real, labor is not covered under warranty, and the system demands annual coil and blower cleaning to maintain that efficiency. Buyers who use a Diamond contractor and commit to maintenance will likely get 15 or more years of solid performance; those who skip either step face more risk.
Overall score is the average of the five ratings above.
What we like
- 20 SEER2 efficiency is at the top of the single-zone mini-split class, reducing operating costs noticeably versus mid-tier units
- Inverter compressor runs at variable speeds, producing consistently quiet and even-temperature operation
- 115V compatibility avoids the panel upgrade and dedicated 240V wiring most mini-splits require
- Mitsubishi's track record shows 15 to 20 year lifespans under proper maintenance
- R-454B refrigerant aligns with current and near-future regulatory direction, reducing obsolescence risk
Trade-offs
- Purchase price is among the highest in the single-zone mini-split segment, and that gap is real compared to mid-tier brands
- Warranty labor is not included; a compressor failure outside the DIY window means a significant service bill even within the 12-year parts coverage
- Indoor blower and evaporator coil require thorough cleaning at least once per year or efficiency and air quality degrade
- Warranty support and Mitsubishi technical response have drawn complaints about slow turnaround times, which matters when the system is your primary comfort source
What homeowners and pros say about Mitsubishi
Owner feedback cited by EnergySage and aggregated dealer reviews consistently highlights three things about Mitsubishi ductless systems: they run quietly enough that occupants forget the unit is on, energy bills drop noticeably after installation, and the hardware itself tends to last well past the 10-year mark when the coil and blower are kept clean. The Better Business Bureau picture is more mixed: product satisfaction is high, but a segment of owners has run into slow warranty response times and difficulty reaching Mitsubishi’s technical support line, which becomes a real frustration when the system is a primary heating or cooling source and a repair is pending. For this specific 12,000 BTU single-zone unit, the documented failure modes that come up in real service records include early compressor failures in a minority of units and performance loss tied directly to infrequent evaporator coil cleaning rather than mechanical defects.
On the installer side, HVAC technicians who work with Mitsubishi equipment regularly point out that the Diamond contractor program creates a meaningful quality divide: certified installers have factory training on correct line set sizing, vacuum procedures, and refrigerant charge, all of which directly affect long-term reliability. Pros also note that because labor is excluded from the warranty, a compressor failure on a unit that was installed correctly but still failed early can leave the homeowner with a substantial repair bill for the service call even while the part itself is covered. The R-454B refrigerant in this model is noted positively by technicians as a forward-compatible choice, avoiding the supply and regulatory uncertainty that surrounds R-410A as phase-down timelines tighten.
Sources: EnergySage Mitsubishi heat pump review, AHRI Directory of Certified Product Performance, U.S. DOE appliance and equipment efficiency standards, Mitsubishi Electric product specifications.
What it costs to run
At 20 SEER2, cooling this 12000 BTU system for a typical 1200-hour cooling season at the U.S. average electricity rate of $0.17/kWh works out to roughly $122 per year in cooling, about $61 less per year than a minimum-efficiency 13.4 SEER2 unit of the same size. Your real cost depends on your climate and local rate.
Method: (12,000 BTU/hr ÷ 20 SEER2) × 1200 hours ÷ 1000 × $0.17/kWh. Rate source: U.S. EIA average; cooling hours: moderate-climate estimate.
How it compares
| Brand | Comparable model | SEER2 | Stage | Price position |
|---|---|---|---|---|
| Mitsubishi | MSZ-GL12NA / MUZ-GL12NA | 20 | Variable | Premium pick |
| Daikin | Aurora 12,000 BTU (RXL12QMVJU series) | 20 | Variable | Slightly below Mitsubishi at most distributors |
| Fujitsu | Halcyon RLXFW1 12,000 BTU | 20 | Variable | Comparable to Daikin, typically below Mitsubishi |
| LG | Art Cool Premier 12,000 BTU (LSN120HEV2 series) | 20 | Variable | Generally the most accessible price point among the four at similar efficiency |
Competitor rows are comparable single-stage units at similar efficiency; price is relative position, not a quote.
Questions about this system
Does this system require a special electrical circuit, or can it run on a standard 115V outlet?
This unit operates on 115V single-phase power, which is standard household voltage. However, it still requires a dedicated circuit with the correct amperage rating rather than a shared outlet. Check the unit's minimum circuit ampacity spec and confirm your panel has an available breaker slot before assuming no electrical work is needed.
What does the 12-year warranty actually cover, and are there conditions I need to meet?
Mitsubishi's 12-year parts and compressor warranty applies when the system is installed by a Mitsubishi-certified Diamond contractor and registered within the required window after installation. If you use a non-Diamond installer, the warranty term drops significantly. Labor costs for any repair are not covered under any version of the warranty, so a compressor failure still means a service call bill even if the part itself is free.
How often does this system actually need maintenance, and what happens if I skip it?
Mitsubishi and independent HVAC technicians recommend cleaning the indoor blower wheel and evaporator coil at least once a year, more often in dusty environments. Skipping this allows buildup that restricts airflow, reduces efficiency, promotes mold growth on the coil, and can cause the unit to freeze up or trip error codes. The filter should be rinsed or vacuumed every few weeks during heavy use.
Can this 12,000 BTU unit heat my space in winter, and how cold can it get outside before performance drops?
Yes, as a heat pump it provides both heating and cooling. Mitsubishi's H2i and Hyper Heat product lines are rated to heat effectively at very low outdoor temperatures, but you should verify whether this specific model carries that designation or has a standard low-ambient heating cutoff, which is typically around 5 to 15 degrees Fahrenheit for standard units. Check the product's heating capacity specification at your local design temperature before relying on it as the sole heat source.
Is this the full system or just the indoor unit, and what else do I need to buy?
This listing describes a wall-mount indoor unit and system, but you should confirm whether a matched outdoor condenser is included or needs to be purchased separately. A complete installation also requires line set tubing and insulation, flare fittings, a condensate drain line, electrical disconnect, and the labor of a licensed installer. Missing any component adds to the total project cost, so get a full itemized quote before committing.
Specifications
| Efficiency | 20 SEER2 |
| Furnace output | 12000 BTU |
| Refrigerant | R-454B |
