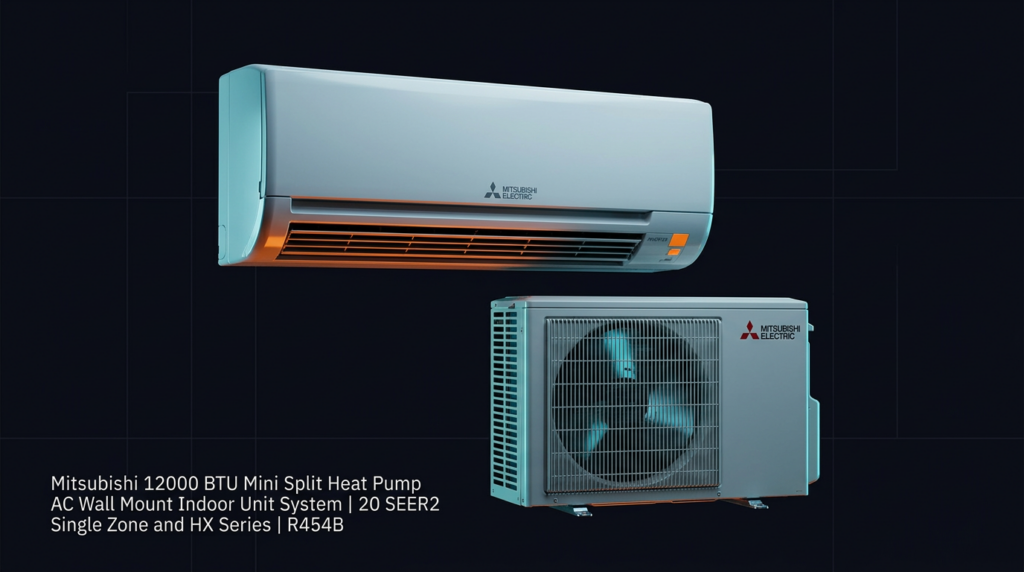

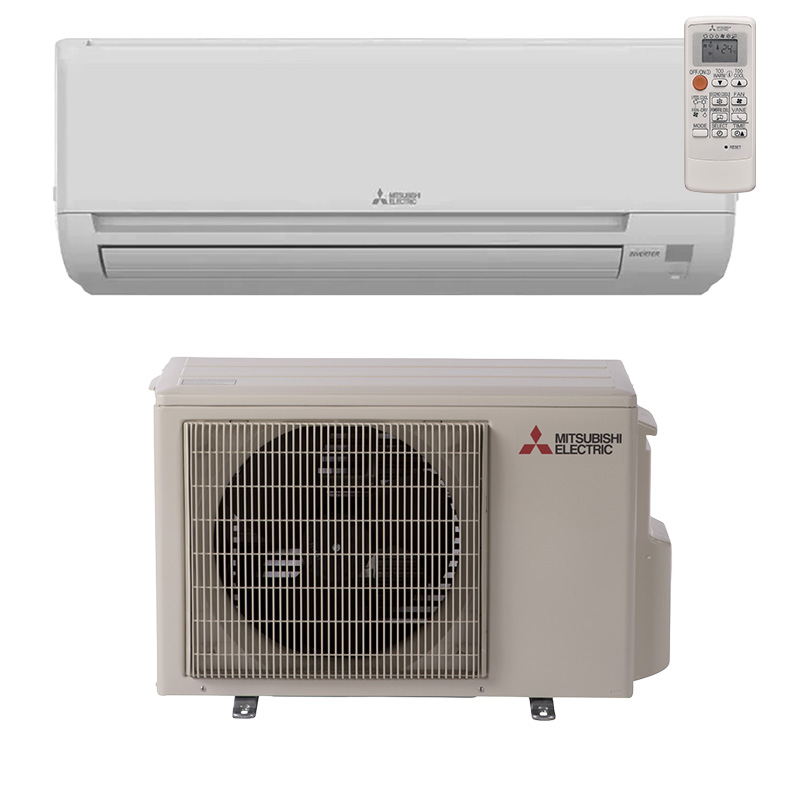

Mitsubishi 12000 BTU Mini Split Heat Pump AC Wall Mount Indoor Unit System | 20 SEER2 Single Zone | HX Series | R454B
Check current price on AC Direct →
Key features
- 12,000 BTU single-zone heating and cooling via inverter-driven compressor
- 20 SEER2 efficiency rating using R-454B low-GWP refrigerant
- Wall-mounted indoor unit with quiet operation typical of Mitsubishi ductless systems
- 12-year parts and compressor warranty when installed by a Diamond-certified contractor
- Variable-speed inverter compressor modulates capacity to maintain set temperature without cycling on and off
- Compatible with Mitsubishi's wireless remote and optional smart controls for schedule and zone management
About this system
The Mitsubishi HX Series 12,000 BTU single-zone mini split is a wall-mounted heat pump system designed for rooms roughly 450 to 550 square feet, such as a primary bedroom, a finished garage, a sunroom, or a home office that sits outside the reach of central ductwork. It runs on R-454B refrigerant, a lower-global-warming-potential replacement for R-410A that is becoming the new standard across the industry. At 20 SEER2, it sits near the top of the efficiency range for single-zone residential mini splits, which translates to meaningfully lower operating costs compared with a standard 15 or 16 SEER2 unit over a multi-year ownership window.
Mitsubishi positions the HX Series as an accessible entry point into its ductless lineup, below the premium Hyper-Heating H2i and P-Series tiers but still carrying the brand’s reputation for quiet indoor operation, precise inverter-driven capacity modulation, and long service life. The system heats and cools, making it a year-round single-zone solution. Buyers should budget for professional installation by a Mitsubishi Diamond contractor if they want the full 12-year parts and compressor warranty to apply, and they should plan for annual coil and blower cleaning to keep efficiency and airflow where the specs promise.
The Mitsubishi HX Series 12,000 BTU unit delivers genuine top-tier efficiency at 20 SEER2 and carries one of the stronger warranties in the ductless segment, provided you use a certified installer. The premium price is real, but so is the track record for quiet, long-lasting operation when the system is maintained and installed correctly.
Overall score is the average of the five ratings above.
What we like
- 20 SEER2 rating puts operating costs near the low end for single-zone mini splits
- Inverter compressor holds room temperature steadily without the temperature swings of single-stage cycling
- Indoor unit is notably quiet, a consistent strength cited by long-term Mitsubishi owners
- 12-year parts and compressor warranty is competitive for the category when Diamond contractor install is used
- Reported lifespans of 15 to 20 years with proper maintenance represent strong long-term value despite upfront cost
Trade-offs
- Purchase and installation price runs higher than comparable units from LG or Daikin at similar efficiency
- 12-year warranty requires a Mitsubishi Diamond contractor; non-certified installs drop to a shorter standard coverage period
- A minority of owners report early compressor failures, and labor costs are not covered under warranty even when the compressor itself is
- Warranty support and technical response from Mitsubishi have drawn complaints about slow resolution times
What homeowners and pros say about Mitsubishi
Among homeowners and HVAC professionals, Mitsubishi’s ductless line earns consistently favorable marks for quiet operation, efficiency, and longevity. EnergySage reviewers and long-term owners alike point to the inverter-driven compressor and build quality as reasons systems stay in service well past the 10-year mark when cleaned and serviced annually. The Better Business Bureau picture is more mixed: product satisfaction is high, but complaints about slow warranty response times and technical support delays appear with enough regularity to be a genuine consideration rather than an outlier.
The documented failure modes worth knowing going in: a minority of owners have experienced early compressor failures, and because labor is excluded from warranty coverage, those repairs carry real cost even when the part is replaced free of charge. Technicians also flag that the indoor blower and evaporator coil on Mitsubishi wall-mount heads accumulate buildup faster than owners expect, and skipped annual cleanings are a common contributor to performance decline. For the HX Series specifically, buyers new to mini splits sometimes underestimate the importance of the Diamond contractor requirement, only discovering the warranty gap after a non-certified install. Going in with eyes open on those points, the brand’s real-world track record remains one of the stronger ones in the ductless segment.
Sources: EnergySage Mitsubishi heat pump review, AHRI Directory of Certified Product Performance, U.S. DOE appliance and equipment efficiency standards, Mitsubishi Electric product specifications.
How it compares
| Brand | Comparable model | SEER2 | Stage | Price position |
|---|---|---|---|---|
| Mitsubishi | HX Series MSZ-HX12NA | 20 | Variable | Value pick |
| Daikin | Aurora Series FTXM-NVJU | 20.5 | Variable | Comparable, slightly lower typical street price |
| Fujitsu | XLTH Series ASHG12KNCA | 20 | Variable | Slightly lower installed cost than Mitsubishi in most markets |
| LG | Art Cool Premier LSN120HEV | 20 | Variable | Typically lower purchase price, narrower installer network |
Competitor rows are comparable single-stage units at similar efficiency; price is relative position, not a quote.
Questions about this system
Do I really need a Mitsubishi Diamond contractor, or can any HVAC tech install this?
Any licensed HVAC technician can physically install the unit, but the 12-year parts and compressor warranty only activates when a Diamond-certified contractor does the work and registers the system. A non-certified install typically results in a shorter standard warranty, so for a system at this price point the Diamond installer requirement is worth taking seriously.
How much will it cost to run this unit compared with a standard 15 SEER2 mini split?
At 20 SEER2 versus 15 SEER2, you are moving roughly 25 percent more cooling output per unit of electricity consumed, which produces real savings on a monthly bill in a heavily used zone. The exact dollar difference depends on your local utility rate and how many hours the system runs, but the gap is meaningful over a multi-year period, especially in climates with long cooling seasons.
What maintenance does this system actually need, and what happens if I skip it?
The indoor blower wheel and evaporator coil need cleaning at least once a year. Mitsubishi owners who skip this step report reduced airflow, lower efficiency, and in some cases mold or odor issues. The filters are user-cleanable, but the coil and blower cleaning typically requires a technician or at minimum careful DIY work with a coil cleaner.
Is R-454B refrigerant a problem for future service or recharging?
R-454B is a mildly flammable A2L refrigerant that requires technicians to use certified tools and follow updated handling procedures. It is increasingly the industry standard replacing R-410A, so availability is growing, but you should confirm your service technician is certified to work with A2L refrigerants before scheduling any future work.
If the compressor fails early, what is actually covered under the 12-year warranty?
The replacement compressor part itself is covered for 12 years under a Diamond contractor install, but Mitsubishi's warranty does not cover labor. If a compressor fails outside the standard labor warranty period, you will pay the technician's time even though the part is free, which can be a substantial out-of-pocket cost depending on your market.
Specifications
| Efficiency | 20 SEER2 |
| Furnace output | 12000 BTU |
| Refrigerant | R-454B |
