Mitsubishi 18000 BTU Mini Split AC Ceiling Cassette Indoor Unit With Grille And MHK2 | Light Commercial | 3'x 3' 4-Way Cassette | R454B [PLA-AE18NL,PLP-41EAEU,MHK2] | R454B
![Mitsubishi 18000 BTU Mini Split AC Ceiling Cassette Indoor Unit With Grille And MHK2 | Light Commercial | 3'x 3' 4-Way Cassette | R454B [PLA-AE18NL,PLP-41EAEU,MHK2] | R454B](https://hvac.best/wp-content/uploads/2026/06/mitsubishi-light-commercial-mini-split-ac-ceiling-cassette-indoor-unit-with-grille-mhk2-r454b_3-1.jpg)
Check current price on AC Direct →
Key features
- 18,000 BTU ceiling cassette format with 4-way airflow distribution for even room coverage
- 3×3 ft flush-mount design integrates into standard drop ceilings in commercial or residential spaces

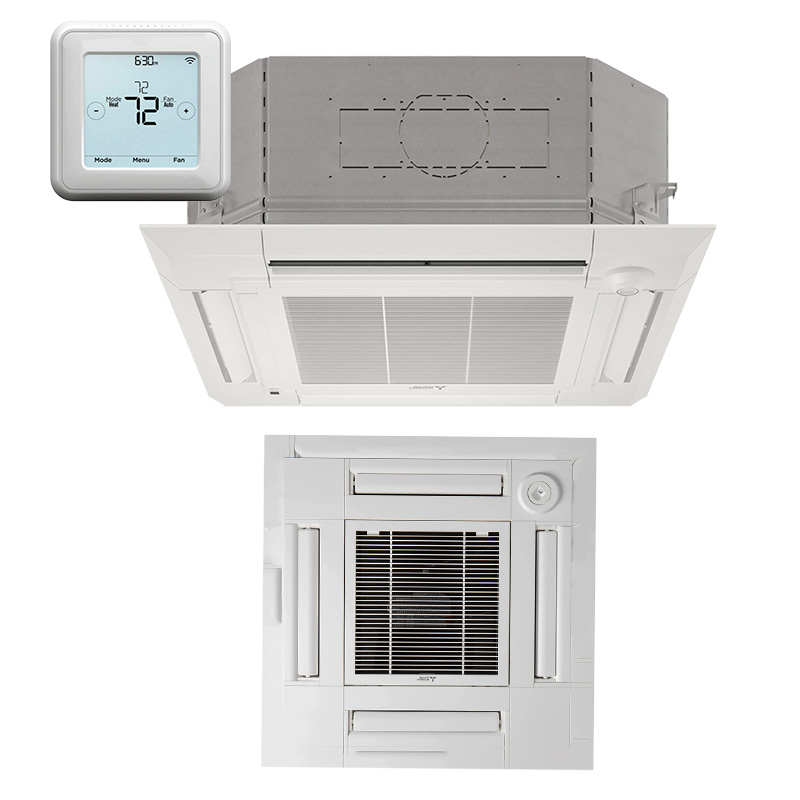

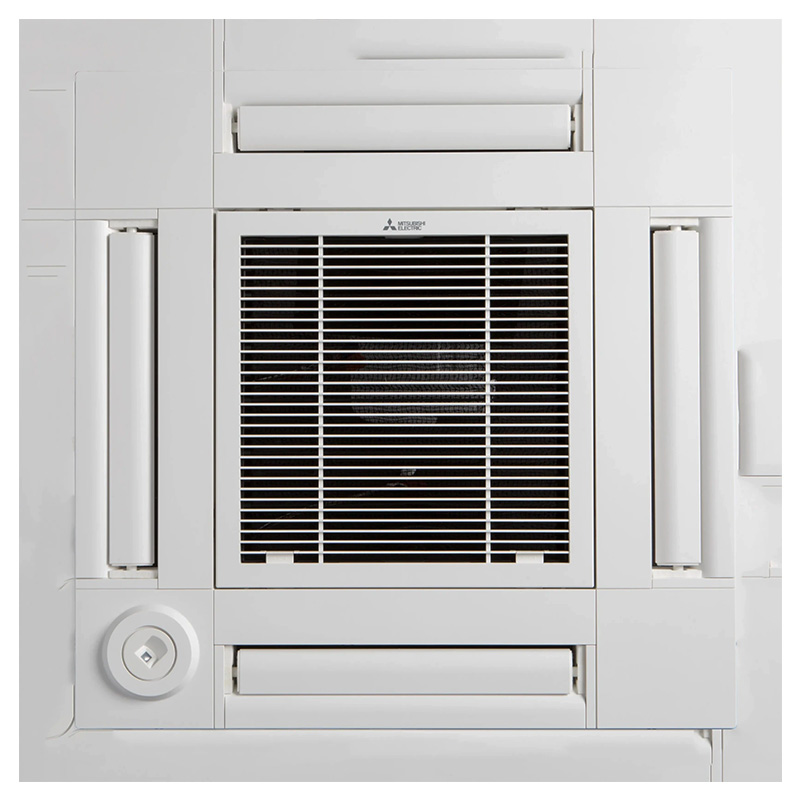

- Includes PLP-41EAEU decorative grille panel and MHK2 wired wall controller with scheduling
- R-454B refrigerant with lower global-warming potential than legacy R-410A systems
- Compatible with Mitsubishi's 12-year parts and compressor warranty when installed by a Diamond contractor
- Variable-speed inverter-driven operation for quiet, demand-matched cooling and heating
About this system

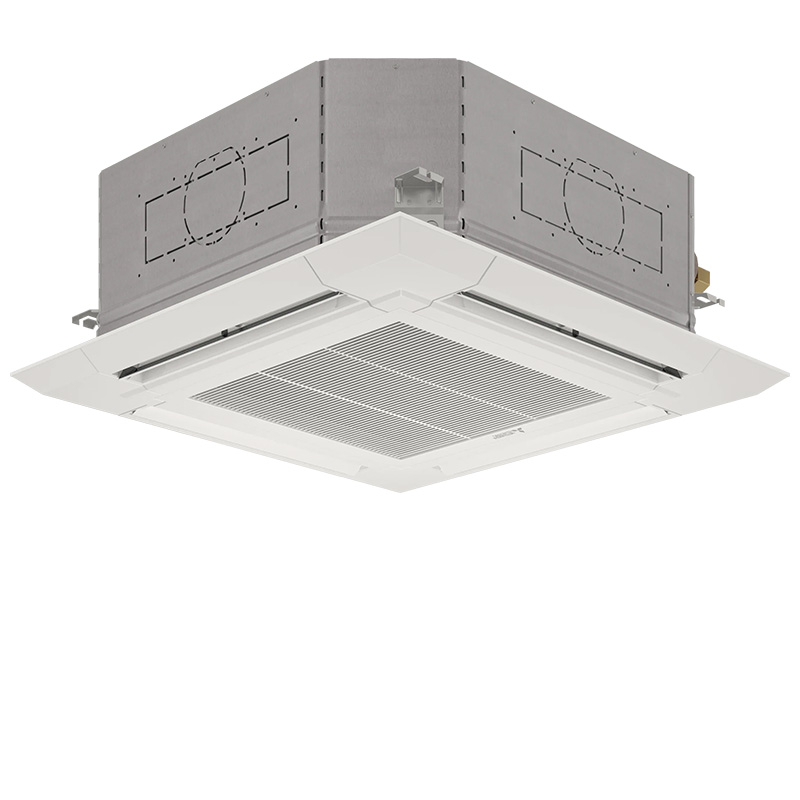

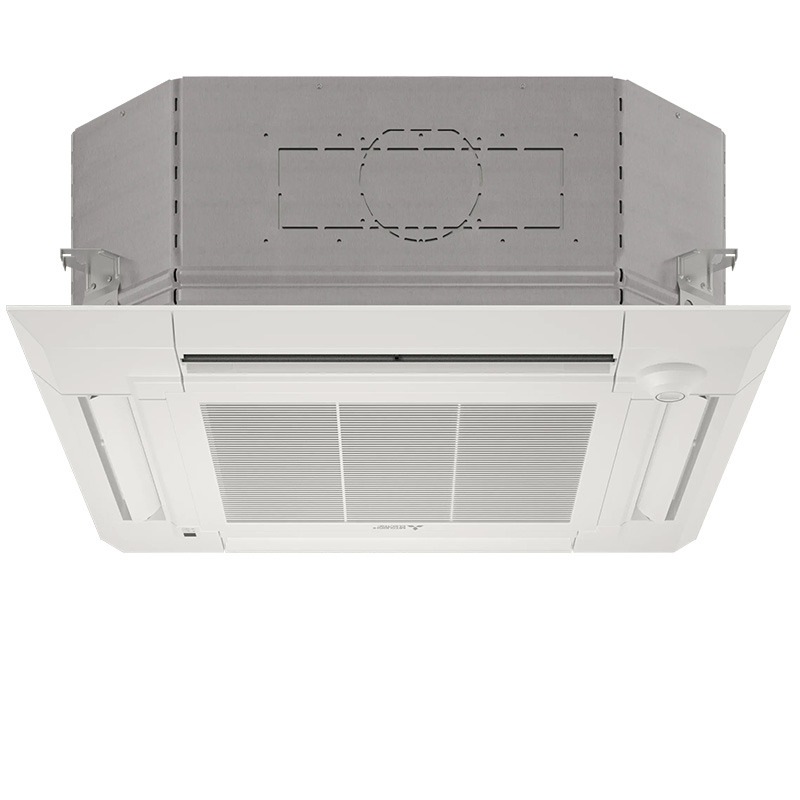

The Mitsubishi PLA-AE18NL is an 18,000 BTU (1.5-ton class) ceiling cassette indoor unit designed for light commercial and high-end residential applications where a floor or wall unit would be impractical. The 3×3 foot four-way cassette mounts flush into a drop ceiling and distributes conditioned air in all directions simultaneously, making it well suited for open-plan offices, retail spaces, restaurants, server rooms, and large residential rooms where even airflow coverage matters more than a wall-mounted aesthetic. The package includes the PLP-41EAEU cassette panel and grille assembly plus the MHK2 wired wall controller, which provides precise temperature scheduling and zone control from a fixed display rather than a handheld remote.
This indoor unit uses R-454B refrigerant, a lower global-warming-potential alternative to the R-410A found in older Mitsubishi equipment, positioning it for longer regulatory life as HFC phase-downs continue. Note that this listing covers the indoor unit, panel, and controller only; a compatible Mitsubishi outdoor condensing unit must be purchased separately. Because SEER2 ratings are assigned to matched system pairs and no outdoor unit is specified here, an efficiency score cannot be confirmed from this listing alone. Buyers should verify the matched outdoor unit’s SEER2 rating before purchase and confirm the pairing is AHRI-certified for their jurisdiction.
The Mitsubishi PLA-AE18NL cassette package is a well-built, commercially appropriate ceiling unit from a brand with a strong long-term reliability record, but the premium price, indoor-unit-only format, and ceiling installation complexity make it a considered purchase rather than a straightforward add-to-cart decision. Buyers should budget for a compatible outdoor unit, Diamond contractor labor, and annual coil cleaning to realize the full warranty and performance benefits.
Overall score is the average of the five ratings above.
What we like
- Four-way airflow from a flush ceiling mount provides more even coverage than wall-mounted alternatives in open commercial spaces
- MHK2 wired controller enables precise scheduling and temperature logging, useful in light commercial settings
- Mitsubishi's inverter compressor technology is widely recognized for quiet operation and efficient part-load performance
- R-454B refrigerant future-proofs the system against tightening HFC regulations
- Owners report 15 to 20 year system lifespans with proper annual maintenance, a strong track record for commercial equipment
Trade-offs
- Indoor unit only: a compatible Mitsubishi outdoor unit must be purchased separately, adding significant cost and coordination
- Ceiling cassette installation is more complex and labor-intensive than a standard wall-mount, increasing install cost
- In multi-zone configurations, all indoor heads must be set to the same mode (heat or cool); there is no automatic mode switching between zones on swing days
- Warranty labor is not covered, and Mitsubishi's technical support and warranty response have drawn complaints for slow turnaround
What homeowners and pros say about Mitsubishi
Mitsubishi Electric consistently earns favorable marks from both building owners and HVAC professionals for quiet operation, long service life, and reliable inverter-driven performance. EnergyStar and owner review aggregators reflect strong satisfaction scores, with reliability, low noise output, and efficiency cited most often as standout qualities. For ceiling cassette applications in particular, contractors note that the PLA series installs predictably and performs well over time when the evaporator coil and blower wheel are cleaned on a yearly schedule, a maintenance step that is easy to overlook in drop-ceiling commercial installs but is a documented cause of declining airflow and cooling capacity when skipped.
On the less favorable side, the Better Business Bureau record for Mitsubishi Electric shows a mixed picture: product satisfaction is generally high, but complaints about slow warranty response times and the absence of labor coverage appear with enough regularity to be worth noting. The specific failure mode most relevant to multi-zone buyers is the inability to run individual heads in opposing modes simultaneously, meaning all zones tied to one outdoor unit must heat or cool together. A minority of owners have also reported early compressor failures, and because labor is excluded from even the 12-year warranty, an unexpected compressor replacement can carry a significant out-of-pocket service cost. Selecting a Diamond-certified contractor for installation and keeping up with annual maintenance are the two steps most consistently linked to avoiding these outcomes.
Sources: EnergySage Mitsubishi heat pump review, AHRI Directory of Certified Product Performance, U.S. DOE appliance and equipment efficiency standards, Mitsubishi Electric product specifications.
How it compares
| Brand | Comparable model | SEER2 | Stage | Price position |
|---|---|---|---|---|
| Mitsubishi | PLA-AE18NL + PLP-41EAEU + MHK2 (indoor unit only) | Not rated as standalone unit | Variable-speed inverter | Premium tier; indoor unit only requires separate outdoor unit purchase |
| Daikin | FFFC18LVJU 4-Way Ceiling Cassette | Varies by matched outdoor unit | Variable-speed inverter | Comparable premium pricing to Mitsubishi; often slightly lower street price |
| Fujitsu | AUTA18GALX Ceiling Cassette Series | Varies by matched outdoor unit | Variable-speed inverter | Slightly below Mitsubishi at list; competitive in the commercial cassette segment |
| LG | LT183HV3 Art Cool Ceiling Cassette | Varies by matched outdoor unit | Variable-speed inverter | Generally positioned below Mitsubishi and Daikin; broader distribution lowers installed cost in some markets |
Competitor rows are comparable single-stage units at similar efficiency; price is relative position, not a quote.
Questions about this system
Does this listing include the outdoor unit, or do I need to buy that separately?
This package covers only the indoor cassette unit (PLA-AE18NL), the decorative grille panel (PLP-41EAEU), and the MHK2 wired controller. You must purchase a compatible Mitsubishi outdoor condensing unit separately and confirm the matched pair is AHRI-certified for your region before installation.
What ceiling opening and plenum depth do I need for this cassette?
The PLA-AE18NL uses a 3×3 foot cassette body that mounts in a standard drop ceiling grid. You will need sufficient plenum clearance above the ceiling tile for the unit body and refrigerant line routing; consult Mitsubishi's installation manual for exact dimensional requirements before opening the ceiling.
Will I get the 12-year warranty on this unit, and does it cover labor?
Mitsubishi's 12-year parts and compressor warranty applies when installation is completed by a certified Diamond contractor and the unit is registered within the required window. Labor costs for repairs are not covered under the warranty, so factor potential service labor into your long-term cost estimate.
If this cassette is part of a multi-zone system, can it cool while another zone heats?
No. Mitsubishi multi-zone systems require all indoor heads connected to the same outdoor unit to operate in the same mode simultaneously, either all cooling or all heating. On transitional weather days you will need to manually set each head to the desired mode; there is no automatic per-zone switching between heat and cool.
How often does the cassette's evaporator coil and blower wheel need to be cleaned?
Mitsubishi and independent technicians recommend cleaning the indoor evaporator coil and blower assembly at least once per year. In commercial environments with higher occupancy or airborne grease, more frequent cleaning may be needed. Skipping annual maintenance is a documented cause of performance loss and can affect warranty standing.
Specifications
| Furnace output | 18000 BTU |
| Refrigerant | R-454B |
