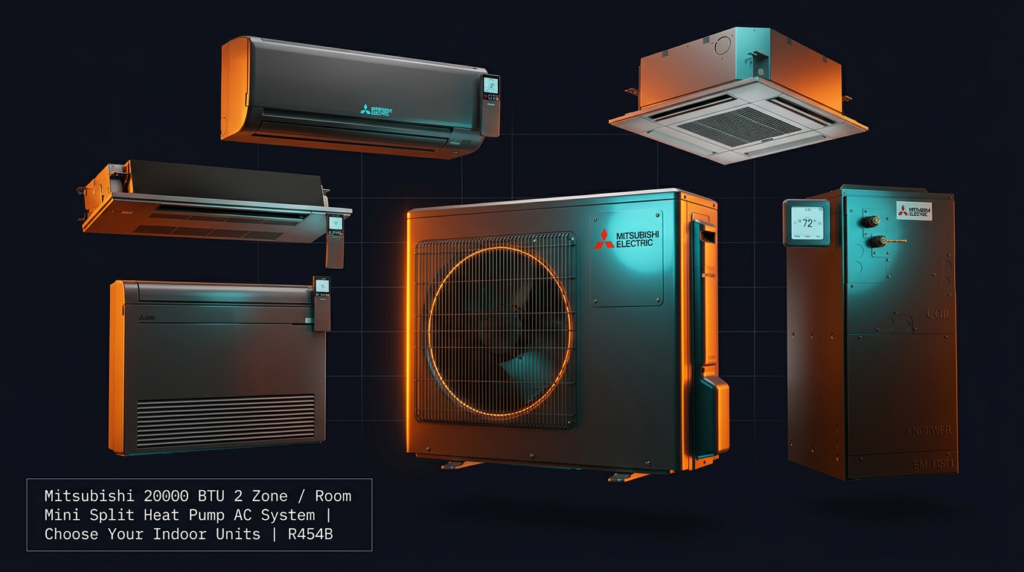

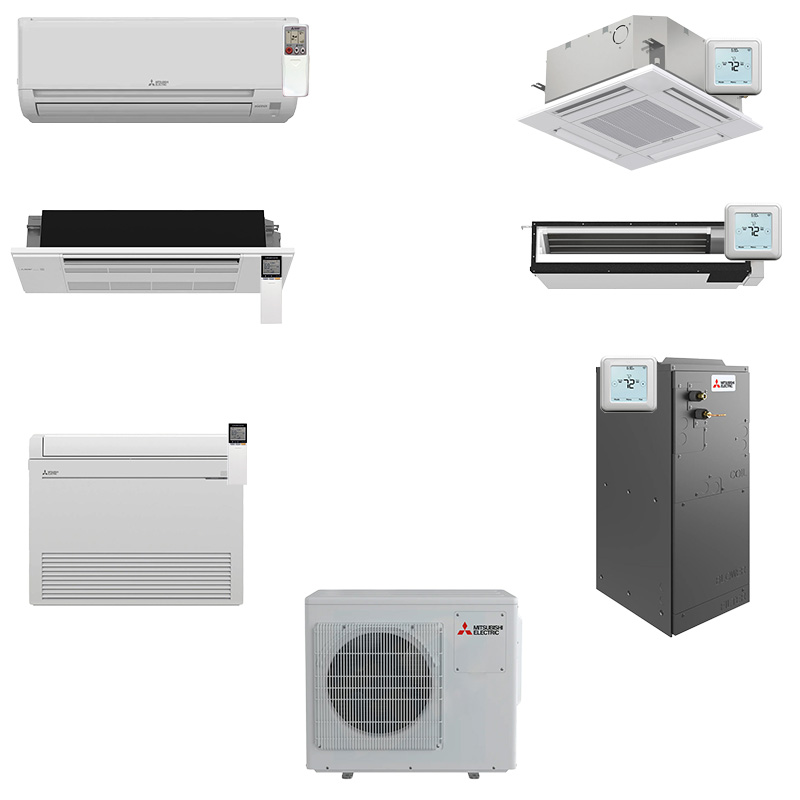

Mitsubishi 20000 BTU 2 Zone / Room Mini Split Heat Pump AC System | Choose Your Indoor Units | R454B
Check current price on AC Direct →
Key features
- 20,000 BTU total capacity split across two independently controlled indoor zones
- R-454B refrigerant, a lower-GWP next-generation alternative to R-410A
- Variable-speed inverter compressor modulates output to match room load
- Choose-your-indoor-unit configuration lets buyers match head style to each room
- Full 12-year parts and compressor warranty with Diamond Contractor installation
- Compatible with Mitsubishi's kumo cloud Wi-Fi control system for remote access
About this system

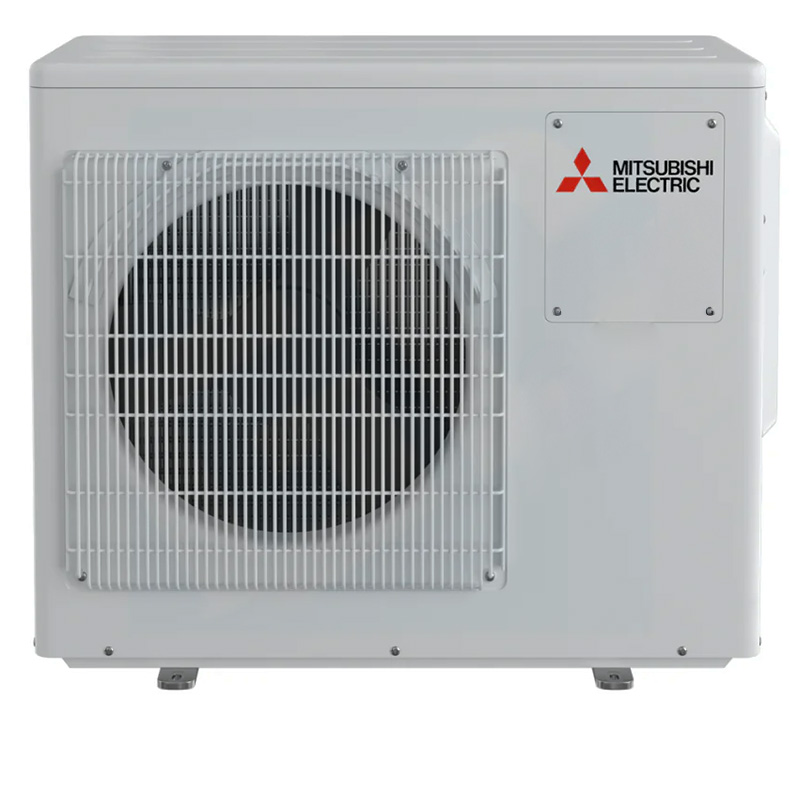

This Mitsubishi 20,000 BTU two-zone mini-split heat pump runs on R-454B refrigerant, a lower-global-warming-potential replacement for R-410A that is becoming the new standard ahead of federal refrigerant regulations. The system pairs one outdoor condensing unit with two indoor air handlers, letting you choose the head unit styles and capacities that fit your rooms. That flexibility makes it a practical fit for a small home addition, a garage plus a studio, or two bedrooms that were never served by ductwork.
At 20,000 BTU total capacity, this is a modest two-zone system best suited to two smaller spaces rather than two large open-plan rooms. Mitsubishi’s multi-zone platform is variable-speed, meaning the compressor modulates output to match actual load rather than cycling on and off like a single-speed unit, which supports both comfort and energy efficiency. The trade-off inherent to any multi-zone system is that all heads must call for the same mode simultaneously; you cannot cool one room while heating another from the same outdoor unit. On mild swing days that requires a manual decision at each head.
Mitsubishi Electric occupies the premium tier of the ductless market, and this system is priced accordingly. The long-term ownership case rests on documented 15-to-20-year lifespans when units are professionally installed and the coils and blower wheels are cleaned annually. Buyers who want the full 12-year parts and compressor warranty must use a Mitsubishi Diamond Contractor for installation, which adds to the upfront cost but also ensures the refrigerant charge and line-set work meet factory specifications.
This is a well-built, quiet, and long-lived two-zone ductless system from a brand with a strong real-world track record, but it carries a premium price and a few meaningful operational quirks that buyers should understand before purchasing. The mode-limitation on multi-zone units and the requirement to use a certified installer to unlock the full warranty are genuine considerations, not fine print. If budget and those trade-offs are acceptable, it is a hard system to beat for quiet, efficient, zoned comfort.
Overall score is the average of the five ratings above.
What we like
- Variable-speed inverter compressor delivers stable room temperatures and efficient part-load operation
- Mitsubishi units are consistently rated among the quietest in the ductless category by owners and reviewers
- R-454B refrigerant positions the system ahead of upcoming regulatory changes, protecting resale value
- Documented owner lifespans of 15 to 20 years when maintained make the premium price easier to justify over time
- Flexible indoor unit selection lets you match wall, ceiling cassette, or floor-console heads to each room's layout
Trade-offs
- All zones must operate in the same mode (heat or cool); no automatic per-room mode switching on a multi-zone system
- Full 12-year warranty requires a Mitsubishi Diamond Contractor install, adding to upfront cost
- A minority of owners report early compressor failures, and labor is not covered under the warranty
- Warranty support and technical response from Mitsubishi have drawn complaints about slow turnaround times
What homeowners and pros say about Mitsubishi
Across owner forums, contractor communities, and aggregator sites including EnergySage, Mitsubishi Electric ductless systems draw consistently favorable feedback for three things: quiet indoor operation, reliable efficiency over many years, and build quality that holds up to the brand’s premium price. Owners frequently report 15 to 20 year system lifespans with routine maintenance, and the reliability reputation is one reason HVAC contractors often recommend Mitsubishi when a customer asks for a system they won’t be calling about every few years. That said, the Better Business Bureau record for Mitsubishi Electric tells a more mixed story on the service side, with recurring complaints about slow warranty response times and the sometimes difficult process of getting labor costs covered when something does go wrong.
For this specific two-zone configuration, the documented failure modes worth knowing are the same ones that follow multi-zone inverter systems across the brand: a minority of owners have reported early compressor failures, and because labor is excluded from the warranty, an out-of-warranty compressor replacement is a significant cost. The indoor blower wheel and evaporator coil fouling issue is consistently mentioned by technicians as the most common cause of reduced performance, and it is entirely preventable with annual cleaning. The mode-switching limitation on multi-zone systems (all heads must be in the same heat or cool mode simultaneously) comes up repeatedly in owner discussions as a genuine day-to-day friction point, especially in climates with variable spring and fall temperatures. Mitsubishi’s technical support response times are another recurring theme in contractor forums, where delays in getting guidance on warranty claims or replacement parts can stretch service calls. None of these issues are dealbreakers for most buyers, but they are real and worth weighing against the brand’s well-earned long-term reliability reputation.
Sources: EnergySage Mitsubishi heat pump review, AHRI Directory of Certified Product Performance, U.S. DOE appliance and equipment efficiency standards, Mitsubishi Electric product specifications.
How it compares
| Brand | Comparable model | SEER2 | Stage | Price position |
|---|---|---|---|---|
| Mitsubishi | MXZ-2C20NAHZ2 with two MSZ/MLZ/MFZ heads | Not published for this specific configuration | Variable-speed inverter | Premium tier |
| Daikin | MXS Series 2-zone (MXS2C20TVJU) | 18+ SEER2 typical for this class | Variable-speed inverter | Slightly below Mitsubishi at comparable specs |
| Fujitsu | AOU18RLXFZ1 2-zone (AIRSTAGE halcyon) | 18-20 SEER2 range typical | Variable-speed inverter | Comparable to slightly below Mitsubishi |
| LG | LMU18CHV 2-zone Multi F Series | 18+ SEER2 typical | Variable-speed inverter | Noticeably lower upfront than Mitsubishi |
Competitor rows are comparable single-stage units at similar efficiency; price is relative position, not a quote.
Questions about this system
Can one zone be set to cool while the other is set to heat at the same time?
No. This is a standard multi-zone heat pump, not a heat-recovery system, so the outdoor unit can only operate in one mode at a time. Both indoor heads must be set to the same mode, either both cooling or both heating. On mild days when rooms have different needs, you will need to decide on a mode manually at each head.
Do I really need a Mitsubishi Diamond Contractor, or can any licensed HVAC tech install this?
Any licensed HVAC technician can physically install the system. However, Mitsubishi's 12-year parts and compressor warranty only applies when a certified Diamond Contractor performs the installation and registers the equipment. A non-Diamond install typically reduces the warranty to 5 years, so the cost difference is worth factoring into your decision.
What maintenance does this system actually need to keep performing well?
At minimum, the indoor blower wheel and evaporator coil on each head unit should be cleaned at least once a year. Owners who skip this step consistently report reduced airflow and efficiency. Outdoor coil inspection, filter rinsing, and refrigerant pressure checks every one to two years round out a reasonable maintenance schedule.
Is R-454B refrigerant a problem for future service? Will my technician be able to work on it?
R-454B is a mildly flammable (A2L class) refrigerant that requires technicians and equipment certified for flammable refrigerants. Availability is growing as the industry transitions away from R-410A, and most newer recovery and charging equipment supports it, but you should confirm your service tech is equipped before booking a call.
How do I split the 20,000 BTU capacity between two zones? Can both heads run at full output simultaneously?
The outdoor unit's total capacity is shared across both heads, and the variable-speed compressor allocates output based on demand from each zone. Mitsubishi's system allows for some simultaneous high-demand operation, but the combined load cannot sustainably exceed the outdoor unit's rated capacity. When sizing, ensure the two head units you select are appropriately sized for their individual rooms and that their combined BTU ratings match the outdoor unit's capacity.
Specifications
| Furnace output | 20000 BTU |
| Refrigerant | R-454B |
