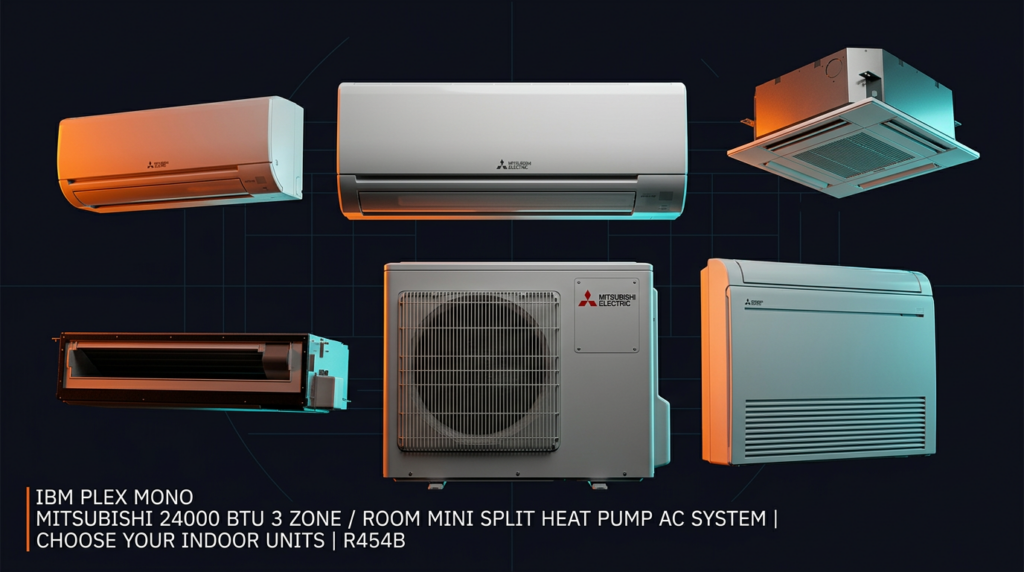

Mitsubishi 24000 BTU 3 Zone / Room Mini Split Heat Pump AC System | Choose Your Indoor Units | R454B
Check current price on AC Direct →
Key features
- 24,000 BTU outdoor unit supports up to three independently controlled indoor zones
- Inverter-driven variable-speed compressor adjusts output continuously to match load
- R-454B refrigerant with lower global-warming potential than R-410A
- Mix-and-match indoor unit selection: wall-mount, ceiling cassette, or floor-console heads
- Each indoor head operates independently with its own remote or app control
- 12-year parts and compressor warranty when installed by a Mitsubishi Diamond contractor
About this system
This Mitsubishi 24,000 BTU three-zone mini-split heat pump uses R-454B refrigerant and lets you condition up to three separate rooms from a single outdoor compressor. Because you choose your own indoor units, you can mix and match wall-mount, ceiling cassette, or floor-console heads to suit each space, which makes this configuration well suited to homes or additions where room sizes and usage patterns vary significantly. The 24,000 BTU (2-ton equivalent) outdoor unit is sized for moderate multi-room applications such as a primary bedroom plus two secondary rooms, a finished basement with two open areas, or a small home where a central duct system was never installed.
Mitsubishi’s outdoor compressors in this class use inverter-driven variable-speed technology, meaning the system ramps output up and down to match the actual load rather than cycling on and off at full capacity. This is the core reason the brand earns consistent praise for quiet operation and steady temperatures. The switch to R-454B refrigerant positions this system ahead of the regulatory curve as R-410A is phased down; R-454B has a lower global-warming potential while behaving similarly in terms of system performance. Keep in mind that R-454B is mildly flammable (A2L classification), which affects how installation must be handled and what service procedures technicians follow.
This Mitsubishi three-zone system delivers the quiet, efficient, long-lasting performance the brand is known for, and R-454B future-proofs the refrigerant side. The premium price is real, installation complexity is real, and the multi-zone heating and cooling limitation deserves attention before you buy.
Overall score is the average of the five ratings above.
What we like
- Inverter compressor keeps noise and temperature swings low in all three zones
- Owners consistently report 15 to 20 year lifespans with annual maintenance
- R-454B refrigerant meets coming low-GWP requirements, avoiding near-term refrigerant obsolescence
- Flexible indoor unit selection lets you match each head to its room type and size
- 12-year warranty coverage (parts and compressor) with Diamond contractor installation is among the strongest in the category
Trade-offs
- All indoor heads must be set to the same mode (heat or cool); the system cannot heat one room while cooling another on the same compressor
- A minority of owners have reported early compressor failures, and labor costs are not covered under the warranty
- Indoor blower wheels and evaporator coils require cleaning at least once a year or efficiency and airflow drop noticeably
- Warranty support and factory technical response times have drawn complaints, which matters most if you hit a problem mid-season
What homeowners and pros say about Mitsubishi
Across owner forums, contractor communities, and independent review aggregators, Mitsubishi Electric ductless systems earn consistent praise on three points: quiet operation, long service life, and stable efficiency over years of use. EnergyStar and owner review platforms show reliability and low noise as the most frequently cited strengths. HVAC professionals tend to recommend Mitsubishi when a customer asks for the system least likely to need a callback. The Better Business Bureau picture is more mixed, with product satisfaction sitting alongside recurring complaints about warranty claim response times and slow factory technical support, which is a pattern worth knowing before you need it.
The specific failure modes documented for Mitsubishi multi-zone systems are worth naming plainly. A minority of owners have experienced early compressor failures; because labor is excluded from the warranty, the out-of-pocket cost hits even when the part itself is covered. Indoor blower wheels accumulate debris faster than many owners expect, and neglecting annual cleaning of the evaporator coil leads to reduced airflow and, in some cases, coil icing. The mode-switching limitation on multi-zone systems (all heads must heat or all must cool) is not a defect but it does surprise owners who assumed each zone could operate independently in opposite modes. None of these trade-offs disqualify the system, but they inform what ownership actually looks like over a 15-to-20-year lifespan.
Sources: EnergySage Mitsubishi heat pump review, AHRI Directory of Certified Product Performance, U.S. DOE appliance and equipment efficiency standards, Mitsubishi Electric product specifications.
How it compares
| Brand | Comparable model | SEER2 | Stage | Price position |
|---|---|---|---|---|
| Mitsubishi | MXZ-3C24NAHZ2 with choose-your-own heads (R-454B) | Not published for this specific config; varies by head combination | Variable | Premium tier |
| Daikin | MXS Series 24,000 BTU 3-Zone | Varies by head combination; typically competitive with Mitsubishi in this class | Variable | Slightly below Mitsubishi at comparable specs |
| Fujitsu | AOU24RLXFZ1 Halcyon 3-Zone | Varies by head combination; generally in the same efficiency tier | Variable | Comparable to or slightly below Mitsubishi depending on retailer |
| LG | Multi VS 24,000 BTU 3-Zone | Varies by configuration; LG rates individual setups in the mid-to-high SEER2 range | Variable | Moderately below Mitsubishi; mid-to-upper tier |
Competitor rows are comparable single-stage units at similar efficiency; price is relative position, not a quote.
Questions about this system
Can one zone cool while another zone heats at the same time?
No. All indoor heads connected to the same outdoor unit must operate in the same mode at the same time. On mild swing-season days when one room needs heating and another needs cooling, you will need to pick one mode or turn an individual head off. This is a documented limitation of Mitsubishi's standard multi-zone systems, not a setup error.
Do I really need a Diamond contractor, or can any licensed HVAC tech install it?
Any licensed HVAC technician can physically install the system, but the 12-year warranty only applies when a Mitsubishi Diamond Contractor performs the work. A non-Diamond install typically drops coverage to 5 years. R-454B's A2L flammability classification also requires technicians to follow updated handling procedures, so installer experience with newer refrigerants genuinely matters here.
How often do the indoor units need to be serviced, and what happens if I skip it?
Mitsubishi and independent technicians recommend cleaning the blower wheel and evaporator coil at least once a year. Skipping this allows dust and mold buildup that restricts airflow, reduces efficiency, and can cause the coil to ice over. The self-cleaning wash functions on some heads help but do not replace a hands-on annual cleaning.
What does the switch to R-454B mean for parts and service costs down the road?
R-454B has a lower global-warming potential than R-410A and aligns with EPA phase-down rules, so refrigerant availability should remain stable as R-410A becomes harder to source. The A2L classification means not every shop will be immediately set up to handle it, so confirm your local service options now rather than after installation.
If the compressor fails outside the warranty window, what is the typical cost exposure?
Compressor replacement on a multi-zone outdoor unit is a significant expense. Even within the warranty period, labor is not covered, so you pay the technician's time regardless. Owners who have faced early compressor failures (a documented minority occurrence) report labor alone running into several hundred dollars. Budgeting for a service contract or setting aside a maintenance reserve is worth considering.
Specifications
| Furnace output | 24000 BTU |
| Refrigerant | R-454B |
