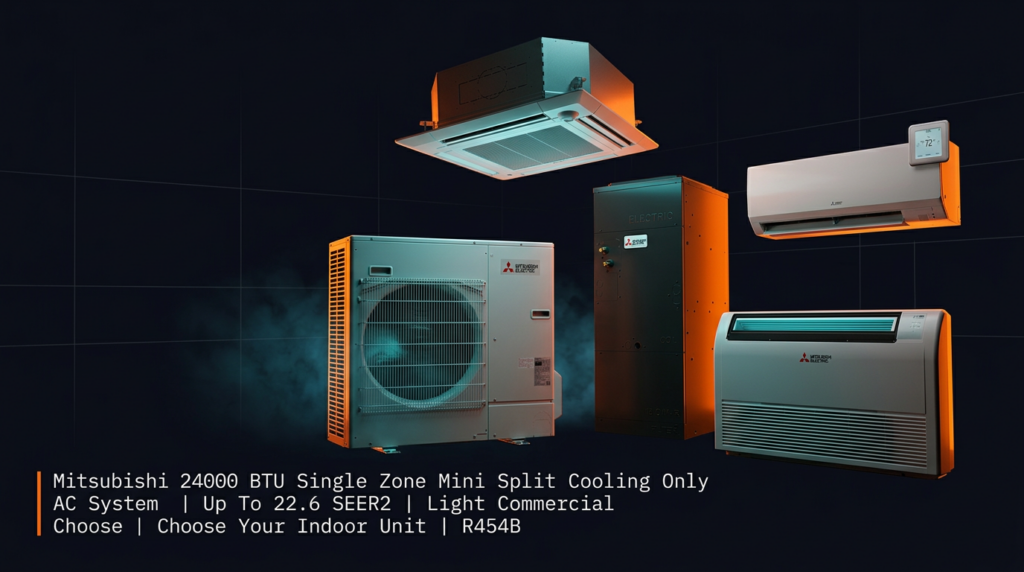

Mitsubishi 24000 BTU Single Zone Mini Split Cooling Only AC System | Up To 22.6 SEER2 | Light Commercial | Choose Your Indoor Unit | R454B
Check current price on AC Direct →
Key features
- Up to 22.6 SEER2 inverter-driven compressor for high-efficiency cooling
- 24,000 BTU capacity suitable for larger single zones up to roughly 1,500 sq ft
- Cooling-only design with no reversing valve, suited to year-round warm climates and commercial spaces
- R-454B refrigerant with lower global warming potential than R-410A

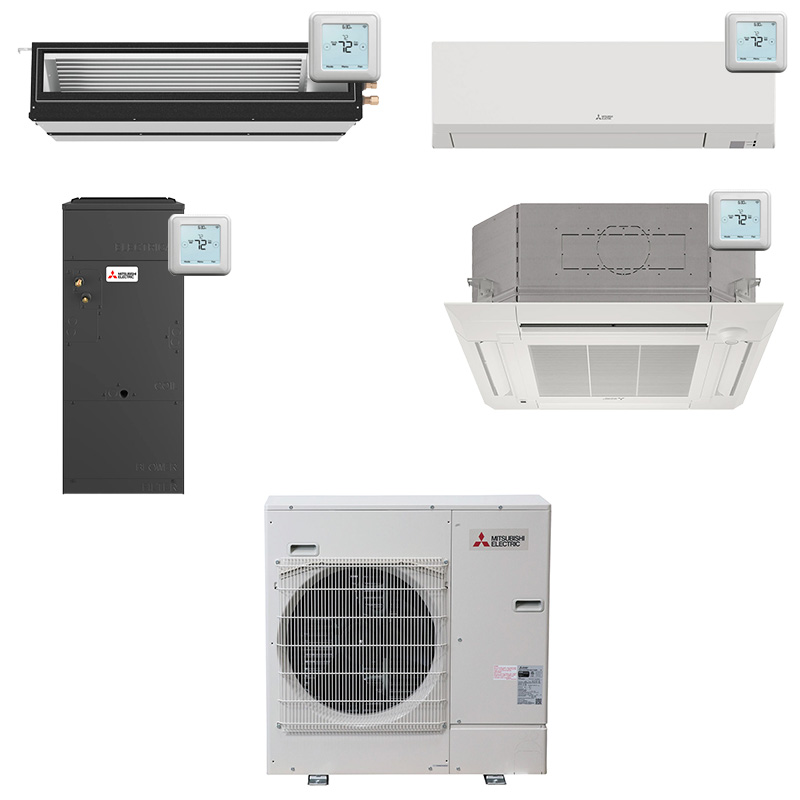

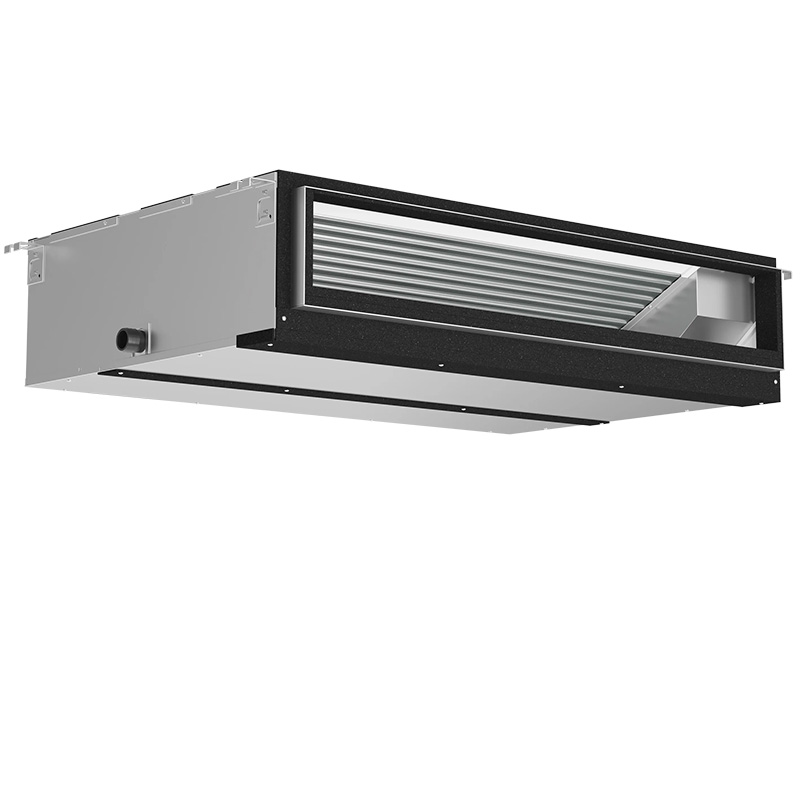

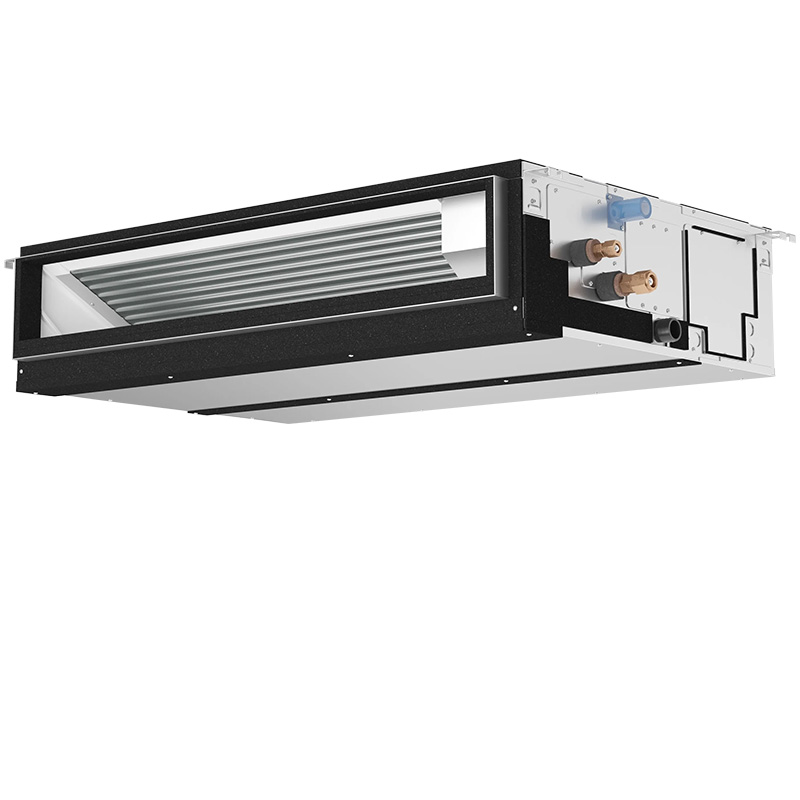

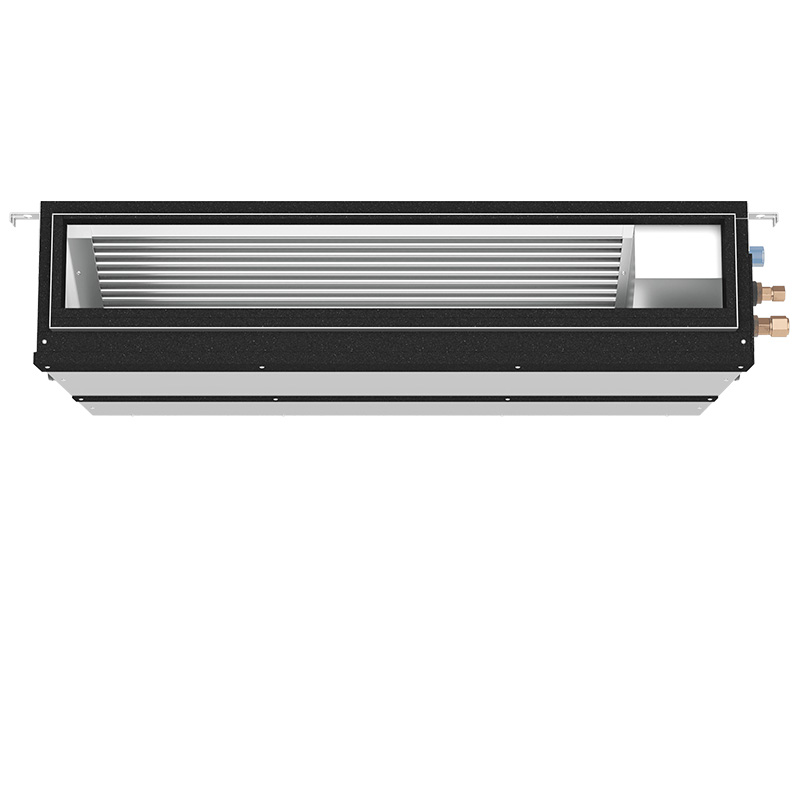

- Multiple indoor unit configurations available (wall-mount, cassette, ducted handler)
- 12-year parts and compressor warranty when installed by a Mitsubishi Diamond Contractor
About this system
This Mitsubishi 24,000 BTU (2-ton equivalent) single-zone cooling-only mini split is aimed at spaces where heating is either handled separately or simply not needed, such as server rooms, retail storefronts, workshops, and sunrooms in warm climates. Running on R-454B refrigerant, a lower-global-warming-potential replacement for R-410A, the system is built around Mitsubishi’s variable-speed inverter compressor technology, which holds the unit’s SEER2 rating at up to 22.6. That figure puts it near the top of the ductless efficiency tier, meaning lower operating costs compared to conventional fixed-speed window or packaged units of the same size.

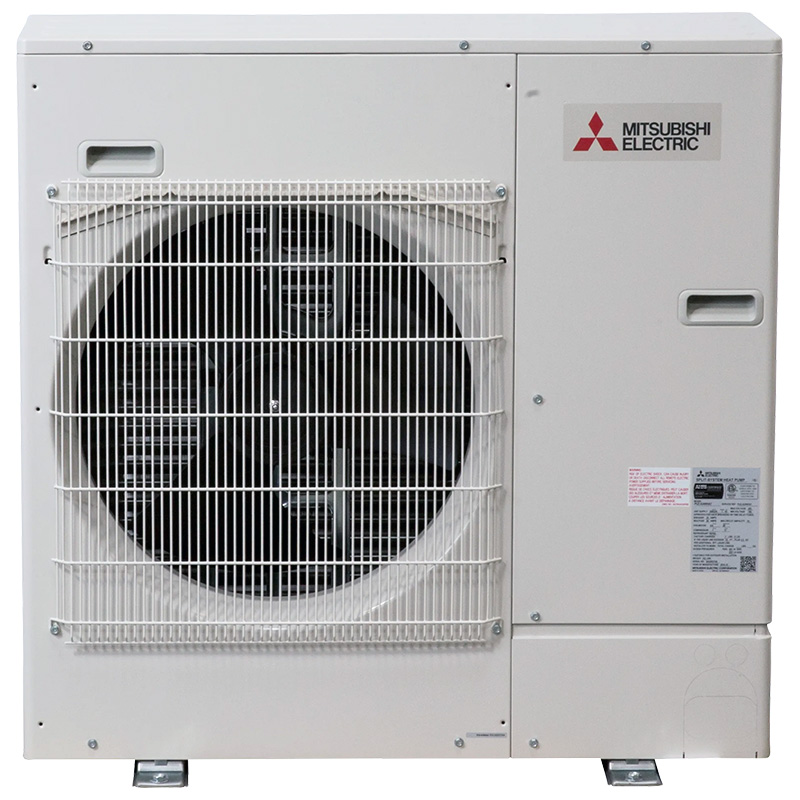

The cooling-only configuration removes the reversing valve and heat-pump components, which simplifies the refrigerant circuit and suits buyers who have no use for heating from this system. At 24,000 BTU, the outdoor unit is sized for larger single zones, roughly 1,000 to 1,500 square feet depending on insulation, ceiling height, and local climate. Mitsubishi’s “Choose Your Indoor Unit” option lets buyers match a wall-mount, ceiling cassette, or ducted air handler to the space, which adds flexibility for light commercial installations. Installation requires an EPA-certified technician familiar with R-454B handling, and a Mitsubishi Diamond Contractor install is required to unlock the full 12-year parts and compressor warranty.
This system is a genuinely strong performer for buyers who need efficient, quiet, single-zone cooling and are willing to pay a premium for Mitsubishi's long track record of reliability. The 22.6 SEER2 rating is among the best available at this capacity, and the 12-year warranty is competitive, but it is conditional on a Diamond Contractor install and does not cover labor, which matters if the minority-reported early compressor failures occur. For the right application and the right installer, this is a top-tier product; for budget-sensitive buyers or those without easy access to a Diamond Contractor, the cost-to-benefit ratio deserves a hard look.
Overall score is the average of the five ratings above.
What we like
- 22.6 SEER2 rating reduces operating costs significantly compared to standard-efficiency ductless units
- Inverter-driven compressor modulates output, maintaining steady temperatures and quiet operation
- Cooling-only design suits server rooms, retail spaces, and warm-climate applications where heat is not needed
- R-454B refrigerant meets current and near-future environmental regulations
- 15 to 20 year lifespan reported by owners when the system is properly maintained
Trade-offs
- Premium price point is higher than comparable Daikin or LG units at similar SEER2 ratings
- 12-year warranty requires a Diamond Contractor install; labor is not covered, so compressor replacements carry out-of-pocket cost
- Indoor blower and evaporator coil require at least annual cleaning or performance drops noticeably
- Warranty support and technical response have drawn complaints for slow turnaround times
What homeowners and pros say about Mitsubishi
Owner and installer feedback on Mitsubishi’s ductless lineup, including single-zone cooling-only configurations, consistently highlights quiet operation, stable temperature control from the inverter compressor, and long service life when the equipment is properly maintained. EnergySarge aggregated owner reviews and independent assessments rate Mitsubishi highly on reliability and efficiency, and that reputation holds up in installer forums where the brand is frequently cited as a first recommendation for commercial applications. The Better Business Bureau picture is more mixed: product satisfaction ratings are generally favorable, but a recurring thread involves slow warranty response times and friction when owners try to get compressor-related claims processed, which is directly relevant here because labor is never covered and getting a timely parts authorization can extend downtime.
On the specific failure side, the documented concern most relevant to a 24,000 BTU cooling-only commercial unit is early compressor failure in a minority of units, which becomes costly precisely because labor falls entirely on the owner even during the warranty period. Technicians also flag the indoor coil and blower as a maintenance point, noting that light commercial installations where cleaning is skipped for a season or two can see efficiency drop measurably and in some cases contribute to premature component wear. There are no widely documented issues with the cooling-only refrigerant circuit specific to this configuration, but the broader Mitsubishi pattern of slow technical and warranty support response is worth factoring into any commercial project where downtime carries a real cost.
Sources: EnergySage Mitsubishi heat pump review, AHRI Directory of Certified Product Performance, U.S. DOE appliance and equipment efficiency standards, Mitsubishi Electric product specifications.
How it compares
| Brand | Comparable model | SEER2 | Stage | Price position |
|---|---|---|---|---|
| Mitsubishi | MXY-SM24 / Choose Your Indoor Unit (this system) | 22.6 | Variable-speed inverter | Premium price tier |
| Daikin | Aurora / LV Series 24,000 BTU Single Zone | 21.5 | Variable-speed inverter | Slightly below Mitsubishi at similar capacity |
| Fujitsu | Halcyon ASTU24KNLWH 24,000 BTU Single Zone | 22.0 | Variable-speed inverter | Comparable to or slightly below Mitsubishi depending on distributor |
| LG | Art Cool Premier 24,000 BTU Single Zone LSU240HEV | 21.5 | Variable-speed inverter | Moderately below Mitsubishi in most markets |
Competitor rows are comparable single-stage units at similar efficiency; price is relative position, not a quote.
Questions about this system
Does this system provide any heating, or is it strictly cooling?
This is a cooling-only unit with no heat-pump function. It will not produce heat under any operating mode. If you need both heating and cooling from a single mini split, you would need to select a heat-pump version of this outdoor unit instead.
What does the 12-year warranty actually cover, and what can void it?
The 12-year parts and compressor warranty applies only when a Mitsubishi Diamond Contractor performs the installation and the unit is registered within the required window. Labor costs are not covered under any warranty tier, so if the compressor fails within the warranty period, you still pay for the technician's time. Using a non-Diamond installer typically drops coverage to a shorter term.
Can I use this system in a server room or data closet?
Cooling-only mini splits are well suited to server rooms because the space needs continuous cooling regardless of outdoor temperature and no heating is required. Confirm that the indoor unit configuration you select works with your rack layout and that the unit can handle the consistent high-load operation typical of IT environments.
How often does the indoor unit need to be serviced to keep the SEER2 rating accurate?
Mitsubishi and independent technicians consistently note that the blower wheel and evaporator coil need cleaning at least once a year. Dirty coils reduce heat transfer efficiency, which pushes the actual operating efficiency well below the rated 22.6 SEER2 and can lead to longer run times and higher electricity bills.
Is R-454B refrigerant harder to service or more expensive to recharge than R-410A?
R-454B is a mildly flammable (A2L class) refrigerant, which means technicians need specific training and equipment to handle it safely. As adoption increases the service infrastructure is expanding, but in some markets finding a technician certified for A2L refrigerants can take more time than finding one for R-410A work. Recharge costs may be somewhat higher in the near term as supply chains mature.
Specifications
| Efficiency | 22.6 SEER2 |
| Furnace output | 24000 BTU |
| Refrigerant | R-454B |
