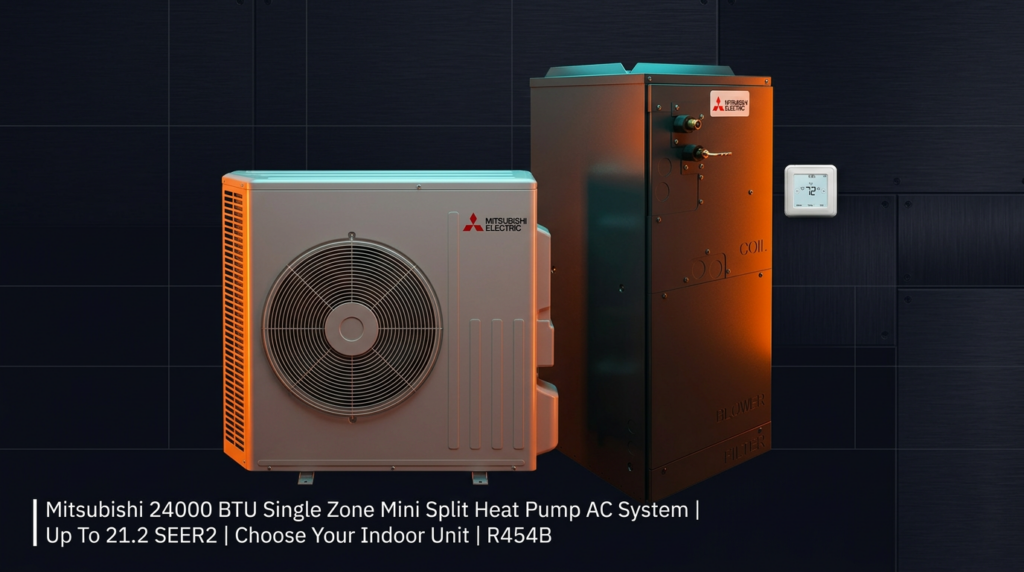

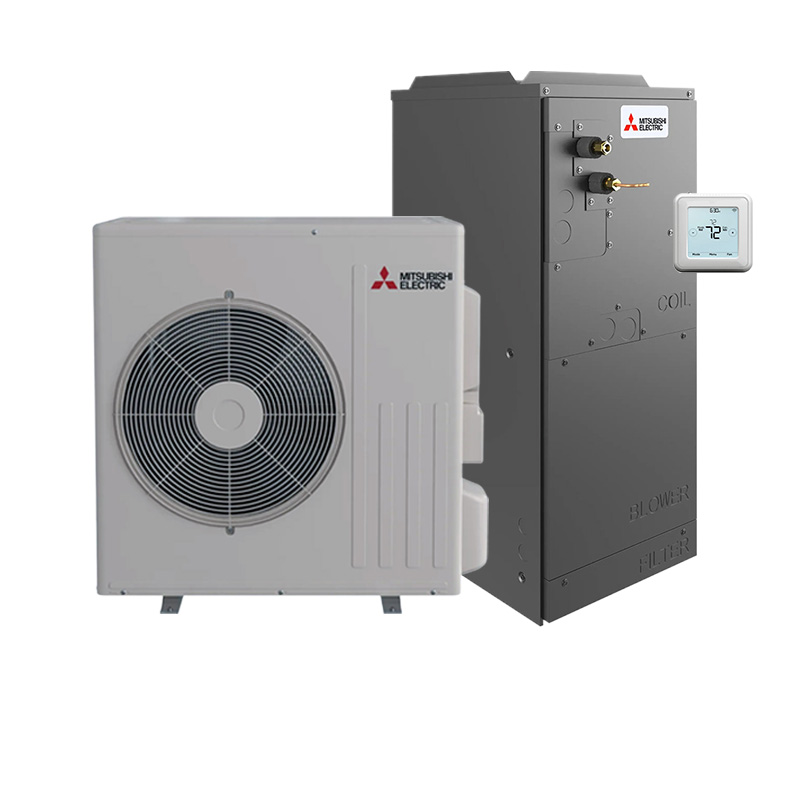

Mitsubishi 24000 BTU Single Zone Mini Split Heat Pump AC System | Up To 21.2 SEER2 | Choose Your Indoor Unit | R454B
Check current price on AC Direct →
Key features
- Up to 21.2 SEER2 efficiency rating for reduced operating costs versus mid-tier ductless systems
- 24,000 BTU (2-ton-class) capacity suited to spaces roughly 900 to 1,400 sq ft depending on load conditions
- R-454B refrigerant, a lower-GWP next-generation replacement for R-410A
- Variable-speed inverter compressor for precise temperature control and quiet operation
- Single-zone configuration eliminates the multi-zone same-mode limitation
- 12-year parts and compressor warranty available when installed by a Mitsubishi Diamond Contractor
About this system
The Mitsubishi 24,000 BTU single-zone mini split heat pump is built around the brand’s hyper-heat inverter compressor technology and uses the newer R-454B refrigerant, a lower-global-warming-potential replacement for R-410A that is becoming the industry standard ahead of regulatory deadlines. At up to 21.2 SEER2, this system sits at the upper end of the efficiency ladder for 2-ton-class ductless equipment, meaning real-world operating costs will be noticeably lower than mid-tier systems rated in the 16 to 18 SEER2 range. The 24,000 BTU output is well suited to spaces in roughly the 900 to 1,400 square foot range, though actual sizing depends on insulation quality, ceiling height, climate zone, and window area, so a Manual J load calculation before purchase is worth the effort.
This listing allows you to choose your indoor unit, which matters more than it might seem. Mitsubishi offers wall-mount, floor-console, ceiling cassette, and concealed-duct air handlers, each with different airflow patterns, noise levels, and installation requirements. The outdoor unit is the same across configurations, but the indoor unit you pick should match the room layout and how the space is used. Homeowners who want the most flexibility typically choose the wall-mount; those with finished ceilings and a preference for a less visible unit lean toward the cassette or concealed-duct options, though those add installation complexity and cost. All configurations use the same high-efficiency inverter-driven compressor, so efficiency ratings hold regardless of indoor unit choice.
The Mitsubishi 24,000 BTU single-zone system is a genuinely high-performing ductless unit that earns its premium price through real efficiency, documented longevity, and exceptionally quiet operation. The trade-offs are upfront cost, the need for a Diamond Contractor installation to unlock the full warranty, and the ongoing maintenance discipline the evaporator coil and blower require. Buyers who treat it as a long-term investment and budget for proper installation will likely be satisfied; those looking for the lowest landed cost should shop elsewhere.
Overall score is the average of the five ratings above.
What we like
- 21.2 SEER2 efficiency is among the highest available in a 2-ton-class single-zone system
- Inverter compressor delivers quiet, steady temperature control rather than on-off cycling
- Single-zone setup avoids the documented multi-zone mode-switching issue on swing days
- R-454B refrigerant is future-ready as R-410A phase-down rules take effect
- Owners consistently report 15 to 20 year lifespans with routine maintenance
Trade-offs
- Premium brand pricing means higher upfront cost compared to Daikin, Fujitsu, or LG equivalents at similar efficiency
- Full 12-year warranty requires a certified Diamond Contractor installation, which adds labor cost
- A minority of owners report early compressor failures, and labor costs are not covered under the warranty
- Indoor blower and evaporator coil require cleaning at least once a year or efficiency and airflow degrade noticeably
What homeowners and pros say about Mitsubishi
Owner feedback collected through EnergyStar verified purchaser reviews, HVAC contractor forums, and the Better Business Bureau paints a consistent picture: Mitsubishi earns its reputation for quiet operation and reliability, with many owners reporting units running without significant issues well past the 10-year mark when annual maintenance is kept up. The single-zone configuration specifically avoids the documented multi-zone frustration where each indoor head must be manually set to the same mode on swing days because the system cannot auto-switch between heating and cooling. That is a meaningful quality-of-life advantage for homeowners who want straightforward day-to-day operation.
The documented failure modes to know about before purchase are real, if not universal. A minority of owners report early compressor failures, and because labor is not covered under the warranty, a compressor replacement in years two or three can run into several hundred dollars out of pocket even with a valid warranty claim. BBB service records show that warranty response times can be slow when issues do arise. The indoor blower and evaporator coil are the other known weak point: skipping annual cleaning leads to measurable efficiency drops and, in some cases, icing or vibration issues. HVAC professionals who work on Mitsubishi equipment regularly note that the hardware itself is well-built, but that warranty administration is an area where the brand’s customer experience does not always match the product quality.
Sources: EnergySage Mitsubishi heat pump review, AHRI Directory of Certified Product Performance, U.S. DOE appliance and equipment efficiency standards, Mitsubishi Electric product specifications.
How it compares
| Brand | Comparable model | SEER2 | Stage | Price position |
|---|---|---|---|---|
| Mitsubishi | MUZ/MSZ 24,000 BTU Single Zone (this system) | 21.2 | Variable | Value pick |
| Daikin | Aurora 24,000 BTU Single Zone (RXL/FTXL series) | 20.5 | Variable | Typically priced below this system at similar efficiency |
| Fujitsu | Halcyon XLTH 24,000 BTU Single Zone (AOU/ASU series) | 20.0 | Variable | Often priced competitively below Mitsubishi, similar efficiency tier |
| LG | Art Cool Premier 24,000 BTU Single Zone (LSU/LSN series) | 20.0 | Variable | Generally priced below Mitsubishi at this capacity with slightly lower efficiency |
Competitor rows are comparable single-stage units at similar efficiency; price is relative position, not a quote.
Questions about this system
Do I have to use a Mitsubishi Diamond Contractor, or can any licensed HVAC tech install this?
Any licensed HVAC technician experienced with ductless systems can physically install the unit, and it will operate. However, the 12-year parts and compressor warranty is only activated when a Mitsubishi-certified Diamond Contractor does the installation and registers the equipment. A non-Diamond install typically drops warranty coverage to 5 years, so the contractor choice has a direct financial consequence.
What does 'choose your indoor unit' actually mean, and does the choice affect efficiency?
Mitsubishi offers several indoor air handler styles for this outdoor unit, including wall-mount, ceiling cassette, floor console, and concealed-duct. The SEER2 rating and compressor are the same across configurations, but installation cost, labor complexity, and airflow pattern differ significantly. Cassette and concealed-duct units require more labor and ceiling access, which raises the installed price.
Is R-454B refrigerant a problem for future service? Will technicians be able to work on it?
R-454B is a mildly flammable (A2L class) refrigerant, which means technicians need equipment and certification specific to A2L handling. Most larger HVAC companies are already equipped for it as the industry transitions away from R-410A. In rural areas with fewer service providers, it is worth confirming local availability before purchase.
How often does the indoor unit actually need cleaning, and what happens if I skip it?
Mitsubishi and independent service data point to at least once a year for the evaporator coil and blower wheel, more often in dusty environments or homes with pets. Skipping cleaning allows buildup that restricts airflow, reduces efficiency, and can eventually cause the coil to ice over or the blower to vibrate. Some owners use a professional coil cleaning service; others do basic filter maintenance themselves and bring in a tech annually.
BBB reviews mention slow warranty response. What should I expect if I have a compressor problem?
Mitsubishi's product quality draws consistent praise, but BBB complaints and owner forums document that warranty claim processing and technical support response times can be slow, sometimes taking weeks. If a compressor fails outside the normal failure window, parts may be covered but labor will not be, so out-of-pocket repair costs can be significant. Keeping installation documentation and Diamond Contractor registration paperwork organized from day one reduces friction if a claim becomes necessary.
Specifications
| Efficiency | 21.2 SEER2 |
| Furnace output | 24000 BTU |
| Refrigerant | R-454B |
