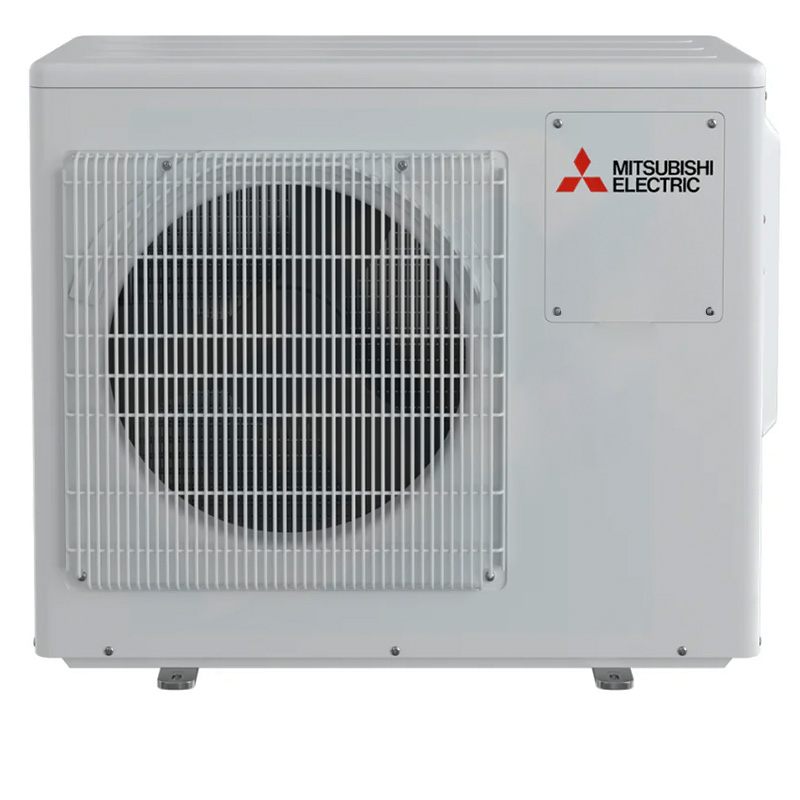

Mitsubishi 24000 BTU 3 Zone/Room Mini Split Heat Pump AC Condenser | Inverter R454B (MXZ-3D24NL)
Check current price on AC Direct →
Key features
- 24,000 BTU multi-zone inverter condenser supports up to 3 indoor air handlers
- R-454B refrigerant for lower environmental impact and future serviceability
- Variable-speed inverter compressor modulates output to match real-time load
- 12-year parts and compressor warranty when installed by a Mitsubishi Diamond contractor
- Compatible with M-Series and H2i hyper-heat indoor units for cold-climate heating
- Each indoor zone operates independently with its own temperature and mode settings
About this system
The Mitsubishi MXZ-3D24NL is a 24,000 BTU (roughly 2-ton) multi-zone outdoor condenser designed to serve up to three indoor air handlers simultaneously. It runs on R-454B refrigerant, a lower-global-warming-potential alternative that is becoming the new standard as R-410A is phased out, so this unit positions itself well for long-term serviceability. The condenser pairs with Mitsubishi’s M-Series or H2i indoor units and uses inverter-driven variable-speed compression, meaning the system modulates output continuously rather than cycling on and off at full blast, which directly translates to steadier temperatures and lower energy consumption at part load.
This configuration suits homeowners who want independent climate control in three distinct rooms or zones without running ductwork. Common applications include a primary bedroom plus a home office plus a bonus room, or a small multi-family unit where separate occupants want separate control. Because all three zones share a single 24,000 BTU compressor, sizing matters: if all three heads are likely to demand cooling or heating at maximum capacity simultaneously, the system can feel undersized. Where loads are staggered, the inverter technology handles it well. At Mitsubishi’s price tier, you are paying for build quality, low sound levels, and a track record that installers and owners routinely describe as spanning 15 to 20 years with proper maintenance.
The MXZ-3D24NL is a well-built, quiet, and genuinely long-lived multi-zone condenser from one of the most respected names in ductless HVAC. The premium price is real and so is the trade-off around heat-cool mode switching, but owners who maintain the indoor units and use a Diamond contractor for installation typically get a system that runs reliably for well over a decade. If budget is the primary concern, closer-priced alternatives exist, but few match Mitsubishi's overall build consistency.
Overall score is the average of the five ratings above.
What we like
- Inverter-driven variable-speed compressor keeps temperatures stable and reduces energy draw at part load
- R-454B refrigerant is more future-proof than R-410A as environmental regulations tighten
- Industry-leading reputation for quiet operation, both the condenser and indoor units run at low decibel levels
- Owners and installers consistently report 15 to 20 year system lifespans with annual maintenance
- 12-year compressor and parts warranty is among the best in class when a Diamond contractor installs the system
Trade-offs
- Multi-zone systems cannot auto-switch between heating and cooling modes, so all heads must be manually set the same way on seasonal transition days
- A minority of owners report early compressor failures, and labor costs are not covered under warranty even when parts are
- Indoor blower wheels and evaporator coils require cleaning at least once per year or efficiency and airflow drop noticeably
- Warranty support and Mitsubishi technical response times have drawn repeated complaints through the Better Business Bureau
What homeowners and pros say about Mitsubishi
Owners and HVAC professionals consistently place Mitsubishi near the top of the ductless category for reliability and quiet operation, and that reputation holds up with this multi-zone condenser. EnergySage and owner review aggregators show favorable scores, with reliability, low noise, and efficiency cited most often as strengths. That said, the Better Business Bureau profile for Mitsubishi Electric includes a meaningful number of complaints centered not on the hardware itself but on slow warranty response times and difficulty reaching technical support, which is a real consideration if something goes wrong outside of a busy season when your contractor can advocate for you quickly.
Among documented failure modes worth knowing before you buy: a minority of multi-zone owners report compressor failures earlier than the brand’s lifespan reputation would suggest, and because labor is not covered under warranty, a compressor replacement can be an expensive surprise. Indoor blower wheel fouling is the most commonly reported maintenance issue across Mitsubishi ductless lines, and the MXZ-3D24NL’s connected heads are no exception. Technicians consistently flag this as user-neglected rather than a design flaw, but it results in real efficiency loss and occasional error codes. The heat-cool mode switching limitation on multi-zone systems is a design constraint of this class of equipment, not unique to Mitsubishi, but it catches buyers off guard more often than any other complaint in the multi-zone category.
Sources: EnergySage Mitsubishi heat pump review, AHRI Directory of Certified Product Performance, U.S. DOE appliance and equipment efficiency standards, Mitsubishi Electric product specifications.
How it compares
| Brand | Comparable model | SEER2 | Stage | Price position |
|---|---|---|---|---|
| Mitsubishi | MXZ-3D24NL | Not published for this condenser alone (zone-dependent) | Variable / inverter | Premium tier |
| Daikin | MXS Series 3-zone 24,000 BTU | 18+ SEER2 (zone-dependent) | Variable / inverter | Slightly below Mitsubishi at most distributors |
| Fujitsu | AOU24RLXFZH (Halcyon multi-zone) | 18+ SEER2 (zone-dependent) | Variable / inverter | Comparable to or slightly below Mitsubishi depending on region |
| LG | LMU240HHV (Multi F MAX 3-zone) | 20+ SEER2 (zone-dependent) | Variable / inverter | Noticeably lower than Mitsubishi, mid-premium positioning |
Competitor rows are comparable single-stage units at similar efficiency; price is relative position, not a quote.
Questions about this system
Can one zone run in cooling while another runs in heating at the same time?
No. The MXZ-3D24NL is a heat-pump condenser that operates in a single mode at a time, either heating or cooling. All connected indoor heads must be set to the same mode, which means on mild swing-season days you may need to manually change every unit if conditions shift.
Does the 12-year warranty apply automatically, or are there conditions?
The 12-year coverage on compressor and parts applies only when the system is installed by a Mitsubishi Electric Diamond contractor and the unit is registered within the required window after installation. A standard non-Diamond installation typically carries a shorter warranty period, so verifying your installer's certification before signing a contract is important.
What indoor units are compatible with the MXZ-3D24NL?
The condenser is compatible with Mitsubishi's M-Series indoor heads (wall-mount, ceiling cassette, floor-mount, and ducted slim) as well as H2i hyper-heat units for cold-climate applications. Total connected indoor capacity must be sized within Mitsubishi's published allowable range for this condenser, so your installer should perform a proper load calculation for each zone.
How often do the indoor units actually need to be cleaned, and what happens if I skip it?
Mitsubishi and most HVAC technicians recommend cleaning the indoor blower wheel and evaporator coil at least once per year, more often in dusty environments or homes with pets. Skipping this leads to reduced airflow, lower efficiency, potential mold growth on the coil, and in some cases error codes that require a service call.
Is R-454B refrigerant harder to find or more expensive to service than R-410A?
R-454B availability is still expanding as manufacturers transition away from R-410A, but Mitsubishi and most established HVAC distributors stock it. Service costs may be slightly higher today than R-410A simply due to supply chain maturity, but the long-term outlook for R-454B is better given regulatory pressure on higher-GWP refrigerants. Confirm your service technician is certified to handle A2L refrigerants before scheduling any work.
Specifications
| Furnace output | 24000 BTU |
| Refrigerant | R-454B |
