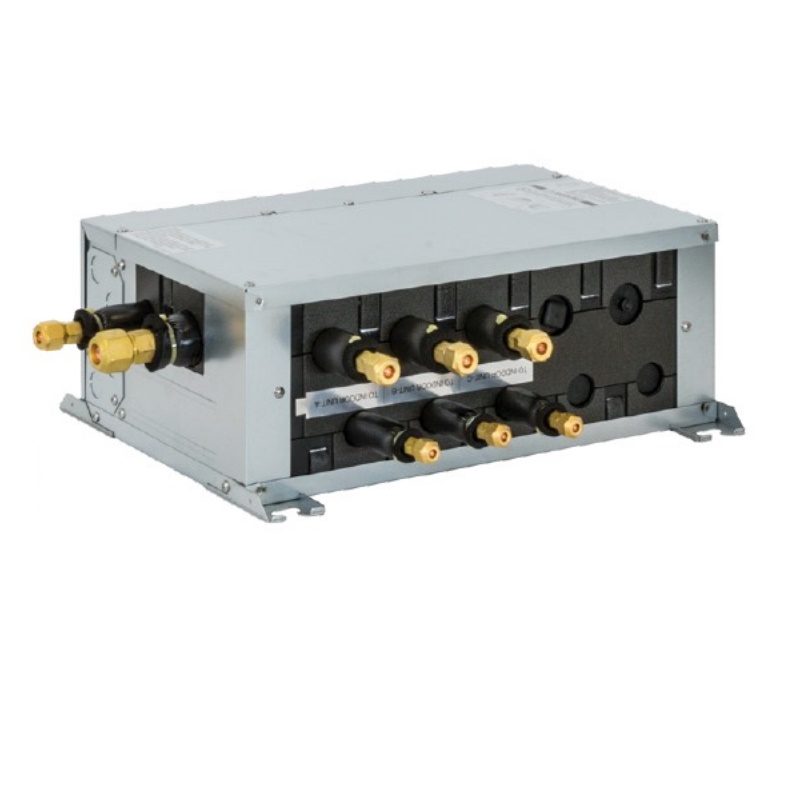

Mitsubishi 3-Port Branch Box For Ductless Mini Split AC Multizone Outdoor Units (PAC-LMA30BC)
Check current price on AC Direct →
Key features
- Connects up to 3 indoor air handlers to a single compatible Mitsubishi multizone outdoor unit
- Designed for use with Mitsubishi M-Series and P-Series ductless multizone systems
- Allows independent temperature control in each of the three connected zones
- Simplifies refrigerant distribution without routing separate line sets back to the condenser
- Compatible with Mitsubishi's range of indoor head styles including wall-mounted, ceiling cassette, and ducted units
- Must be installed by a Mitsubishi Diamond Contractor to qualify for the 12-year parts and compressor warranty
About this system
The Mitsubishi PAC-LMA30BC is a 3-port branch box designed to work with Mitsubishi’s M-Series and P-Series multizone ductless outdoor units. Its job is straightforward but essential: it acts as a refrigerant distribution hub, splitting the refrigerant circuit from one outdoor unit to up to three indoor air handlers. That means a single condenser can serve three separate rooms or zones, each with its own wall-mounted, ceiling cassette, or ducted indoor head. The branch box itself does not condition air and carries no SEER2 or BTU rating of its own; those figures come from the outdoor unit it is paired with.
This component suits homeowners and contractors who are building out a multizone ductless system and need to connect three indoor units to one outdoor unit without running separate refrigerant lines all the way back to the condenser. Typical applications include additions, older homes without ductwork, and mixed-use spaces where different rooms need independent temperature control. Because this is a Mitsubishi-specific part, it is only compatible with Mitsubishi outdoor units that are rated for branch-box configurations, and it must be installed by a qualified technician familiar with Mitsubishi’s line set and refrigerant requirements.
The PAC-LMA30BC is a well-engineered, brand-specific component that makes clean three-zone ductless installations possible with a single outdoor unit. It does its job reliably within the Mitsubishi ecosystem, but it is a supporting part, not a standalone system, so its value depends entirely on the outdoor unit and indoor heads it is paired with. Buyers who commit to a full Mitsubishi multizone build will find it a logical fit; those comparing total system costs should factor in that Mitsubishi's premium pricing extends to accessories like this.
Overall score is the average of the five ratings above.
What we like
- Enables up to three independently controlled zones from one outdoor unit, reducing outdoor equipment clutter
- Mitsubishi's multizone platform is widely regarded for quiet operation and long-term reliability, with reported lifespans of 15 to 20 years when maintained
- Branch-box design keeps refrigerant line routing cleaner and more serviceable than some competing approaches
- Compatible with a wide variety of Mitsubishi indoor head styles, giving installers flexibility in each zone
- Qualifies for Mitsubishi's 12-year parts and compressor warranty when installed by a Diamond Contractor
Trade-offs
- Multizone Mitsubishi systems do not support an auto heat/cool switching mode across zones simultaneously, requiring manual mode changes on swing-season days
- Labor costs are not covered under warranty, so an early compressor or component failure can mean a significant out-of-pocket repair bill
- This is a Mitsubishi-only component and cannot be mixed with outdoor units or indoor heads from other brands
- Warranty support and technical response from Mitsubishi have drawn complaints about slow turnaround times, which can extend system downtime during a failure
What homeowners and pros say about Mitsubishi
Owners and HVAC professionals who work with Mitsubishi multizone systems consistently cite the brand’s reliability and quiet operation as standout qualities, and those impressions generally extend to branch-box configurations like the PAC-LMA30BC. EnergySage and owner review aggregators show favorable feedback on the overall platform, with reliability, low noise, and efficiency appearing most often as cited strengths. That said, the Better Business Bureau record for Mitsubishi Electric includes a meaningful number of complaints specifically about warranty response times and the pace of technical support, which matters when a branch-box system goes down and multiple zones are affected at once.
Installers and owners of multizone systems in particular should be aware of two documented failure patterns in the broader Mitsubishi ductless lineup. A minority of owners have reported early compressor failures, and because labor is not covered under the warranty, those repairs can become expensive even when parts are provided. There are also recurring notes about the lack of simultaneous heat and cool capability across zones, which becomes a real inconvenience in climates with unpredictable shoulder-season weather. Indoor unit coil and blower fouling is another consistent theme, with performance degradation tied directly to skipped annual cleaning. None of these are reasons to avoid the platform, but they are worth factoring into the total cost-of-ownership picture when committing to a Mitsubishi multizone build.
Sources: EnergySage Mitsubishi heat pump review, AHRI Directory of Certified Product Performance, U.S. DOE appliance and equipment efficiency standards, Mitsubishi Electric product specifications.
How it compares
| Brand | Comparable model | SEER2 | Stage | Price position |
|---|---|---|---|---|
| Mitsubishi | PAC-LMA30BC 3-Port Branch Box | N/A (accessory component) | N/A | Premium-brand accessory pricing; among the higher-cost branch-box options in the ductless category |
| Daikin | Daikin VRV Life Branch Selector Box | N/A (system-dependent) | Variable | Comparable premium pricing to Mitsubishi; typically competitive within the VRV Life multizone ecosystem |
| Fujitsu | Fujitsu Halcyon Multi-Zone Branch Box (UTB series) | N/A (system-dependent) | Variable | Slightly lower overall system cost than Mitsubishi in most markets, making branch-box accessories comparably more accessible |
| LG | LG Multi V Branch Distribution Controller | N/A (system-dependent) | Variable | Generally lower price point than Mitsubishi for comparable multizone distribution components, though system-level reliability track record is shorter |
Competitor rows are comparable single-stage units at similar efficiency; price is relative position, not a quote.
Questions about this system
Which Mitsubishi outdoor units is the PAC-LMA30BC compatible with?
The PAC-LMA30BC is designed for use with Mitsubishi M-Series and P-Series multizone outdoor units that specifically support branch-box configurations. You should verify compatibility with the exact outdoor unit model number before purchasing, as not every Mitsubishi multizone condenser is rated for branch-box use. A Mitsubishi Diamond Contractor can confirm the correct pairing.
Can I mix different indoor head styles across the three ports on this branch box?
Yes, one of the practical advantages of the Mitsubishi branch-box system is that you can connect different indoor unit types to each port, such as a wall-mounted head in one room and a ceiling cassette in another. Each indoor unit must still be a Mitsubishi model that is rated to work with your outdoor unit's total capacity.
Does the branch box affect which warranty coverage applies to my system?
The branch box itself falls under Mitsubishi's standard parts warranty, but the critical warranty condition for the full 12-year coverage on the overall system is that a certified Mitsubishi Diamond Contractor performs the installation. An install by a non-certified technician typically drops coverage to five years.
My system has three zones but I can only run heat OR cool across all of them at the same time, is that normal?
Yes, this is a documented limitation of Mitsubishi's multizone platform. The system does not support an auto mode that allows some zones to heat while others cool simultaneously. On mild days when different rooms may have different needs, you will need to manually set all indoor heads to the same operating mode.
How often does the branch box itself need maintenance?
The branch box is a passive refrigerant distribution component and does not require regular cleaning the way indoor air handlers do. However, the indoor blower and evaporator coils connected to it need cleaning at least once a year to maintain performance and airflow. Neglecting indoor unit maintenance is one of the most common reasons multizone systems lose efficiency over time.
