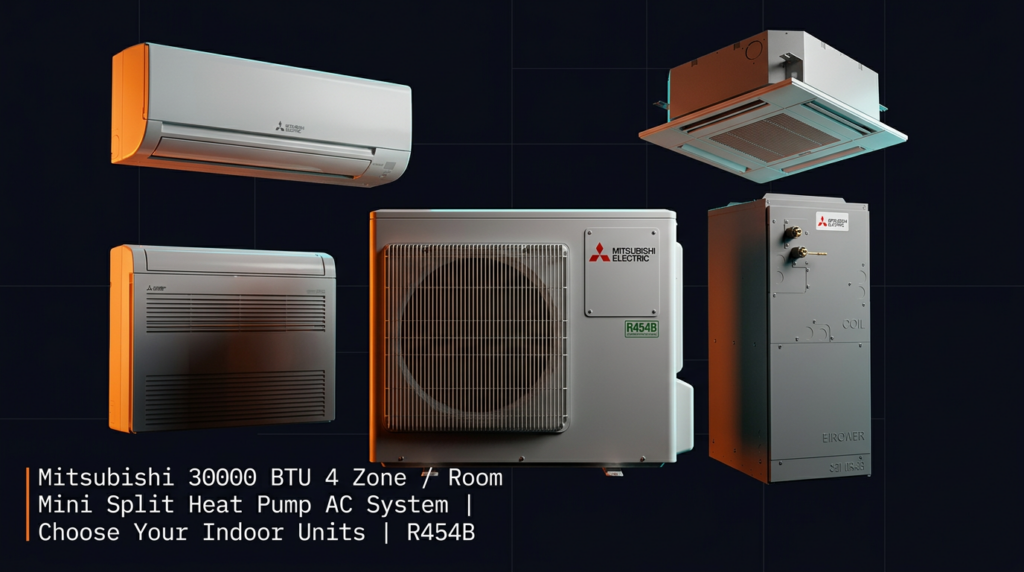

Mitsubishi 30000 BTU 4 Zone / Room Mini Split Heat Pump AC System | Choose Your Indoor Units | R454B
Check current price on AC Direct →
Key features
- 30,000 BTU total capacity split across four independently controlled indoor zones
- R-454B refrigerant with lower global-warming potential than the R-410A it replaces
- Variable-speed inverter compressor for stable temperatures and humidity control

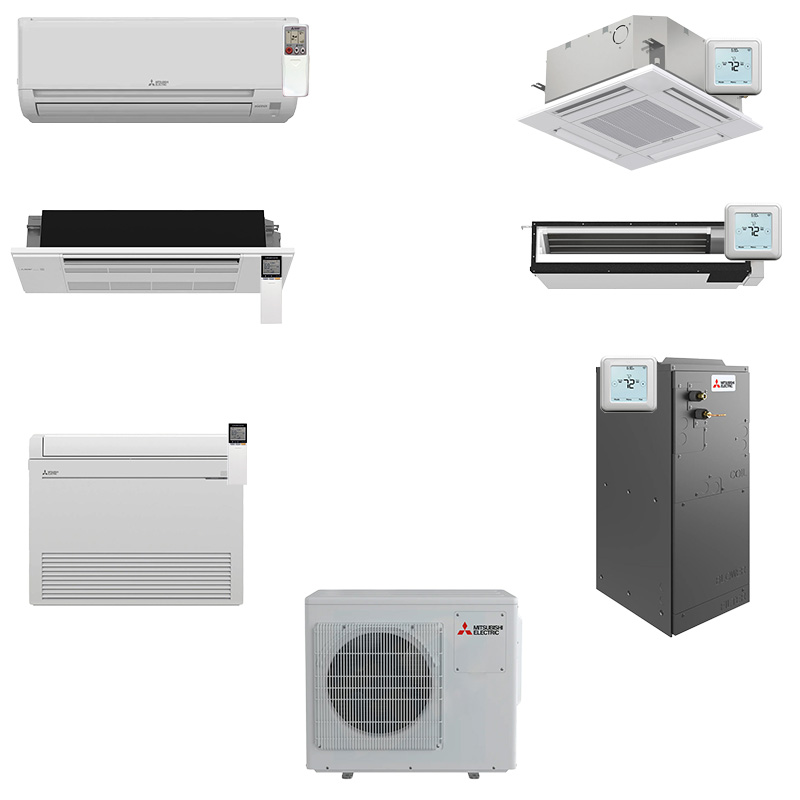

- Choose-your-indoor-unit configuration supports wall mounts, cassettes, or ducted heads
- Qualifies for 12-year parts and compressor warranty when installed by a Mitsubishi Diamond contractor
- Compatible with Mitsubishi's kumo cloud Wi-Fi control for remote zone management
About this system

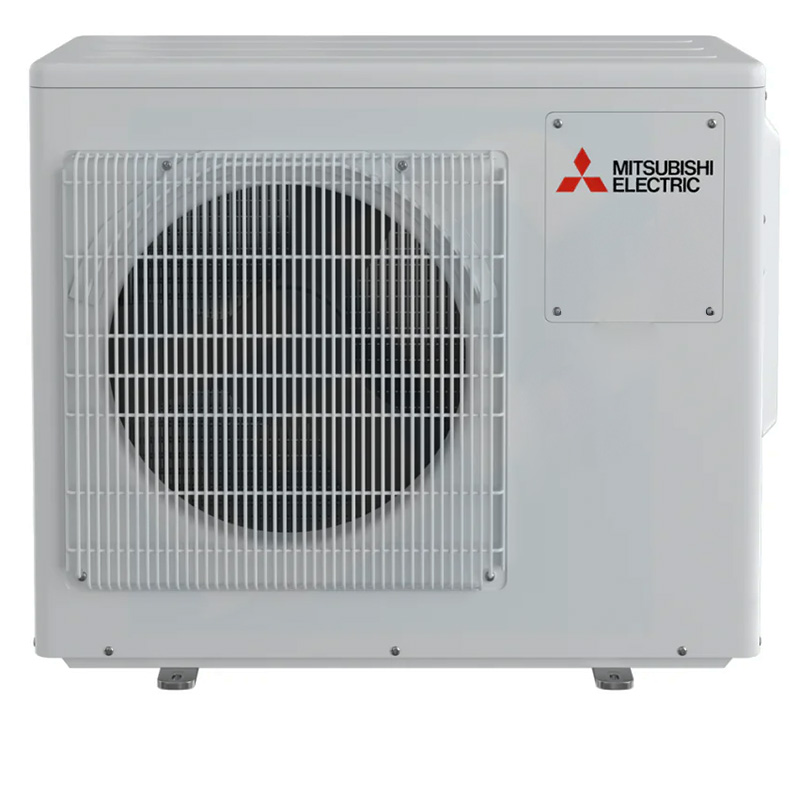

This Mitsubishi 30,000 BTU four-zone mini split system is built around a single outdoor condensing unit that distributes heating and cooling to four independent indoor air handlers throughout your home or small commercial space. Because you select which indoor units pair with the outdoor unit at checkout, this setup works for a wide range of configurations, from four compact 7,500 BTU wall mounts serving bedrooms to a mix of cassette or ducted heads covering larger open areas. R-454B refrigerant replaces R-410A as the industry moves toward lower global-warming-potential options, so this system is positioned for regulatory longevity.
Mitsubishi’s multi-zone platform is a strong fit for homeowners who need room-by-room temperature control without ductwork, owners of older homes, additions, garages, or finished basements, and anyone replacing window units. The variable-speed inverter compressor modulates output rather than cycling on and off, which keeps humidity levels stable and holds set temperatures closely. That said, the 30,000 BTU aggregate capacity is shared across all four zones, so a Manual J load calculation is important before sizing each indoor unit. Overloading any one zone at the expense of others is the most common installer-level mistake on multi-zone systems like this one.
Mitsubishi's four-zone 30,000 BTU system earns its premium price through proven inverter-compressor technology, genuinely quiet operation, and a long track record of 15-plus-year lifespans when properly maintained. The trade-offs are real: the upfront cost is high, the multi-zone platform cannot auto-switch between heat and cool modes, and warranty support can move slowly. Buyers who hire a Diamond contractor and commit to annual coil cleanings get the best return on the investment.
Overall score is the average of the five ratings above.
What we like
- Variable-speed inverter compressor holds room temperatures closely and reduces humidity swings
- Consistently rated highly for quiet operation by owners and independent reviewers including EnergySage
- Four independent zones give genuine room-by-room control without ductwork
- Owners report 15 to 20 year lifespans with regular maintenance
- R-454B refrigerant positions the system ahead of upcoming regulatory phase-downs
Trade-offs
- Multi-zone systems cannot auto-switch between heating and cooling, requiring manual mode changes on each head during swing seasons
- A minority of owners report early compressor failures, and warranty coverage does not include labor costs
- Indoor blower wheels and evaporator coils require cleaning at least once a year or efficiency and airflow drop noticeably
- Warranty response times and Mitsubishi technical support have drawn repeated complaints on the Better Business Bureau
What homeowners and pros say about Mitsubishi
Across owner forums, HVAC contractor communities, and independent review platforms like EnergySage, Mitsubishi Electric consistently draws praise for quiet operation, tight temperature control, and systems that stay in service well past the ten-year mark. The EnergySage panel and owner review aggregates place Mitsubishi at the top of the ductless category for reliability and efficiency, with quiet operation cited as one of the most valued real-world attributes. Contractors who work across multiple brands frequently recommend Mitsubishi for clients who want a set-it-and-forget-it system and can absorb the higher upfront cost.
The Better Business Bureau picture is more nuanced. Product satisfaction is generally high, but complaints cluster around warranty response times and the difficulty of reaching Mitsubishi’s technical support when a problem arises. The documented failure modes worth knowing before buying are these: a minority of owners have reported early compressor failures, and because warranty coverage does not include labor, that repair can be expensive even within the coverage window. Indoor blower wheels and evaporator coils are a maintenance pressure point, with owners who skip annual cleanings reporting noticeable performance drops. On multi-zone systems specifically, the inability to run heating on one head and cooling on another is a recurring friction point that surprises some first-time buyers during shoulder seasons.
Sources: EnergySage Mitsubishi heat pump review, AHRI Directory of Certified Product Performance, U.S. DOE appliance and equipment efficiency standards, Mitsubishi Electric product specifications.
How it compares
| Brand | Comparable model | SEER2 | Stage | Price position |
|---|---|---|---|---|
| Mitsubishi | MXZ-4C30NAHZ2 with four MSZ/MLZ/SEZ indoor units | Not published at system level; varies by indoor unit mix | Variable | Premium tier |
| Daikin | 4MXL30WVJU (4-zone, 30,000 BTU) | Not published at system level; varies by indoor unit mix | Variable | Slightly below Mitsubishi at comparable capacity |
| Fujitsu | AOU30CLXFZ (4-zone, 30,000 BTU Halcyon) | Not published at system level; varies by indoor unit mix | Variable | Comparable to Mitsubishi, varies by indoor unit selection |
| LG | LMU301HV (4-zone, 30,000 BTU Multi F MAX) | Not published at system level; varies by indoor unit mix | Variable | Generally below Mitsubishi and Daikin at this capacity |
Competitor rows are comparable single-stage units at similar efficiency; price is relative position, not a quote.
Questions about this system
Can I mix different indoor unit styles, such as a wall mount in one room and a ceiling cassette in another, on this outdoor unit?
Yes. Mitsubishi's multi-zone outdoor units are designed to pair with different indoor unit types on the same refrigerant circuit, provided each head's BTU capacity is within the system's rated range. Confirm compatibility between specific indoor model numbers and the outdoor unit before purchasing, as not every head type is approved for every outdoor unit configuration.
What happens if I want one zone cooling while another zone needs heat on the same day?
This system, like all standard multi-zone mini splits, operates in one mode at a time across all zones. You cannot run one head in cooling and another in heating simultaneously. On mild swing-season days, you will need to manually choose heat or cool for all four heads together, which is one of the most commonly reported inconveniences of multi-zone systems.
Do I need a Mitsubishi Diamond contractor, and what happens to the warranty if I use someone else?
The 12-year parts and compressor warranty applies only when the system is installed by a Mitsubishi Diamond certified contractor. A non-certified installer will typically reduce the warranty to five years on parts. Given that labor is not covered under any tier of the warranty, using a certified installer is the most straightforward way to protect the full coverage period.
How much maintenance does a four-zone system like this actually need?
Each indoor unit's blower wheel and evaporator coil should be cleaned at least once a year. Owners who skip this step report reduced airflow, musty odors, and measurable drops in efficiency over time. The outdoor unit should also be kept clear of debris and inspected annually, ideally by the installing contractor.
Is R-454B refrigerant a concern for future servicing or availability?
R-454B is a lower-GWP alternative developed specifically to replace R-410A as regulations tighten, so systems using it are well-positioned for the long term rather than facing phase-out risk. Service technicians will need R-454B certification to legally handle the refrigerant, so confirm your servicing contractor is certified before scheduling any refrigerant-side work.
Specifications
| Furnace output | 30000 BTU |
| Refrigerant | R-454B |
