Mitsubishi 30000 BTU Mini Split Heat Pump AC Outdoor Unit | Light Commercial | Single Zone Inverter | R454B (PUZ-AH30NL)
Check current price on AC Direct →
Key features
- 30,000 BTU single-zone inverter heat pump outdoor unit for light commercial and large residential use
- R-454B refrigerant with lower global warming potential than R-410A
- Variable-speed inverter compressor for continuous capacity modulation and reduced cycling
- Designed for pairing with compatible Mitsubishi indoor air handler (indoor unit sold separately)
- 12-year compressor and parts warranty when installed by a Mitsubishi Diamond contractor
- A2L refrigerant handling requires certified technician for installation and service
About this system

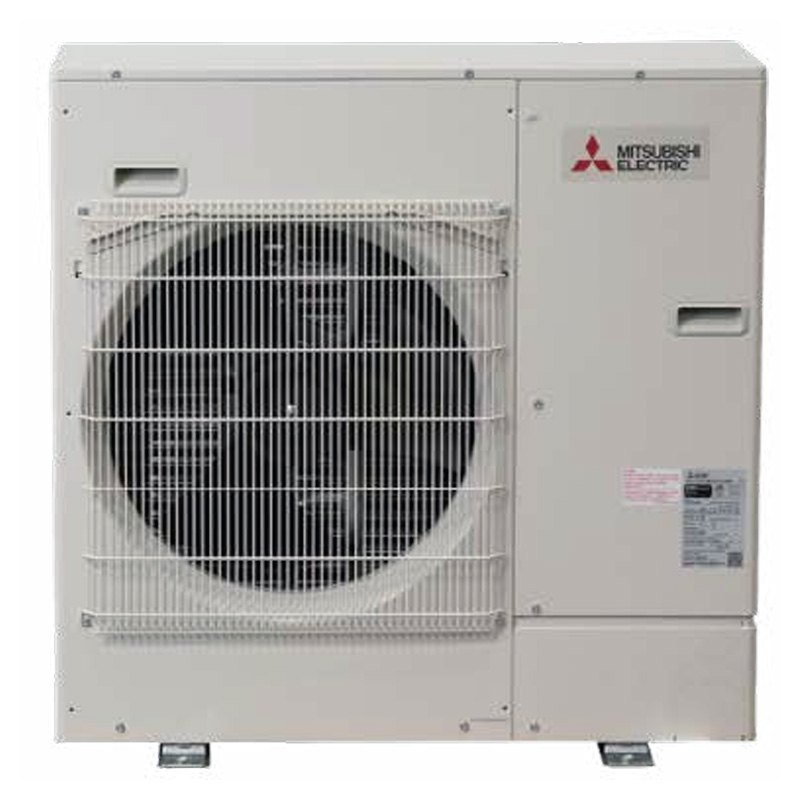

The Mitsubishi PUZ-AH30NL is a 30,000 BTU (roughly 2.5-ton) outdoor condensing unit designed for light commercial and large residential single-zone applications. It pairs with a compatible Mitsubishi indoor air handler to form a complete ductless or ducted mini-split heat pump system, running on the next-generation R-454B refrigerant, which carries a lower global warming potential than the R-410A it replaces. This is the outdoor unit only, so buyers must confirm compatibility with an indoor unit before purchasing.
At 30,000 BTU, this unit is sized for larger open-plan spaces, server rooms, retail storefronts, or whole-floor commercial suites where a smaller residential unit would be undersized. The inverter-driven compressor modulates capacity continuously rather than cycling on and off, which reduces energy consumption, limits temperature swings, and reduces wear compared to fixed-speed compressors. Mitsubishi’s commercial-grade build quality means thicker coil protection and components rated for higher duty cycles than many residential counterparts.
Because SEER2 ratings for this light-commercial configuration have not been published in the provided specs, buyers should request the full system efficiency data sheet from their contractor before comparing operating costs to alternatives. R-454B is a mildly flammable (A2L) refrigerant, which means installation and service must be performed by a technician certified to handle A2L refrigerants, adding a real-world consideration to contractor selection and service access.
The PUZ-AH30NL is a solidly built, inverter-driven commercial-grade outdoor unit that suits large single-zone applications where reliability and quiet operation matter more than upfront cost. Mitsubishi's track record for longevity is genuine, but the outdoor-unit-only format, A2L refrigerant requirements, and labor-gap in warranty coverage mean buyers need a well-qualified contractor from the start. It earns its premium pricing if you stay on top of maintenance and use a Diamond dealer.
Overall score is the average of the five ratings above.
What we like
- Inverter compressor modulates output continuously, reducing energy consumption versus fixed-speed alternatives
- Mitsubishi's 15-to-20-year lifespan track record is among the best documented in the ductless category
- 12-year parts and compressor warranty through Diamond contractor installation is best-in-class coverage length
- R-454B refrigerant is forward-compliant with tightening environmental regulations on refrigerants
- Quiet outdoor operation makes it suitable for noise-sensitive commercial or residential settings
Trade-offs
- Labor costs are not covered under warranty, so a compressor failure outside the dealer relationship can be expensive
- SEER2 efficiency data for this specific configuration is not publicly listed, making apples-to-apples efficiency comparisons difficult
- A2L refrigerant requires specially certified technicians, which can limit contractor choices and increase service costs in some markets
- Warranty support and technical response from Mitsubishi have drawn documented complaints about slow turnaround times
What homeowners and pros say about Mitsubishi
Mitsubishi Electric’s reputation in the ductless space is built on a consistent record of quiet operation and long service life, and owner feedback for the PUZ-series commercial outdoor units reflects that. EnergySage reviewers and owner communities frequently cite reliability and low ambient noise as the top reasons for choosing Mitsubishi over lower-cost alternatives. The Better Business Bureau picture is more complicated: product praise is common, but complaints about slow warranty response times and difficulty reaching technical support appear alongside it, which is worth factoring in if fast service turnaround is critical for a commercial installation.
On the documented failure side, a minority of owners across Mitsubishi’s lineup report early compressor failures, and the consistent pain point when that happens is that labor is excluded from warranty coverage, meaning the total out-of-pocket cost can be significant even within the warranty period. For light commercial units like the PUZ-AH30NL that run higher duty cycles than residential equipment, staying current on indoor coil and blower cleaning is not optional maintenance. Technicians who service these units regularly flag dirty evaporator coils and neglected blower wheels as the most common self-inflicted performance problems, ones that can accelerate component wear over time if ignored.
Sources: EnergySage Mitsubishi heat pump review, AHRI Directory of Certified Product Performance, U.S. DOE appliance and equipment efficiency standards, Mitsubishi Electric product specifications.
How it compares
| Brand | Comparable model | SEER2 | Stage | Price position |
|---|---|---|---|---|
| Mitsubishi | PUZ-AH30NL (this unit) | Not published for this configuration | Variable (inverter) | Premium commercial pricing |
| Daikin | RZR30WVJU (Celsius+ series, 30k BTU) | ~17+ SEER2 (system dependent) | Variable (inverter) | Comparable to slightly below Mitsubishi at this capacity |
| Fujitsu | AOU30C3 (Halcyon, 30k BTU) | ~17 SEER2 (system dependent) | Variable (inverter) | Generally slightly below Mitsubishi at this BTU tier |
| LG | LMU300HHV (30k BTU multi or single zone) | ~19+ SEER2 (system dependent) | Variable (inverter) | Moderate to premium, often below Mitsubishi street pricing |
Competitor rows are comparable single-stage units at similar efficiency; price is relative position, not a quote.
Questions about this system
Does this outdoor unit include the indoor air handler, or do I need to buy that separately?
This listing is for the outdoor condensing unit only. You will need to purchase a compatible Mitsubishi indoor air handler separately and confirm the two units are matched for capacity and refrigerant compatibility before ordering.
Why does the warranty require a Mitsubishi Diamond contractor, and what happens if I use someone else?
Mitsubishi's 12-year parts and compressor warranty is conditional on installation by a certified Diamond contractor. If a non-Diamond installer does the work, the warranty typically reverts to a shorter standard period. Because labor is never covered under the warranty regardless of who installs it, an out-of-warranty compressor replacement means paying both parts and labor.
Can any HVAC technician service this unit, or does R-454B require special certification?
R-454B is classified as an A2L mildly flammable refrigerant, which requires technicians to have specific A2L handling certification and compatible recovery equipment. Not every HVAC technician has this certification yet, so confirm your local service options before purchasing, especially if you are in a rural or underserved market.
What size space will 30,000 BTU actually condition effectively?
A rough rule of thumb is 500-600 square feet per ton, which puts 30,000 BTU (2.5 tons) in the range of 1,200 to 1,500 square feet under typical conditions, but ceiling height, insulation quality, solar load, and climate zone all affect the real-world answer. A Manual J load calculation by your contractor is the only way to size accurately for a commercial space.
How often does this system need maintenance to keep performance from dropping?
Mitsubishi's documentation and owner experience consistently point to annual cleaning of the indoor blower wheel and evaporator coil as the minimum needed to maintain airflow and efficiency. Skipping this maintenance is one of the most commonly cited causes of reduced performance reported by owners.
Specifications
| Furnace output | 30000 BTU |
| Refrigerant | R-454B |
