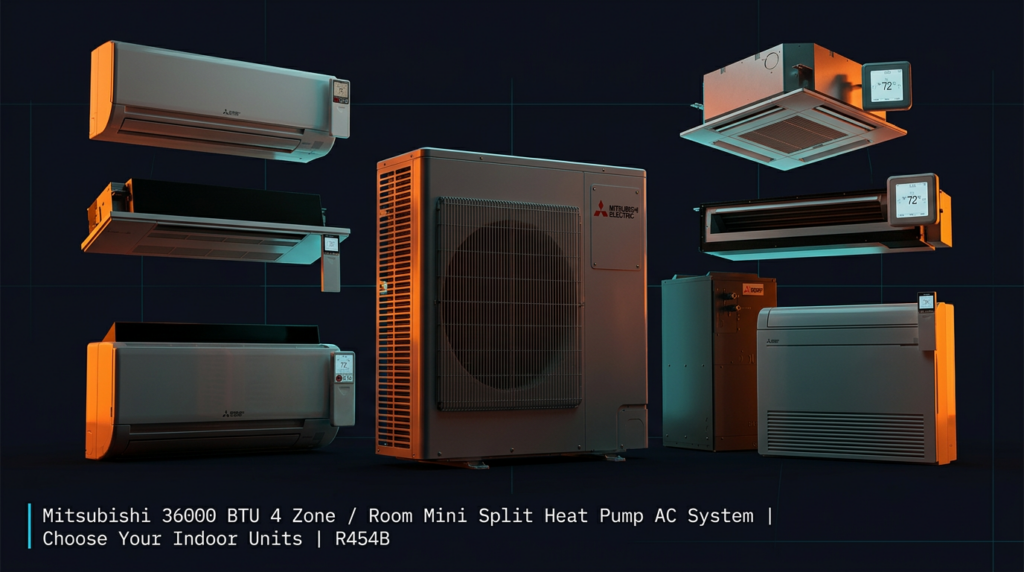

Mitsubishi 36000 BTU 4 Zone / Room Mini Split Heat Pump AC System | Choose Your Indoor Units | R454B
Check current price on AC Direct →
Key features
- 36,000 BTU outdoor unit supports up to four independently controlled indoor zones
- R-454B refrigerant with lower global warming potential than legacy R-410A
- Inverter-driven variable-speed compressor for steady temperatures and reduced energy cycling
- Choose indoor unit type per zone: wall, floor, ceiling cassette, or slim duct
- 12-year parts and compressor warranty when installed by a Mitsubishi Diamond contractor
- Compatible with Mitsubishi's kumo cloud app for remote zone control via smartphone
About this system
The Mitsubishi 36,000 BTU 4-zone mini split heat pump system is built for homes or light commercial spaces that need independent climate control across four separate rooms without running ductwork. Each indoor head can be chosen to match the size and use of its space, whether that is a wall-mounted unit for a bedroom, a ceiling cassette for an open living area, or a slim duct unit for a finished basement. The outdoor unit coordinates refrigerant flow across all four zones using Mitsubishi’s inverter-driven compressor, which ramps output up and down rather than cycling fully on and off, keeping temperatures steady while pulling less power during partial-load conditions.
This system uses R-454B refrigerant, a lower-global-warming-potential alternative to R-410A that is becoming the new industry standard ahead of federal phase-down rules. The practical implication for buyers is that R-454B equipment and technicians certified to handle it are increasingly common, but older service shops may need updated recovery equipment. Mitsubishi does not publish a SEER2 figure on this multi-zone configuration at time of listing because the rating depends on which combination of indoor units is selected, so buyers should request the specific efficiency data for their chosen unit mix before purchase. What is well established is that Mitsubishi’s inverter compressor technology places their multi-zone products toward the higher end of efficiency in the ductless segment.
This is a well-built, genuinely quiet, and efficient 4-zone system from one of the most respected names in ductless HVAC, and owners who maintain it regularly report very long service lives. The price is real Mitsubishi premium, and the multi-zone limitation where all heads must be set to heat or cool at the same time is a real inconvenience on shoulder-season days. For buyers who want reliability and longevity over lowest upfront cost, this system delivers.
Overall score is the average of the five ratings above.
What we like
- Mitsubishi's inverter compressor is among the quietest and most efficient in the ductless segment
- Flexible indoor unit selection lets each zone match its room type and size
- 15 to 20 year service life is realistic with annual coil and blower cleaning
- R-454B refrigerant positions the system for long-term regulatory compliance
- 12-year warranty on parts and compressor through Diamond contractor installation is strong coverage for the category
Trade-offs
- All four zones must operate in the same mode simultaneously, heat or cool, so occupants in different rooms cannot choose independently on swing days
- Labor is not covered under warranty, so a minority of early compressor failures can produce significant out-of-pocket repair costs
- Mitsubishi warranty support and technical response have drawn complaints about slow turnaround times
- SEER2 rating is not published for this multi-zone configuration as listed, making direct efficiency comparisons harder without requesting unit-specific data
What homeowners and pros say about Mitsubishi
Mitsubishi Electric consistently earns favorable marks from both owners and HVAC professionals for quiet operation, reliable long-term performance, and efficiency, with EnergySage reviewers and owner communities frequently citing 15-plus-year service lives when the equipment is maintained properly. The brand’s reputation for building well is not in dispute. What buyers and technicians also flag are the practical limitations: the well-documented inability of multi-zone systems to run heating in one room and cooling in another simultaneously is a genuine inconvenience during seasonal transition weeks, and it catches some buyers off guard. A minority of owners have reported early compressor failures, and because labor is excluded from the warranty, those repairs carry real out-of-pocket cost even when the compressor itself is covered.
The Better Business Bureau picture for Mitsubishi is mixed in a specific way: the product itself draws consistent praise, but warranty service and technical support response times have generated complaints. Technicians in trade forums note that Diamond contractor certification is worth pursuing not just for the 12-year warranty unlock but also because certified installers tend to be more familiar with Mitsubishi’s diagnostic systems when something does go wrong. The shift to R-454B refrigerant on current production units reflects regulatory reality rather than a performance trade-off, but buyers should confirm their service contractor is equipped and certified for A2L refrigerant handling before committing to installation.
Sources: EnergySage Mitsubishi heat pump review, AHRI Directory of Certified Product Performance, U.S. DOE appliance and equipment efficiency standards, Mitsubishi Electric product specifications.
How it compares
| Brand | Comparable model | SEER2 | Stage | Price position |
|---|---|---|---|---|
| Mitsubishi | MXZ-4C36NAHZ2 with selected MSZ/MLZ heads | Not published for this mixed-unit configuration | Variable | Premium segment |
| Daikin | 4MXS36RMVJU multi-zone series | Varies by indoor unit combination | Variable | Slightly less expensive than Mitsubishi at comparable capacity |
| Fujitsu | AOU36RLXFZ1 multi-zone series | Varies by indoor unit combination | Variable | Competitive with Daikin, typically below Mitsubishi |
| LG | LMU36CHV multi-zone series | Varies by indoor unit combination | Variable | Generally lower than Mitsubishi; wider availability through big-box retail channels |
Competitor rows are comparable single-stage units at similar efficiency; price is relative position, not a quote.
Questions about this system
Can one zone be set to cooling while another is set to heating at the same time?
No. This is a standard multi-zone heat pump limitation that applies to Mitsubishi's MXZ series outdoor units. All indoor heads connected to the same outdoor unit must operate in the same mode, either all heating or all cooling, at any given time. On mild days when one room feels warm and another feels cool, you will need to choose one setting for the whole system.
What does the 12-year warranty actually cover, and what does it not cover?
When installed by a Mitsubishi Diamond Contractor and registered within the required window, the warranty covers parts and the compressor for 12 years. Labor is not covered, so if a compressor fails outside the standard labor period, you pay the technician's time even if the part itself is replaced at no cost. Warranty support response times have also been a documented complaint among some owners.
How often do the indoor units need to be serviced, and what happens if I skip it?
Mitsubishi and independent HVAC technicians recommend cleaning the indoor blower wheels and evaporator coils at least once per year. Skipping this step allows dust and mold to accumulate on the coil and blower, which measurably reduces airflow and efficiency and can cause odor or poor air quality. Annual cleaning is the single most important maintenance task for sustaining performance over the system's lifespan.
Why is there no SEER2 rating listed for this system?
Multi-zone systems receive efficiency ratings based on specific outdoor-plus-indoor-unit combinations tested together. Because this listing lets you choose your own indoor units, the published SEER2 figure depends on which heads you select. Ask your dealer or Mitsubishi's product team for the AHRI-certified efficiency data for your specific indoor unit combination before finalizing your purchase.
Is R-454B refrigerant harder to service than R-410A?
R-454B is mildly flammable (A2L classification), which means technicians need certified recovery equipment and proper handling procedures. Most established HVAC shops are already equipped or transitioning, as R-454B is now required in new equipment under federal rules, but it is worth confirming with your service contractor that they are certified to handle A2L refrigerants before scheduling work.
Specifications
| Furnace output | 36000 BTU |
| Refrigerant | R-454B |
