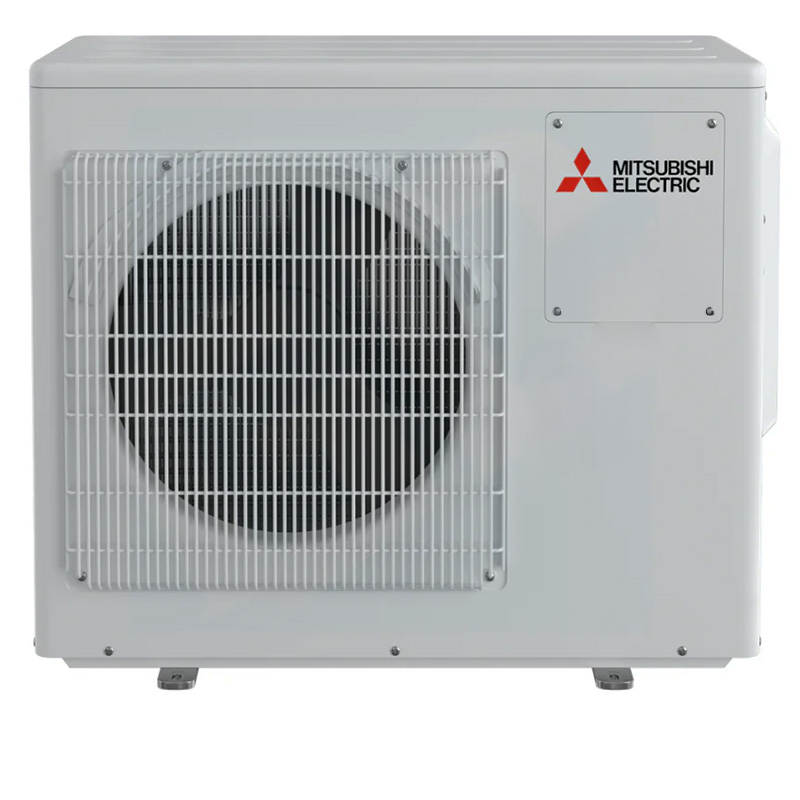

Mitsubishi 36000 BTU 5 Zone/Room Mini Split Heat Pump AC Condenser | Inverter R454B (MXZ-5D36NL)
Check current price on AC Direct →
Key features
- 36,000 BTU outdoor condenser supporting up to five indoor zones
- Inverter-driven variable-speed compressor for quiet, steady operation
- R-454B refrigerant with lower global-warming potential than R-410A
- Qualifies for 12-year parts and compressor warranty with Diamond contractor installation
- Compatible with a wide range of Mitsubishi indoor unit styles (wall, ceiling cassette, floor console)
- Heat pump operation provides both heating and cooling from a single outdoor unit
About this system
The Mitsubishi MXZ-5D36NL is a 36,000 BTU outdoor condenser designed to serve up to five indoor zones simultaneously, making it a serious option for whole-home comfort without ductwork. It runs on R-454B refrigerant, a lower global-warming-potential alternative to R-410A that is increasingly standard across the industry. At three nominal tons spread across five heads, each zone gets a relatively modest share of capacity, so careful load calculation by a qualified contractor is essential before pairing indoor units.
This condenser is inverter-driven, meaning the compressor ramps up and down continuously rather than cycling on and off, which is the core reason Mitsubishi multi-splits are known for quiet, even temperature control. The system suits households with five distinct areas that need independent climate control: a common layout might be three bedrooms, a living area, and a home office. It is not a budget purchase, and it rewards buyers who hire a Mitsubishi Diamond contractor, since that is the only path to the full 12-year parts and compressor warranty on both the condenser and indoor units.
The MXZ-5D36NL is a well-built, whisper-quiet multi-zone system from one of the most respected names in ductless HVAC, and it will likely outlast cheaper alternatives by years when maintained properly. The trade-offs are real: premium pricing, a 12-year warranty that is conditional on Diamond contractor installation, slow warranty support, and a multi-zone limitation that requires all zones to be in the same heating or cooling mode at once. Buyers who understand those constraints and budget for annual maintenance will find it a strong long-term investment.
Overall score is the average of the five ratings above.
What we like
- Inverter compressor delivers notably quiet, consistent temperature control across all five zones
- Mitsubishi's documented 15-to-20-year lifespan is among the best in the ductless category
- R-454B refrigerant is forward-compatible with tightening environmental regulations
- Flexible indoor unit compatibility allows mixing of wall, cassette, and floor-mount styles
- 12-year warranty on parts and compressor is industry-leading when Diamond installation is used
Trade-offs
- All five zones must operate in the same mode (heat or cool) simultaneously, which is inconvenient on mild swing-season days
- Labor is not covered under warranty, so a minority of owners who experience early compressor failure face significant out-of-pocket repair costs
- Indoor heads and evaporator coils require cleaning at least once a year or efficiency and airflow degrade noticeably
- Warranty response and Mitsubishi technical support have drawn complaints for slow turnaround times
What homeowners and pros say about Mitsubishi
EnergySage and owner review aggregators consistently rank Mitsubishi at or near the top for ductless reliability and quiet operation, and the MXZ-5D36NL benefits from that broader reputation. Homeowners who have maintained their systems annually and used Diamond contractors report very few service calls over a decade or more of ownership. The Better Business Bureau file on Mitsubishi Electric tells a more divided story, however, with a recurring thread of frustration specifically around warranty response times when service is needed. This is not a product that fails often, but when it does, the support experience can be slow.
HVAC professionals who specialize in ductless systems generally recommend Mitsubishi multi-zone condensers for quality and parts availability, while flagging two specific issues for buyers to understand in advance. First, the documented mode limitation means all zones must heat or cool together, which requires manually changing head settings on transitional weather days. Second, a minority of units have experienced early compressor failures, and because the warranty covers parts but not labor, out-of-pocket repair costs in those cases can be substantial. Technicians also consistently emphasize that indoor blower wheels and evaporator coils must be professionally cleaned at least once a year on any multi-zone system to avoid airflow and efficiency losses that often get mistaken for mechanical problems.
Sources: EnergySage Mitsubishi heat pump review, AHRI Directory of Certified Product Performance, U.S. DOE appliance and equipment efficiency standards, Mitsubishi Electric product specifications.
How it compares
| Brand | Comparable model | SEER2 | Stage | Price position |
|---|---|---|---|---|
| Mitsubishi | MXZ-5D36NL | Not published for this condenser alone | Variable (inverter) | Premium tier |
| Daikin | 4MXS36RMVJU (4-zone) / 5MXS48TVJU (5-zone series) | Varies by configuration | Variable (inverter) | Comparable to Mitsubishi, slight savings possible depending on dealer |
| Fujitsu | AOU36RLXFZH (multi-zone series) | Varies by configuration | Variable (inverter) | Slightly below Mitsubishi in most markets |
| LG | LMU36CHV (Multi F Max 5-zone series) | Varies by configuration | Variable (inverter) | Noticeably below Mitsubishi, wider retail availability |
Competitor rows are comparable single-stage units at similar efficiency; price is relative position, not a quote.
Questions about this system
Can one zone run heat while another runs air conditioning at the same time?
No. This is a documented limitation of the MXZ-5D36NL and most conventional multi-zone condensers. All indoor units connected to this condenser must be set to the same mode, either all heating or all cooling, at any given time. If simultaneous heating and cooling by zone is a firm requirement, you would need to look at Mitsubishi's separate H2i or City Multi commercial-grade systems, which are engineered differently and priced higher.
Is the 12-year warranty automatic, or do I have to do something to activate it?
The 12-year parts and compressor warranty requires installation by a Mitsubishi Diamond certified contractor and product registration within the required window after installation. A standard non-Diamond install typically carries a shorter warranty period. Confirm the contractor's Diamond status before signing any contract and keep your registration confirmation.
How many BTUs does each zone actually get from a 36,000 BTU condenser?
The condenser's total capacity is shared dynamically across whichever zones are calling for conditioning. If all five zones run at once, average available capacity per zone is roughly 7,200 BTU, which is appropriate for smaller rooms but may be undersized for large open areas. A Manual J load calculation by your contractor is critical to make sure the indoor unit sizes you select match each room's actual requirements.
What maintenance does this system actually need, and how often?
Each indoor unit's filters should be cleaned every two to four weeks in heavy-use seasons, and the evaporator coils and blower wheels need a thorough professional cleaning at least once a year. Skipping annual coil cleaning is one of the most cited reasons for reduced airflow and efficiency complaints. The outdoor condenser coil should also be inspected and cleared of debris seasonally.
Does this condenser work in very cold climates, and what is its heating capacity at low temperatures?
The MXZ-5D36NL is a heat pump and provides heating, but Mitsubishi publishes low-ambient heating performance data by specific model, and capacity drops as outdoor temperatures fall. For cold-climate applications with sustained temperatures below about 5 degrees Fahrenheit, Mitsubishi's Hyper Heat (H2i) line is the more appropriate choice. Check the product's published heating capacity table at your local design temperature before committing.
Specifications
| Furnace output | 36000 BTU |
| Refrigerant | R-454B |
