Mitsubishi 36000 BTU Single Zone Mini Split Heat Pump AC System | Up To 23.3 SEER2 | Light Commercial | Choose Your Indoor Unit | R454B
Check current price on AC Direct →
Key features
- Up to 23.3 SEER2 efficiency rating, top tier for ductless mini splits
- 36,000 BTU (3-ton equivalent) capacity suited to large zones and light commercial spaces
- R-454B refrigerant with lower global warming potential than legacy R-410A
- Variable-speed inverter compressor adjusts output to match load continuously
- Single-zone configuration: one outdoor unit paired with one selectable indoor unit style
- 12-year parts and compressor warranty when installed by a Mitsubishi Diamond contractor
About this system
The Mitsubishi 36,000 BTU single-zone mini split is a light-commercial and large-residential heat pump system built around the brand’s inverter-driven variable-speed compressor technology. At up to 23.3 SEER2, it sits at the top tier of ductless efficiency, which translates to measurably lower operating costs compared to mid-range systems in the 18 to 20 SEER2 bracket. The system uses R-454B refrigerant, a lower-global-warming-potential alternative that is becoming the new standard as legacy refrigerants phase out. Running on 36,000 BTU (roughly three tons of capacity), it is sized for large open-plan spaces, commercial offices, server rooms, retail floors, or whole-floor residential zones where a smaller unit would struggle to maintain setpoint on peak summer or winter days.

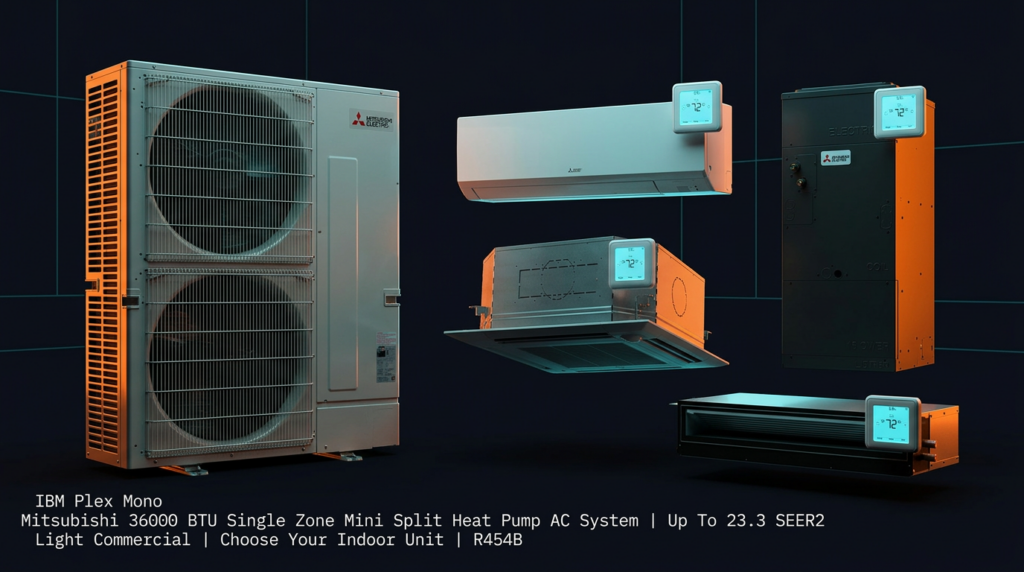

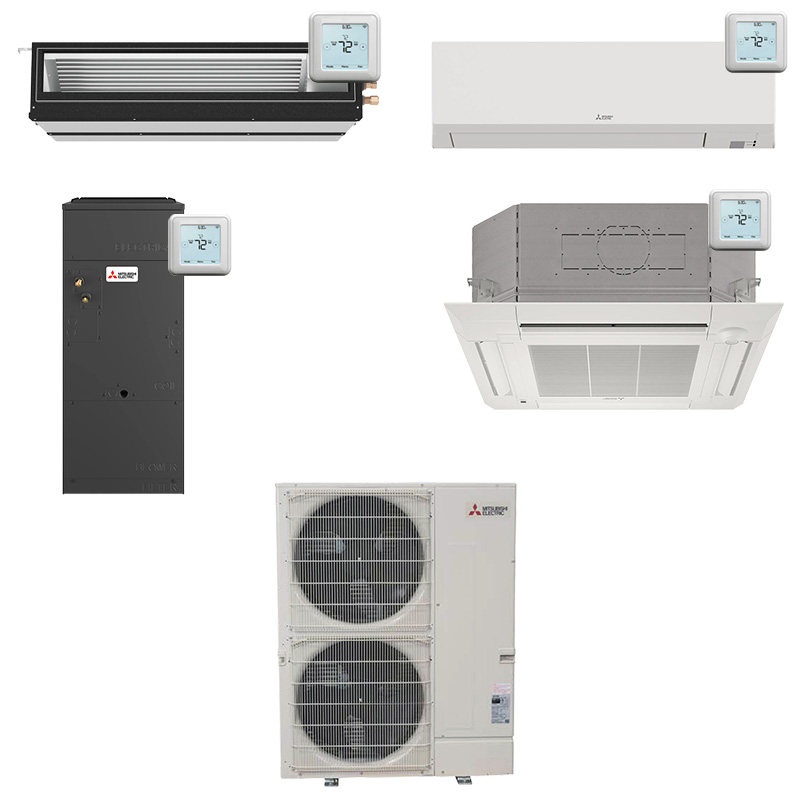

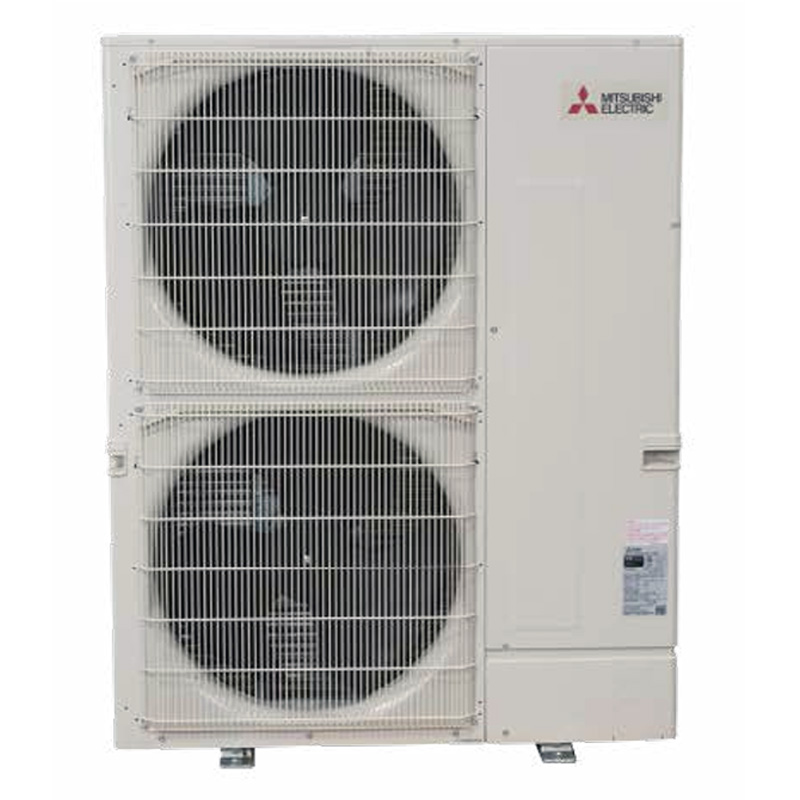

The single-zone configuration means one outdoor condenser drives one indoor unit, and buyers can choose the indoor unit style (wall-mount, ceiling cassette, floor-console, or ducted air handler depending on availability) to match the space. That flexibility makes the system useful across a wide range of installation scenarios, but it also means the performance ceiling is determined entirely by the outdoor unit and refrigerant line set sizing. Because this is a heat pump rather than a cooling-only unit, it provides both heating and cooling from one system, with Mitsubishi’s Hyper-Heat variants capable of extracting usable heat well below freezing outdoor temperatures, though buyers should confirm whether the specific outdoor unit selected carries that designation.
This Mitsubishi 36,000 BTU single-zone system is a well-engineered, high-efficiency product with a strong long-term track record in the ductless category. Buyers who want reliability and low operating costs over a 15-plus-year horizon get a genuine case for the premium price, but they should budget for Diamond contractor installation to unlock the full warranty and should not expect budget pricing or fast warranty service if something goes wrong.
Overall score is the average of the five ratings above.
What we like
- 23.3 SEER2 efficiency is among the highest available for a 36,000 BTU single-zone unit, reducing monthly operating costs noticeably versus standard-efficiency alternatives
- Mitsubishi's inverter compressor is known for very quiet operation, both at the outdoor unit and at the indoor head
- Owner-reported lifespans of 15 to 20 years with regular maintenance represent strong long-term value at this capacity tier
- Single-zone setup avoids the documented multi-zone limitation where all heads must be set to the same mode (heat or cool) simultaneously
- R-454B refrigerant future-proofs the system against the ongoing phase-out of R-410A
Trade-offs
- Purchase price and Diamond contractor installation cost are both significantly higher than competing mid-efficiency ductless systems
- A minority of owners report early compressor failures, and labor costs are not covered under the warranty, meaning a compressor claim in year two or three still carries a service bill
- Warranty support and Mitsubishi's technical response have drawn complaints about slow turnaround, which matters when a 36,000 BTU commercial system is down in summer
- The indoor blower and evaporator coil require thorough cleaning at least once a year or capacity and efficiency drop; at this size, professional coil cleaning adds to the ongoing cost of ownership
What homeowners and pros say about Mitsubishi
Across owner forums and trade communities, Mitsubishi’s single-zone ductless systems consistently earn praise for quiet operation and long service life, with reported lifespans of 15 to 20 years when the coil and blower are cleaned annually. EnergySage reviewers and general owner feedback rank efficiency and reliability as the top strengths, which aligns with what independent HVAC technicians describe when comparing brands in the ductless category. For a 36,000 BTU unit running in a commercial or large-residential setting, that reputation carries real weight because downtime or premature replacement at this size is expensive.
That said, the Better Business Bureau record for Mitsubishi shows a mixed picture on the service side, with specific complaints about slow warranty response times when something does go wrong. The documented failure modes worth knowing at this capacity class include early compressor failures in a minority of units (and the reality that labor is never covered under warranty), and degraded performance when the evaporator coil and blower go without professional cleaning. Warranty resolution has drawn criticism for delays, which is a practical concern for a light-commercial operator who cannot afford extended downtime. The system’s quality is genuine, but the support infrastructure does not always match the product reputation.
Sources: EnergySage Mitsubishi heat pump review, AHRI Directory of Certified Product Performance, U.S. DOE appliance and equipment efficiency standards, Mitsubishi Electric product specifications.
How it compares
| Brand | Comparable model | SEER2 | Stage | Price position |
|---|---|---|---|---|
| Mitsubishi | 36,000 BTU Single-Zone (this system) | 23.3 | Variable | Premium tier |
| Daikin | Aurora / LV Series 36,000 BTU | 20.0 | Variable | Moderate, typically several hundred dollars less than Mitsubishi at this capacity |
| Fujitsu | Halcyon XLTH 36,000 BTU | 21.0 | Variable | Competitive with Daikin, generally below Mitsubishi at this BTU class |
| LG | Art Cool Premier / Single-Zone 36,000 BTU | 20.5 | Variable | Often the most accessible price point among premium ductless brands at this capacity |
Competitor rows are comparable single-stage units at similar efficiency; price is relative position, not a quote.
Questions about this system
Do I have to use a Mitsubishi Diamond contractor, or can any licensed HVAC technician install this?
Any licensed HVAC technician can physically install the system, but the 12-year parts and compressor warranty is only activated when installation is performed by a certified Mitsubishi Diamond contractor. A non-Diamond install typically drops warranty coverage to a shorter standard term, so verifying contractor certification before signing a contract is important at this price point.
Is this system capable of heating in very cold weather, or is it cooling-only?
This is a heat pump system, so it provides both heating and cooling. Whether it qualifies as a Hyper-Heat unit capable of efficient operation at very low outdoor temperatures depends on which specific outdoor unit model is selected. Buyers in climates with sustained sub-freezing winters should confirm the outdoor unit's low-ambient heating rating before purchasing.
What does the warranty actually cover if the compressor fails early?
With a Diamond contractor install, Mitsubishi covers parts and the compressor for 12 years. Labor is not covered under any tier of the Mitsubishi warranty, so an early compressor failure would still result in a labor bill that can run several hundred dollars or more depending on the technician and region.
How often does a 36,000 BTU indoor unit need to be cleaned, and can I do it myself?
Mitsubishi and independent HVAC technicians recommend cleaning the indoor blower wheel and evaporator coil at least once per year, and more frequently in dusty or high-traffic commercial environments. Filter cleaning can be done by the owner, but deep coil and blower cleaning at this capacity typically requires a professional with the right tools to avoid damaging fins or electrical components.
This is listed as a single-zone system. Can I add a second indoor unit later if I expand the space?
No. A single-zone outdoor unit is matched to one indoor unit and cannot be expanded to drive multiple heads. If you anticipate needing a second zone, you would need to purchase a separate single-zone system or plan from the start around a multi-zone outdoor unit, which has different capacity and configuration requirements.
Specifications
| Efficiency | 23.3 SEER2 |
| Furnace output | 36000 BTU |
| Refrigerant | R-454B |
