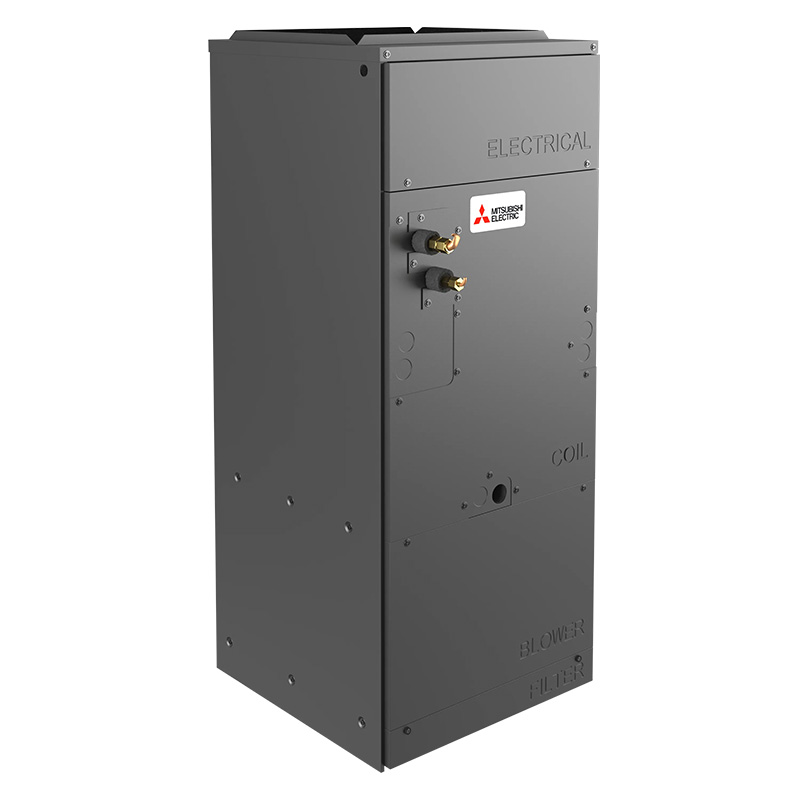

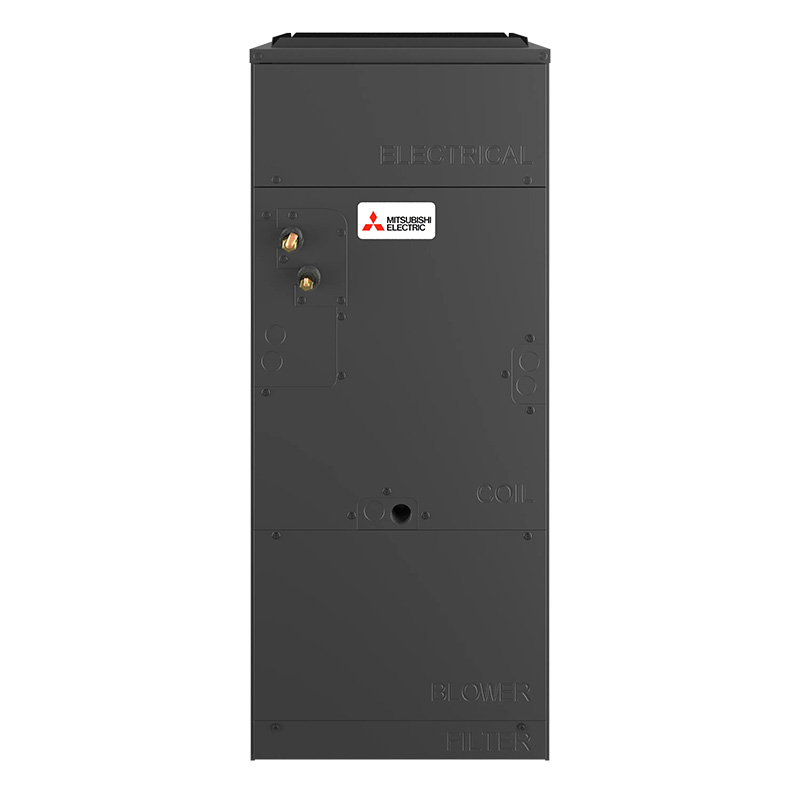

Mitsubishi 42000 BTU Mini Split AC Air Handler Indoor Unit With MHK2 | Light Commercial | Multi-Positional | R454B [PVA-AA42NL,MHK2] | R454B
![Mitsubishi 42000 BTU Mini Split AC Air Handler Indoor Unit With MHK2 | Light Commercial | Multi-Positional | R454B [PVA-AA42NL,MHK2] | R454B](https://hvac.best/wp-content/uploads/2026/06/mitsubishi-light-commercial-mini-split-ac-multi-postional-air-handler-with-mhk2-r454b_2.jpg)
Check current price on AC Direct →
Key features
- 42,000 BTU ducted air handler for light commercial or large residential spaces
- Multi-positional installation: horizontal or vertical orientation to fit available mechanical space
- Compatible with R-454B refrigerant, a lower-GWP alternative to R-410A

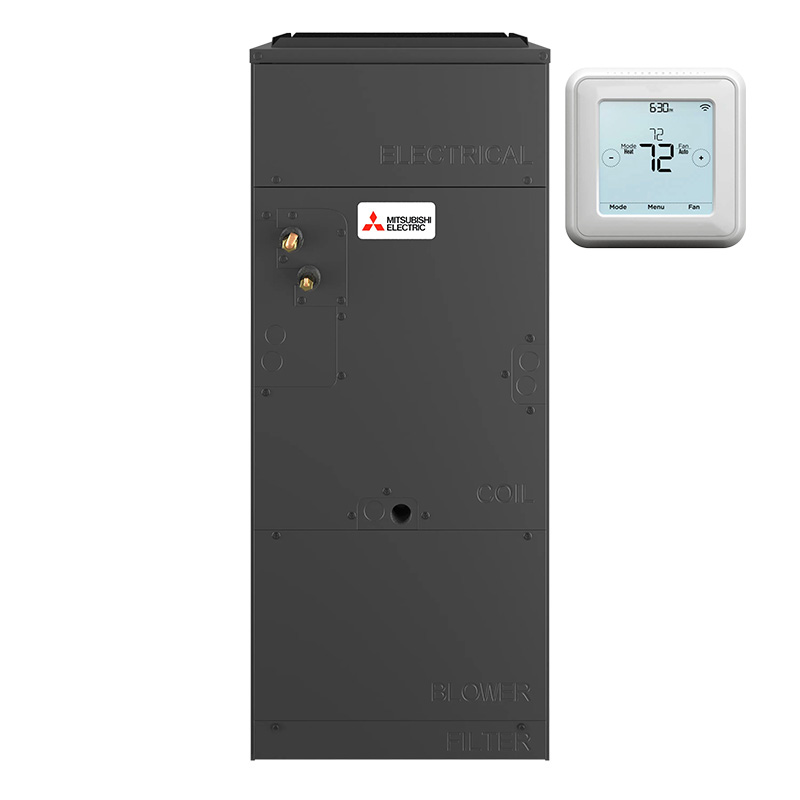

- Includes MHK2 wired wall controller for thermostat-style scheduling and setpoint control
- Designed for Mitsubishi multi-zone or single-zone outdoor unit pairing (outdoor unit sold separately)
- 12-year parts and compressor warranty when installed by a Mitsubishi Diamond contractor
About this system
The Mitsubishi PVA-AA42NL is a 42,000 BTU ducted air handler designed for light commercial and larger residential applications where a traditional indoor unit needs to fit into a ceiling plenum or dedicated equipment closet. Unlike wall-mount or floor-console mini-split heads, this unit is multi-positional, meaning it can be oriented horizontally or vertically to match the mechanical space available. It connects to a compatible Mitsubishi outdoor unit as part of a multi-zone or single-zone configuration and uses R-454B refrigerant, a lower-global-warming-potential replacement for R-410A that is becoming the new standard as the industry phases out older refrigerants.
The included MHK2 wired controller replaces a standard wall thermostat and gives occupants precise temperature scheduling, setpoint control, and status readouts in a familiar form factor, which is a meaningful advantage in light commercial settings where staff expect a thermostat rather than a handheld remote. At 42,000 BTU this unit is sized for spaces roughly in the 1,800 to 2,500 square foot range depending on load, making it appropriate for open-plan offices, retail floors, restaurants, or large open-concept homes. Buyers should confirm outdoor unit compatibility before purchasing, as the air handler alone does not include a condensing unit.
The PVA-AA42NL is a well-built, quiet ducted air handler from one of the most respected names in ductless and light-commercial HVAC, and the MHK2 controller makes it genuinely practical in commercial settings. The price premium is real, and buyers need to budget carefully for a compatible outdoor unit, Diamond contractor installation, and annual coil cleaning to keep the warranty and performance intact.
Overall score is the average of the five ratings above.
What we like
- Mitsubishi's reputation for quiet, reliable operation carries into the commercial ducted lineup
- Multi-positional design gives mechanical contractors real flexibility in tight equipment spaces
- MHK2 wired controller provides thermostat-style usability that tenants and staff find intuitive
- R-454B refrigerant positions the system ahead of pending regulatory changes away from R-410A
- 12-year parts and compressor warranty is among the longest in the class when Diamond install requirements are met
Trade-offs
- Outdoor unit is sold separately, and total system cost with a compatible Mitsubishi condensing unit is significantly higher than comparable unitary equipment
- 12-year warranty requires a Mitsubishi Diamond contractor; labor is never covered, so an early compressor failure can be expensive
- In multi-zone setups, all heads must be set to the same mode (heat or cool) simultaneously since there is no auto mode that allows mixed operation on swing days
- Blower and evaporator coil require professional cleaning at least once a year or efficiency and airflow drop noticeably
What homeowners and pros say about Mitsubishi
Owners and HVAC professionals consistently point to Mitsubishi’s build quality and quiet operation as the reasons they recommend the brand for light commercial ducted applications. EnergySage reviewers and owner communities rate Mitsubishi highly for reliability and efficiency, and contractors familiar with the PVA series cite solid long-term performance when the system is maintained properly. The Better Business Bureau picture is more mixed, with recurring complaints about slow warranty response times and difficulty reaching technical support during peak seasons, which is worth factoring in if fast service turnaround matters for a commercial property.
The documented failure modes for Mitsubishi systems in this class are worth knowing before purchase. A minority of owners report early compressor failures, and because labor is excluded from the warranty, repair bills can be substantial even when parts are covered. Blower and evaporator coil fouling is the most common performance complaint and is almost always traced back to skipped annual cleanings rather than a product defect. In multi-zone configurations, the inability to run heads in mixed heat and cool modes is a genuine operational limitation that catches some commercial buyers off guard on mild weather days. None of these issues undermine Mitsubishi’s overall standing as a top-tier ductless and ducted brand, but they are real trade-offs that should be part of any honest purchasing conversation.
Sources: EnergySage Mitsubishi heat pump review, AHRI Directory of Certified Product Performance, U.S. DOE appliance and equipment efficiency standards, Mitsubishi Electric product specifications.
How it compares
| Brand | Comparable model | SEER2 | Stage | Price position |
|---|---|---|---|---|
| Mitsubishi | PVA-AA42NL with MHK2 | Not published for air handler alone | Variable | Premium tier; outdoor unit purchased separately adds significantly to total cost |
| Daikin | SkyAir FDMQ Series (ducted, light commercial) | Varies by matched outdoor unit, typically competitive in the 17-19 SEER2 range | Variable | Similar premium positioning; slightly lower in some markets |
| Fujitsu | ARXG Series (mid-static ducted air handler) | Varies by matched system, typically mid-to-high range | Variable | Moderately lower upfront than Mitsubishi for comparable BTU capacity |
| LG | Art Cool Ducted / ARNU Series (light commercial ducted) | Varies by matched outdoor unit | Variable | Generally lower than Mitsubishi; wider availability of unitary package options at this BTU level |
Competitor rows are comparable single-stage units at similar efficiency; price is relative position, not a quote.
Questions about this system
Does the PVA-AA42NL include the outdoor condensing unit?
No. This listing is for the indoor air handler and MHK2 controller only. You will need to purchase a compatible Mitsubishi outdoor unit separately and confirm model compatibility before ordering, as not all outdoor units support this air handler.
What does the MHK2 controller do that a standard remote does not?
The MHK2 is a wired wall-mount thermostat that reads room temperature at the wall rather than at the unit, supports weekly scheduling, and presents controls in a familiar thermostat format. In commercial settings where staff or tenants expect a wall thermostat, this is a practical upgrade over the handheld infrared remote that comes with most mini-split heads.
Will the 12-year warranty apply if I use a non-Diamond contractor?
No. Mitsubishi's 12-year parts and compressor warranty requires installation by a certified Diamond contractor and registration within 90 days. A non-certified install typically drops coverage to a shorter term. Note that labor costs are never covered under warranty regardless of who installs the system.
Can this air handler heat and cool at the same time as other heads in a multi-zone system?
No. Mitsubishi multi-zone systems require all indoor units to operate in the same mode at any given time. If some zones need cooling and others need heating on a mild day, the system cannot accommodate both simultaneously, and you will need to manually set all heads to the same mode.
How often does the indoor unit need maintenance, and what happens if it is skipped?
Mitsubishi and independent HVAC technicians recommend cleaning the blower wheel and evaporator coil at least once per year, more often in commercial or dusty environments. Skipping cleaning leads to reduced airflow, lower efficiency, and potential mold or odor issues; it can also affect warranty claims if neglected maintenance is found to be a contributing factor in a failure.
Specifications
| Furnace output | 42000 BTU |
| Refrigerant | R-454B |
