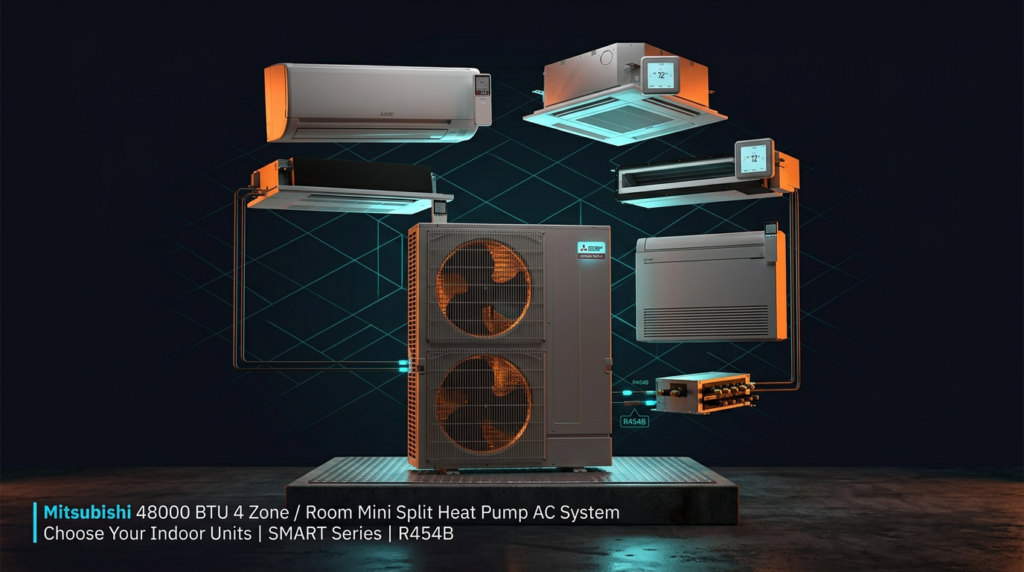

Mitsubishi 48000 BTU 4 Zone / Room Mini Split Heat Pump AC System | Choose Your Indoor Units | SMART Series | R454B
Check current price on AC Direct →
Key features
- 48,000 BTU outdoor unit supports up to four independently controlled indoor air handlers
- Uses R-454B refrigerant, a lower-GWP alternative to R-410A
- Inverter-driven variable-speed compressor adjusts output to match real-time load
- Each indoor unit offers individual temperature, fan speed, and mode control
- Wi-Fi connectivity via Mitsubishi kumo cloud app (adapter may be sold separately)
- 12-year compressor and parts warranty when installed by a Diamond contractor
About this system
This Mitsubishi SMART Series 48,000 BTU four-zone mini-split heat pump is built for larger homes or commercial spaces that need independent climate control across four separate rooms simultaneously. Running on R-454B refrigerant, a lower-global-warming-potential alternative to R-410A, the system pairs a single outdoor compressor with up to four indoor air handlers that you configure to fit your layout. Because each indoor unit operates independently, you can condition only the rooms that are occupied, which is the core efficiency argument for multi-zone ductless over a central forced-air system.
The SMART Series sits in Mitsubishi’s accessible product tier, offering the brand’s well-regarded inverter compressor technology and quiet operation without the top-shelf price of the Hyper-Heating INVERTER (H2i) line. If you are heating a mixed-use space, an older home being retrofitted, or a new addition where running ductwork would be cost-prohibitive, this configuration is worth serious consideration. Keep in mind that the 48,000 BTU capacity is the combined maximum of the outdoor unit; each indoor head draws from that shared pool, so correct load calculation across all four zones before purchase matters more than it does on a single-zone system.
The Mitsubishi SMART Series 48,000 BTU four-zone system delivers the quiet, reliable performance the brand is known for and is a strong choice for homes that need room-by-room control without ductwork. That said, buyers should budget for professional Diamond contractor installation to unlock the full warranty, plan for annual coil cleaning on each head, and understand upfront that all four zones must be set to the same mode simultaneously. At a premium price point, it earns its cost for long-term use but demands more owner involvement than a simple central system.
Overall score is the average of the five ratings above.
What we like
- Inverter compressor technology provides efficient, precise temperature control in each zone
- Mitsubishi is widely recognized for quiet indoor unit operation, a key advantage in bedrooms and offices
- R-454B refrigerant positions the system for evolving refrigerant regulations
- Owners consistently report 15 to 20 year lifespans with proper annual maintenance
- Independent zone control means you heat or cool only occupied rooms, reducing wasted energy
Trade-offs
- All indoor heads must operate in the same mode (heat or cool) at the same time; there is no auto-switch between modes, which is inconvenient on mild swing days
- Labor costs are not covered under warranty, so a compressor failure outside the parts coverage window can be expensive
- Each indoor blower and evaporator coil requires cleaning at least once a year or efficiency and airflow decline noticeably
- Warranty response times and technical support have drawn complaints, and the full 12-year coverage is only available through a certified Diamond contractor install
What homeowners and pros say about Mitsubishi
Among owners and HVAC professionals, Mitsubishi Electric consistently earns praise for quiet indoor unit operation, longevity, and inverter efficiency. EnergySage and owner review aggregators reflect strong satisfaction on those dimensions, with reliability and near-silent operation cited most often as reasons buyers choose the brand over competitors. For a four-zone system like this one, installers point out that Mitsubishi’s engineering and component quality support the reported 15 to 20 year service life, provided the indoor coils and blower wheels are cleaned on an annual schedule. Skipping that maintenance is the most common reason a Mitsubishi system underperforms before its time.
The documented friction points in owner experience center on warranty administration and a specific multi-zone operational limitation rather than widespread hardware failure. The Better Business Bureau record for Mitsubishi shows a pattern of complaints specifically about slow warranty response times and difficulty getting labor costs covered, since labor is excluded from coverage entirely. On the hardware side, a minority of multi-zone owners report early compressor failures, which are painful because labor to replace a compressor is a significant out-of-pocket cost even when the part itself is covered. The mode-switching limitation, where all zones must run heat or cool simultaneously with no automatic changeover, catches buyers off guard most often in spring and fall. Prospective buyers who understand these trade-offs before purchasing tend to be more satisfied long-term than those who discover them after installation.
Sources: EnergySage Mitsubishi heat pump review, AHRI Directory of Certified Product Performance, U.S. DOE appliance and equipment efficiency standards, Mitsubishi Electric product specifications.
How it compares
| Brand | Comparable model | SEER2 | Stage | Price position |
|---|---|---|---|---|
| Mitsubishi | SMART Series 48K BTU 4-Zone (this system) | Not published for this configuration | Variable | Value pick within the Mitsubishi lineup |
| Daikin | Aurora 4-Zone Series (up to 48K BTU) | Up to 18+ SEER2 depending on configuration | Variable | Comparable to slightly lower than Mitsubishi SMART Series |
| Fujitsu | Halcyon Multi-Zone AOMG Series (48K BTU) | Up to 18+ SEER2 depending on configuration | Variable | Generally competitive with or slightly below Mitsubishi SMART Series |
| LG | Multi VS+ 4-Zone Series (48K BTU) | Up to 20+ SEER2 depending on configuration | Variable | Often priced below Mitsubishi at the entry-to-mid tier |
Competitor rows are comparable single-stage units at similar efficiency; price is relative position, not a quote.
Questions about this system
Can one zone run heat while another runs air conditioning at the same time?
No. This is one of the most important limitations of multi-zone mini-split systems including this one. All indoor units connected to the same outdoor unit must be set to the same mode, either all heating or all cooling. On mild days when different rooms may have different needs, occupants will need to manually adjust each head.
Do I need a Diamond contractor to install this, and what happens if I use someone else?
You do not legally have to use a Mitsubishi Diamond contractor, but doing so is the only way to qualify for the full 12-year parts and compressor warranty. A standard install by a non-Diamond HVAC technician typically reduces coverage significantly, and labor is not covered under warranty regardless of who installs it.
What does the 48,000 BTU capacity mean across four zones?
The 48,000 BTU rating is the total capacity of the outdoor unit shared across all four indoor heads. The system does not deliver 48,000 BTU to each zone simultaneously. A proper load calculation for each room is necessary before selecting indoor unit sizes to avoid over- or under-conditioning any space.
Is R-454B refrigerant a problem for service going forward?
R-454B is a newer, lower-global-warming-potential refrigerant introduced partly in response to tightening EPA regulations on R-410A. It is becoming more available, but not every HVAC technician in every market is currently equipped to handle it, so confirm that your local service contractors are familiar with it before purchasing.
How much maintenance do four indoor units actually require?
Mitsubishi and independent HVAC technicians recommend cleaning each indoor unit's blower wheel and evaporator coil at least once per year. With four heads, that is four separate cleaning jobs annually. Skipping this leads to reduced airflow, lower efficiency, and potentially mold growth on coil surfaces, so the maintenance commitment is meaningfully higher than a single-zone or ducted system.
Specifications
| Furnace output | 48000 BTU |
| Refrigerant | R-454B |
