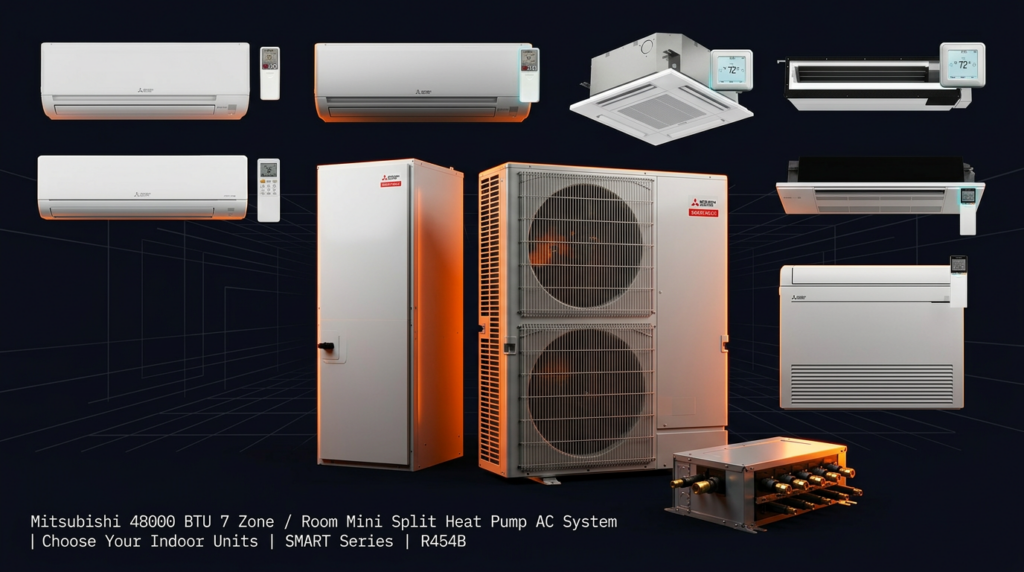

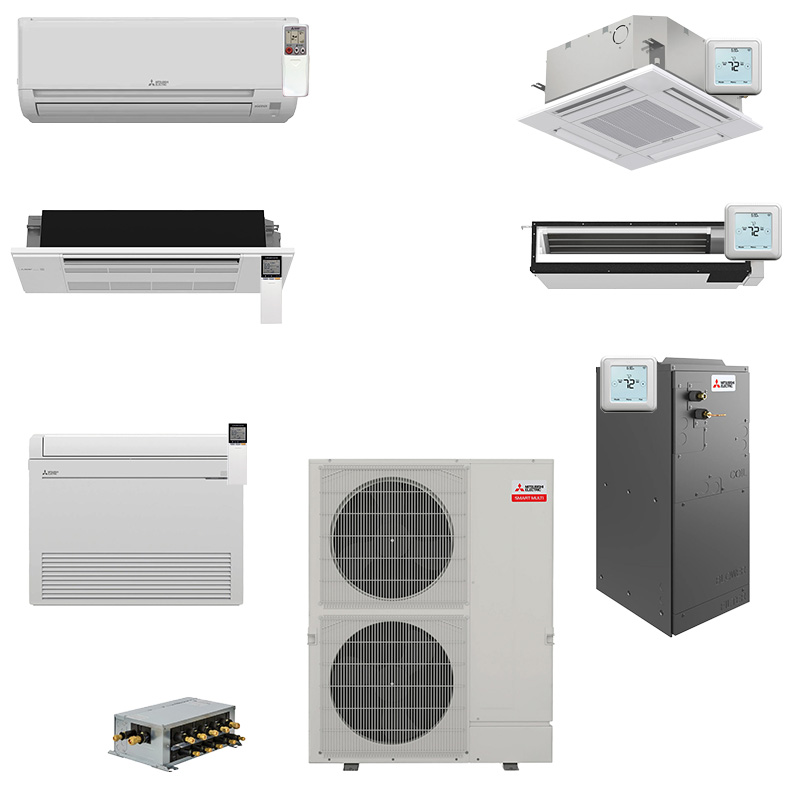

Mitsubishi 48000 BTU 7 Zone / Room Mini Split Heat Pump AC System | Choose Your Indoor Units | SMART Series | R454B
Check current price on AC Direct →
Key features

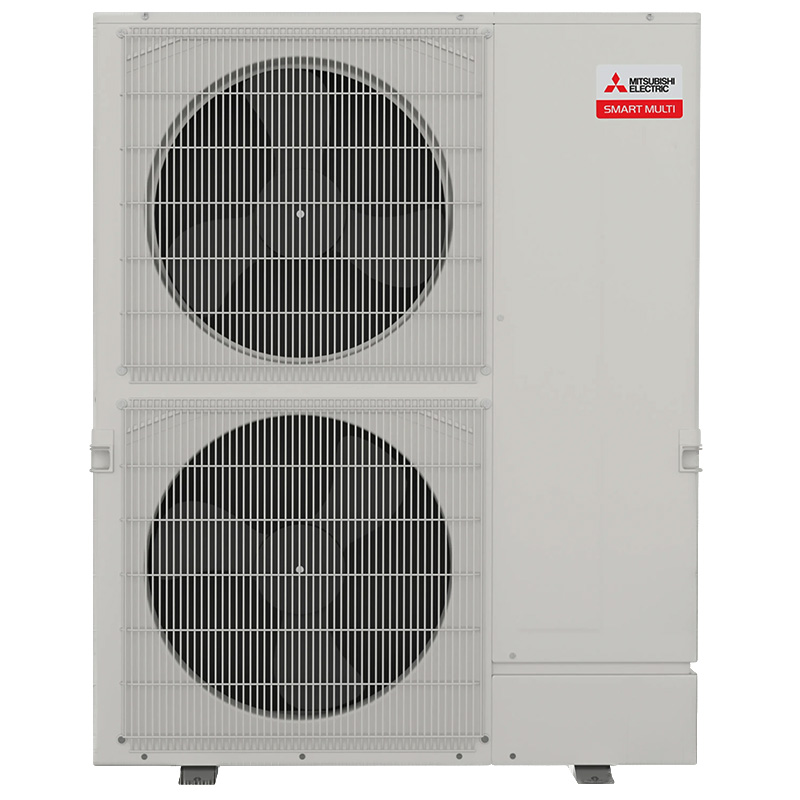

- 48,000 BTU outdoor unit supports up to 7 independently controlled indoor heads
- R-454B refrigerant with lower global warming potential than R-410A
- Variable-speed inverter compressor modulates output for steady temperatures and lower energy use
- Heat pump configuration provides both heating and cooling from one outdoor unit
- Compatible with Mitsubishi's kumo cloud Wi-Fi control for remote operation
- 12-year parts and compressor warranty when installed by a Mitsubishi Diamond contractor
About this system
The Mitsubishi SMART Series 48,000 BTU 7-zone mini-split system is built for large homes, multi-unit properties, or commercial spaces where you need independent climate control across seven separate rooms without running ductwork. Each indoor head can be sized and positioned to match the load of its space, and the outdoor unit coordinates them all through a single refrigerant circuit using R-454B, a lower-global-warming-potential refrigerant that is becoming the new standard as R-410A is phased out. This configuration suits houses in the 2,500 to 4,500 square foot range, depending on insulation, ceiling height, and climate zone.
Mitsubishi’s SMART Series sits above entry-level ductless offerings but is positioned as a more accessible tier within the Mitsubishi lineup compared to the top-tier Hyper-Heating INVERTER (H2i) models. Variable-speed inverter compressor technology means the system modulates output to match demand rather than cycling on and off at full power, which reduces energy consumption and holds room temperatures more steadily. Because this is a heat pump, it provides both heating and cooling from one outdoor unit. Buyers should understand upfront that 7-zone multi-split systems require careful load calculation and professional installation to perform as intended, and that the “7-zone” label means seven indoor heads sharing one compressor, so total simultaneous demand must stay within the outdoor unit’s capacity envelope.
Mitsubishi's 7-zone SMART Series is a well-engineered ductless system backed by a brand with one of the stronger long-term reliability records in the category. The premium price is real, the 12-year warranty has meaningful strings attached, and the multi-zone heat-and-cool switching limitation is a genuine operational inconvenience you need to plan for. Buyers who prioritize quiet operation, zone-level control, and a brand with documented 15-to-20-year lifespans will find the investment defensible.
Overall score is the average of the five ratings above.
What we like
- Inverter-driven variable-speed compressor holds room temperatures steadily and reduces energy cycling
- Seven independent zones allow room-by-room temperature control without any ductwork
- Mitsubishi is consistently rated highly for quiet indoor unit operation
- R-454B refrigerant positions the system well for long-term regulatory compliance
- Documented owner lifespans of 15 to 20 years with proper annual maintenance
Trade-offs
- Multi-zone systems cannot auto-switch between heating and cooling modes: all heads must be set manually to the same mode on swing-season days
- A minority of owners report early compressor failures, and warranty labor costs are not covered, meaning an out-of-pocket service call even within the warranty period
- Indoor blower wheels and evaporator coils require cleaning at least once a year or efficiency and airflow drop noticeably
- Warranty support and Mitsubishi technical response times draw consistent complaints, and the full 12-year coverage requires a certified Diamond contractor installation, adding to upfront cost
What homeowners and pros say about Mitsubishi
Owners and HVAC professionals consistently place Mitsubishi at or near the top of the ductless category for quiet operation, steady temperature holding, and long-term durability. EnergySage and owner review aggregators show favorable scores with reliability, low operating noise, and efficiency cited most often as reasons buyers say they would purchase again. The brand’s reputation for 15-to-20-year system lifespans is borne out in contractor feedback, though those numbers assume annual cleaning of indoor blower wheels and evaporator coils, a maintenance step owners sometimes skip until performance has already declined. The Better Business Bureau record for Mitsubishi is more mixed, with the product itself drawing praise while warranty response times and service escalation draw complaints, a pattern worth factoring into your ownership expectations.
On the documented failure side, the multi-zone mode-switching limitation surprises some buyers who expect an auto setting to handle swing-season days automatically. It does not, and all heads must be manually aligned to the same heat or cool mode. A smaller share of owners report early compressor failures, and because labor is excluded from the warranty, those repairs carry out-of-pocket costs even when the compressor itself is covered. Mitsubishi’s technical support response times are a recurring criticism in dealer and owner forums. None of these issues are unusual for premium multi-zone systems, but buyers who go in with accurate expectations and a relationship with a capable local Diamond contractor tend to report much better ownership experiences than those who purchase on price alone and treat the system as maintenance-free.
Sources: EnergySage Mitsubishi heat pump review, AHRI Directory of Certified Product Performance, U.S. DOE appliance and equipment efficiency standards, Mitsubishi Electric product specifications.
How it compares
| Brand | Comparable model | SEER2 | Stage | Price position |
|---|---|---|---|---|
| Mitsubishi | SMART Series 48K BTU 7-Zone (this system) | Not published for this configuration | Variable-speed inverter | Value pick within the Mitsubishi lineup, premium versus the broader market |
| Daikin | DX Series 7-Zone Multi-Split | Varies by configuration | Variable-speed inverter | Typically slightly less expensive than Mitsubishi for comparable zone counts |
| Fujitsu | Halcyon AOMG48FELTL 7-Zone Multi-Split | Varies by configuration | Variable-speed inverter | Comparable to or slightly below Mitsubishi at this zone count |
| LG | Multi VS 7-Zone 48K BTU | Varies by configuration | Variable-speed inverter | Often less expensive than Mitsubishi, with wider retail availability |
Competitor rows are comparable single-stage units at similar efficiency; price is relative position, not a quote.
Questions about this system
Can I mix and match indoor unit types and sizes across the 7 zones, such as using a cassette in one room and wall-mounted heads elsewhere?
Yes, Mitsubishi's multi-zone outdoor units are designed to work with a mix of compatible indoor unit styles and capacities, including wall-mounted, ceiling cassette, and ducted air handler heads. Each indoor unit must be individually matched to the outdoor unit's compatibility list, so confirm compatibility for each model before purchasing. Total connected indoor capacity must stay within the outdoor unit's allowable range.
Will all 7 zones heat and cool at the same time, or does the whole system have to be in one mode?
The entire system must operate in a single mode at any given time: all zones heating or all zones cooling. There is no automatic mode that allows some heads to heat while others cool simultaneously. On mild days when some rooms need heat and others need cooling, you will need to manually select a mode and set temperatures accordingly, which is the most commonly cited operational limitation of Mitsubishi multi-zone systems.
What does the 12-year warranty actually cover, and what are the requirements to get it?
The 12-year parts and compressor warranty applies only when the system is installed by a Mitsubishi Electric-certified Diamond contractor and the unit is registered within the required window after installation. Labor costs for any warranty repair are not covered, so you will pay for a technician's time even if the part itself is replaced at no charge. Installations by non-certified technicians typically fall back to a shorter warranty period.
How difficult and expensive is a 7-zone mini-split installation compared to a simpler 2- or 3-zone system?
A 7-zone installation is significantly more complex. It involves running seven sets of refrigerant line sets and communication wiring, mounting and commissioning seven indoor units, and performing a full system charge and leak check. Installation costs are substantially higher than a single-zone or small multi-zone job, and the system requires a technician experienced with multi-zone commissioning to set up correctly. This is not a DIY-friendly install.
What does switching to R-454B refrigerant mean for servicing this system going forward?
R-454B is a mildly flammable (A2L class) refrigerant, which means service technicians need specific training, certified equipment, and in some jurisdictions additional certifications to handle it. As R-454B becomes more common this is increasingly a non-issue, but you should confirm that your local HVAC service providers are equipped to work with A2L refrigerants before purchasing, particularly in rural areas where technician availability may be limited.
Specifications
| Furnace output | 48000 BTU |
| Refrigerant | R-454B |
