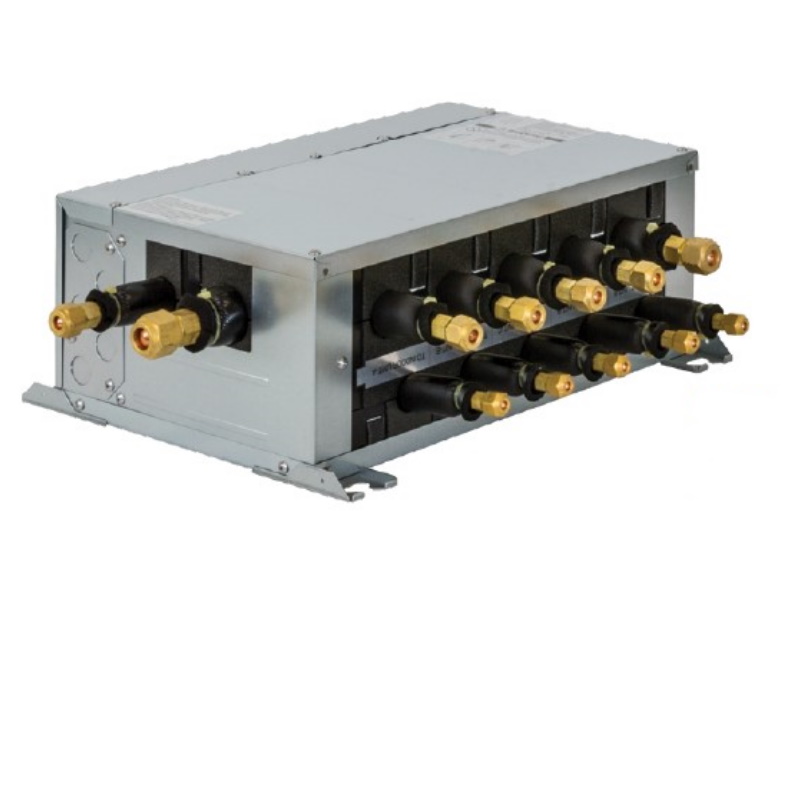

Mitsubishi 5-Port Branch Box For Ductless Mini Split AC Multizone Outdoor Units (PAC-LMA50BC)
Check current price on AC Direct →
Key features
- Supports connection of up to 5 indoor air handler units from a single compatible Mitsubishi multi-zone outdoor unit
- Designed for use with Mitsubishi MXZ and City Multi series multi-zone outdoor units
- Enables independent zone control so each room or space can be set to different temperatures
- Refrigerant distribution is managed through the branch box, reducing line set complexity at the outdoor unit
- Compatible with a range of Mitsubishi indoor unit types including wall mounts, ceiling cassettes, and ducted handlers
- Installation requires a Mitsubishi Diamond certified contractor to qualify for the 12-year limited warranty
About this system
The Mitsubishi PAC-LMA50BC is a 5-port branch box designed to connect a compatible Mitsubishi multi-zone outdoor unit to up to five individual indoor air handlers. It is not a standalone air conditioner or heat pump; it is the distribution hub that routes refrigerant from one outdoor condenser to multiple zones inside the home. If you are building out a whole-home ductless system with a single outdoor unit and need to serve five rooms or zones independently, this component is the piece that makes that possible.
Branch boxes like the PAC-LMA50BC suit homeowners and builders who want zone-by-zone comfort control without ductwork, particularly in additions, multi-story homes, or open floor plan renovations. Because this is an accessory rather than a complete system, efficiency, BTU capacity, and SEER2 ratings are determined entirely by the outdoor unit and indoor heads you pair it with, not by the branch box itself. Proper selection of compatible Mitsubishi MXZ-series or City Multi outdoor units, along with correctly sized indoor heads, is critical before purchasing this component.
The PAC-LMA50BC is a well-engineered branch box that does exactly what it promises for buyers committed to a Mitsubishi multi-zone ductless system, but it only makes sense as part of a carefully planned and professionally installed whole-system build. The component itself is reliable, but the multi-zone platform it enables carries real operational trade-offs and support frustrations that buyers should understand before committing.
Overall score is the average of the five ratings above.
What we like
- Enables up to 5 fully independent zones from one outdoor unit, reducing outdoor equipment footprint
- Mitsubishi's ductless platform is widely regarded for quiet operation and long service life of 15 to 20 years when maintained
- Eliminates the need for separate outdoor units per zone, which can simplify permitting and reduce rooftop or pad clutter
- Compatible with a broad lineup of Mitsubishi indoor unit styles for flexible room-by-room placement
- 12-year parts and compressor warranty available when installed by a Diamond contractor
Trade-offs
- Multi-zone systems cannot auto-switch between heating and cooling across zones, so all heads must be set to the same mode on swing days when some rooms need heat and others need cooling
- Labor costs for a 5-zone branch box installation are substantial and labor is not covered under the warranty if a compressor fails early
- Warranty support and technical response from Mitsubishi have drawn consistent complaints about slow turnaround times
- This is a system-specific accessory with no standalone value; compatibility errors during planning or installation are costly to correct
What homeowners and pros say about Mitsubishi
Owners and installers consistently put Mitsubishi Electric at or near the top for ductless reliability and quiet operation, and those assessments hold for multi-zone branch box builds as well. EnergySage and owner review aggregators show favorable scores driven by the same three factors that come up repeatedly: the systems run quietly, they hold efficiency over time when maintained, and units that receive annual coil and blower cleanings routinely reach 15 to 20 years of service. The 12-year warranty available through Diamond contractors is genuinely one of the better coverage terms in the ductless category, and experienced installers cite Mitsubishi’s engineering consistency as a reason they trust the platform for complex multi-zone jobs.
The BBB picture is more mixed, and the specific friction points are worth knowing before you buy. Warranty response times and technical support turnaround have generated complaints, which matters most when you have a compressor issue and are waiting on authorization while five zones sit idle. The documented mode-switching limitation is a real daily annoyance for households in climates with unpredictable swing seasons, not a dealbreaker but something that surprises owners who assumed the system would sort itself out. A minority of owners have reported early compressor failures, and because labor is excluded from the warranty, a compressor replacement outside the parts coverage window is an expensive event. Annual maintenance on every indoor head is not optional on this platform; it is the primary thing that separates the owners who reach 20 years from those who see performance drop off in year five.
Sources: EnergySage Mitsubishi heat pump review, AHRI Directory of Certified Product Performance, U.S. DOE appliance and equipment efficiency standards, Mitsubishi Electric product specifications.
How it compares
| Brand | Comparable model | SEER2 | Stage | Price position |
|---|---|---|---|---|
| Mitsubishi | PAC-LMA50BC Branch Box (with MXZ-series outdoor unit) | Determined by paired outdoor unit | Variable (dependent on outdoor unit) | Premium tier |
| Daikin | Daikin VRV Life / Multi-Zone Branch Selector Box | Determined by paired outdoor unit | Variable (dependent on outdoor unit) | Comparable premium tier to Mitsubishi |
| Fujitsu | Fujitsu AOU/ARU Multi-Zone with Branch Box | Determined by paired outdoor unit | Variable (dependent on outdoor unit) | Slightly below Mitsubishi at comparable specs |
| LG | LG Multi V S (ARUN series) with Branch Distribution Unit | Determined by paired outdoor unit | Variable (dependent on outdoor unit) | Comparable to slightly below Mitsubishi at premium tier |
Competitor rows are comparable single-stage units at similar efficiency; price is relative position, not a quote.
Questions about this system
Which Mitsubishi outdoor units are compatible with the PAC-LMA50BC branch box?
The PAC-LMA50BC is designed for use with Mitsubishi's MXZ-series multi-zone and City Multi outdoor units. You must verify compatibility with the specific outdoor unit model you are using, as not all Mitsubishi outdoor units support branch box configurations. Confirm with your installer and the Mitsubishi submittal documents before purchasing.
Do I need a Diamond certified contractor to install this, and what happens if I don't use one?
Yes. Mitsubishi's 12-year limited warranty on parts and the compressor requires installation by a Diamond certified contractor. If a non-certified technician installs the system, the warranty typically reverts to a shorter coverage period. Given that labor is never covered under warranty regardless of who installs it, the Diamond certification requirement is worth taking seriously.
Can different zones run heating and cooling at the same time through this branch box?
No. This is a documented limitation of Mitsubishi's standard multi-zone refrigerant systems. All indoor heads connected through the branch box must operate in the same mode, either all heating or all cooling. On transitional weather days when one room may need heat and another needs cooling, you will need to manually set a compromise mode across all zones.
How much maintenance does the indoor equipment connected to this branch box require?
Each indoor air handler connected to the system needs its blower and evaporator coil cleaned at least once a year. Skipping annual cleaning is one of the most commonly cited causes of performance loss in Mitsubishi ductless systems. Budget for professional coil cleaning annually across all five zones if you are not comfortable doing it yourself.
What happens if one zone's indoor unit fails? Does the whole system go down?
In most cases a fault on one indoor head will not take down the entire system, but behavior depends on the specific fault and how the outdoor unit responds to error codes. A failed indoor unit may cause the outdoor unit to shut down or reduce capacity to the remaining zones until the fault is cleared, so having a service contract or a trusted technician on call is advisable for a 5-zone setup.
