Mitsubishi 6000 BTU Mini Split Heat Pump AC Wall Mount Indoor Unit System | 35 SEER2 Single Zone | FX Series | Heats Down To -22° F | R454B
Check current price on AC Direct →
Key features
- 35 SEER2 efficiency rating via variable-speed inverter-driven compressor
- Rated heating operation down to -22 degrees F outdoor ambient temperature
- R-454B refrigerant with lower global-warming potential than R-410A
- Single-zone wall-mount configuration, one indoor head to one outdoor unit
- 12-year parts and compressor warranty with certified Diamond contractor installation
- Whisper-quiet indoor operation, a consistent strength in owner feedback
About this system

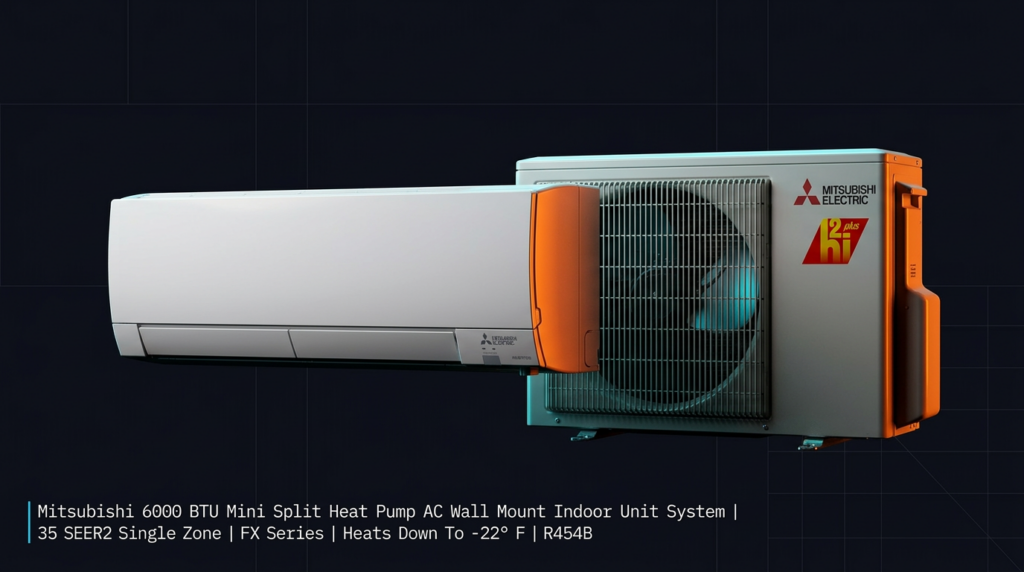

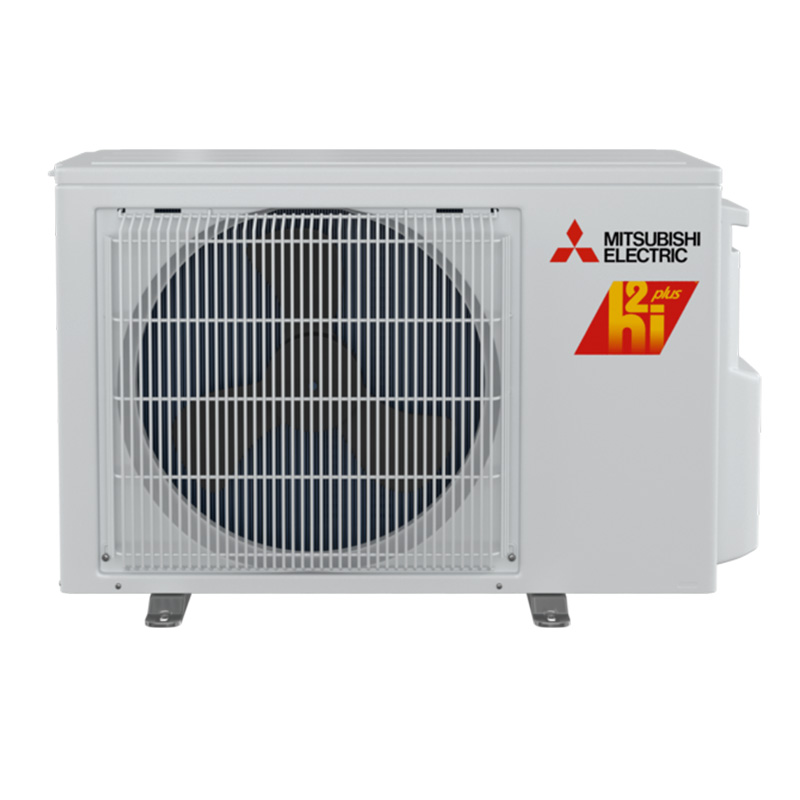

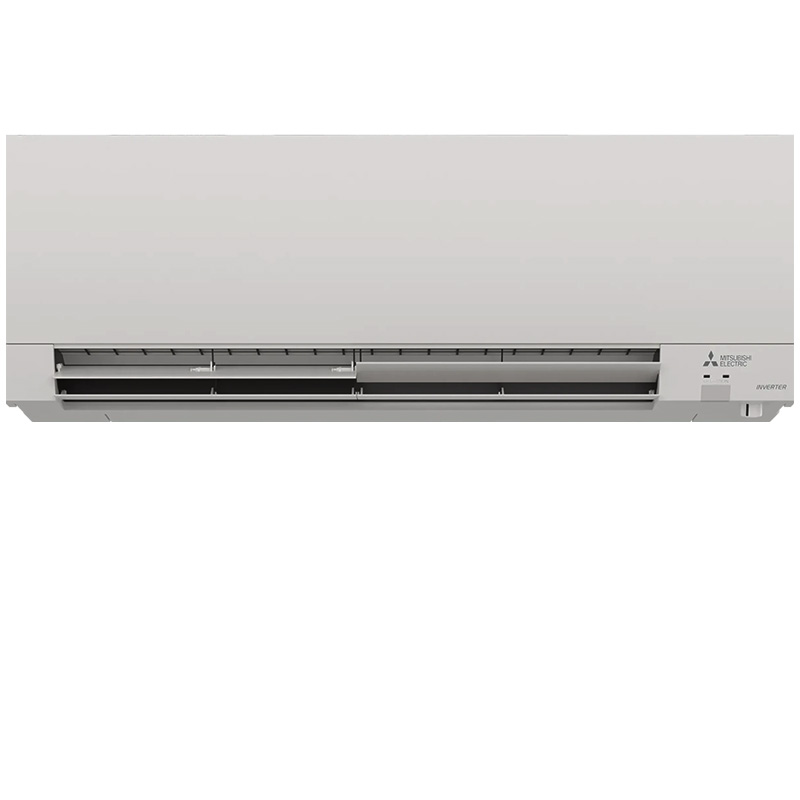

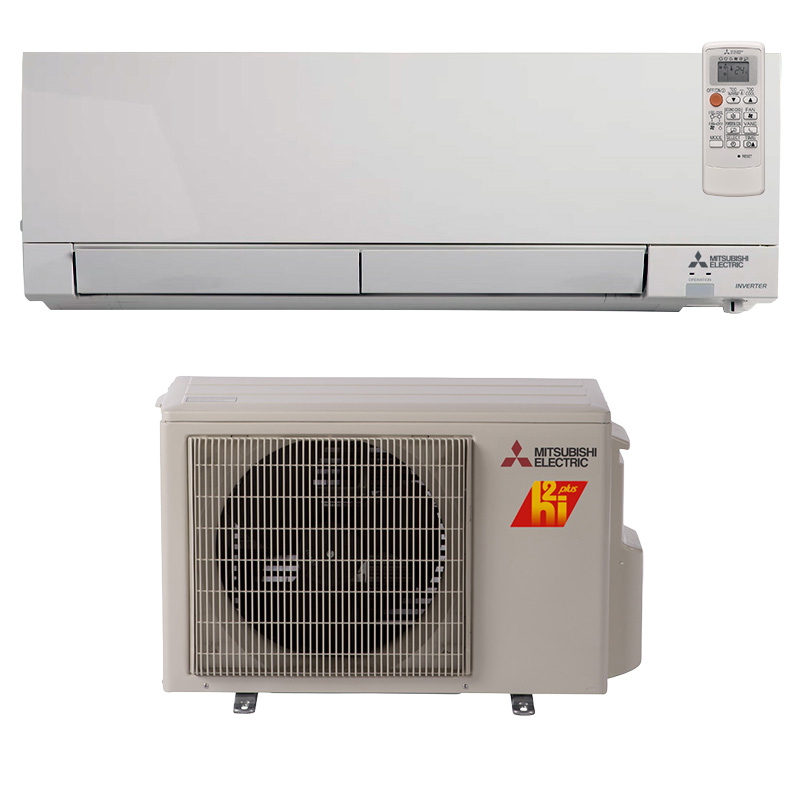

The Mitsubishi FX Series 6,000 BTU single-zone mini-split is built for small, well-insulated spaces where a standard window unit or baseboard heater would be the typical alternative. At 35 SEER2, this ranks among the most efficient residential heat pumps available in North America, a rating that reflects variable-speed compressor technology that modulates output continuously rather than cycling on and off. The R-454B refrigerant is a lower global-warming-potential replacement for R-410A, positioning this unit well ahead of regulatory timelines. The system is a wall-mount configuration: one indoor head, one outdoor condensing unit, one refrigerant line set connecting them.
The headline cold-weather number, rated heating operation down to -22 degrees Fahrenheit, makes this a credible primary heat source in northern climates where older heat pumps would fail. At 6,000 BTU this is a small-room solution, appropriate for bedrooms, home offices, sunrooms, or additions in roughly the 150 to 250 square foot range depending on insulation quality and ceiling height. It is not sized for open-plan living areas or whole-home use. Buyers who need to condition multiple rooms should evaluate multi-zone systems separately, keeping in mind the documented limitation that multi-zone Mitsubishi systems require each indoor head to be set to the same mode on swing days.
The Mitsubishi FX Series 6,000 BTU unit delivers class-leading efficiency and proven cold-climate heating performance in a small-room package, and the 12-year warranty is strong on paper. The trade-off is a premium purchase price, a warranty that requires certified installation to be fully valid, and ongoing maintenance that owners sometimes underestimate.
Overall score is the average of the five ratings above.
What we like
- 35 SEER2 is at the top of the residential efficiency scale, translating to very low operating costs in a continuously occupied room
- Heating rated to -22 degrees F makes it a viable primary heat source in harsh northern winters, not just a cooling add-on
- 15 to 20 year lifespan is realistic with annual maintenance, based on documented owner experience
- Indoor operation is consistently described as very quiet in owner and EnergySage reviews
- R-454B refrigerant positions the system ahead of likely future regulatory changes
Trade-offs
- Premium price over comparable BTU outputs from Daikin, Fujitsu, or LG at similar efficiency tiers
- Full 12-year warranty requires a Mitsubishi-certified Diamond contractor for installation, adding cost and limiting installer choice
- Warranty support and technical response times draw mixed reviews from the Better Business Bureau, with some owners reporting slow resolution
- Indoor blower and evaporator coil require cleaning at minimum once per year or efficiency and capacity will decline noticeably
What homeowners and pros say about Mitsubishi
Owners and HVAC professionals consistently cite Mitsubishi Electric as the benchmark for ductless reliability and quiet operation. EnergySage reviewers and verified owner communities highlight the same three strengths repeatedly: the units run exceptionally quietly, they hold their efficiency ratings in real-world use over many years, and heating performance in cold weather matches what the specs promise. Reported system lifespans of 15 to 20 years with annual maintenance are not uncommon, and that track record is a genuine differentiator at the premium price point. The Better Business Bureau record is more mixed, with product satisfaction generally high but complaints about warranty response times appearing with enough consistency to take seriously.
On the professional side, certified installers note that the FX Series at 35 SEER2 represents the upper boundary of current residential heat pump technology, and that the variable-speed compressor is the core reason for both the efficiency rating and the long service life. Documented failure modes worth knowing before purchase: a minority of owners have reported early compressor failures, and because labor is not covered under the warranty, the out-of-pocket cost on those cases has been a source of frustration. The indoor blower and evaporator coil accumulating debris is flagged by technicians as the most common cause of performance decline in systems that otherwise have no mechanical faults, making annual professional cleaning genuinely important rather than optional.
Sources: EnergySage Mitsubishi heat pump review, AHRI Directory of Certified Product Performance, U.S. DOE appliance and equipment efficiency standards, Mitsubishi Electric product specifications.
How it compares
| Brand | Comparable model | SEER2 | Stage | Price position |
|---|---|---|---|---|
| Mitsubishi | FX Series 6,000 BTU Single Zone | 35 | Variable | Premium tier |
| Daikin | Aurora 9,000 BTU (smallest comparable cold-climate single zone) | 23.3 | Variable | Moderately less expensive than Mitsubishi FX at similar BTU range |
| Fujitsu | Halcyon XLTH Series 9,000 BTU single zone | 33 | Variable | Slightly less expensive than Mitsubishi FX at comparable efficiency |
| LG | Art Cool Premier Single Zone 6,000 BTU | 26 | Variable | Noticeably less expensive than Mitsubishi FX, lower efficiency tier |
Competitor rows are comparable single-stage units at similar efficiency; price is relative position, not a quote.
Questions about this system
Do I really need a Mitsubishi Diamond certified contractor, or can any HVAC tech install this?
Any licensed HVAC technician can physically install the unit, but the 12-year parts and compressor warranty is only valid when a Mitsubishi Diamond contractor performs the work and registers the system. A standard install gets a shorter warranty period, so it is worth finding a Diamond dealer if the full coverage matters to you.
Is 6,000 BTU enough to heat my room through a Minnesota or Canadian winter?
It depends on how well the room is insulated and its square footage. At -22 degrees F, the unit continues to produce heat, but 6,000 BTU is a small output. A properly insulated room of roughly 150 to 200 square feet is a reasonable fit; larger or poorly insulated spaces will struggle on the coldest nights and you should run a Manual J heat load calculation before purchasing.
What maintenance does this system actually need, and what happens if I skip it?
The indoor evaporator coil and blower wheel need cleaning at least once per year. Skipping this allows dust and debris buildup that restricts airflow, drops efficiency, and can cause coil icing or premature component wear. Filter cleaning every few weeks during heavy use is also necessary and takes only a few minutes.
Labor is not covered under warranty. What does that mean in practice if the compressor fails?
Mitsubishi covers the compressor part itself under the 12-year warranty, but if a technician needs to diagnose, recover refrigerant, and replace a failed compressor, you pay for that labor out of pocket. Depending on region and labor rates that cost can run into several hundred dollars, so it is worth understanding the full picture before assuming the warranty covers everything.
How does the 35 SEER2 rating translate to actual electricity savings compared to a standard window unit?
A typical window air conditioner runs at roughly 10 to 12 SEER2. In simple terms, the FX Series unit uses roughly one third the electricity for the same cooling output. In a room that runs air conditioning for several months per year, that gap compounds meaningfully on the utility bill, though the higher upfront cost means payback takes time at current electricity rates.
Specifications
| Efficiency | 35 SEER2 |
| Refrigerant | R-454B |
