Mitsubishi 9000 BTU Mini Split AC Horizontal Ducted Indoor Unit With MHK2 | Light Commercial | Medium Static | R454B [PEAD-AA09NL,MHK2] | R454B

About this system

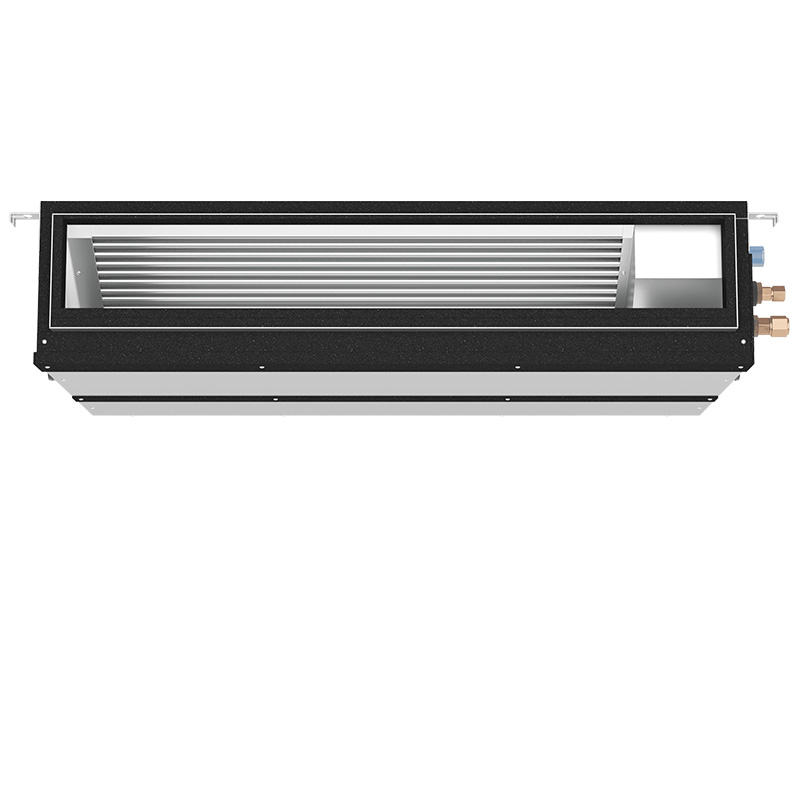

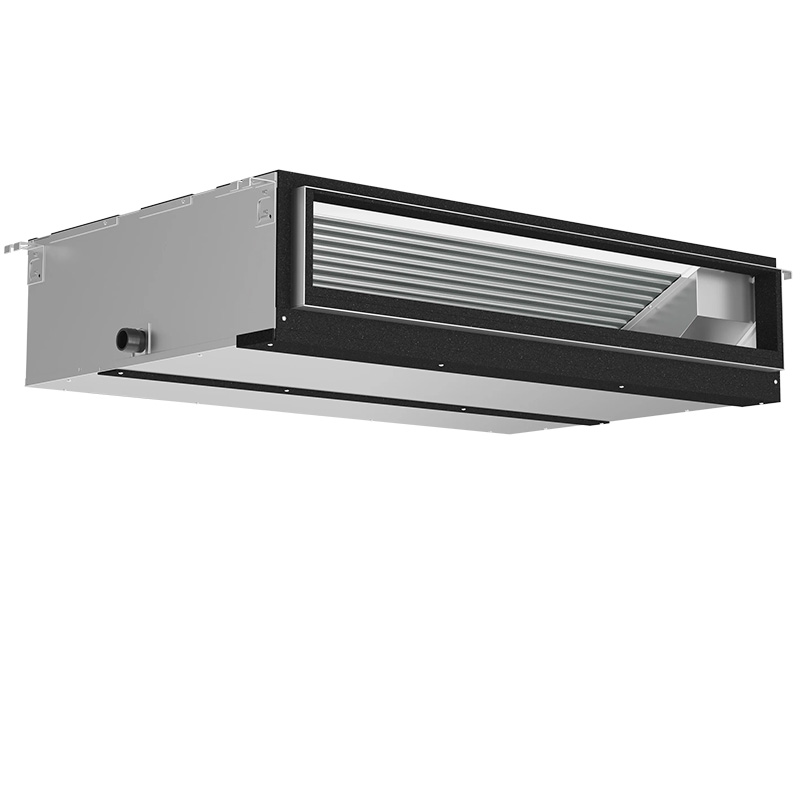

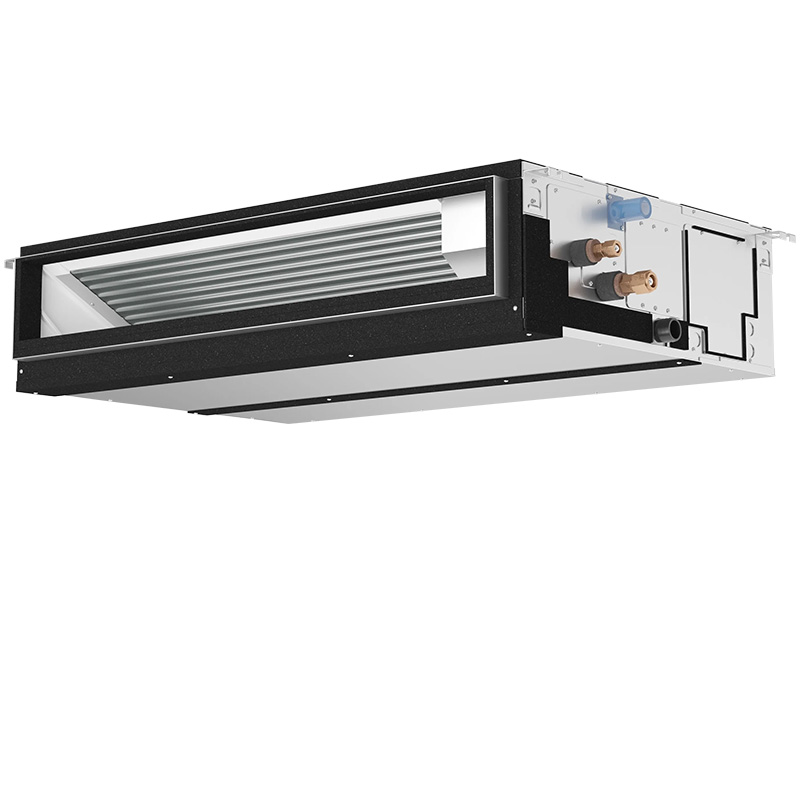

The Mitsubishi PEAD-AA09NL is a 9,000 BTU horizontal ducted indoor air handler designed for light commercial and residential applications where a concealed installation is preferred but a full duct network is not practical. Horizontal ducted units like this one mount above a ceiling or inside a soffit and distribute conditioned air through short duct runs, making them a practical middle ground between fully exposed ductless cassettes and a traditional central air system. The medium-static pressure rating means it can push air through modest ductwork resistance without the strain that low-static units face, which matters in light commercial corridors, server closets, or open-plan offices with simple supply and return paths.

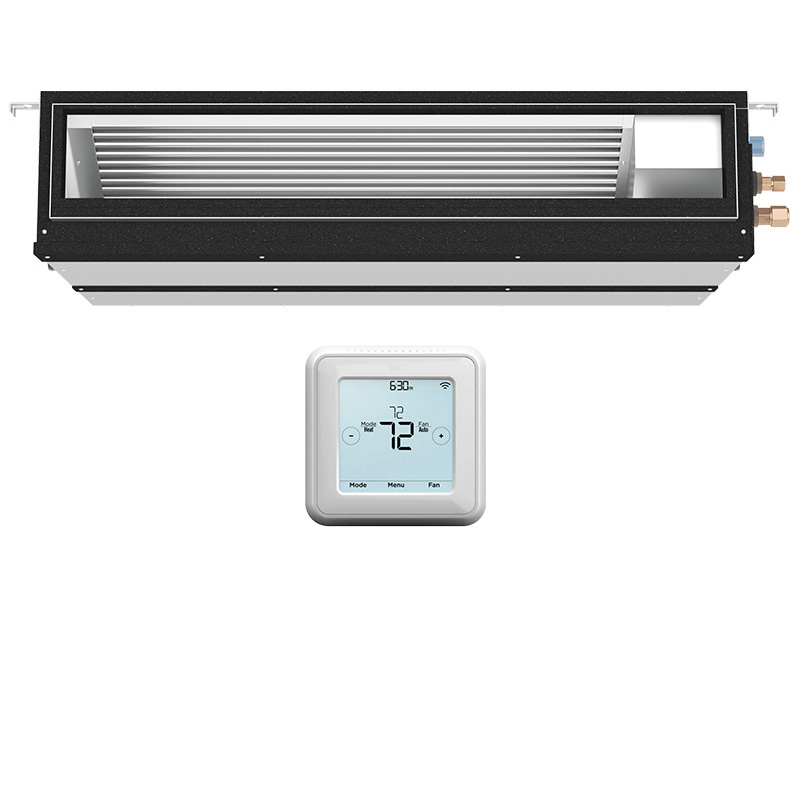

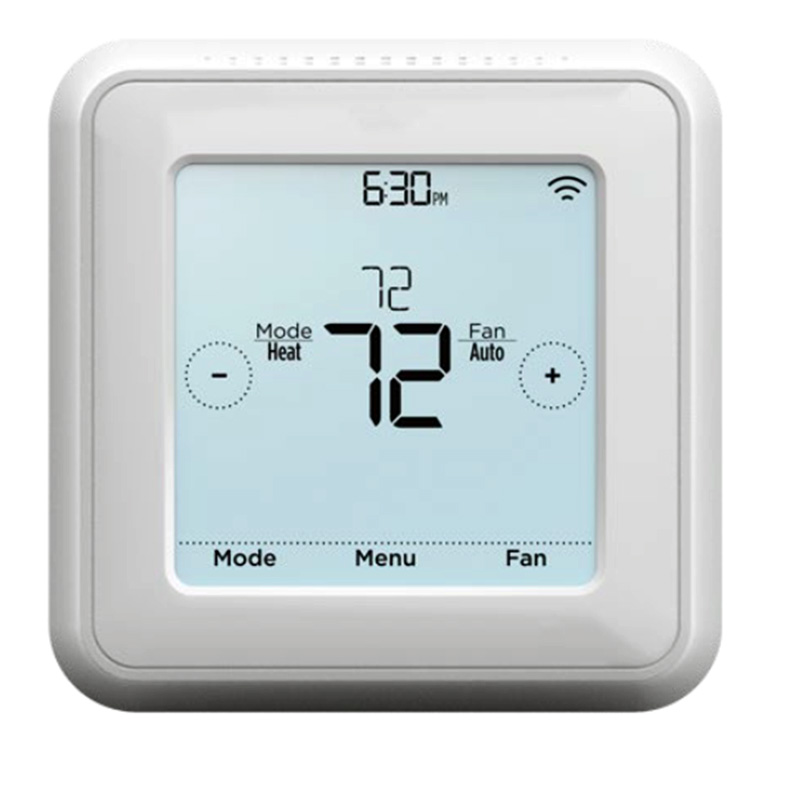

This unit uses R-454B refrigerant, a lower global-warming-potential alternative that is becoming the industry standard as R-410A is phased out under new EPA regulations. Pairing the PEAD-AA09NL with the MHK2 wired controller adds a wall-mounted thermostat interface that functions more like a conventional HVAC control, useful in commercial spaces where occupants expect a familiar thermostat rather than a handheld remote. The system requires a compatible Mitsubishi outdoor unit and is sized for smaller zones, roughly 300 to 450 square feet depending on load conditions. Prospective buyers should confirm outdoor unit compatibility before ordering, as not all Mitsubishi outdoor units support R-454B indoor handlers.

What homeowners and pros say about Mitsubishi

Mitsubishi Electric consistently earns favorable marks from both owners and HVAC professionals for quiet operation, reliability, and efficiency, and those strengths carry over to the ducted handler lineup. EnergyStar and owner review aggregators reflect high satisfaction on these points, and the 15 to 20 year lifespan reported by maintained units is unusual in an industry where many systems are replaced in 12 to 15 years. For the PEAD-AA09NL specifically, installers familiar with the platform note that the medium-static horizontal configuration is well-suited to commercial drop-ceiling applications, though they consistently emphasize that duct design must stay within published static limits or airflow performance degrades faster than expected. The BBB profile for Mitsubishi Electric shows the brand is not immune to criticism, with complaints focused primarily on slow warranty response times and technical support delays rather than product failures.

The documented failure modes worth knowing before purchase are specific and worth taking seriously. A minority of owners across the broader Mitsubishi line have reported early compressor failures, and because labor is never covered under the warranty regardless of its length, a compressor replacement in year three or four can be a significant expense. The indoor blower and evaporator coil on ducted handlers like this one are especially prone to performance loss when annual cleaning is skipped, since the concealed location means buildup often goes unnoticed until airflow noticeably drops. Professionals also flag the multi-zone heating and cooling limitation: on transitional days when one zone needs heat and another needs cooling, each head must be set manually because the system does not auto-switch across zones. None of these issues are disqualifying for the right application, but buyers should factor annual maintenance costs and Diamond contractor installation into the total cost of ownership calculation.

Sources: EnergySage Mitsubishi heat pump review, AHRI Directory of Certified Product Performance, U.S. DOE appliance and equipment efficiency standards, Mitsubishi Electric product specifications.

How it compares

Competitor rows are comparable single-stage units at similar efficiency; price is relative position, not a quote.
