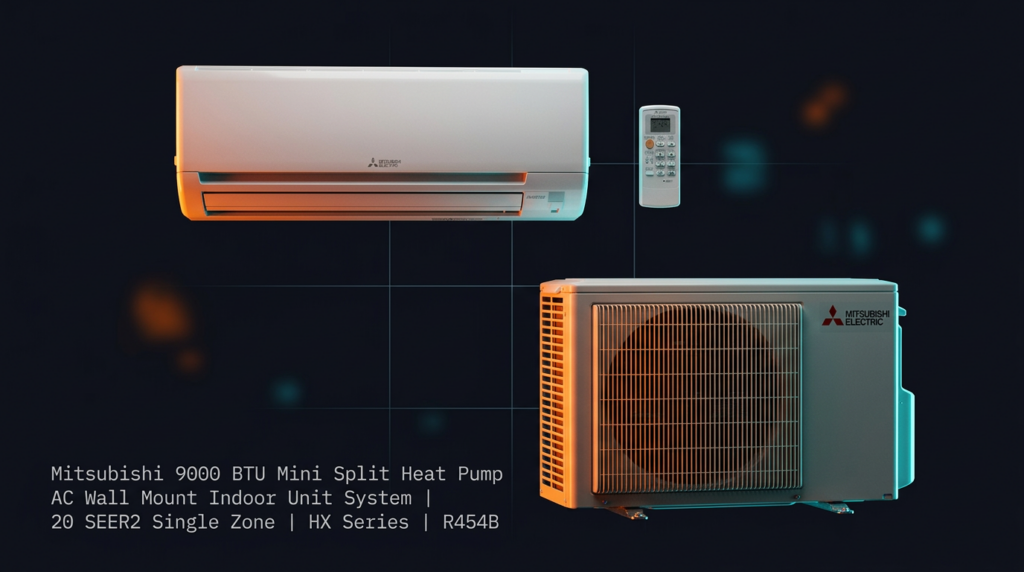

Mitsubishi 9000 BTU Mini Split Heat Pump AC Wall Mount Indoor Unit System | 20 SEER2 Single Zone | HX Series | R454B
Check current price on AC Direct →
Key features
- 20 SEER2 efficiency rating with variable-speed inverter compressor
- Single-zone wall-mount configuration, no ductwork required
- R-454B low-GWP refrigerant for regulatory compliance
- 12-year warranty on parts and compressor when installed by a Mitsubishi Diamond contractor
- Operates as both a heating heat pump and a cooling air conditioner in one unit
- Quiet operation via inverter-driven, variable-capacity compressor and blower
About this system
The Mitsubishi HX Series 9,000 BTU single-zone mini split is a wall-mount ductless heat pump system running on R-454B refrigerant and rated at 20 SEER2, placing it firmly in the high-efficiency tier for residential ductless equipment. At this capacity, it is sized for spaces roughly in the 350 to 450 square foot range under normal insulation conditions, making it well suited for a primary bedroom, home office, sunroom, converted garage, or any room that either lacks existing ductwork or needs supplemental comfort control. The 20 SEER2 rating means real-world seasonal energy costs will be meaningfully lower than systems in the 15 to 17 SEER2 range, and R-454B is a lower-GWP refrigerant that keeps the system in step with evolving environmental regulations.
This is a single-zone configuration, so one outdoor condenser pairs with one indoor wall-mount head. That keeps wiring and refrigerant line routing straightforward compared to multi-zone setups. The HX Series sits in Mitsubishi’s mid-to-upper product lineup, offering variable-speed inverter-driven compression, which allows the system to modulate output rather than cycle fully on and off. That approach is responsible for much of the unit’s efficiency advantage and its reputation for quiet, steady operation. Buyers should budget for professional installation by a Mitsubishi Diamond contractor if they want the full 12-year parts and compressor warranty to apply.
The Mitsubishi HX Series 9,000 BTU unit delivers genuine high-efficiency performance and a long expected service life, but it comes at a premium price that only makes financial sense if you value longevity and low operating costs over upfront savings. The warranty is strong on paper, though getting timely support if something goes wrong requires some patience.
Overall score is the average of the five ratings above.
What we like
- 20 SEER2 efficiency is among the highest available for a single-zone 9,000 BTU unit, reducing monthly energy costs
- Variable-speed inverter operation delivers very quiet, steady cooling and heating without the cycling noise of single-stage equipment
- Single-zone setup is simpler to install and diagnose than multi-zone systems, with no mode-conflict limitations
- Owners consistently report 15 to 20 year service lifespans with proper annual maintenance
- R-454B refrigerant aligns with current and near-future environmental regulations, reducing risk of future refrigerant availability issues
Trade-offs
- Purchase and installation price is higher than comparable units from LG, Daikin, or Fujitsu at similar efficiency levels
- A minority of owners have reported early compressor failures, and labor costs are not covered under the warranty even if parts are
- The indoor blower and evaporator coil require cleaning at least once a year; skipping this causes measurable performance loss
- Warranty support and Mitsubishi technical response times have drawn complaints, meaning a problem can leave you waiting
What homeowners and pros say about Mitsubishi
Among homeowners who own Mitsubishi ductless equipment, the HX Series and its predecessors earn consistent praise in sources like EnergySage and verified owner forums for three things above all others: how quietly the units run, how reliably they hold temperature without hunting, and how low electric bills end up being relative to older resistance heat or window units. The Better Business Bureau picture is more mixed, with the product itself drawing little criticism but warranty response times and service escalation drawing a steady stream of complaints. Owners who needed warranty repairs have reported weeks-long waits for authorization or parts, which matters when a bedroom unit is out in summer heat.
HVAC technicians who service Mitsubishi equipment note that the brand’s documented failure modes for ductless systems are not broadly different from the rest of the premium ductless segment. Early compressor failures do occur in a minority of units, and because labor is excluded from warranty coverage, those repairs sting financially even when the part itself is free. The indoor blower and evaporator coil are specific maintenance items that service technicians flag repeatedly: owners who ignore annual cleanings end up with coil icing, reduced output, and in some cases accelerated wear on the blower motor. For single-zone systems like this HX 9,000 BTU unit, the mode-conflict issue that affects multi-zone Mitsubishi setups is not a concern, which removes one of the more frustrating documented friction points from the ownership experience entirely.
Sources: EnergySage Mitsubishi heat pump review, AHRI Directory of Certified Product Performance, U.S. DOE appliance and equipment efficiency standards, Mitsubishi Electric product specifications.
How it compares
| Brand | Comparable model | SEER2 | Stage | Price position |
|---|---|---|---|---|
| Mitsubishi | HX Series 9,000 BTU Single Zone | 20 | Variable-speed inverter | Value pick at the premium end of the ductless market |
| Daikin | Aurora 9,000 BTU Single Zone (RXL09QMVJU) | 20 | Variable-speed inverter | Comparable to slightly lower than Mitsubishi HX at similar efficiency |
| Fujitsu | Halcyon XLTH 9,000 BTU Single Zone (AOU9RLXFWH) | 20 | Variable-speed inverter | Generally lower installed cost than Mitsubishi at equivalent efficiency |
| LG | Art Cool Premier 9,000 BTU Single Zone (LSU090HEV) | 20 | Variable-speed inverter | Typically lower purchase price than Mitsubishi, though warranty terms differ |
Competitor rows are comparable single-stage units at similar efficiency; price is relative position, not a quote.
Questions about this system
Do I need a Mitsubishi Diamond contractor, or can any HVAC technician install this?
Any licensed HVAC technician can physically install the unit, but the 12-year parts and compressor warranty only activates when installation is performed by a Mitsubishi Diamond certified contractor. Using a non-Diamond installer drops coverage to a shorter standard warranty, so it is worth confirming your installer's certification before the job starts.
What size room will a 9,000 BTU unit actually cover?
Under average insulation conditions in a moderate climate, 9,000 BTU handles roughly 350 to 450 square feet. Rooms with high ceilings, poor insulation, large sun-facing windows, or in extreme climates may fall at the lower end of that range. An HVAC professional can run a Manual J load calculation for a precise answer.
Is R-454B refrigerant going to be hard to service in a few years?
R-454B is a lower-GWP refrigerant introduced specifically to meet tightening environmental regulations, so it is positioned to remain available and serviceable as older refrigerants like R-410A face phase-downs. Most HVAC wholesalers already stock it, and the transition to this type of refrigerant is industry-wide, not unique to Mitsubishi.
How often does the indoor unit actually need to be cleaned, and what happens if I skip it?
Mitsubishi and independent service technicians recommend cleaning the indoor blower wheel and evaporator coil at least once per year, more often in dusty environments or if the system runs frequently. Skipping cleanings allows dust and mold buildup that restricts airflow, reduces capacity, and can cause the coil to ice over, all of which hurt efficiency and can lead to premature component wear.
What does the warranty actually cover if the compressor fails outside of year one?
With a Diamond contractor install, Mitsubishi covers the compressor part itself for 12 years, but labor to diagnose and replace it is not included under the warranty. Depending on your region and contractor rates, a compressor replacement labor bill can be substantial, so some owners purchase an extended labor warranty separately at installation.
Specifications
| Efficiency | 20 SEER2 |
| Refrigerant | R-454B |
