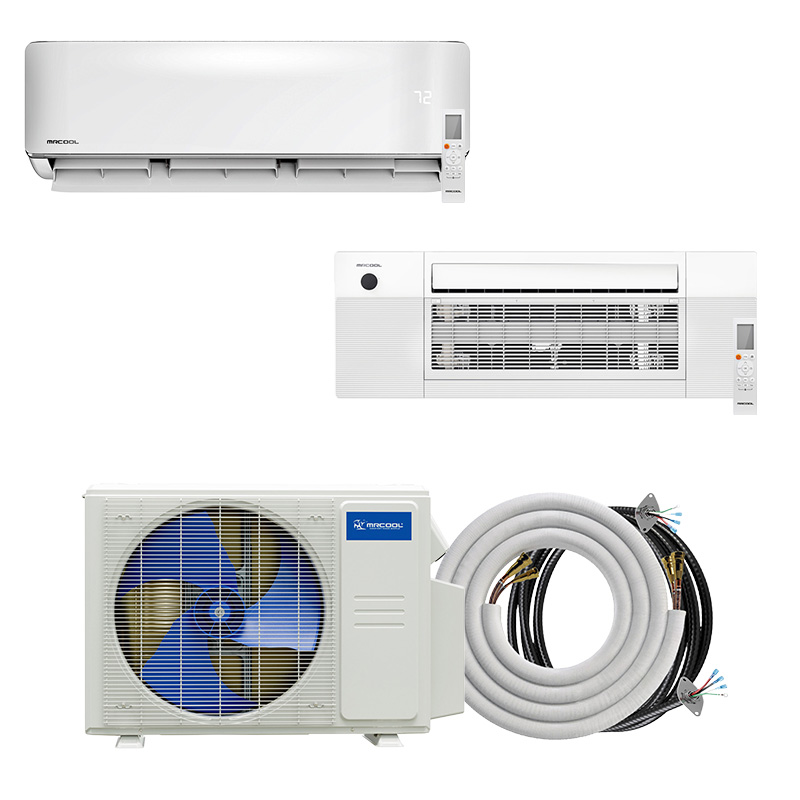

MrCool DIY 5th Gen 2 Zone 18000 BTU Mini Split Heat Pump System – Choose Your Indoor Units – R454B
Check current price on AC Direct →
Key features
- Pre-charged R-454B line sets with Quick Connect fittings, no vacuum pump required
- 2-zone configuration with one outdoor condenser serving two independently controlled indoor units
- 18,000 BTU total system capacity split across two selectable indoor air handlers
- 5th-generation platform with improved first-year reliability over prior MrCool generations
- R-454B refrigerant with lower global warming potential than R-410A
- Wi-Fi enabled operation compatible with the MrCool Smart Controller app
About this system
The MrCool DIY 5th Generation 2-Zone 18,000 BTU Mini Split Heat Pump is a pre-charged ductless system designed to let homeowners add climate control to two rooms without hiring an HVAC contractor for the refrigerant work. The system ships with line sets already charged with R-454B, a lower-global-warming-potential refrigerant that replaces the older R-410A, and uses push-connect Quick Connect fittings that eliminate the need for a vacuum pump or manifold gauge set. You choose two indoor air handlers at purchase, typically in combinations that add up to the system’s 18,000 BTU capacity, and a single outdoor condenser serves both zones independently.
This setup suits homeowners adding comfort to a garage and a spare bedroom, a basement and a home office, or any two spaces that lack ductwork and where running new ducts would be costly or impractical. The 5th-generation platform is a meaningful step forward from earlier MrCool hardware, with documented first-year reliability sitting around 85 percent, a substantial improvement over the 3rd and 4th generations. The R-454B refrigerant also positions the system ahead of eventual regulatory phase-outs affecting older refrigerants. The honest trade-off is that self-install convenience comes with real service limitations: few local HVAC technicians will touch a MrCool system, and the warranty process is notoriously documentation-heavy.
The MrCool DIY 5th Gen 2-Zone is a genuinely capable ductless option for homeowners who want to self-install and are comfortable owning the long-term service relationship. The improved 5th-gen reliability and the move to R-454B are real advances, but thin local service support and a combative warranty process mean you should go in with realistic expectations about what happens if something goes wrong.
Overall score is the average of the five ratings above.
What we like
- Pre-charged Quick Connect line sets make DIY installation genuinely achievable for a handy homeowner
- 5th-generation reliability is meaningfully better than earlier MrCool generations
- R-454B refrigerant is ahead of upcoming regulatory requirements for new equipment
- Two independent zones from a single outdoor unit saves on equipment and installation cost
- Home Depot owner reviews average around 4.5 out of 5, with self-install ease as the most consistent praise
Trade-offs
- Very few local HVAC technicians will service MrCool equipment, leaving repairs largely on the owner
- Warranty claims are documentation-heavy and owners report the company looking for reasons to deny coverage
- Customer service draws complaints of long hold times and slow email-based troubleshooting
- Some units have documented early failures including a loose coupling near the air handler
What homeowners and pros say about MRCOOL
Among owners on Home Depot, the MrCool DIY 5th Gen multi-zone earns around 4.5 out of 5 stars on popular configurations, and the consistent thread in positive feedback is that the Quick Connect installation process actually works as advertised for a prepared homeowner. People who have done basic electrical work and are comfortable following detailed instructions report getting the system running in a weekend. The move to R-454B is noted approvingly by owners who are thinking about long-term equipment ownership, and 5th-generation buyers are clearly having a better early experience than those who owned 3rd or 4th generation units.
The rougher feedback clusters around two areas: what happens after installation and what happens when something goes wrong. HVAC professionals are candid that very few shops will take on MrCool service calls, partly because of parts availability and partly because the DIY positioning means the systems often arrive with installation variables a pro cannot vouch for. The warranty process is a recurring frustration, with owners describing documentation requirements that feel designed to complicate rather than resolve claims. The specific failure mode most cited on the 5th gen is a loose coupling near the air handler, which can cause refrigerant loss, and resolving that without local service access puts the burden squarely on the owner. The value proposition is real, but it comes with a service model that asks more of you than a contractor-installed system would.
Sources: Better Business Bureau MRCOOL reviews, PickHVAC MRCOOL review, AHRI Directory of Certified Product Performance, U.S. DOE appliance and equipment efficiency standards.
How it compares
| Brand | Comparable model | SEER2 | Stage | Price position |
|---|---|---|---|---|
| MrCool | DIY 5th Gen 2-Zone 18,000 BTU | Not published at time of writing | Variable | Value pick |
| Mitsubishi | M-Series MXZ-2C20NAHZ2 Multi-Zone | 18+ SEER2 | Variable | Significantly higher, plus mandatory contractor installation |
| Daikin | MXS Series 2-Zone Multi-Split | 17-19 SEER2 depending on configuration | Variable | Moderately to significantly higher, contractor install required |
| Fujitsu | AOU18RLXFZ1 Multi-Zone | 18+ SEER2 | Variable | Moderately higher, contractor install required |
Competitor rows are comparable single-stage units at similar efficiency; price is relative position, not a quote.
Questions about this system
Do I really not need a vacuum pump to install this system?
That is correct for the pre-charged Quick Connect line sets MrCool includes. The refrigerant is already in the lines, and the fittings are designed to connect without a pump or gauges. You do still need to follow the instructions carefully, including proper line set routing and electrical work, which in most jurisdictions requires a licensed electrician for the disconnect and breaker.
Can I mix different BTU indoor units, for example a 12,000 and a 9,000?
Yes, MrCool offers indoor unit combinations that let you split the 18,000 BTU capacity across two zones in different configurations. You select the indoor units at the time of purchase, so confirm the combination adds up to or falls within the outdoor unit's rated capacity before ordering.
What happens if a line set coupling leaks after installation?
A loose or leaking coupling near the air handler is one of the documented failure modes on MrCool units. If it occurs under warranty, you will need to file a claim with supporting documentation, and owners report the process is slow and sometimes disputed. Because most local HVAC technicians will not service MrCool equipment, you may end up troubleshooting with MrCool's support team by email or phone, where hold times can be long.
Is R-454B refrigerant harder to work with than R-410A if I ever need service?
R-454B is mildly flammable, classified as A2L, which means any technician handling it needs equipment and training appropriate for that refrigerant class. This is already becoming the industry standard for new equipment, but it adds one more reason why finding a local tech willing to service a MrCool system may be challenging in the near term.
How does the 5th-generation reliability compare to older MrCool systems I may have read complaints about?
The improvement is real and significant. Earlier 3rd and 4th generation MrCool systems saw failure rates approaching 25 percent in the first two years. The 5th-generation platform sits around 85 percent running reliably past year one, which is a credible step forward, though it still trails the reliability reputation of established Japanese brands like Mitsubishi and Daikin installed by certified contractors.
Specifications
| Furnace output | 18000 BTU |
| Refrigerant | R-454B |
