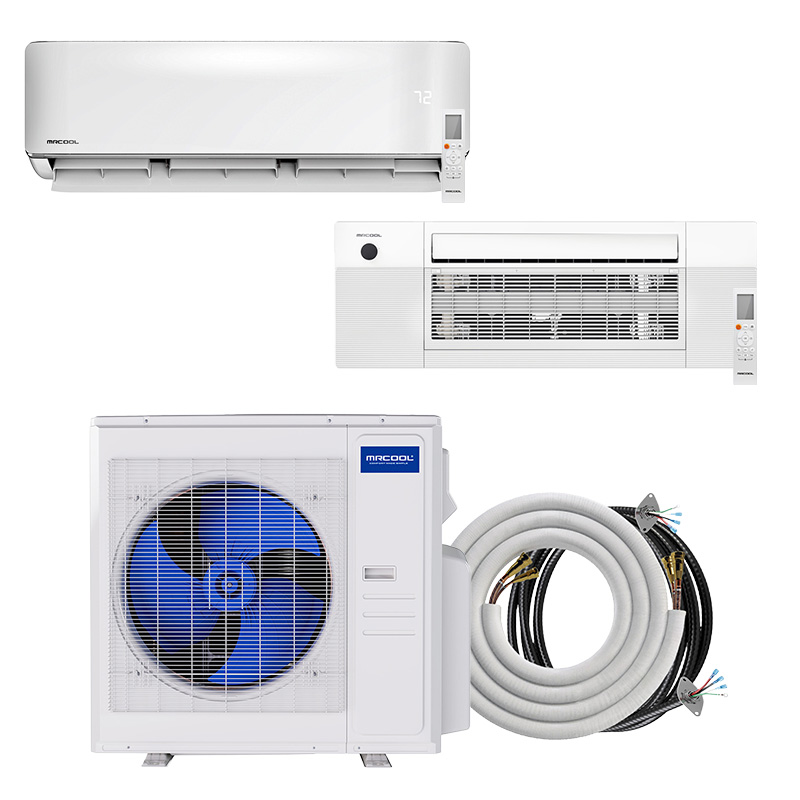

MrCool DIY 5th Gen 4 Zone 36000 BTU Mini Split Heat Pump System – Choose Your Indoor Units – R454B
Check current price on AC Direct →
Key features

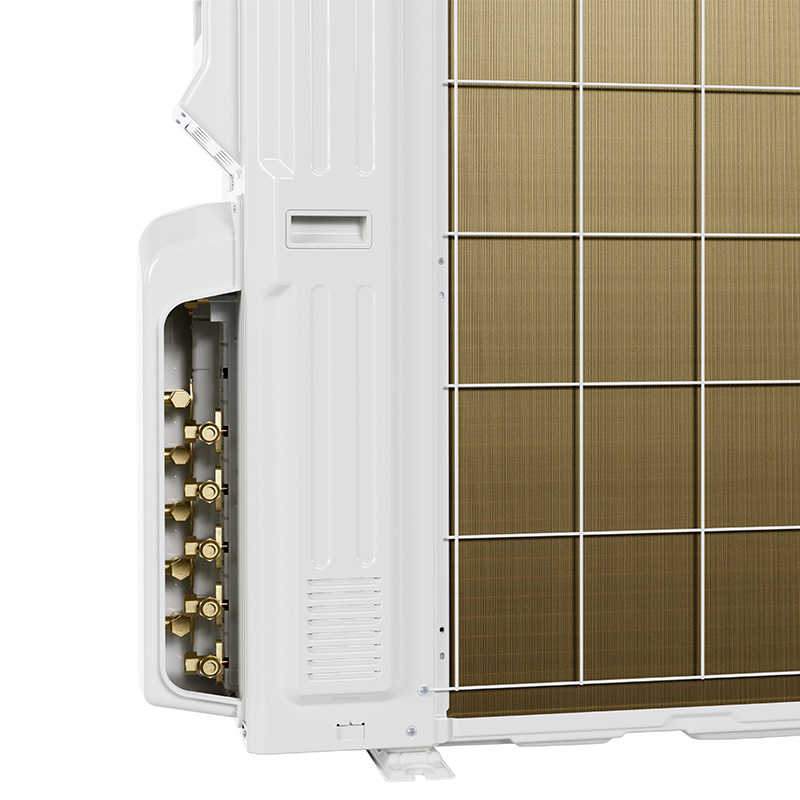

- Pre-charged R-454B line sets allow homeowner installation without a vacuum pump or refrigerant certification

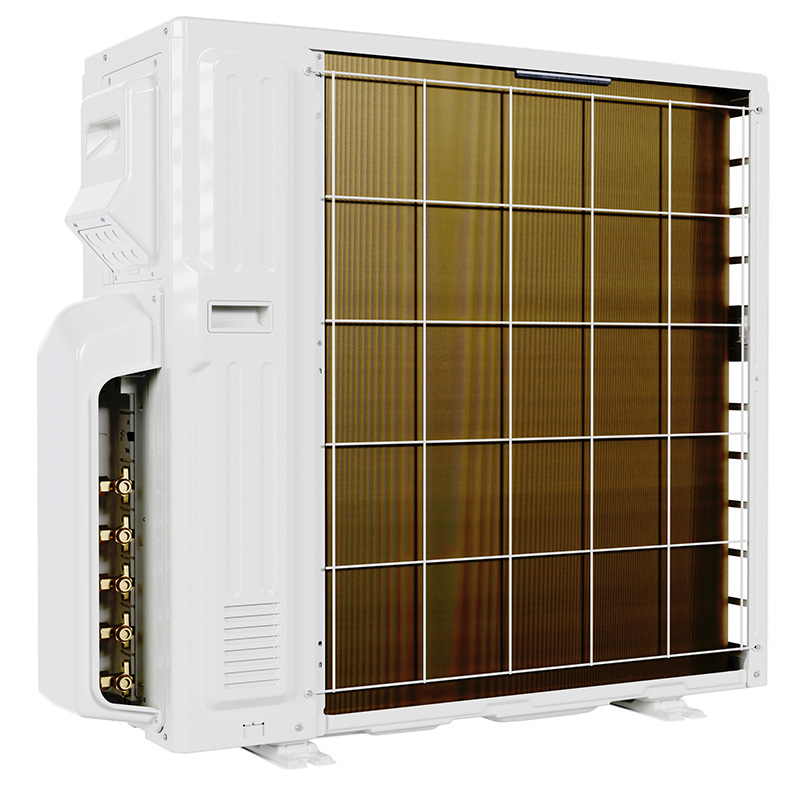

- 4-zone outdoor unit supports up to four independently controlled indoor units simultaneously
- 36,000 BTU total capacity distributed across zones of your choosing
- Inverter-driven variable-speed compressor modulates output for consistent temperatures
- R-454B refrigerant offers lower global warming potential than R-410A
- 5th-generation platform with improved component reliability over 3rd and 4th generation MrCool systems
About this system
The MrCool DIY 5th Generation 4-Zone 36,000 BTU mini split heat pump is designed for homeowners who want to condition up to four separate rooms without hiring a contractor for the refrigerant work. The system ships pre-charged with R-454B, a lower-GWP refrigerant that replaces the older R-410A, and uses a quick-connect line set that eliminates the need for a vacuum pump or manifold gauges. You choose which indoor unit styles and capacities go in each zone, giving you flexibility to mix wall cassettes across rooms of different sizes, as long as the combined indoor BTU load stays within the outdoor unit’s 36,000 BTU capacity.
At 36,000 BTU, this outdoor unit is sized for whole-home coverage in smaller homes or multi-room coverage in larger ones. Because this is a variable-speed inverter-driven system, the compressor modulates output rather than cycling on and off, which smooths out temperature swings and holds efficiency better at part load than a single-stage unit would. The fifth-generation platform represents a meaningful engineering revision over earlier MrCool generations, and the brand’s own field data suggests substantially better first-year survival rates than the third and fourth generations, though a meaningful minority of units still fail early. Buyers who are comfortable with hands-on troubleshooting and can handle documentation-heavy warranty processes will get the most out of this system.
The MrCool DIY 5th Gen 4-Zone system delivers genuine value for mechanically capable homeowners who want multi-room ductless comfort without a full contractor installation. The pre-charged quick-connect design solves the biggest DIY barrier, but buyers should go in knowing that warranty enforcement is difficult, local repair options are scarce, and a meaningful share of units still develop issues in the first couple of years.
Overall score is the average of the five ratings above.
What we like
- No vacuum pump or refrigerant license needed for installation, a real and practical advantage
- 4-zone flexibility lets you mix indoor unit types and sizes to match different rooms
- 5th-generation reliability is substantially better than earlier MrCool generations
- Variable-speed inverter compressor provides efficient part-load operation and even temperatures
- R-454B refrigerant is forward-compatible with tightening environmental regulations
Trade-offs
- Warranty claims are documentation-heavy and owners report the company actively looking for grounds to deny coverage
- Very few local HVAC technicians will work on MrCool systems, leaving repairs largely on the owner
- Early failures do occur, including a documented loose coupling near the air handler on some units
- Customer support involves long hold times and email-based troubleshooting that can slow resolution significantly
What homeowners and pros say about MRCOOL
Among owners who complete a successful installation, MrCool’s DIY 5th Gen models earn around 4.5 out of 5 stars in Home Depot reviews, with the quick-connect refrigerant line system cited most often as the feature that made a genuine difference for non-contractors. For a 4-zone system, that installation confidence matters even more because coordinating four line set connections and four indoor unit mounts is a full weekend project, and the pre-charged approach removes the single biggest technical barrier. HVAC professionals tend to have a cooler read on the brand: most acknowledge the 5th-generation reliability improvement is real, but few are willing to stake their own service reputation on a brand with thin parts availability and an owner-centric support model.
The failure modes that show up repeatedly in ownership forums and documented warranty cases are worth naming directly. A loose coupling near the air handler has caused refrigerant loss on some units shortly after startup. Warranty resolution is a friction-heavy process, with owners reporting that MrCool’s support team requests extensive documentation and, in some cases, finds procedural grounds to deny claims. Phone support queues run long, and resolution typically happens over email rather than a dispatched technician. For a single-zone system those trade-offs might be manageable; on a 4-zone installation covering multiple rooms, a single failed zone that takes weeks to resolve through email troubleshooting has a bigger impact on your household. Buyers who go in with realistic expectations about post-sale support, and who keep installation photos and all documentation from day one, tend to fare better when issues arise.
Sources: Better Business Bureau MRCOOL reviews, PickHVAC MRCOOL review, AHRI Directory of Certified Product Performance, U.S. DOE appliance and equipment efficiency standards.
How it compares
| Brand | Comparable model | SEER2 | Stage | Price position |
|---|---|---|---|---|
| MrCool | DIY 5th Gen 4-Zone 36,000 BTU | Not published for this config | Variable | Value pick |
| Mitsubishi | MXZ-4C36NAHZ2 (M-Series 4-Zone) | 18+ SEER2 depending on indoor units | Variable | Significantly higher, plus professional installation cost |
| Daikin | 4MXS36RMVJU (4-Zone Multi-Split) | 17+ SEER2 depending on indoor units | Variable | Higher than MrCool, contractor installation required |
| Fujitsu | AOU36RLXFZ1 (4-Zone Halcyon Multi) | 18+ SEER2 depending on indoor units | Variable | Higher than MrCool, professional startup required |
Competitor rows are comparable single-stage units at similar efficiency; price is relative position, not a quote.
Questions about this system
Can I really install this 4-zone system myself, or do I need to pull permits and hire an electrician?
The refrigerant side is genuinely DIY-friendly thanks to the pre-charged line sets, but the electrical connection to the outdoor unit typically requires a dedicated 240V circuit and disconnect, which in most jurisdictions must be done by a licensed electrician and may require a permit. Check your local codes before starting, because the refrigerant work being DIY does not automatically make the electrical work DIY-legal.
What happens if one zone develops a refrigerant leak or a component fails? Can a local HVAC tech fix it?
This is one of the real trade-offs with MrCool: most local HVAC companies are unfamiliar with or unwilling to service the brand, meaning you will likely end up troubleshooting with MrCool's customer support via email and phone. If a part needs replacing, you may be sourcing and installing it yourself, so factor that into your decision if any zone is in a critical space.
How does the 5th-gen reliability actually compare to older MrCool generations?
The improvement is real and significant. Earlier third and fourth generation MrCool systems saw failure rates close to 25 percent in the first two years, which was a well-documented problem. The 5th generation runs reliably past year one for roughly 85 percent of units, which is much better, though still not at the level of established contractor brands like Mitsubishi or Daikin.
What SEER2 rating does this 5th gen 4-zone unit carry, and is it eligible for tax credits?
MrCool has not published a confirmed SEER2 rating for this specific 4-zone 36,000 BTU configuration at the time of this writing, so we cannot confirm a number or guarantee federal tax credit eligibility. Check the AHRI directory and the current IRS guidelines for the 25C credit before purchasing if tax incentives are part of your budget calculation.
Can I mix different indoor unit styles, such as a wall cassette in one room and a ceiling cassette in another?
Yes, mixing indoor unit types across zones is one of the practical advantages of this system, provided the total BTU capacity of all indoor units combined does not exceed the outdoor unit's 36,000 BTU rating. MrCool's configuration tool on their website walks you through compatible indoor unit pairings for this outdoor unit.
Specifications
| Furnace output | 36000 BTU |
| Refrigerant | R-454B |
